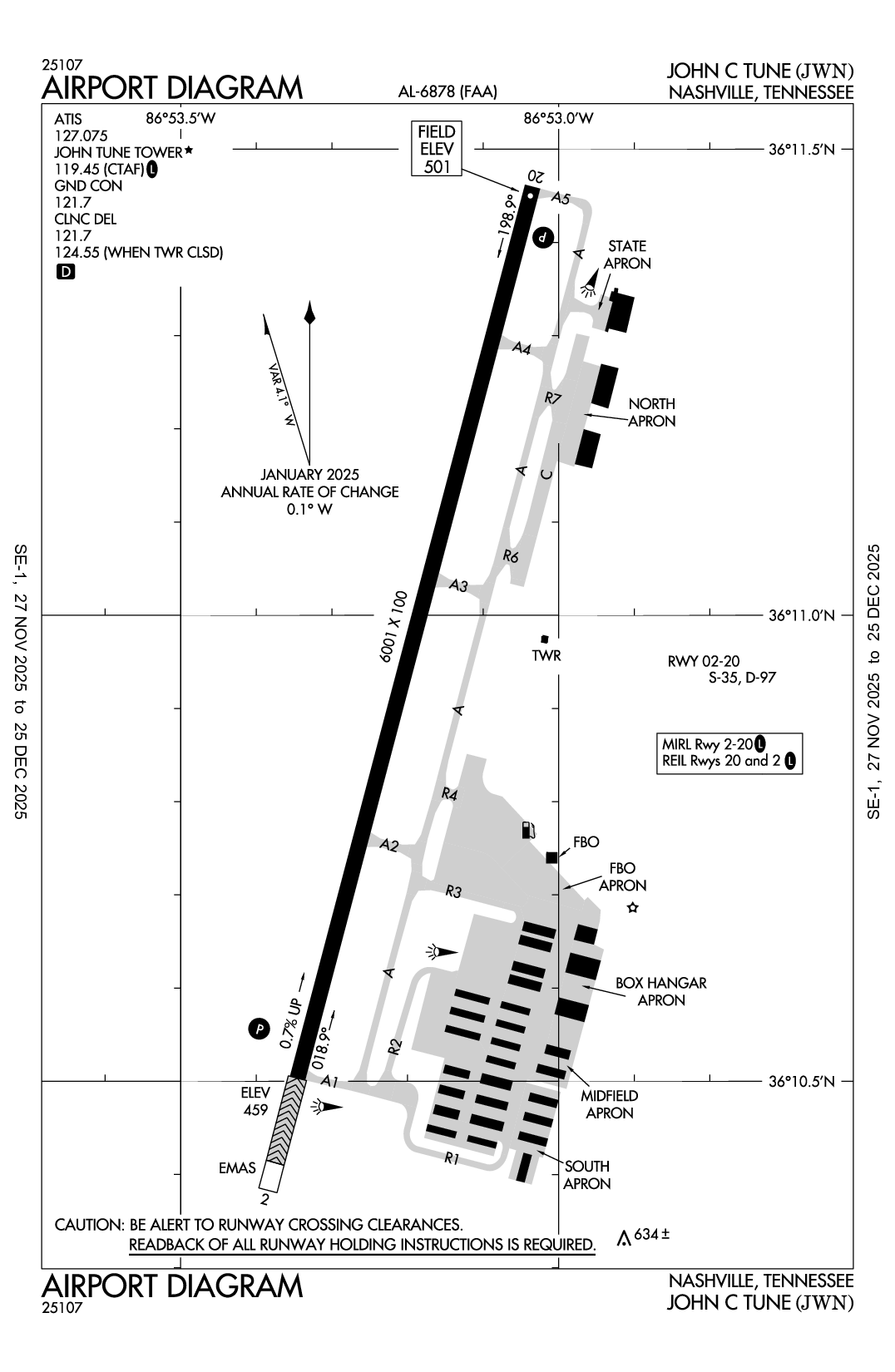

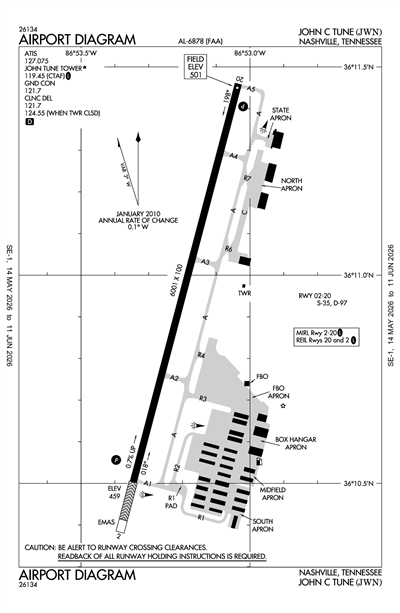

JOHN C TUNE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJWN
ICAO KJWNLocal JWN
JOHN C TUNE
PublicPUB

1 miles NW of NASHVILLE, TN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 10' 59"N 86° 53' 11"W
Elevation
501' MSL
Pattern Alt
1501' MSL
Mag Variation
4°W
Declination
3°W
Fuel
JET A (FSII), 100LL
FSS
NASHVILLE (BNA)
Sectional
ST LOUIS
ARTCC
MEMPHIS (ZME)
Data Effective
10/1/26-10/29/26
KJWN IFR
10:55 PM CDT
Overcast 1,700'
Broken 900'
Scattered 600'
9sm
70°F
70°F
30.11"Hg
020° 5kts
AO2
METAR KJWN 030355Z AUTO 02005KT 9SM SCT006 BKN009 OVC017 21/21 A3011 RMK AO2
+ Add Your Business

KJWN FBOs

Promote Listing
Contour
UNICOM: 122.85
Phone: (615) 350-5000
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 9/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 8.20
Full Serve 9.20 9.33
Fuel Notes
Prices include tax
Promote Listing
Jet Access [COMING SOON!]
UNICOM: 122.7
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.075
(615) 350-6222
AWOS-3 (615) 350-6222

Common

CTAF 119.45
WHEN ATCT CLSD ACTVT REIL RWY 02 & 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.

Clearance

Clearance Delivery 121.7
Clearance Delivery 124.55
WHEN TWR CLSD

Ground

JOHN TUNE GROUND 121.7
0700-2100

Tower

JOHN TUNE TOWER 119.45
0700-2100

Arrival

ALLLN STAR 118.4
JNING STAR 118.4
KOMBS STAR 118.4
PREDS STAR 119.35

Approach

NASHVILLE APPROACH 119.35

Departure

NASHVILLE DEPARTURE 119.35

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KBNA (11nm)
Fri, 10/2 10:09 PM CDT
Fri, 10/2 10:00 PM CDT - Sun, 10/4 1:00 AM CDT
VFR
10:00 PM CDT - 12:00 AM CDT
Overcast 10,000'
Scattered 2,500'
6sm
350° 8kts
IFR
12:00 AM CDT - 10:00 AM CDT
Mist
Overcast 700'
6sm
010° 5kts
MVFR
10:00 AM CDT - 3:00 PM CDT
Overcast 1,500'
6sm
030° 6kts
MVFR
3:00 PM CDT - 9:00 PM CDT
Broken 2,500'
6sm
040° 6kts
MVFR
9:00 PM CDT - 1:00 AM CDT
Broken 1,500'
6sm
040° 3kts
TAF KBNA 030309Z 0303/0406 35008KT P6SM SCT025 OVC100
   FM030500 01005KT 6SM BR OVC007
   FM031500 03006KT P6SM OVC015
   FM032000 04006KT P6SM BKN025
   FM040200 04003KT P6SM BKN015
KJWN
EffectiveExpiresCategoryNOTAM
Domestic
10/5/26
0300Z
10/26/26
1100Z
!BNA 09/627 JWN AD AP CLSD EXC HEL MON TUE WED THU SUN 0300-1100 2610050300-2610261100
10/3/26
0327Z
1/1/27
0427Z
!BNA 10/068 JWN OBST TOWER LGT (ASR 1055886) 362113.10N0864316.20W (13.1NM NE JWN) 817.9FT (210.0FT AGL) U/S 2610030327-2701010427
10/3/26
0005Z
12/31/26
2359Z
!BNA 10/067 JWN OBST TOWER LGT (ASR 1048011) 361846.70N0865010.70W (8.2NM NNE JWN) 1059.1FT (229.0FT AGL) U/S 2610030005-2612312359
10/1/26
1459Z
12/30/26
0400Z
!BNA 10/013 JWN OBST TOWER LGT (ASR 1216319) 361732.60N0865260.00W (6.6NM NE JWN) 1105.6FT (246.7FT AGL) U/S 2610011459-2612300400
9/30/26
0946Z
12/29/26
1046Z
!BNA 09/685 JWN OBST TOWER LGT (ASR 1228870) 360041.30N0870158.00W (12.6NM SW JWN) 1026.9FT (296.9FT AGL) U/S 2609300946-2612291046
9/28/26
1956Z
10/31/26
2200Z
!BNA 09/635 JWN TWY R4 CLSD 2609281956-2610312200
9/10/26
1503Z
12/9/26
0400Z
!BNA 09/220 JWN OBST TOWER LGT (ASR 1043380) 361849.80N0865010.10W (8.3NM NNE JWN) 1077.1FT (287.1FT AGL) U/S 2609101503-2612090400
9/4/26
1424Z
!BNA 09/091 JWN TWY C NONMOVEMENT AREA 2609041424-PERM
9/3/26
0104Z
10/18/26
0104Z
!BNA 09/055 JWN OBST TOWER LGT (ASR 1044702) 361616.00N0864528.00W (8.2NM NE JWN) 937.0FT (357.0FT AGL) U/S 2609030104-2610180104
9/1/26
1114Z
12/1/26
0400Z
!BNA 09/010 JWN OBST TOWER LGT (ASR 1000148) 361345.20N0865048.00W (3.4NM NE JWN) 1049.2FT (365.2FT AGL) U/S 2609011114-2612010400
8/28/26
1930Z
11/26/26
2030Z
!BNA 08/799 JWN OBST TOWER LGT (ASR 1031485) 362124.80N0864317.70W (13.2NM NE JWN) 929.1FT (290.0FT AGL) U/S 2608281930-2611262030
8/27/26
1134Z
11/26/26
0400Z
!BNA 08/755 JWN OBST TOWER LGT (ASR 1038115) 360440.50N0870136.60W (9.3NM SW JWN) 1086.9FT (297.9FT AGL) U/S 2608271134-2611260400
8/20/26
1102Z
11/19/26
0400Z
!BNA 08/580 JWN OBST TOWER LGT (ASR 1053288) 362111.80N0865552.10W (10.4NM NNW JWN) 989.8FT (210.0FT AGL) U/S 2608201102-2611190400
8/18/26
1222Z
11/16/26
1322Z
!BNA 08/509 JWN OBST TOWER LGT (ASR 1220520) 360150.60N0865853.80W (10.3NM SSW JWN) 1129.9FT (272.0FT AGL) U/S 2608181222-2611161322
8/18/26
1222Z
11/16/26
1322Z
!BNA 08/508 JWN OBST TOWER LGT (ASR 1002698) 360039.60N0870158.40W (12.6NM SW JWN) 974.1FT (250.0FT AGL) U/S 2608181222-2611161322
8/18/26
1221Z
11/16/26
1321Z
!BNA 08/507 JWN OBST TOWER LGT (ASR 1002697) 360219.60N0865908.60W (10.0NM SSW JWN) 1147.0FT (256.9FT AGL) U/S 2608181221-2611161321
8/18/26
1157Z
Runway!BNA 08/506 JWN RWY 02 PAPI U/S 2608181157-2610312000EST
8/18/26
1157Z
Runway!BNA 08/505 JWN RWY 20 PAPI U/S 2608181157-2610312000EST
8/12/26
0720Z
11/10/26
0820Z
!BNA 08/328 JWN OBST TOWER LGT (ASR 1212212) 361310.30N0865809.90W (4.6NM WNW JWN) 1007.9FT (319.9FT AGL) U/S 2608120720-2611100820
8/9/26
0641Z
11/7/26
0741Z
!BNA 08/240 JWN OBST TOWER LGT (ASR 1042797) 360737.20N0865439.80W (3.6NM SSW JWN) 815.9FT (259.8FT AGL) U/S 2608090641-2611070741
8/4/26
0136Z
6/28/30
2359Z
!BNA 08/086 JWN OBST TOWER LGT (ASR UNKNOWN) 360953.40N865353.10W (1.4NM WSW JWN) 507FT (107FT AGL) U/S 2608040136-3006282359
8/2/26
2240Z
10/31/26
2240Z
!BNA 08/048 JWN OBST TOWER LGT (ASR 1205294) 361228.50N0865659.20W (3.4NM WNW JWN) 748.0FT (262.1FT AGL) U/S 2608022240-2610312240
6/10/26
2227Z
!BNA 06/228 JWN NAV ILS RWY 20 NOT MNT 2606102227-2610291700EST
4/16/26
1434Z
!BNA 04/300 JWN APRON TIEDOWN NORTH RAMP CLSD 2604161434-PERM
4/16/26
1434Z
!BNA 04/299 JWN APRON HEL RAMP CLSD 2604161434-PERM
3/23/24
1149Z
1/31/27
2314Z
!BNA 03/420 JWN AIRSPACE SEE CKV 03/013 AEROBATIC ACFT DLY SR-SS 2403231149-2701312314
FDC
4/28/26
1722Z
2/26/27
1722Z
!FDC 6/6478 JWN IAP JOHN C TUNE, NASHVILLE, TN.
ILS OR LOC RWY 20, AMDT 2B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BNA VOR OUT OF SERVICE. 2604281722-2702261722EST
12/10/24
0702Z
!FDC 4/3997 JWN IAP JOHN C TUNE, NASHVILLE, TN.
RNAV (GPS) RWY 20, AMDT 2...
LPV DA 893/HAT 392 ALL CATS. LNAV/VNAV DA 1013/HAT 512 ALL CATS. LNAV MDA 1140/HAT 639 ALL CATS. VDP 1.9 NM TO RW20.
2412100702-2612100702EST
Yes
ALL
METRO NASHVILLE APT AUTHORITY
ONE TERMINAL DR.
NASHVILLE, TN 37214
Phone: 615-275-1600
ADAM C. WOLF
1000 TUNE AIRPORT DRIVE
NASHVILLE, TN 37209
Phone: 615-275-1783
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
BNA
--
WHEN ATCT CLSD ACTVT REIL RWY 02 & 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
High Pressure
Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

6001 ft. x 100 ft.
ASPH
Good
GRVD
MED

35,000lbs
97,000lbs
--
--
  Runway 02 Runway 20
True Heading 15°195°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 36° 10' 30"N 36° 11' 28"N
Longitude 86° 53' 21"W 86° 53' 02"W
Elevation 459' 501'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS & DEER INVOF ARPT.
A110-10CTC FBO 122.85
A110-3BLEEDOVER OCR ALL FREQS 1.75 NM NORTH OF RWY.
A110-7WHEN ATCT CLSD FOR CD CTC NASHVILLE APCH ON 124.55, IF UNABLE CALL 615-695-4524.
A110-8TWY R1 CLSD TO ACFT WINGSPAN MORE THAN 49FT
A110-9TWY R2 CLSD TO ACFT WINGSPAN MORE THAN 79FT
A76-INSTRHEL & FIXED WING.
A81-APTWHEN ATCT CLSD ACTVT REIL RWY 02 & 20; PAPI RWY 02 & 20; MIRL RWY 02/20 - CTAF.
E60-20_EMASENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 186 FT LONG BY 121 FT WIDE LCTD 560 FT FM DEP END RWY 20.
JOHN C TUNE (ICAO: KJWN, IATA: JWN) is a public airport located in NASHVILLE, TN, US.
