JACKSON COUNTY/REYNOLDS FLD - Airport Diagram

KJXN

ICAO KJXNIATA JXNLocal JXN

JACKSON COUNTY/REYNOLDS FLD

PublicPUB

2 miles W of JACKSON, MI, US

View on Map

Status

Operational

Coordinates

42° 15' 38"N 84° 27' 44"W

Elevation

1001' MSL

Pattern Alt

2001' MSL

Mag Variation

7°W

Declination

7°W

Fuel

JET A (FSII), 100LL

FSS

LANSING (LAN)

Sectional

DETROIT

ARTCC

CLEVELAND (ZOB)

Data Effective

10/29/26-11/26/26

KJXN IFR

7:56 AM EST RAW

Overcast 800'

Viz

10sm

Temp

44°F

Dew

40°F

Pres

29.73"Hg

Wind

310° 4kts

RMK

AO2 SLP072 T00670044

METAR KJXN 121256Z 31004KT 10SM OVC008 07/04 A2973 RMK AO2 SLP072 T00670044

Add Your Business

KJXN FBOs

Promote Listing

Skyway Aviation

UNICOM: 122.95

Phone: (517) 787-2460

Other: (517) 206-4700

0 Reviews (Read | Sign In To Write)

Independent

As of 10/30	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	6.99	6.99
Full Serve	7.99	7.99

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	125.725
ASOS	(517) 768-7506

Common

CTAF	128.475
WHEN ATCT CLSD ACTVT MALSR RWY 25; REIL RWY 07 & 32; PAPI RWY 07, 25, 14 & 32; HIRL RWY 07/25; MIRL RWY 14/32 - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

121.9

Ground

JACKSON GROUND	121.9
0700-2100

Tower

JACKSON TOWER	128.475
0700-2100

Approach

GREAT LAKES APPROACH

127.3

Departure

GREAT LAKES DEPARTURE

127.3

Center

GREAT LAKES CENTER	120.45
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 120.45/360.7 (LITCHFIELD RCAG) WHEN GREAT LAKES APCH CTL CLSD.

Emergency

121.5

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

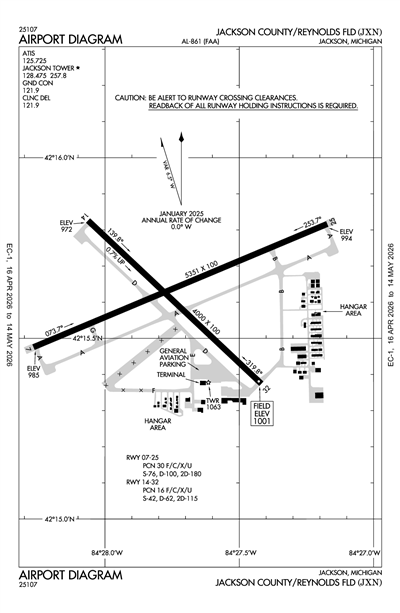

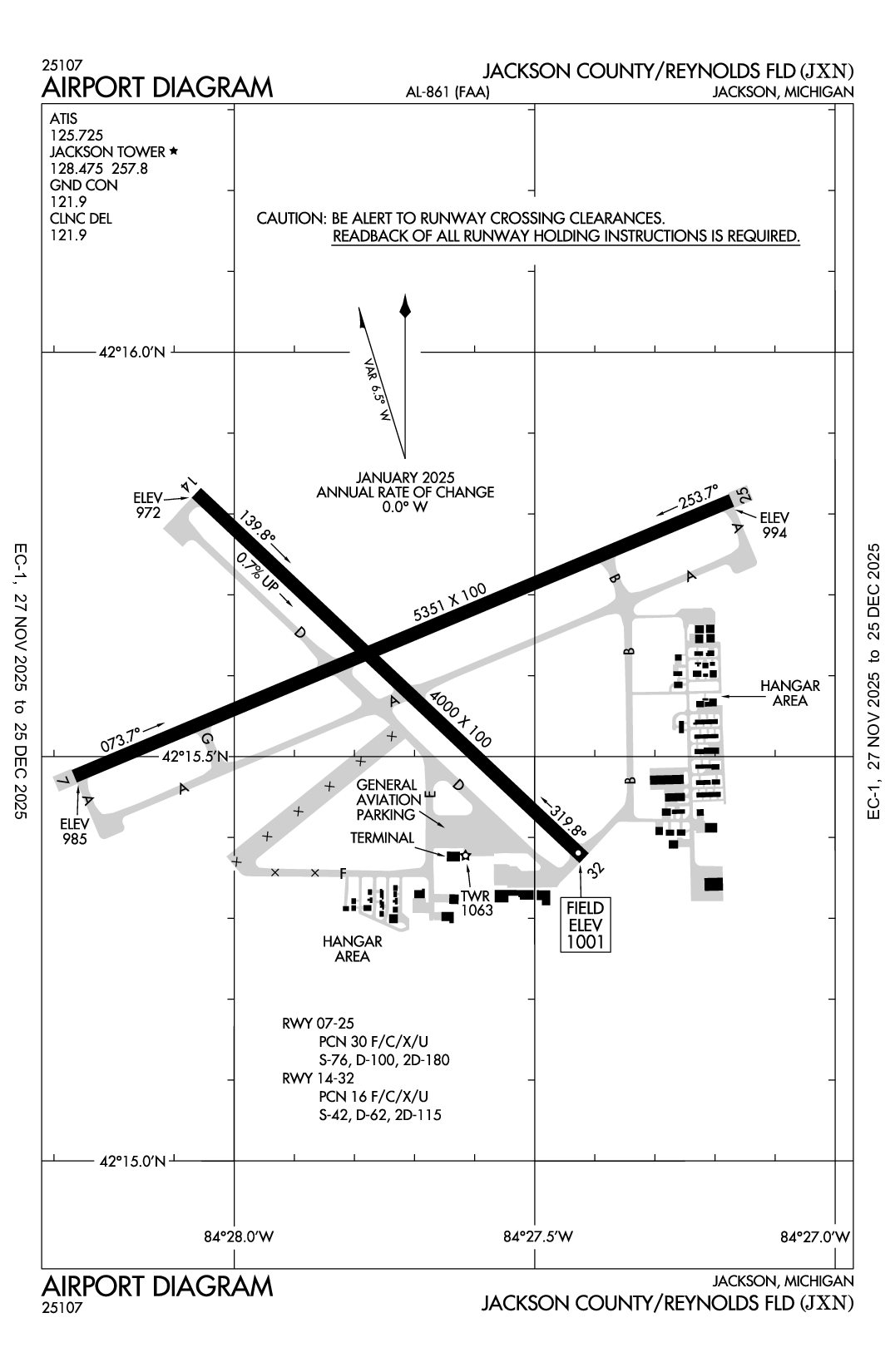

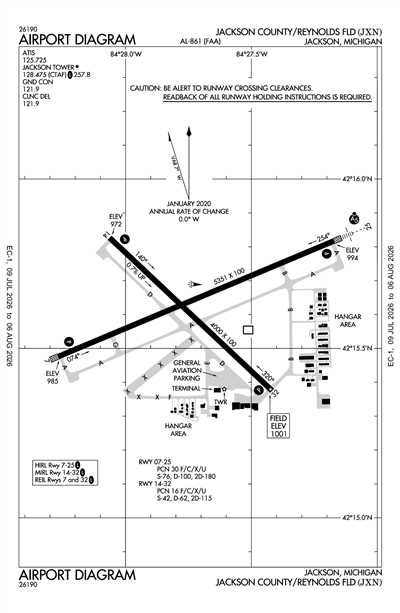

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KJXN

RAW

Reported

Thu, 11/12 6:27 AM EST

Valid

Thu, 11/12 7:00 AM EST - Fri, 11/13 7:00 AM EST

IFR

7:00 AM EST - 2:00 PM EST

Overcast 700'

Viz

6sm

Wind

330° 7kts

IFR

2:00 PM EST - 8:00 PM EST

Light Rain

Overcast 700'

Viz

4sm

Wind

350° 10kts

Gusts 17kts

MVFR

8:00 PM EST - 12:00 AM EST

Broken 2,300'

Viz

6sm

Wind

360° 10kts

Gusts 22kts

VFR

12:00 AM EST - 7:00 AM EST

Broken 3,500'

Viz

6sm

Wind

350° 5kts

TAF KJXN 121127Z 1212/1312 33007KT P6SM OVC007
   FM121900 35010G17KT 4SM -RA OVC007
   FM130100 36010G22KT P6SM BKN023
   FM130500 35005KT P6SM BKN035

KJXN

Effective	Expires	Category	NOTAM
Domestic
10/26/26 0704Z	1/24/27 0804Z		!JXN 10/005 JXN OBST TOWER LGT (ASR 1239333) 421633.30N0843658.60W (6.9NM W JXN) 1214.9FT (253.0FT AGL) U/S 2610260704-2701240804
9/23/26 1132Z	1/21/27 1132Z		!JXN 09/025 JXN OBST TOWER LGT (ASR 1000879) 421633.00N0842418.00W (2.7NM ENE JXN) 1250.0FT (250.0FT AGL) U/S 2609231132-2701211132
9/22/26 1914Z		Runway	!JXN 09/024 JXN RWY 07 RWY END ID LGT U/S 2609221914-2703222111EST

ATC Tower

Yes

Attendance

MON-FRI 0800-1700
SAT-SUN 0800-1500

Owner

JACKSON COUNTY
120 W MICHIGAN AVE JACKSON CO TOWER BLDG 5TH FL
JACKSON, MI 49201
Phone: 517-788-4335

Manager

JUAN ZAPATA
3606 WILDWOOD AVE
JACKSON, MI 49202
Phone: 517-788-4225

FSS

LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF

NOTAM

JXN

Light Schedule

Lights

WHEN ATCT CLSD ACTVT MALSR RWY 25; REIL RWY 07 & 32; PAPI RWY 07, 25, 14 & 32; HIRL RWY 07/25; MIRL RWY 14/32 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Pilot Instruction

Runway 07/25

Dimensions

5351 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

30/F/C/X/U

Single Wheel

76,000lbs

Double Wheel

100,000lbs

Double Tandem

180,000lbs

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	67°	247°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	42° 15' 29"N	42° 15' 49"N
Longitude	84° 28' 16"W	84° 27' 10"W
Elevation	985'	994'
Threshold Crossing Height	37 ft. AGL	45 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights	No	No
Runway End Identifier Lights	Yes	No

Runway 14/32

Dimensions

4000 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

16/F/C/X/U

Single Wheel

42,000lbs

Double Wheel

62,000lbs

Double Tandem

115,000lbs

Dual Dbl Tand

	Runway 14	Runway 32
True Heading	133°	313°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	42° 15' 50"N	42° 15' 22"N
Longitude	84° 28' 04"W	84° 27' 25"W
Elevation	972'	1,001'
Threshold Crossing Height	25 ft. AGL	31 ft. AGL
Visual Glide Path Angle	3°	3.5°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	Yes

A110-1	DEER & LRG BIRDS ON & INVOF ARPT.
A110-2	LOW ALT HEL OPS PROHIBITED INVOF PRISON 4 MI NE.
A110-3	WINTER FICONS UNMON WHEN ATCT CLSD.
A110-6	ACFT TAXIING UP TWY D COULD POSSLY MISS THE TURN FOR TWY A & VIOLATE THE SAFETY ZONE FOR RWY 07/25.
A110-7	FOR CD WHEN ATCT CLSD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A70-100LL	100LL & JET A+ AVBL SELF SVC ON MAIN RAMP.
A81-APT	WHEN ATCT CLSD ACTVT MALSR RWY 25; REIL RWY 07 & 32; PAPI RWY 07, 25, 14 & 32; HIRL RWY 07/25; MIRL RWY 14/32 - CTAF.
E111	PRVDD SFC APROPLY MKD; IF USED AT NGT RWY APROPLY LGTD INCLG EDGE LGTS; CLEAR FAR PART 77 20:1 APCH SFCS TO BOTH RWY ENDS; 300 FT & ASSOCD EDGE RWY SAFETY AREAS PRVDD; HOLD SHORT LINES PAINTED ON ALL ADJ TWYS; AREA BYD EACH THR MKD AS TWYS NOT DSPLCD THRS; THR COORDS & ELEVS PRVDD TO AGL-200.

JACKSON COUNTY/REYNOLDS FLD (ICAO: KJXN, IATA: JXN) is a public airport located in JACKSON, MI, US.
