iFlightPlanner



...

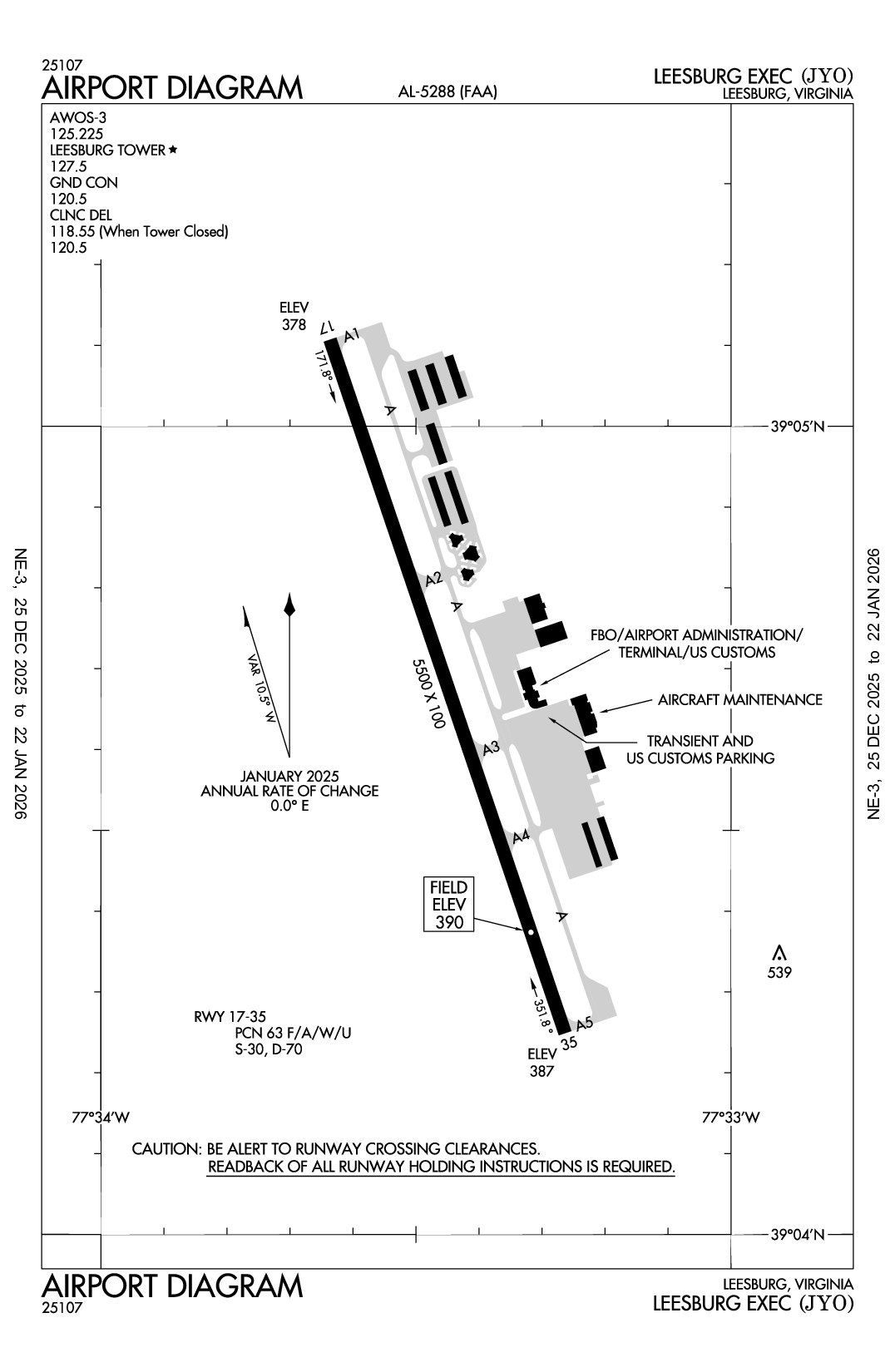

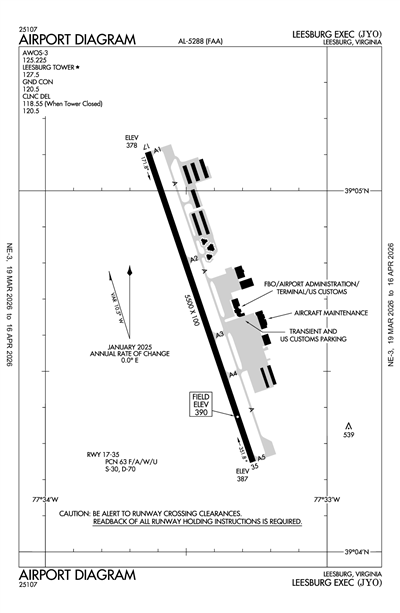

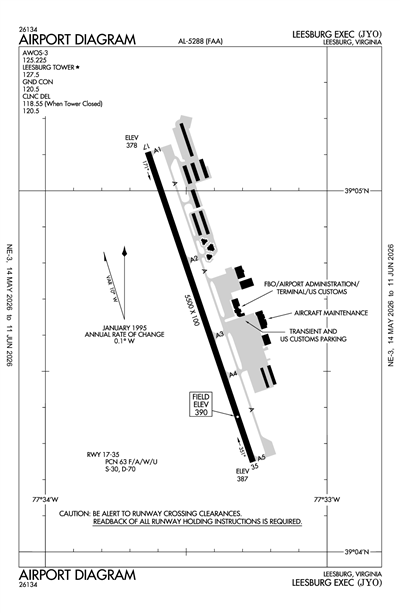

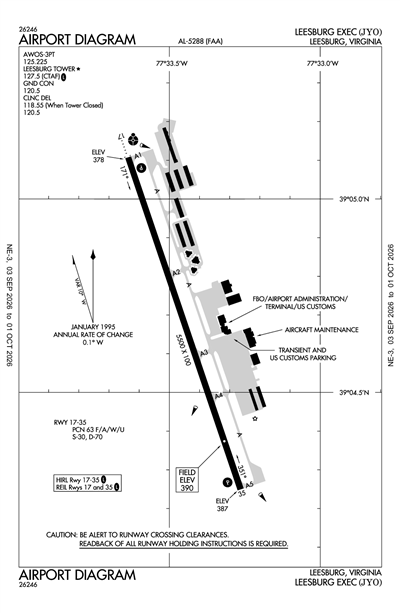

LEESBURG EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJYO
ICAO KJYOIATA JYOLocal JYO
LEESBURG EXEC
PublicPUB

3 miles S of LEESBURG, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 04' 41"N 77° 33' 27"W
Elevation
390' MSL
Pattern Alt
1200' MSL
Mag Variation
10°W
Declination
10°W
Fuel
JET A, 100LL
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
7/9/26-8/6/26
KJYO VFR
7:55 PM EDT
Clear
10sm
81°F
68°F
30.19"Hg
280° 4kts
AO2
METAR KJYO 132355Z AUTO 28004KT 10SM CLR 27/20 A3019 RMK AO2
+ Add Your Business

KJYO FBOs

Promote Listing
KUHN Aviation
ASRI: 131.2
Phone: (703) 665-3000
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 7/13
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.89 5.97
Fuel Notes
Prices include tax

KJYO Other Aviation Services

Promote Listing
EIT Avionics
Phone: (571) 578-3072
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 125.225
(703) 777-3781

Common

CTAF 127.5
WHEN ATCT CLSD ACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
UNICOM 122.975

Clearance

Clearance Delivery 118.55
WHEN JYO TWR CLSD
Clearance Delivery 120.5

Ground

LEESBURG GROUND 120.5
1300-2300Z++

Tower

LEESBURG TOWER 127.5
1300-2300Z++

Arrival

COATT STAR 128.525
GIBBZ STAR 120.45
HYPER STAR 133.0
TRSTN STAR 126.75

Approach

POTOMAC APPROACH 125.05

Departure

CLTCH DP 125.05
JDUBB DP 125.05
POTOMAC DEPARTURE 125.05
PTOMC DP 125.05
SCRAM DP 125.05

Terminal Area Forecast

KIAD (10nm)
Mon, 7/13 7:23 PM EDT
Mon, 7/13 8:00 PM EDT - Wed, 7/15 2:00 AM EDT
VFR
8:00 PM EDT - 2:00 AM EDT
Scattered 25,000'
Few 6,000'
6sm
140° 5kts
VFR
2:00 AM EDT - 12:00 PM EDT
Sky Clear
6sm
Calm
VFR
12:00 PM EDT - 2:00 AM EDT
Few 5,000'
6sm
220° 6kts
TAF KIAD 132323Z 1400/1506 14005KT P6SM FEW060 SCT250
   FM140600 00000KT P6SM SKC
   FM141600 22006KT P6SM FEW050
KJYO
EffectiveExpiresCategoryNOTAM
Domestic
7/14/26
0400Z
7/14/26
0900Z
!JYO 07/009 JYO COM CLR DELIVERY 118.55 U/S USE 1-866-709-4993 2607140400-2607140900
7/14/26
0000Z
8/22/26
1000Z
Runway!JYO 07/014 JYO RWY 17/35 CLSD MON-FRI 0000-1000 2607140000-2608221000
7/14/26
0000Z
8/11/26
0400Z
!JYO 07/013 JYO TWY A SOUTH OF A4 CLSD 2607140000-2608110400
7/14/26
0000Z
9/23/26
1000Z
Runway!JYO 07/012 JYO RWY 17/35 PORTIONS NOT GROOVED 2607140000-2609231000
7/14/26
0000Z
8/11/26
0400Z
!JYO 07/011 JYO TWY A5 CLSD 2607140000-2608110400
7/8/26
1200Z
7/31/26
2000Z
!JYO 07/001 JYO NAV ILS RWY 17 DME U/S 2607081200-2607312000
6/11/26
2351Z
9/9/26
2351Z
!JYO 06/008 JYO OBST TOWER LGT (ASR 1061299) 390638.70N0773328.80W (2.0NM N JYO) 533.1FT (199.1FT AGL) U/S 2606112351-2609092351
4/29/26
1943Z
7/29/26
2359Z
!JYO 04/020 JYO TWY A5 HLDG PSN SIGN FOR RWY 17/35 LGT U/S 2604291943-2607292359
4/29/26
1943Z
7/29/26
2359Z
Runway!JYO 04/019 JYO RWY 17 ALS U/S 2604291943-2607292359
4/27/26
1555Z
!JYO 04/018 JYO APRON HANGAR E APN CLSD TO ACFT MORE THAN 35000LB 2604271555-PERM
9/4/25
1612Z
!JYO 09/001 JYO AIRSPACE SEE FDC 5/7224 ZDC SECURITY INSTRUCTIONS 2509041612-PERM
9/4/24
1822Z
!JYO 09/002 JYO AIRSPACE SEE FDC 4/2565 ZDC SECURITY INSTRUCTIONS 2409041822-PERM
FDC
7/6/26
1421Z
!FDC 6/3054 JYO SID LEESBURG EXEC, LEESBURG, VA.
CLTCH THREE DEPARTURE (RNAV)...
JDUBB FOUR DEPARTURE (RNAV)...
SCRAM SIX DEPARTURE (RNAV)...
TAKE-OFF MINIMUMS RWY 17, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 280FT PER NM TO 610. TEMPORARY CRANE 4849FT FROM DER, 529FT LEFT OF CENTERLINE, 178FT AGL/556FT MSL (2023-AEA-4864-OE). TEMPORARY CRANE 5366FT FROM DER, 319FT LEFT OF CENTERLINE, 190FT AGL/572FT MSL (2023-AEA-4876-OE). TEMPORARY CRANES BEGINNING 1.00NM FROM DER, 526FT LEFT OF CENTERLINE, UP TO 200FT AGL/571FT MSL (2024-AEA-10703 THRU 10713-OE). TEMPORARY CRANES BEGINNING 1.02NM FROM DER, 556FT LEFT OF CENTERLINE, UP TO 200FT AGL/573FT MSL (2024-AEA-10715 THRU 10725-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2607061421-2801141421EST
7/6/26
1421Z
!FDC 6/3053 JYO IAP LEESBURG EXEC, LEESBURG, VA.
ILS OR LOC RWY 17, AMDT 1B...
PEARC FIX MINIMUMS:
CIRCLING CAT A/B MDA 920/HAA 530.
TEMPORARY CRANE 556FT MSL 1.25 NM SOUTHEAST OF JYO AIRPORT (2023-AEA-4864-OE). TEMPORARY CRANE 572FT MSL 1.34 NM SOUTHEAST OF JYO AIRPORT (2023-AEA-4876-OE). TEMPORARY CRANES 571FT MSL 1.00NM SOUTHEAST OF JYO AIRPORT (2024-AEA-10703 THRU 10713-OE). TEMPORARY CRANES 573FT MSL 1.47NM SOUTHEAST OF JYO AIRPORT (2024-AEA-10715 THRU 10725-OE).
2607061421-2801141421EST
7/6/26
1421Z
!FDC 6/3052 JYO ODP LEESBURG EXEC, LEESBURG, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
TAKE-OFF MINIMUMS RWY 17, 300-1 3/8 OR STANDARD WITH MINIMUM CLIMB OF 280FT PER NM TO 610. TEMPORARY CRANE 4849FT FROM DER, 529FT LEFT OF CENTERLINE, 178FT AGL/556FT MSL (2023-AEA-4864-OE). TEMPORARY CRANE 5366FT FROM DER, 319FT LEFT OF CENTERLINE, 190FT AGL/572FT MSL (2023-AEA-4876-OE). TEMPORARY CRANES BEGINNING 1.00NM FROM DER, 526FT LEFT OF CENTERLINE, UP TO 200FT AGL/571FT MSL (2024-AEA-10703 THRU 10713-OE). TEMPORARY CRANES BEGINNING 1.02NM FROM DER, 556FT LEFT OF CENTERLINE, UP TO 200FT AGL/573FT MSL (2024-AEA-10715 THRU 10725-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2607061421-2801141421EST
9/30/25
1221Z
!FDC 5/2643 JYO SID LEESBURG EXEC, LEESBURG, VA.
JDUBB FOUR DEPARTURE (RNAV)...
RRSIN TRANSITION: JDUBB TO TYPNZ MOCA 1900. MELTN TRANSITION: JDUBB TO CASLY MOCA 1900. ALL OTHER DATA REMAINS AS PUBLISHED. 2509301221-2709301221EST
6/25/25
2041Z
!FDC 5/9056 JYO IAP LEESBURG EXEC, LEESBURG, VA.
ILS OR LOC RWY 17, AMDT 1B...
S-ILS 17, VISIBILITY ALL CATS 1.
S-LOC 17, VISIBILITY CAT A 1.
PEARC FIX MINIMUMS: S-LOC 17, VISIBILITY CATS A/B 1.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WASHINGTON DULLES INTL ALTIMETER SETTING AND INCREASE S-ILS 17 DA TO 665 FEET; INCREASE ALL MDAS 40 FEET AND S-LOC 17 VISIBILITY CAT C/D 1/8 SM AND CIRCLING VISIBILITY CAT C 1/4 SM AND PEARC FIX MINIMUMS: CIRCLING CAT C 1/4 SM..
2506252041-2706252041EST
11/14/24
1411Z
!FDC 4/4174 JYO ODP LEESBURG EXEC, LEESBURG, VA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLE NOTE: RWY 17, BLDG 1301FT FROM DER, 765FT RIGHT OF CENTERLINE, 79FT AGL/420FT MSL (4D).
2411141411-2611141408EST
Yes
0600-2100
TOWN OF LEESBURG
25 WEST MARKET ST. 25 WEST MARKET ST.
LEESBURG, VA 20176
Phone: 703-777-2420
SCOTT COFFMAN
1001 SYCOLIN ROAD, SE, SUITE 7
LEESBURG, VA 20175
Phone: 703-737-7125
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
JYO
--
WHEN ATCT CLSD ACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
N/A
Yes
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 17/35

5500 ft. x 100 ft.
ASPH
Good
GRVD
HIGH
63/F/A/W/U
30,000lbs
70,000lbs
--
--
  Runway 17 Runway 35
True Heading 161°341°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 39° 05' 06"N 39° 04' 15"N
Longitude 77° 33' 38"W 77° 33' 16"W
Elevation 378' 387'
Threshold Crossing Height 45 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ODALS
Centerline Lights No
Runway End Identifier Lights Yes Yes
A110-10RAMP FENCE S/W SIDE RAMPS LEAD IN LINES ON WEST RAMP NA.
A110-12PSBL THERMAL PLUMES FM PWR PLANT 1.3 NM SSE.
A110-13FOR CD WHEN ATCT CLSD, CTC POTOMAC APCH 118.55 OR 866-709-4993.
A110-3BIRDS & DEER ON & INVOF ARPT.
A110-7HEL ACT ON & INVOF ARPT.
A110-9CALM WIND USE RWY 17.
A49-17NSTD ODALS, 3 LGT CONFIGURATION.
A81-APTWHEN ATCT CLSD ACTVT ODALS RWY 17; REIL RWY 17 & 35; PAPI RWY 17 & 35; HIRL RWY 17/35 - CTAF.
E80US CUST AVBL MON-SUN 0600-2100. CALL COMMAND CNTR 703-661-2800 FOR APNTMT. 24 HR NOTICE RQRD.
LEESBURG EXEC (ICAO: KJYO, IATA: JYO) is a public airport located in LEESBURG, VA, US.
