iFlightPlanner



...

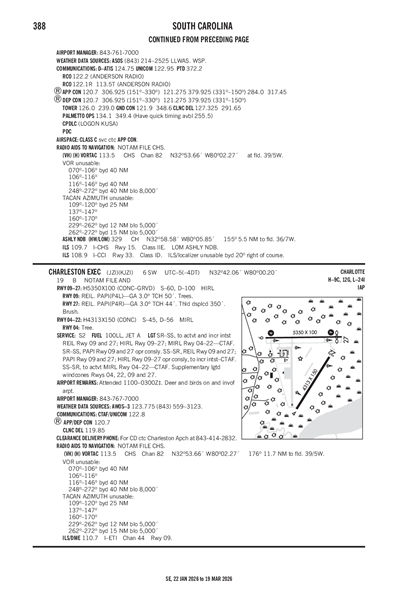

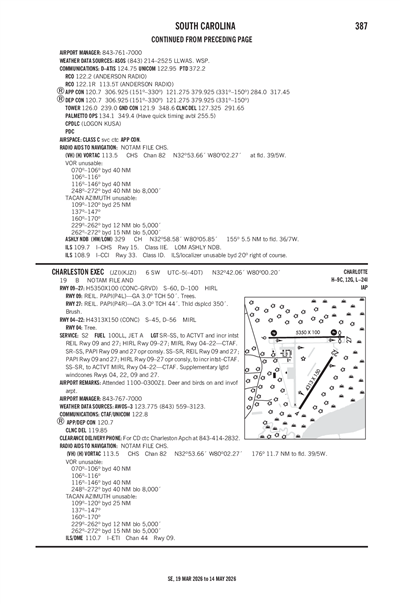

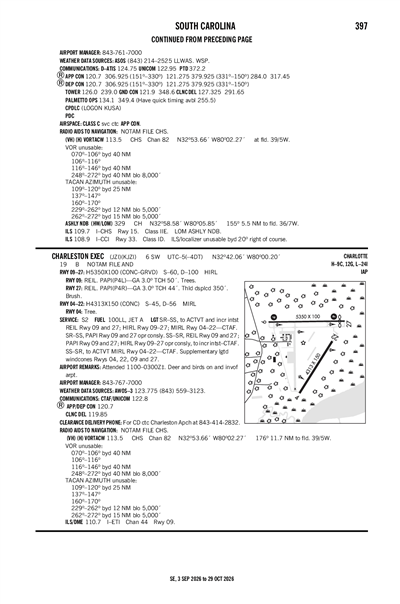

CHARLESTON EXEC - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJZI
ICAO KJZIIATA JZILocal JZI
CHARLESTON EXEC
PublicPUB

6 miles SW of CHARLESTON, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 42' 04"N 80° 00' 12"W
Elevation
19' MSL
Pattern Alt
1019' MSL
Mag Variation
8°W
Declination
5°W
Fuel
JET A, 100LL
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
10/29/26-11/26/26
KJZI VFR
7:55 AM EST
Clear
10sm
61°F
52°F
29.77"Hg
230° 7kts
AO2
METAR KJZI 121255Z AUTO 23007KT 10SM CLR 16/11 A2977 RMK AO2
+ Add Your Business

KJZI FBOs

Promote Listing
Atlantic Aviation
UNICOM: 129.825
Phone: (843) 559-2401
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 8.18
Full Serve 10.09 11.72
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 123.775
(843) 559-3123

Common

CTAF 122.8
SR-SS, TO ACTVT AND INCR INTST REIL RWY 09 & 27; HIRL RWY 09/27; MIRL RWY 04/22 - CTAF. SR-SS, PAPI RWY 09 & 27 OPR CONSLY. SS-SR, REIL RWY 09 & 27; PAPI RWY 09 & 27; HIRL RWY 09/27 OPR CONSLY, TO INCR INTST - CTAF. SS-SR, TO ACTVT MIRL RWY 04/22 - CTAF.
UNICOM 122.8

Clearance

Clearance Delivery 119.85

Approach

CHARLESTON APPROACH 120.7

Departure

CHARLESTON DEPARTURE 120.7

Terminal Area Forecast

KJZI
Thu, 11/12 6:38 AM EST
Thu, 11/12 7:00 AM EST - Fri, 11/13 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Few 20,000'
6sm
240° 7kts
VFR
9:00 AM EST - 1:00 PM EST
Scattered 6,000'
6sm
250° 12kts
Gusts 20kts
VFR
1:00 PM EST - 6:00 PM EST
Sky Clear
6sm
250° 17kts
Gusts 26kts
VFR
6:00 PM EST - 11:00 PM EST
Sky Clear
6sm
270° 11kts
Gusts 19kts
VFR
11:00 PM EST - 7:00 AM EST
Sky Clear
6sm
300° 9kts
TAF KJZI 121138Z 1212/1312 24007KT P6SM FEW200
   FM121400 25012G20KT P6SM SCT060
   FM121800 25017G26KT P6SM SKC
   FM122300 27011G19KT P6SM SKC
   FM130400 30009KT P6SM SKC
KJZI
EffectiveExpiresCategoryNOTAM
Domestic
11/11/26
1938Z
2/9/27
1938Z
!AND 11/132 JZI OBST TOWER LGT (ASR 1038410) 324735.60N0800203.30W (5.7NM NNW JZI) 357.9FT (350.1FT AGL) U/S 2611111938-2702091938
11/6/26
0636Z
11/21/26
0536Z
!AND 11/068 JZI OBST TOWER LGT (ASR 1205113) 324646.80N0800941.60W (9.2NM WNW JZI) 449.1FT (434.1FT AGL) U/S 2611060636-2611210536
11/2/26
2241Z
1/31/27
2241Z
!AND 11/021 JZI OBST TOWER LGT (ASR 1053053) 324044.10N0800511.20W (4.4NM WSW JZI) 308.7FT (289.7FT AGL) U/S 2611022241-2701312241
10/19/26
1624Z
2/16/27
1624Z
!AND 10/279 JZI OBST TOWER LGT (ASR 1060835) 324338.70N0795639.40W (3.4NM ENE JZI) 274.9FT (265.1FT AGL) U/S 2610191624-2702161624
FDC
7/23/25
1633Z
!FDC 5/3307 JZI IAP CHARLESTON EXEC, CHARLESTON, SC.
RNAV (GPS) RWY 27, AMDT 2C...
LNAV MDA 420/HAT 405.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE CHS ALTIMETER SETTING AND INCREASE LPV DA TO 297 FEET AND VISIBILITY ALL CATS 1/8 SM; INCREASE LNAV/VNAV DA TO 335 FEET AND VISIBILITY ALL CATS 1/8 SM; INCREASE ALL MDAS 40 FEET AND VISIBILITY CAT C/D 1/4 SM.
2507231633-2707231633EST
No
0600-2200
CHARLESTON CO AVN AUTHORITY
5500 INTL BLVD, # 101
CHARLESTON, SC 29418
Phone: 843-767-7000
ELLIOTT SUMMEY
5500 INTERNATIONAL BLVD, #101
CHARLESTON, SC 29418
Phone: 843-767-7000
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
SR-SS, TO ACTVT AND INCR INTST REIL RWY 09 & 27; HIRL RWY 09/27; MIRL RWY 04/22 - CTAF. SR-SS, PAPI RWY 09 & 27 OPR CONSLY. SS-SR, REIL RWY 09 & 27; PAPI RWY 09 & 27; HIRL RWY 09/27 OPR CONSLY, TO INCR INTST - CTAF. SS-SR, TO ACTVT MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Pilot Instruction
Aircraft Rental

Runway 04/22

4313 ft. x 150 ft.
CONC
Good
NONE
MED

45,000lbs
56,000lbs
--
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition GOOD GOOD
Latitude 32° 41' 28"N 32° 42' 04"N
Longitude 80° 00' 21"W 79° 59' 54"W
Elevation 10' 11'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 09/27

5350 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH

60,000lbs
100,000lbs
--
--
  Runway 09 Runway 27
True Heading 89°269°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 32° 42' 17"N 32° 42' 18"N
Longitude 80° 00' 46"W 79° 59' 44"W
Elevation 19' 11'
Threshold Crossing Height 50 ft. AGL 44 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-3FOR CD CTC CHARLESTON APCH AT 843-414-2832.
A57-27APPROACH SLOPE TO DISPLACED THR. IS 50:1.
A58-04TREE LINE 231 FEET EAST OF RWY 4 THLD 21 FEET HIGH
A81-APTSR-SS, TO ACTVT AND INCR INTST REIL RWY 09 & 27; HIRL RWY 09/27; MIRL RWY 04/22 - CTAF. SR-SS, PAPI RWY 09 & 27 OPR CONSLY. SS-SR, REIL RWY 09 & 27; PAPI RWY 09 & 27; HIRL RWY 09/27 OPR CONSLY, TO INCR INTST - CTAF. SS-SR, TO ACTVT MIRL RWY 04/22 - CTAF.
A83SUPPLEMENTARY LGTD WINDCONES RWYS 04, 22, 09 & 27.
E111ARPT EXISTED PRIOR TO 1958
CHARLESTON EXEC (ICAO: KJZI, IATA: JZI) is a public airport located in CHARLESTON, SC, US.
