iFlightPlanner



...

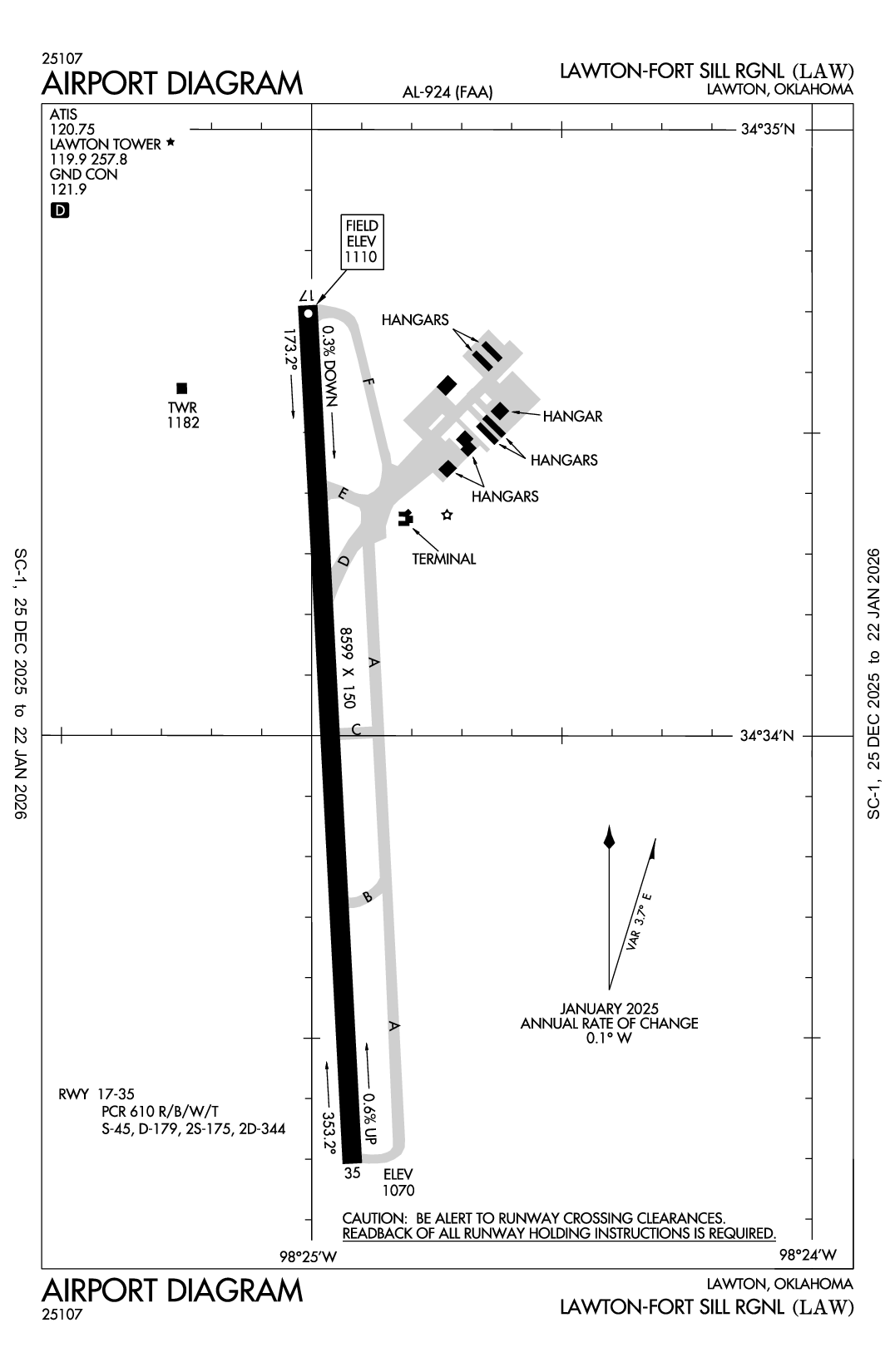

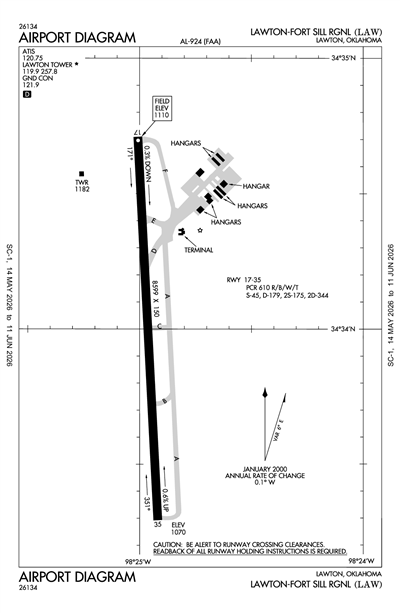

LAWTON-FORT SILL RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLAW
LAWTON-FORT SILL RGNL
PublicPUB

2 miles S of LAWTON, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 34' 04"N 98° 24' 60"W
1110' MSL
2110' MSL
06E
Jet A-1+, 100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
4/18/24-5/16/24
KLAW VFR
1:53 AM CDT
Clear
10sm
56°F
48°F
29.94"Hg
170° 8kts
AO2 SLP132 T01330089
KLAW 230653Z AUTO 17008KT 10SM CLR 13/09 A2994 RMK AO2 SLP132 T01330089
List Your Business

KLAW FBOs, Flight Schools and Ground Support

Promote Listing
Lawton Aviation Services
Freq: 122.95
Phone: (580) 351-2900
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/8
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 6.15 4.99

KLAW Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLAW Hotels

No hotels are listed for this airport.

KLAW Restaurants

No restaurants are listed for this airport.

KLAW Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.9

ATIS

ATIS
 120.75

ASOS

ASOS
580-581-1351
 120.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 119.9

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLAW
Tue, 4/23 12:20 AM CDT
Tue, 4/23 1:00 AM CDT - Wed, 4/24 1:00 AM CDT
VFR
1:00 AM CDT - 9:00 AM CDT
Few 25,000'
6sm
160° 10kts
Shear 200° 45kts @ 2000'
VFR
9:00 AM CDT - 4:00 PM CDT
Scattered 25,000'
Scattered 15,000'
6sm
200° 15kts
Gusts 24kts
VFR
4:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Scattered 15,000'
6sm
100° 9kts
KLAW 230520Z 2306/2406 16010KT P6SM FEW250 WS020/20045KT
   FM231400 20015G24KT P6SM SCT150 SCT250
   FM232100 10009KT P6SM SCT150 BKN250
KLAW
Domestic
4/22/240716Z !LAW 04/010 LAW OBST TOWER LGT (ASR 1246624) 343535.80N0981224.60W (10.5NM E LAW) 1447.8FT (294.9FT AGL) U/S 2404220716-2405070616
4/13/240545Z !LAW 04/009 LAW OBST TOWER LGT (ASR 1009790) 344757.00N0981740.00W (15.1NM NNE LAW) 1625.0FT (263.1FT AGL) U/S 2404130545-2406301159
4/10/241525Z !LAW 04/006 LAW OBST TOWER LGT (ASR 1320045) 343616.17N0982415.29W (2.3NM NNE LAW) 1267FT (149FT AGL) U/S 2404101525-2405251515
4/9/241504Z !LAW 04/005 LAW OBST CRANE (ASN UNKNOWN) 343443N0982528W (1NM W LAW)
UNKNOWN (100FT AGL) NOT LGTD DLY SR-SS 2404091504-2405011300
3/18/241559Z !LAW 03/011 LAW OBST TOWER LGT (ASR 1205071) 344410.20N0982907.20W (10.6NM NNW LAW) 1874.0FT (270.0FT AGL) U/S 2403181559-2407062359
2/27/240548Z !LAW 02/023 LAW OBST TOWER LGT (ASR 1009791) 343537.20N0983752.20W (10.8NM W LAW) 1660.1FT (390.1FT AGL) U/S 2402270548-2405292359
12/21/232105Z !LAW 12/005 LAW OBST TOWER LGT (ASR 1010552) 343431.00N0982831.00W (2.9NM W LAW) 1464.9FT (297.9FT AGL) U/S 2312212105-2406302359
FDC
4/20/241146Z !FDC 4/3327 LAW IAP LAWTON-FORT SILL RGNL, LAWTON, OK.
ILS OR LOC RWY 35, AMDT 8A...
VOR RWY 35, AMDT 21A...
RADAR REQUIRED FOR PROCEDURE ENTRY AT SPS VORTAC EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SPS VOR OUT OF SERVICE. 2404201146-2405201146EST
Yes
MON-FRI 0530-2000
SAT-SUN 0530-1900
CITY OF LAWTON
BOX 531
LAWTON, OK 73502
Phone: 580-581-3301
BARBARA MCNALLY
3401 S 11TH ST
LAWTON, OK 73501
Phone: 580-353-4869
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
LAW
--
WHEN ATCT CLSD ACTVT MALSR RWY 35 - CTAF. HIRL RWY 17/35 PRESET MED INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
42
4
4
3
0
0
Major
Major
None
High & Low Pressure
Air Freight
Cargo Handling
Pilot Instruction
Aircraft Rental

Runway 17/35

8599 ft. x 150 ft.
CONC
Good
WC
HIGH

45,000lbs
179,000lbs
344,000lbs
--
  Runway 17 Runway 35
True Heading 177°357°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 34° 34' 43"N 34° 33' 18"N
Longitude 98° 25' 02"W 98° 24' 56"W
Elevation 1,110' 1,070'
Threshold Crossing Height 47 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P4R --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1WHEN ATCT CLSD ARFF AVBL THROUGH FORT SILL APCH.
A110-3BIRDS ON & INVOF ARPT.
A110-4TWY F CLSD EXC ACFT MORE THAN 110000 LBS. 12 HR PPR - 580-585-1321.
A110-5WHEN ATCT CLSD, FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
LAWTON-FORT SILL RGNL (ICAO: KLAW, IATA: LAW) is a public airport located in LAWTON, OK.
