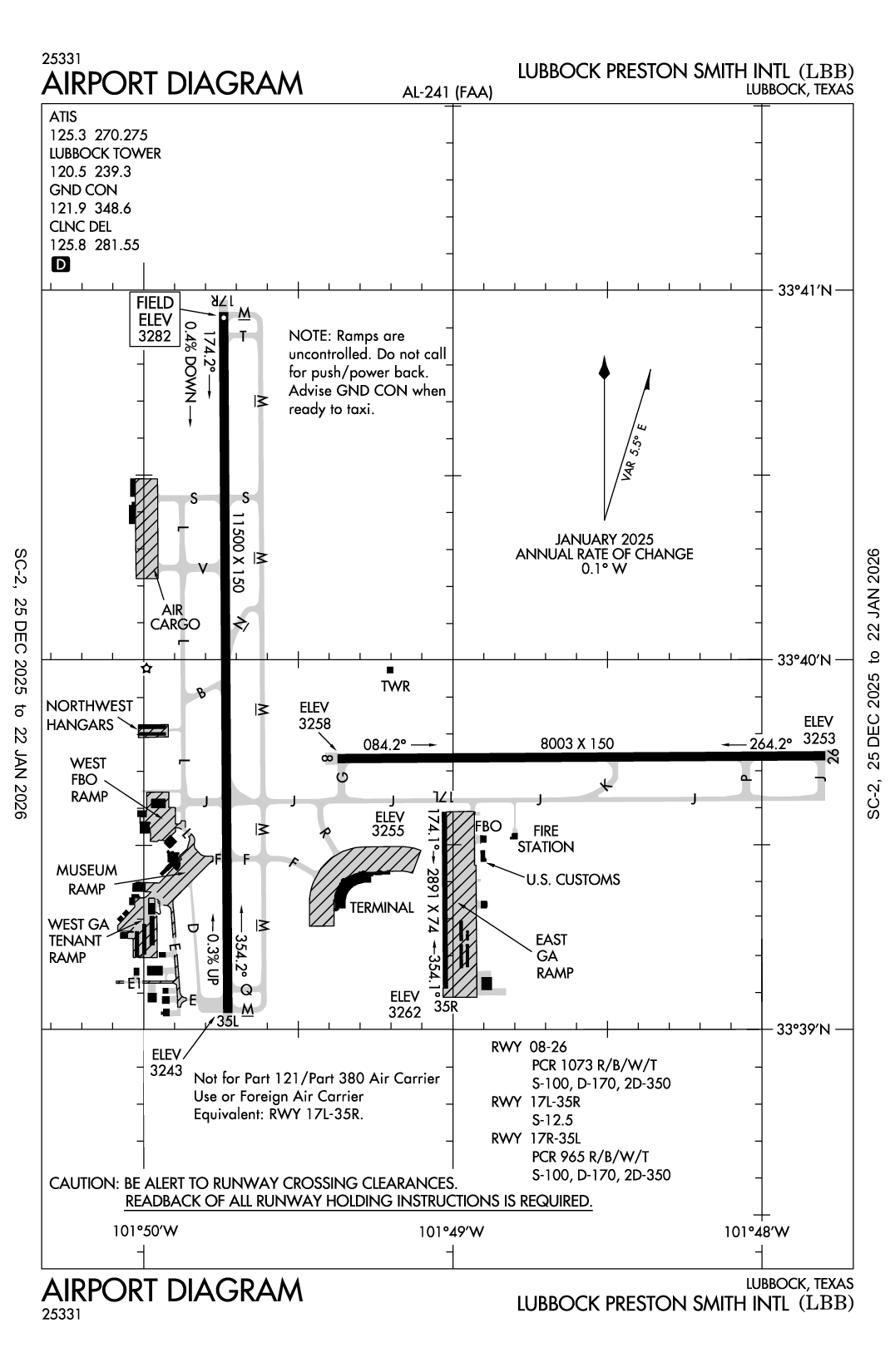

LUBBOCK PRESTON SMITH INTL - Airport Diagram

KLBB

ICAO KLBBIATA LBBLocal LBB

LUBBOCK PRESTON SMITH INTL

PublicPUB

4 miles N of LUBBOCK, TX, US

View on Map

Status

Operational

Coordinates

33° 39' 49"N 101° 49' 14"W

Elevation

3282' MSL

Pattern Alt

4282' MSL

Mag Variation

6°E

Declination

6°E

Fuel

JET A, JET A-1+, 100LL

FSS

FORT WORTH (FTW)

Sectional

DALLAS-FT WORTH

ARTCC

FORT WORTH (ZFW)

Data Effective

3/19/26-4/16/26

KLBB VFR

3:53 PM CDT RAW

Broken 25,000'
Few 18,000'

Viz

10sm

Temp

63°F

Dew

26°F

Pres

30.29"Hg

Wind

040° 10kts

Gusts 20kts

RMK

AO2 SLP233 T01721033 58014

METAR KLBB 042053Z 04010G20KT 10SM FEW180 BKN250 17/M03 A3029 RMK AO2 SLP233 T01721033 58014

Add Your Business

KLBB FBOs

Promote Listing

Million Air Lubbock

UNICOM: 129.1

Phone: (806) 747-5101

Fax: (806) 767-8001

0 Reviews (Read | Sign In To Write)

Avfuel

As of 3/31	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	7.51
Full Serve	8.51	8.36	8.36

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS	125.3
(806) 766-6404
ASOS	(806) 766-6432

Common

UNICOM

122.95

Clearance

Clearance Delivery

125.8

Ground

LUBBOCK GROUND

121.9

Tower

LUBBOCK TOWER

120.5

Approach

LUBBOCK APPROACH	119.2
Initial Contact
LUBBOCK APPROACH	119.9
Secondary

Departure

LUBBOCK DEPARTURE	119.2
Initial Contact
LUBBOCK DEPARTURE	119.9
Secondary
LUBBOCK DEPARTURE	124.45
Secondary

Flight Service

Flight Service	122.2
(FTW)

Emergency

121.5

Other

CLASS C	119.2
CLASS C/S	119.9
Secondary

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

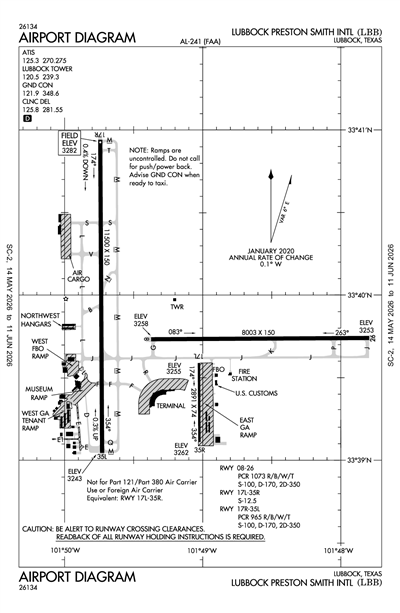

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLBB

RAW

Reported

Sat, 4/4 12:20 PM CDT

Valid

Sat, 4/4 1:00 PM CDT - Sun, 4/5 1:00 PM CDT

VFR

1:00 PM CDT - 6:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

040° 15kts

Gusts 25kts

VFR

6:00 PM CDT - 1:00 PM CDT

Few 25,000'

Viz

6sm

Wind

060° 9kts

TAF KLBB 041720Z 0418/0518 04015G25KT P6SM SCT250
FM042300 06009KT P6SM FEW250

KLBB

Effective	Expires	Category	NOTAM
Domestic
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/011 LBB AD AP RVR ALL U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z	Runway	!LBB 04/010 LBB RWY 26 PAPI U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z	Runway	!LBB 04/009 LBB RWY 17R PAPI U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z	Runway	!LBB 04/008 LBB RWY 17R ALS U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z	Runway	!LBB 04/007 LBB RWY 26 ALS U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/006 LBB SVC MBST/WS DETECTION SYSTEM NOT AVBL 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/005 LBB SVC TAR/SSR U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/004 LBB COM REMOTE COM OUTLET 122.2 U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/003 LBB COM REMOTE TRANS/REC U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/002 LBB SVC ATIS U/S 2604110300-2604121100
4/11/26 0300Z	4/12/26 1100Z		!LBB 04/001 LBB NAV ILS RWY 26 U/S 2604110300-2604121100
4/6/26 1300Z	4/24/26 2300Z		!LBB 03/082 LBB NAV ILS RWY 17R U/S 2604061300-2604242300
3/30/26 1506Z	4/20/26 2300Z		!LBB 03/083 LBB TWY J BTN TWY L AND TWY M CLSD 2603301506-2604202300
3/27/26 0520Z			!LBB 03/080 LBB NAV ILS RWY 17R DME NOT MNT 2603270520-2604272000EST
3/19/26 1902Z	4/20/26 2300Z	Runway	!LBB 03/072 LBB RWY 35L VASI U/S 2603191902-2604202300
3/19/26 1902Z	4/20/26 2300Z	Runway	!LBB 03/071 LBB RWY 17R PAPI U/S 2603191902-2604202300
3/16/26 1200Z	4/20/26 2300Z		!LBB 03/052 LBB TWY T, Q, V, B, D, N CLSD 2603161200-2604202300
3/16/26 1200Z	4/20/26 2300Z		!LBB 03/050 LBB TWY M BTN APCH END RWY 35L AND TWY F CLSD 2603161200-2604202300
3/16/26 1200Z	4/20/26 2300Z		!LBB 03/049 LBB TWY M BTN APCH END RWY 17R AND TWY S CLSD 2603161200-2604202300
3/16/26 1200Z	4/20/26 2300Z	Runway	!LBB 03/047 LBB RWY 17R/35L CLSD EXC XNG 2603161200-2604202300
2/25/26 0343Z	5/26/26 2359Z		!LBB 02/044 LBB OBST TOWER LGT (ASR 1219800) 334414.30N1014457.60W (5.7NM NE LBB) 3649.0FT (389.1FT AGL) U/S 2602250343-2605262359
2/5/26 1619Z	5/6/26 0500Z		!LBB 02/006 LBB OBST TOWER LGT (ASR 1049625) 334538.00N1014657.00W (6.1NM NNE LBB) 3648.3FT (357.6FT AGL) U/S 2602051619-2605060500
1/29/26 1524Z	10/31/26 2359Z		!LBB 01/213 LBB OBST TOWER LGT (ASR 1056257) 333855.00N1014030.00W (7.4NM E LBB) 3486.2FT (308.1FT AGL) U/S 2601291524-2610312359
12/29/25 2010Z	12/31/26 2359Z		!LBB 12/033 LBB APRON AIR CARGO RAMP CLSD TO TAX FOR ACFT WINGSPAN MORE THAN 156FT 2512292010-2612312359
12/29/25 2007Z	12/31/26 2359Z	Runway	!LBB 12/032 LBB RWY 17L/35R CLSD 2512292007-2612312359
FDC
3/19/26 1047Z			!FDC 6/0727 LBB IAP LUBBOCK PRESTON SMITH INTL, LUBBOCK, TX. ILS OR LOC RWY 26, AMDT 5... ADD NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 3493 MSL. 2603191047-2802041047EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF LUBBOCK
PO BOX 2000
LUBBOCK, TX 79457
Phone: 806-775-3000

Manager

KELLY CAMPBELL
RT 3 BOX 389
LUBBOCK, TX 79401
Phone: 806-775-3126

FSS

FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF

NOTAM

LBB

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

High & Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Sales

Runway 08/26

Dimensions

8003 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

100,000lbs

Double Wheel

170,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

	Runway 08	Runway 26
True Heading	89°	269°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 39' 44"N	33° 39' 44"N
Longitude	101° 49' 22"W	101° 47' 48"W
Elevation	3,258'	3,253'
Threshold Crossing Height	50 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights	Yes

Runway 17L/35R

Dimensions

2891 ft. x 74 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17L	Runway 35R
True Heading	180°	360°
Traffic Pattern	Left	Right
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	33° 39' 35"N	33° 39' 07"N
Longitude	101° 49' 02"W	101° 49' 02"W
Elevation	3,255'	3,262'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17R/35L

Dimensions

11500 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

100,000lbs

Double Wheel

170,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

	Runway 17R	Runway 35L
True Heading	180°	360°
Traffic Pattern	Right	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	33° 40' 56"N	33° 39' 03"N
Longitude	101° 49' 45"W	101° 49' 44"W
Elevation	3,282'	3,242'
Threshold Crossing Height	69 ft. AGL	54 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4R	V4L
Approach Lights	MALSR
Centerline Lights
Runway End Identifier Lights

A110-1	RWY 17L/35R RSTRD TO GEN AVN ACFT 12500 LBS OR LESS.
A110-11	TWY L BTN TWY F AND TWY J CLSD TO MORE THAN 120001 LB.
A110-12	TWYS B & D, TXLS E & E1 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A110-3	TWYS B & D; TXLS E & E1 RSTRD TO ACFT WEIGHING LESS THAN 50000 LBS.
A110-4	PSGR TRML RAMP ACES RSTRD TO ACRS & OTRS WITH PRIOR PMSN, CALL 806-775-2044.
A110-5	RWY 17L/35R; TWYS B & D; TXLS E & E1 NOT AVBL FOR ACR ACFT WITH OVER 9 PSGR SEATS.
A110-7	NMRS BIRDS ON & INVOF ARPT.
A110-8	EAST RAMP DELINEATED TXL & APRON AREA RSTRD TO 120000 LBS DUAL TAND ACFT; 89000 LBS DUAL SNGL WHEEL ACFT; 60000 LBS SNGL WHEEL ACFT. ALL OTR EAST RAMP PAVEMENTS RSTRD TO ACFT LESS THAN 12500 LBS SNGL WHEEL ACFT.
A110-9	PAEW ADJ RWYS 08/26 & 17R/35L.
A30-17L/35R	RWY 17L/35R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-08/26	PCR VALUE: 1073/R/B/W/T
A39-17R/35L	PCR VALUE: 965/R/B/W/T

LUBBOCK PRESTON SMITH INTL (ICAO: KLBB, IATA: LBB) is a public airport located in LUBBOCK, TX, US.
