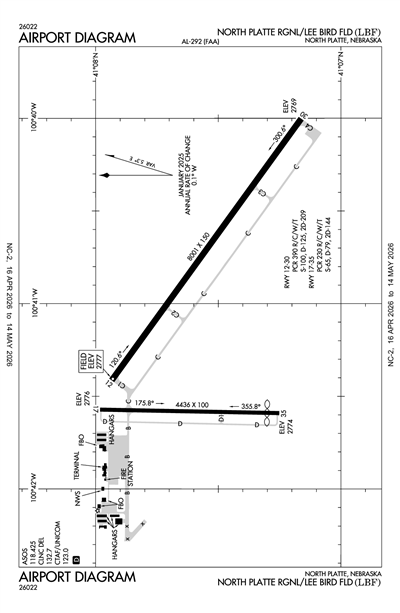

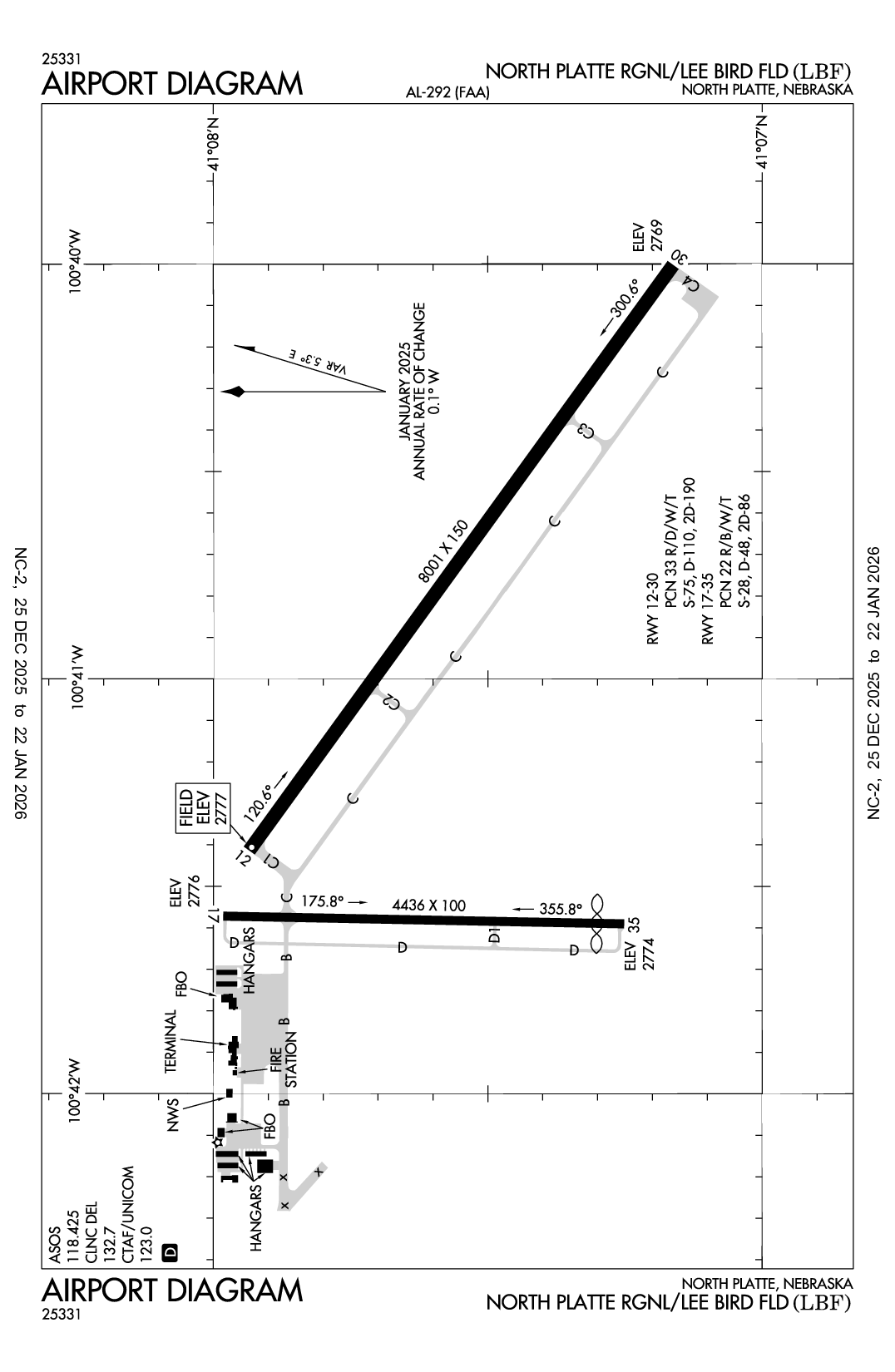

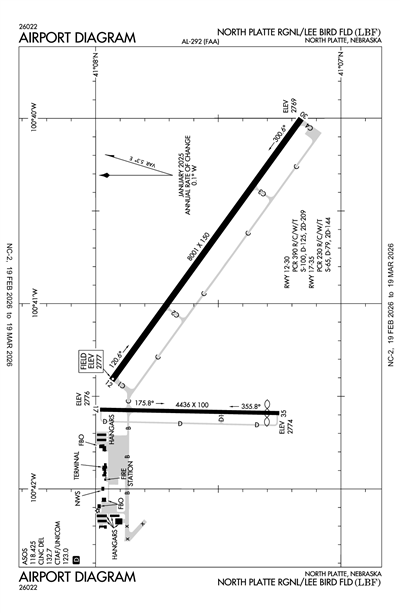

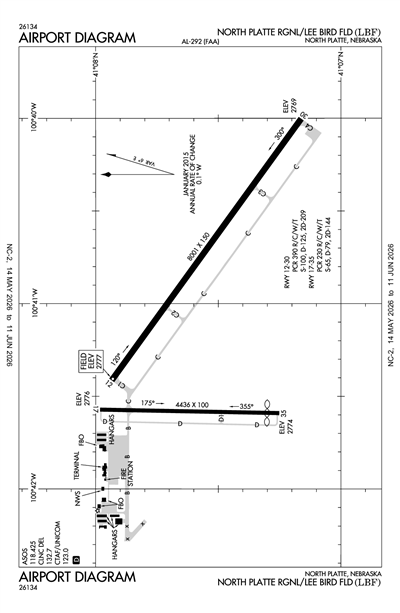

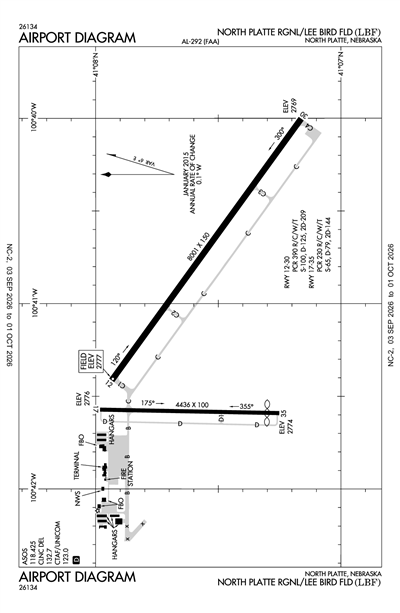

NORTH PLATTE RGNL/LEE BIRD FLD - Airport Diagram

KLBF

ICAO KLBFIATA LBFLocal LBF

NORTH PLATTE RGNL/LEE BIRD FLD

PublicPUB

3 miles E of NORTH PLATTE, NE, US

View on Map

Status

Operational

Coordinates

41° 07' 34"N 100° 41' 01"W

Elevation

2777' MSL

Pattern Alt

3777' MSL

Mag Variation

5°E

Declination

6°E

Fuel

JET A, 100LL

FSS

COLUMBUS (OLU)

Sectional

OMAHA

ARTCC

DENVER (ZDV)

Data Effective

10/29/26-11/26/26

KLBF VFR

6:53 AM CST RAW

Clear

Viz

10sm

Temp

29°F

Dew

28°F

Pres

30.12"Hg

Wind

Calm

RMK

AO2 SLP211 T10171022 $

METAR KLBF 121253Z AUTO 10SM CLR M02/M02 A3012 RMK AO2 SLP211 T10171022 $

Add Your Business

KLBF FBOs

Promote Listing

Trego-Dugan Aviation

UNICOM: 123.0

Phone: (308) 532-5864

0 Reviews (Read | Sign In To Write)

Other

As of 11/10	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	7.05		8.90

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ASOS	118.425
(308) 220-0580

Common

CTAF	123.0
ACTVT HIRL RWY 12/30; MIRL RWY 17/35; PAPI RWY 12 & 30; VASI RWY 35; MALSR RWY 30 & REIL RWY 35 - CTAF.
UNICOM	123.0

Center

DENVER CENTER	132.7
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (NORTH PLATTE RCAG).

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KLBF

RAW

Reported

Thu, 11/12 5:45 AM CST

Valid

Thu, 11/12 6:00 AM CST - Fri, 11/13 6:00 AM CST

VFR

6:00 AM CST - 9:00 AM CST

Sky Clear

Viz

6sm

Wind

Calm

VFR

9:00 AM CST - 6:00 AM CST

Few 25,000'

Viz

6sm

Wind

090° 5kts

TAF KLBF 121145Z 1212/1312 00000KT P6SM SKC
FM121500 09005KT P6SM FEW250

KLBF

Effective	Expires	NOTAM
Domestic
11/3/26 0803Z	11/18/26 0703Z	!LBF 11/023 LBF OBST TOWER LGT (ASR 1026658) 411321.80N1004119.00W (5.8NM N LBF) 3527.9FT (414.0FT AGL) U/S 2611030803-2611180703
10/30/26 2237Z	12/1/26 2359Z	!LBF 10/121 LBF OBST TOWER LGT (ASR 1048076) 411213.00N1004360.00W (5.2NM NNW LBF) 3626.6FT (608.9FT AGL) U/S 2610302237-2612012359
10/30/26 2101Z	1/31/27 2359Z	!LBF 10/116 LBF OBST TOWER LGT (ASR 1038515) 410436.00N1004537.00W (4.6NM SW LBF) 3240.2FT (226.0FT AGL) U/S 2610302101-2701312359

ATC Tower

Attendance

0600-2300

Owner

NORTH PLATTE AIRPORT AUTH
PO BOX 1517
NORTH PLATTE, NE 69103
Phone: 308-532-1900

Manager

MR. JUSTIN GOSNELL
5400 E LEE BIRD DR
NORTH PLATTE, NE 69101
Phone: 308-532-1900

FSS

COLUMBUS FSS (OLU)
Toll Free: 1-800-WX-BRIEF

NOTAM

LBF

Light Schedule

Lights

ACTVT HIRL RWY 12/30; MIRL RWY 17/35; PAPI RWY 12 & 30; VASI RWY 35; MALSR RWY 30 & REIL RWY 35 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

High & Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Air Freight
Charter Service
Pilot Instruction
Aircraft Rental

Runway 12/30

Dimensions

8001 ft. x 150 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

390/R/C/W/T

Single Wheel

100,000lbs

Double Wheel

125,000lbs

Double Tandem

209,000lbs

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	126°	306°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	41° 07' 56"N	41° 07' 10"N
Longitude	100° 41' 25"W	100° 40' 00"W
Elevation	2,777'	2,769'
Threshold Crossing Height	55 ft. AGL	55 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights		MALSR
Centerline Lights
Runway End Identifier Lights

Runway 17/35

Dimensions

4436 ft. x 100 ft.

Surface Type

CONC

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

230/R/C/W/T

Single Wheel

65,000lbs

Double Wheel

79,000lbs

Double Tandem

144,000lbs

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	181°	1°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	41° 07' 59"N	41° 07' 15"N
Longitude	100° 41' 34"W	100° 41' 35"W
Elevation	2,776'	2,774'
Threshold Crossing Height	--	36 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	WATERFOWL ON & INVOF ARPT.
A110-2	FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC DENVER ARTCC AT 303-651-4257.
A16	AFT HRS EMERG, CALL OPNS SUPVR 308-530-6948.
A26	PPR 24 HRS FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 308-530-6948, ARFF INDEX B EQUIP PRVD.
A57-35	RWY 35 APCH RATIO 36:1 TO DSPLCD THLD.
A81-APT	ACTVT HIRL RWY 12/30; MIRL RWY 17/35; PAPI RWY 12 & 30; VASI RWY 35; MALSR RWY 30 & REIL RWY 35 - CTAF.
E147	ALL CAT D ACFT (WITH SPDS OF 141-166 KTS) OPERATING ON RWY 12/30 MUST MNTN A TPA OF 1500 FT WHEN IN THE TFC PAT.

NORTH PLATTE RGNL/LEE BIRD FLD (ICAO: KLBF, IATA: LBF) is a public airport located in NORTH PLATTE, NE, US.
