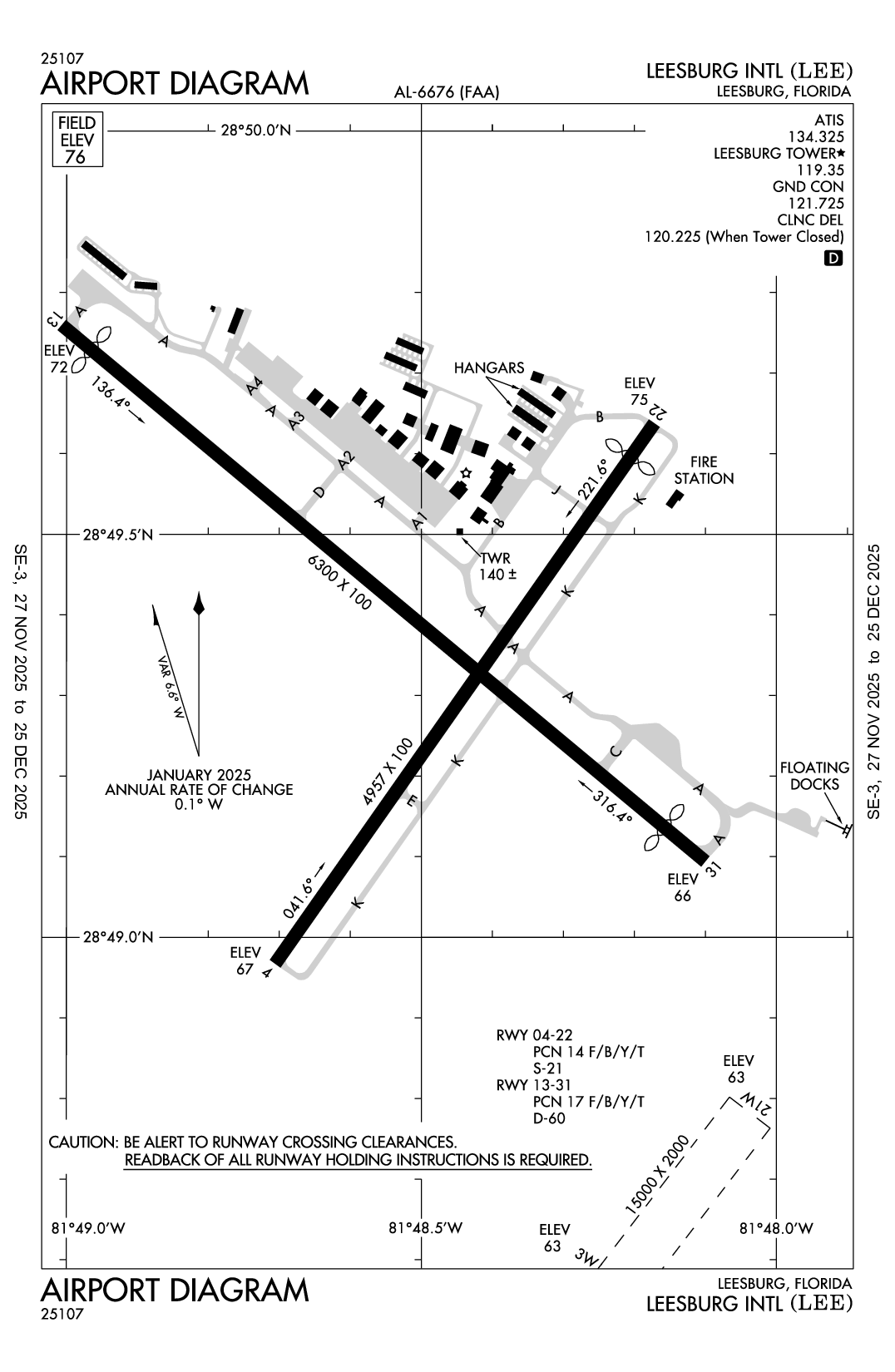

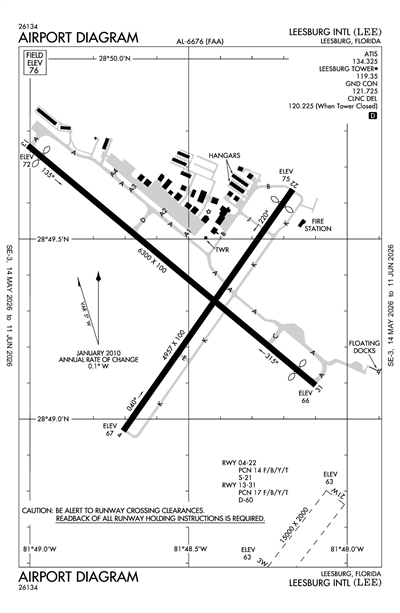

LEESBURG INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLEE
LEESBURG INTL
PublicPUB

3 miles NE of LEESBURG, FL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
28° 49' 22"N 81° 48' 30"W
76' MSL
1076' MSL
05W
Jet A, 100LL
SAINT PETERSBURG (PIE)
JACKSONVILLE
JACKSONVILLE (ZJX)
11/4/21-12/2/21
KLEE VFR
5:53 AM EST
Clear
10sm
47°F
37°F
30.09"Hg
340° 5kts
AO2 SLP188 T00830028 $
KLEE 271053Z AUTO 34005KT 10SM CLR 08/03 A3009 RMK AO2 SLP188 T00830028 $

KLEE FBOs, Flight Schools and Ground Support

Sunair Aviation
Freq: 122.725
Phone: (352) 787-2211
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66, World Fuel
As of 11/16
  100LL Jet A Jet A+ Mogas UL94
SS 4.94
FS 5.95 5.87 5.97

KLEE Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLEE Hotels

No hotels are listed for this airport.

KLEE Restaurants

No restaurants are listed for this airport.

KLEE Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.725 119.35

ATIS

ATIS
134.325

Ground

GND/P
121.725

Tower

LCL/P
119.35

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KLEE
Sat, 11/27 12:38 AM EST
Sat, 11/27 1:00 AM EST - Sun, 11/28 1:00 AM EST
VFR
1:00 AM EST - 7:00 PM EST
Scattered 25,000'
> 6sm
360° 6kts
VFR
7:00 PM EST - 1:00 AM EST
Scattered 25,000'
Scattered 18,000'
> 6sm
VRB° 3kts
KLEE 270538Z 2706/2806 36006KT P6SM SCT250
   FM280000 VRB03KT P6SM SCT180 SCT250
KLEE
Domestic
11/24/210612Z !LEE 11/007 LEE OBST TOWER LGT (ASR 1028924) 284848.30N0815124.30W (2.6NM WSW LEE) 383.9FT (258.9FT AGL) U/S 2111240612-2112090512
11/23/211742Z !LEE 11/006 LEE OBST TOWER LGT (ASR 1055228) 284014.50N0815051.00W (9.4NM SSW LEE) 352.0FT (250.0FT AGL) U/S 2111231742-2112080500
11/9/211702Z !LEE 11/002 LEE OBST TOWER LGT (ASR 1028100) 285121.00N0814725.00W (2.2NM NNE LEE) 381.6FT (309.7FT AGL) U/S 2111091702-2202112359
10/31/210556Z !LEE 10/012 LEE OBST TOWER LGT (ASR 1224874) 284407.30N0815338.90W (7.0NM SW LEE) 320.9FT (231.0FT AGL) U/S 2110310556-2111300556
10/28/211215Z !LEE 10/011 LEE RWY 03 PAPI U/S 2110281215-2111301100
10/28/211215Z !LEE 10/010 LEE RWY 21 PAPI U/S 2110281215-2111301100
10/28/211214Z !LEE 10/009 LEE RWY 31 PAPI U/S 2110281214-2111301100
9/15/211629Z !LEE 09/006 LEE OBST TOWER LGT (ASR 1234440) 283133.90N0815257.10W (18.3NM SSW LEE) 560.0FT (419.9FT AGL) U/S 2109151629-2203152359
9/10/211343Z !LEE 09/004 LEE OBST TOWER LGT (ASR 1263099) 284508.00N0815541.00W (7.7NM SW LEE) 408.5FT (319.9FT AGL) U/S 2109101343-2112102359
9/6/210329Z !LEE 09/002 LEE OBST TOWER LGT (ASR 1034849) 284943.00N0814709.00W (1.3NM ENE LEE) 340.9FT (271.0FT AGL) U/S 2109060329-2112312359
9/6/210329Z !LEE 09/001 LEE OBST TOWER LGT (ASR 1034848) 284943.00N0814709.00W (1.3NM ENE LEE) 340.9FT (271.0FT AGL) U/S 2109060329-2112312359
8/24/211930Z !LEE 08/010 LEE RWY 13 RWY END ID LGT U/S 2108241930-2112312359
FDC
10/7/211621Z !FDC 1/0912 LEE IAP LEESBURG INTL, LEESBURG, FL.
RNAV (GPS) RWY 31, AMDT 1A...
CHART PROFILE NOTE: VGSI AND RNAV GLIDEPATH NOT COINCIDENT (VGSI
ANGLE 3.00/TCH 40).
THIS IS RNAV (GPS) RWY 31, AMDT 1B. 2110071621-PERM
9/21/211753Z !FDC 1/1584 LEE IAP LEESBURG INTL, LEESBURG, FL.
RNAV (GPS) RWY 3, AMDT 1B...
CHANGE NOTE TO READ: WHEN VGSI INOP, STRAIGHT-IN RWY 3 NA AT NIGHT, CIRCLING RWY 3, 21, 31 NA AT NIGHT.
2109211753-2309211753EST
9/16/212014Z !FDC 1/9811 LEE IAP LEESBURG INTL, LEESBURG, FL.
RNAV (GPS) RWY 31, AMDT 1A...
LPV DA NA ALL CATS, LNAV/VNAV DA NA ALL CATS.
2109162014-2309152013EST
6/2/211323Z !FDC 1/5635 LEE IAP LEESBURG INTL, LEESBURG, FL.
RNAV (GPS) RWY 13, AMDT 2B...
LPV DA NA ALL CATS, LNAV/VNAV DA NA ALL CATS.
CHANGE HELICOPTER NOTE TO READ: RWY 13 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. DISREGARD NOTE: WHEN VGSI INOP, STRAIGHT-IN/CIRCLING RWY 13 PROCEDURE NA AT NIGHT.
DISREGARD NOTE: WHEN VGSI INOP, CIRCLING RWY 3 AND 21 NA AT NIGHT. NOTE: WHEN VGSI INOP, CIRCLING RWY 3, 21, AND 31 NA AT NIGHT.
2106021323-2306021323EST
Yes
0700-1900
CITY OF LEESBURG
PO BOX 490630
LEESBURG, FL 34749-0630
Phone: 352-516-7236
TRACEY DEAN
PO BOX 490630
LEESBURG, FL 34749
Phone: (352) 728-9801
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
LEE
--
WHEN ATCT CLSD ACTVT REILS RWY 13 & 31; PAPI RWY 3, 13, 21, & 31; MIRL RWY 03/21 & 13/31; TWY LGTS - CTAF.
Clear-Green
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
85
12
7
27
0
0
Major
Major
Low Pressure
None
Crop Dusting
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

4957 ft. x 100 ft.
ASPH
Good

MED
14 /F/B/Y/T
21,000lbs
--
--
--
  Runway 03 Runway 21
True Heading 35°215°
Traffic Pattern Left Left
Markings NPI BSC
Markings Condition POOR POOR
Latitude 28° 48' 58"N 28° 49' 38"N
Longitude 81° 48' 42"W 81° 48' 10"W
Elevation 67' 75'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 03W/21W

15000 ft. x 2000 ft.

WATER



--
--
--
--
  Runway 03W Runway 21W
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation 63' 63'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

6300 ft. x 100 ft.
ASPH
Excellent
GRVD
MED
14 /F/B/Y/T
--
60,000lbs
--
--
  Runway 13 Runway 31
True Heading 130°310°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 28° 49' 46"N 28° 49' 06"N
Longitude 81° 49' 01"W 81° 48' 06"W
Elevation 72' 66'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-102BIRD ACT INVOF ARPT.
A110-103FOR CD OR TO CNL IFR IF UNA VIA GCO CTC ORLANDO APCH AT 407-825-3398.

View hangar and property listings at KLEE, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

LEESBURG INTL (ICAO: KLEE, IATA: LEE) is a public airport located in LEESBURG, FL.
