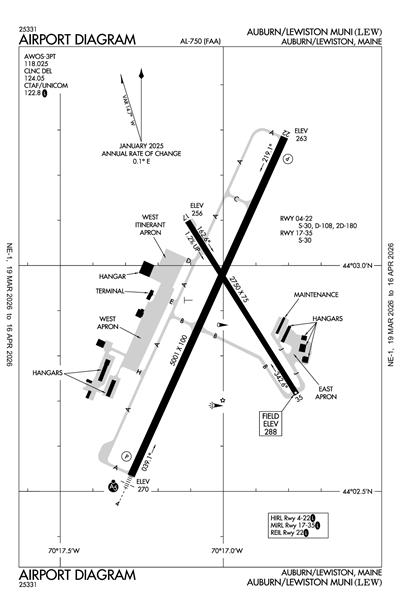

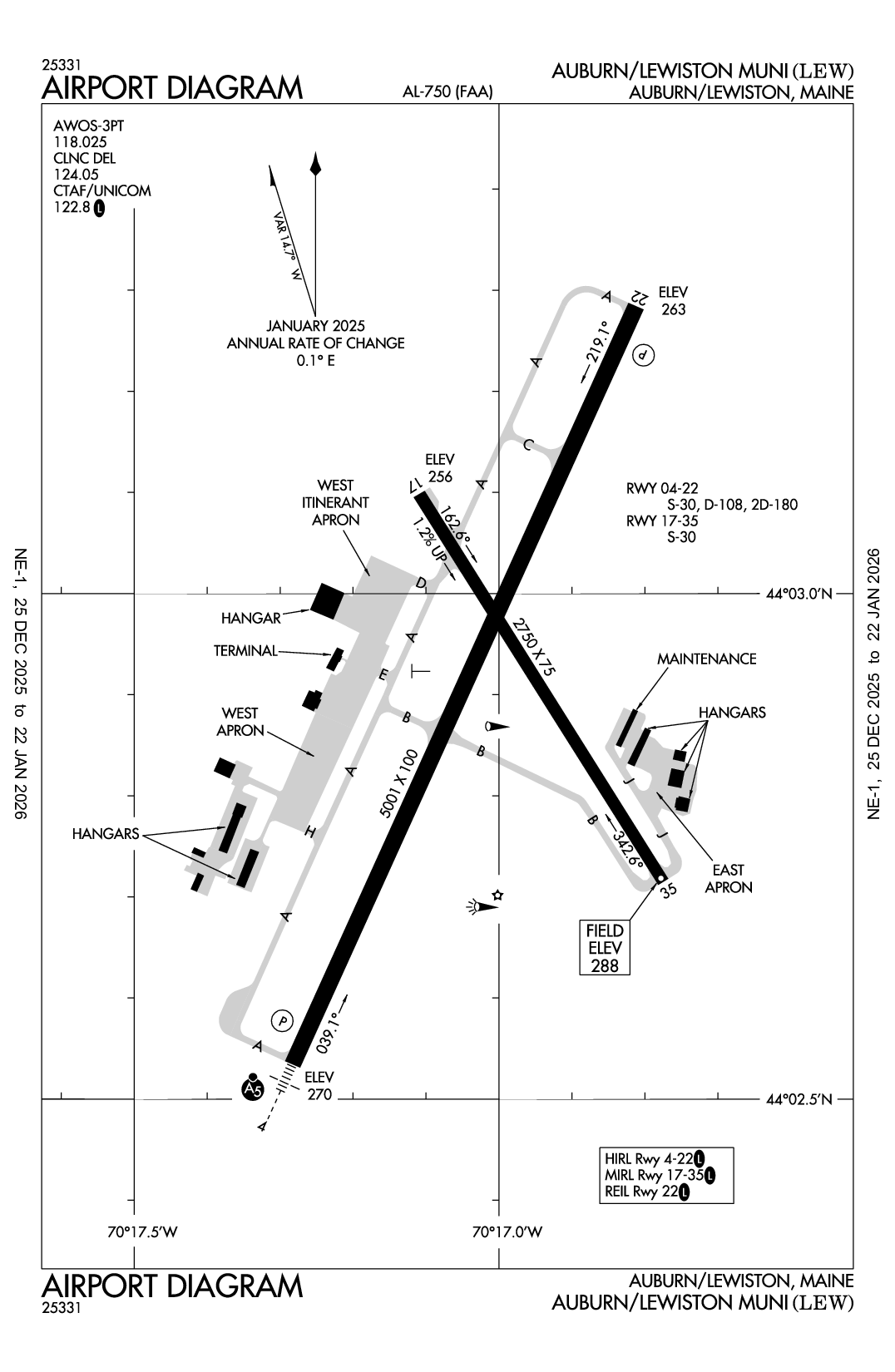

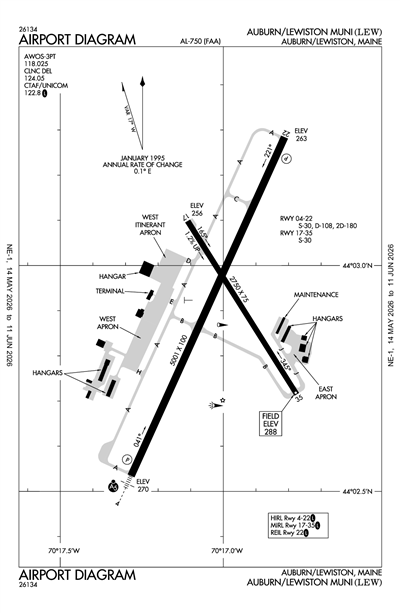

AUBURN/LEWISTON MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLEW
ICAO KLEWIATA LEWLocal LEW
AUBURN/LEWISTON MUNI
PublicPUB

4 miles SW of AUBURN/LEWISTON, ME, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
44° 02' 55"N 70° 17' 01"W
Elevation
288' MSL
Pattern Alt
1288' MSL
Mag Variation
15°W
Declination
17°W
Fuel
JET A-1+, 100LL
FSS
BANGOR (BGR)
Sectional
MONTREAL
ARTCC
BOSTON (ZBW)
Data Effective
8/6/26-9/3/26
KLEW MVFR
11:56 AM EDT
Overcast 1,300'
10sm
69°F
65°F
29.88"Hg
VRB° 3kts
AO2 SLP124 T02060183
METAR KLEW 231556Z AUTO VRB03KT 10SM OVC013 21/18 A2988 RMK AO2 SLP124 T02060183
+ Add Your Business

KLEW FBOs

Promote Listing
Auburn-Lewiston Air Center
UNICOM: 122.8
Phone: (207) 784-6318
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.99
Full Serve 6.99 6.79 6.84
Fuel Notes
Prices include tax
Assistance is available for self-serve 100LL. Prist (FSII) available for an additional $0.05 per gallon.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 118.025
(207) 783-2806

Common

CTAF 122.8
ACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22 & MIRL RWY 17/35 - CTAF.
UNICOM 122.8

Clearance

CLEARANCE DELIVERY 124.05
CTC APCH CTL

Approach

PORTLAND APPROACH 125.5

Departure

PORTLAND DEPARTURE 125.5

Center

PORTLAND CENTER 128.2
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 128.2 (WATERBORO RCAG) AND 290.50 (BANGOR RCAG) WHEN PORTLAND ATCT CLSD.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPWM (24nm)
Sun, 8/23 10:15 AM EDT
Sun, 8/23 10:00 AM EDT - Mon, 8/24 8:00 AM EDT
IFR
10:00 AM EDT - 1:00 PM EDT
Mist
Overcast 800'
6sm
VRB° 4kts
MVFR
1:00 PM EDT - 7:00 PM EDT
Mist
Overcast 1,500'
6sm
100° 5kts
IFR
7:00 PM EDT - 12:00 AM EDT
Mist
Overcast 700'
4sm
130° 3kts
LIFR
12:00 AM EDT - 8:00 AM EDT
Mist
Overcast 400'
1sm
180° 2kts
TAF KPWM 231415Z 2314/2412 VRB04KT 6SM BR OVC008
   FM231700 10005KT 6SM BR OVC015
   FM232300 13003KT 4SM BR OVC007
   FM240400 18002KT 1SM BR OVC004
KLEW
EffectiveExpiresCategoryNOTAM
Domestic
8/22/26
0400Z
8/22/26
1200Z
!LEW 08/019 LEW SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2608220400-2608221200
8/14/26
1103Z
11/13/26
0400Z
!LEW 08/015 LEW OBST TOWER LGT (ASR 1208590) 435103.80N0701804.20W (12.1NM S LEW) 719.8FT (253.0FT AGL) U/S 2608141103-2611130400
6/27/26
1454Z
9/25/26
0400Z
!LEW 06/023 LEW OBST TOWER LGT (ASR 1016803) 435704.40N0701744.80W (6.0NM S LEW) 976.0FT (505.9FT AGL) U/S 2606271454-2609250400
6/21/26
2225Z
10/19/26
2225Z
!LEW 06/014 LEW OBST TOWER LGT (ASR 1022679) 435106.00N0701937.50W (12.2NM S LEW) 1190.6FT (732.9FT AGL) U/S 2606212225-2610192225
FDC
4/1/25
2122Z
!FDC 5/0636 LEW IAP AUBURN/LEWISTON MUNI, AUBURN/LEWISTON, ME.
ILS OR LOC RWY 4, AMDT 12...
AUTOPILOT COUPLED APPROACH NA BELOW 900.
2504012122-2704062122EST
No
0800-1700
CITIES OF AUBURN & LEWISTON
80 AIRPORT DR
AUBURN, ME 04210
Phone: 207-786-0631
JONATHAN LABONTE
80 AIRPORT DR
AUBURN, ME 04210
Phone: 207-786-0631
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
LEW
--
ACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22 & MIRL RWY 17/35 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
No
Major
Major
Low Pressure
None
None

Runway 04/22

5001 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

30,000lbs
108,000lbs
180,000lbs
--
  Runway 04 Runway 22
True Heading 24°204°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 44° 02' 32"N 44° 03' 17"N
Longitude 70° 17' 17"W 70° 16' 49"W
Elevation 270' 263'
Threshold Crossing Height 49 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway 17/35

2750 ft. x 75 ft.
ASPH
Excellent
NONE
MED

30,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 148°328°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 44° 03' 06"N 44° 02' 43"N
Longitude 70° 17' 07"W 70° 16' 47"W
Elevation 256' 288'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-1BIRDS ON & INVOF ARPT.
A110-2RWY 04 DSGND CALM WIND RWY.
A110-3OCNL BLASTING IN PROG MON-SAT APRXLY 4800-5000 FT SW OF RWY 04 THR 1100-1500 DURG VFR CONDS ONLY.
A110-5INTENSIVE HOP DLY FM 0500-2000. HEL TFC PAT 500 AGL, RIGHT TFC.
A110-6ACFT DE-ICING AVBL.
A110-7FOR CD WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A14AUBURN CITY TRANSPORTATION DIR.
A58-2213 FT POLE 100 FT FM RWY END, 375 FT R, +5 FT ROADWAY 0-200 FT FM RWY END 0-350 FT R.
A70-100LLFOR FUEL OR SVCS AFT HRS CALL 207-784-6318.
A75-HCALL AHD FOR AVBLTY.
A81-APTACTVT MALSR RWY 04; REIL RWY 22; HIRL RWY 04/22 & MIRL RWY 17/35 - CTAF.
E111EXISTED PRIOR TO 1959.
AUBURN/LEWISTON MUNI (ICAO: KLEW, IATA: LEW) is a public airport located in AUBURN/LEWISTON, ME, US.
