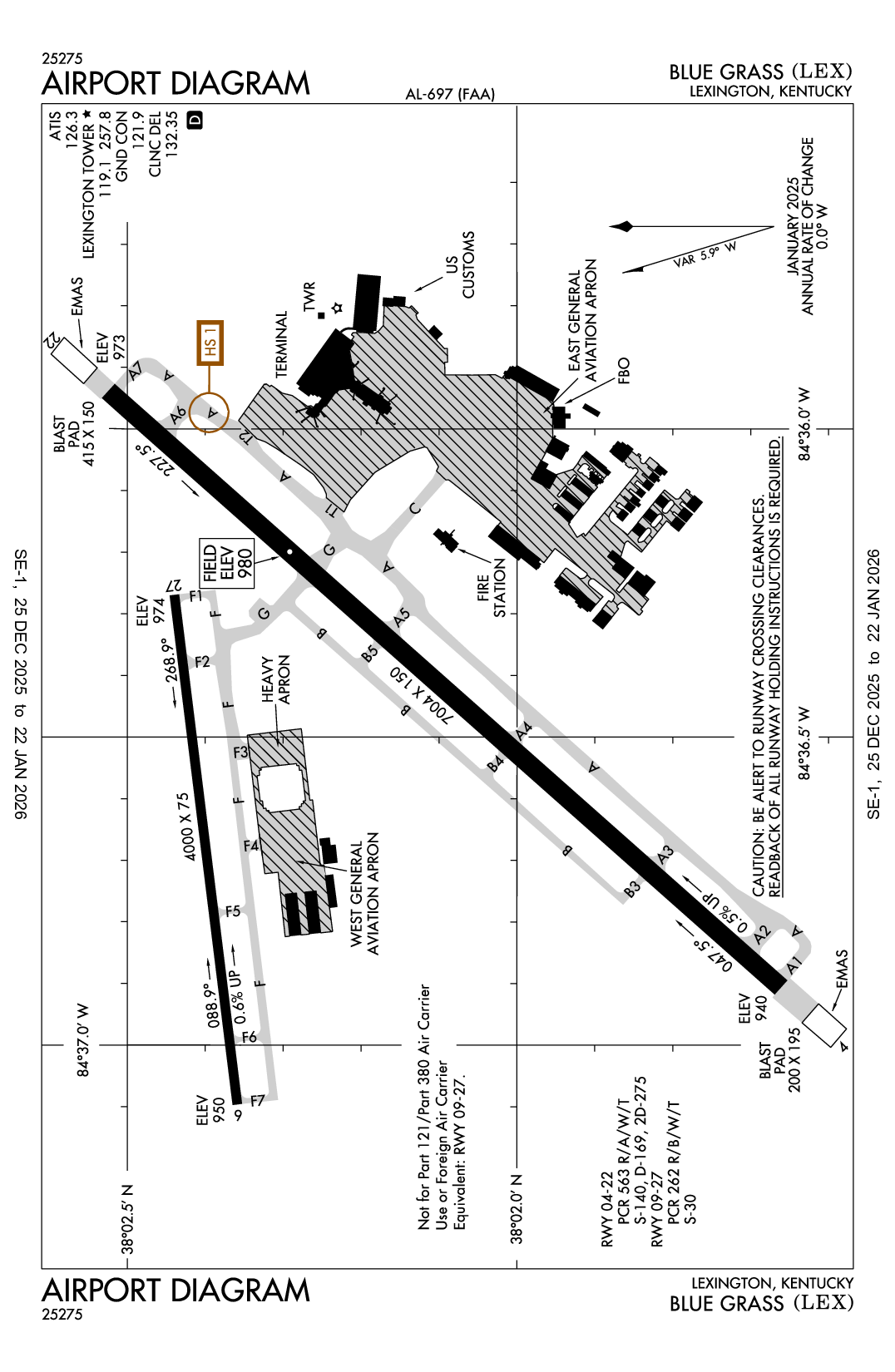

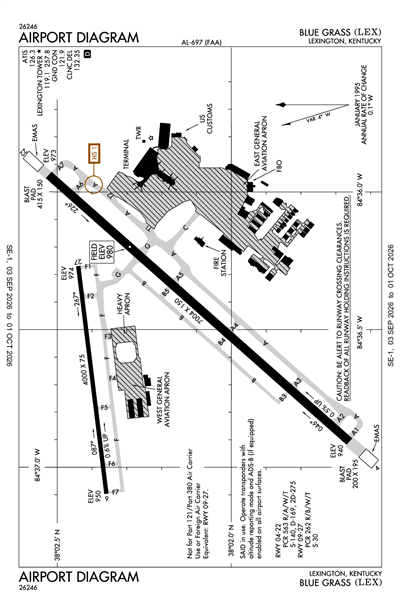

BLUE GRASS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLEX
ICAO KLEXIATA LEXLocal LEX
BLUE GRASS
PublicPUB

4 miles W of LEXINGTON, KY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 02' 12"N 84° 36' 31"W
Elevation
980' MSL
Pattern Alt
1980' MSL
Mag Variation
6°W
Declination
4°W
Fuel
JET A, 100LL
FSS
LOUISVILLE (LOU)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
8/6/26-9/3/26
KLEX VFR
10:54 AM EDT
Clear
10sm
74°F
60°F
30.06"Hg
VRB° 3kts
AO2 SLP172 T02330156 51010
METAR KLEX 231454Z VRB03KT 10SM CLR 23/16 A3006 RMK AO2 SLP172 T02330156 51010
+ Add Your Business

KLEX FBOs

Promote Listing
WestLEX
Phone: (859) 425-3230
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.40
Full Serve 6.90
Fuel Notes
Prices include tax
Fuel Hours
Self-service pump is 24 hours
Promote Listing
Signature Aviation
ASRI: 129.875
Phone: (859) 255-7724
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.45
Full Serve 6.21 9.12
Fuel Notes
Prices include tax

KLEX Aircraft Service & Maintenance

Promote Listing
Thoroughbred Aviation Maintenance
Phone: (859) 255-1902
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.3
ASOS (859) 203-5240

Common

UNICOM 122.95

Clearance

Clearance Delivery 132.35

Ground

LEXINGTON GROUND 121.9

Tower

LEXINGTON TOWER 119.1

Approach

LEXINGTON APPROACH 120.15
040-220
LEXINGTON APPROACH 120.75
221-039
LEXINGTON APPROACH 133.4
Secondary - 040-220

Departure

LEXINGTON DEPARTURE 120.15
040-220
LEXINGTON DEPARTURE 120.75
221-039
LEXINGTON DEPARTURE 133.4
Secondary - 040-220

Flight Service

Flight Service 122.6
(LOU)

Emergency

Emergency 121.5

Other

CLASS C 120.15
040-220
CLASS C 120.75
221-039

Terminal Area Forecast

KLEX
Sun, 8/23 7:20 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT
VFR
8:00 AM EDT - 1:00 PM EDT
Few 4,000'
6sm
300° 5kts
VFR
1:00 PM EDT - 7:00 PM EDT
Few 25,000'
Few 4,000'
6sm
290° 8kts
Gusts 17kts
VFR
7:00 PM EDT - 8:00 AM EDT
Scattered 25,000'
6sm
300° 4kts
TAF KLEX 231120Z 2312/2412 30005KT P6SM FEW040
   FM231700 29008G17KT P6SM FEW040 FEW250
   FM232300 30004KT P6SM SCT250
KLEX
EffectiveExpiresCategoryNOTAM
Domestic
8/28/26
0350Z
8/28/26
1010Z
!LEX 08/066 LEX SVC SEE ZID 08/780 LEXINGTON APP CLSD 2608280350-2608281010
8/25/26
1200Z
8/25/26
1600Z
!LEX 08/067 LEX SVC TAR/SSR U/S 2608251200-2608251600
8/25/26
0400Z
8/25/26
1000Z
!LEX 08/068 LEX COM REMOTE TRANS/REC 122.6 U/S 2608250400-2608251000
8/24/26
0350Z
8/24/26
1010Z
!LEX 08/051 LEX SVC SEE ZID 08/627 LEXINGTON APP CLSD 2608240350-2608241010
8/23/26
1508Z
11/22/26
0400Z
!LEX 08/069 LEX OBST TOWER LGT (ASR 1210821) 375035.50N0844042.20W (12.1NM SSW LEX) 1278.2FT (325.1FT AGL) U/S 2608231508-2611220400
8/21/26
1203Z
8/22/26
1200Z
!LEX 08/065 LEX AD AP WEST MOBILE 100LL FUEL NOT AVBL 2608211203-2608221200
8/13/26
0812Z
11/11/26
0912Z
!LEX 08/040 LEX OBST TOWER LGT (ASR 1201302) 381008.10N0844022.20W (8.5NM NNW LEX) 1156.8FT (308.7FT AGL) U/S 2608130812-2611110912
8/13/26
0536Z
11/11/26
0636Z
!LEX 08/039 LEX OBST TOWER LGT (ASR 1220613) 380332.40N0844452.90W (6.7NM WNW LEX) 1171.3FT (323.2FT AGL) U/S 2608130536-2611110636
8/12/26
1102Z
11/10/26
1202Z
!LEX 08/034 LEX OBST TOWER LGT (ASR 1207500) 375602.90N0843521.90W (6.2NM S LEX) 1256.6FT (275.6FT AGL) U/S 2608121102-2611101202
8/7/26
1541Z
11/5/26
1641Z
!LEX 08/023 LEX OBST TOWER LGT (ASR 1221347) 375846.70N0842936.30W (6.4NM ESE LEX) 1183.1FT (270.0FT AGL) U/S 2608071541-2611051641
8/2/26
0110Z
10/31/26
0110Z
!LEX 08/001 LEX OBST TOWER LGT (ASR 1028248) 380503.00N0843712.30W (2.9NM N LEX) 1178.1FT (245.1FT AGL) U/S 2608020110-2610310110
7/28/26
0210Z
10/26/26
0210Z
!LEX 07/087 LEX OBST TOWER LGT (ASR 1208343) 375647.70N0845153.70W (13.3NM WSW LEX) 1150.9FT (274.9FT AGL) U/S 2607280210-2610260210
7/28/26
0206Z
10/26/26
0206Z
!LEX 07/086 LEX OBST TOWER LGT (ASR 1002125) 380022.30N0844753.80W (9.2NM W LEX) 1111.9FT (298.9FT AGL) U/S 2607280206-2610260206
7/24/26
1115Z
10/23/26
2359Z
!LEX 07/075 LEX OBST TOWER LGT (ASN 2022-ASO-18787-OE) 380149N0843058W (4.4NM E LEX) 1139FT (153FT AGL) U/S 2607241115-2610232359
7/22/26
1155Z
9/5/26
1154Z
!LEX 07/064 LEX OBST TOWER LGT (ASR 1044385) 380643.30N0843446.50W (4.7NM NNE LEX) 1226.7FT (320.9FT AGL) U/S 2607221155-2609051154
7/21/26
2138Z
10/19/26
2138Z
!LEX 07/057 LEX OBST TOWER LGT (ASR 1036185) 375557.60N0843351.50W (6.6NM SSE LEX) 1303.8FT (302.8FT AGL) U/S 2607212138-2610192138
7/20/26
1606Z
10/18/26
1606Z
!LEX 07/050 LEX OBST TOWER LGT (ASR 1051219) 375757.30N0843850.80W (4.7NM SSW LEX) 1240.8FT (296.9FT AGL) U/S 2607201606-2610181606
7/17/26
1111Z
10/16/26
0400Z
!LEX 07/048 LEX OBST TOWER LGT (ASR 1036190) 375718.90N0842255.00W (11.7NM ESE LEX) 1305.8FT (300.9FT AGL) U/S 2607171111-2610160400
5/27/26
0110Z
8/24/26
0400Z
!LEX 05/085 LEX OBST TOWER LGT (ASR 1043360) 375545.80N0843330.50W (6.9NM SSE LEX) 1309.1FT (303.1FT AGL) U/S 2605270110-2608240400
FDC
5/28/26
1329Z
!FDC 6/3662 LEX IAP BLUE GRASS, LEXINGTON, KY.
RNAV (GPS) RWY 27, ORIG-B...
LPV DA 1374/HAT 400.
2605281329-2805281329EST
5/14/26
2043Z
!FDC 6/0552 LEX IAP BLUE GRASS, LEXINGTON, KY.
RNAV (GPS) RWY 27, ORIG-B...
CIRCLING CAT A MDA 1440/HAA 460.
2605142043-2805142042EST
3/31/26
1937Z
!FDC 6/6474 LEX IAP BLUE GRASS, LEXINGTON, KY.
RNAV (GPS) RWY 9, ORIG-B...
LNAV CAT C VISIBILITY 1 5/8. DELETE NOTE DME/DME RNP-0.3 NA. PBN
REQUIREMENTS NOTE: RNP APCH - GPS. DELETE *LNAV ONLY. CHANGE CHART
VDP TO READ: CHART VDP AT 1.71 NM TO RW09. CHANGE ALTIMETER NOTE TO
READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE FFT ALTIMETER
SETTING: INCREASE LPV DA TO 1279 FEET; INCREASE LNAV/VNAV DA TO
1421 FEET; INCREASE ALL MDAS 80 FEET AND LNAV VISIBILITY CAT C 1/4
SM, LNAV VISIBILITY CAT D 1/8 SM, AND CIRCLING VISIBILITY CATS C/D
1/4 SM. CHANGE BARO-VNAV AND VDP NA NOTES TO READ: BARO-VNAV AND
VDP NA WHEN USING FFT ALTIMETER SETTING. CHANGE FOR UNCOMPENSATED
BARO-VNAV NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS,
LNAV/VNAV NA BELOW -16C OR ABOVE 54C.
THIS IS RNAV (GPS) RWY 9, ORIG-C. 2603311937-PERM
Yes
ALL
LEXINGTON-FAYETTE CO ARPT BRD
4000 TERMINAL DRIVE SUITE 206
LEXINGTON, KY 40510
Phone: 859-425-3100
ERIC J. FRANKL, A.A.E.
4000 TERMINAL DRIVE SUITE 206
LEXINGTON, KY 40510
Phone: 859-425-3100
LOUISVILLE FSS (LOU)
Toll Free: 1-800-WX-BRIEF
LEX
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High & Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

7004 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

140,000lbs
169,000lbs
275,000lbs
--
  Runway 04 Runway 22
True Heading 42°222°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 01' 40"N 38° 02' 31"N
Longitude 84° 36' 54"W 84° 35' 56"W
Elevation 940' 973'
Threshold Crossing Height 60 ft. AGL 60 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 09/27

4000 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 83°263°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 02' 22"N 38° 02' 26"N
Longitude 84° 37' 06"W 84° 36' 16"W
Elevation 950' 974'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FLIGHT NOTIFICATION SERVICE (ADCUS) AVBL.
A110-4TWY B & TWY F WEST OF TWY F3; NOT AVBL FOR SKED ACR OPS MORE THAN 9 PAX SEATS OR UNSKED ACR AT LEAST 31 PAX SEATS; CLSD TO ACFT WITH WINGSPAN GREATER THAN 78 FT.
A26ICS/INDEX D ARFF CPBLITYS UPON REQ.
A30-09/27RWY 09/27 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30A-22DURG L PAT DO NOT MISTAKE RWY 27 FOR RWY 22. WALL MURAL BFR THR GIVES ILLUSION OF A BRIDGE.
A39-04/22PCR VALUE: 563/R/A/W/T
A39-09/27PCR VALUE: 262/R/B/W/T
E60-04_EMASENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 316 FT IN LENGTH BY 170 FT IN WIDTH STARTING 186 FT DER 04.
E60-22_EMASENGINEERED MATERIAL ARRESTING SYSTEM (EMAS) 283 FT IN LENGTH BY 170 FT IN WIDTH STARTING 307 FT DER 22.
BLUE GRASS (ICAO: KLEX, IATA: LEX) is a public airport located in LEXINGTON, KY, US.
