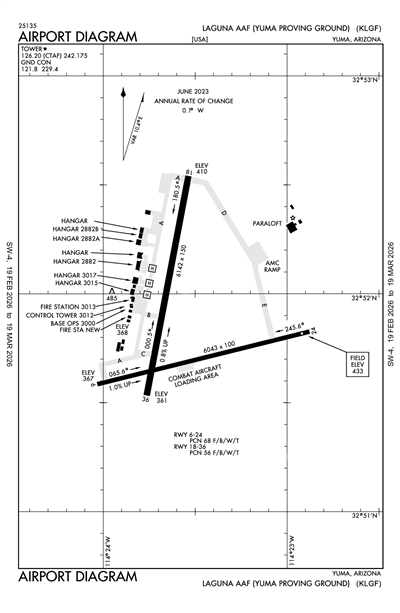

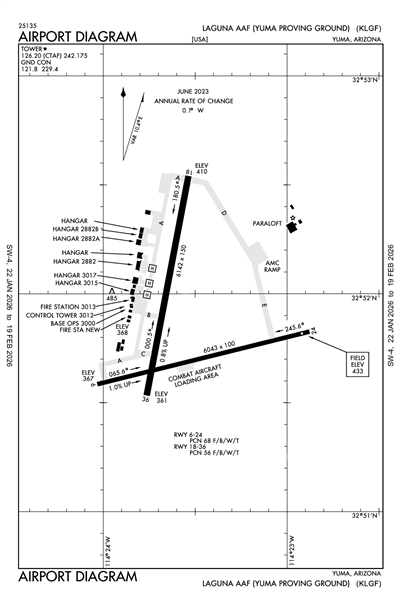

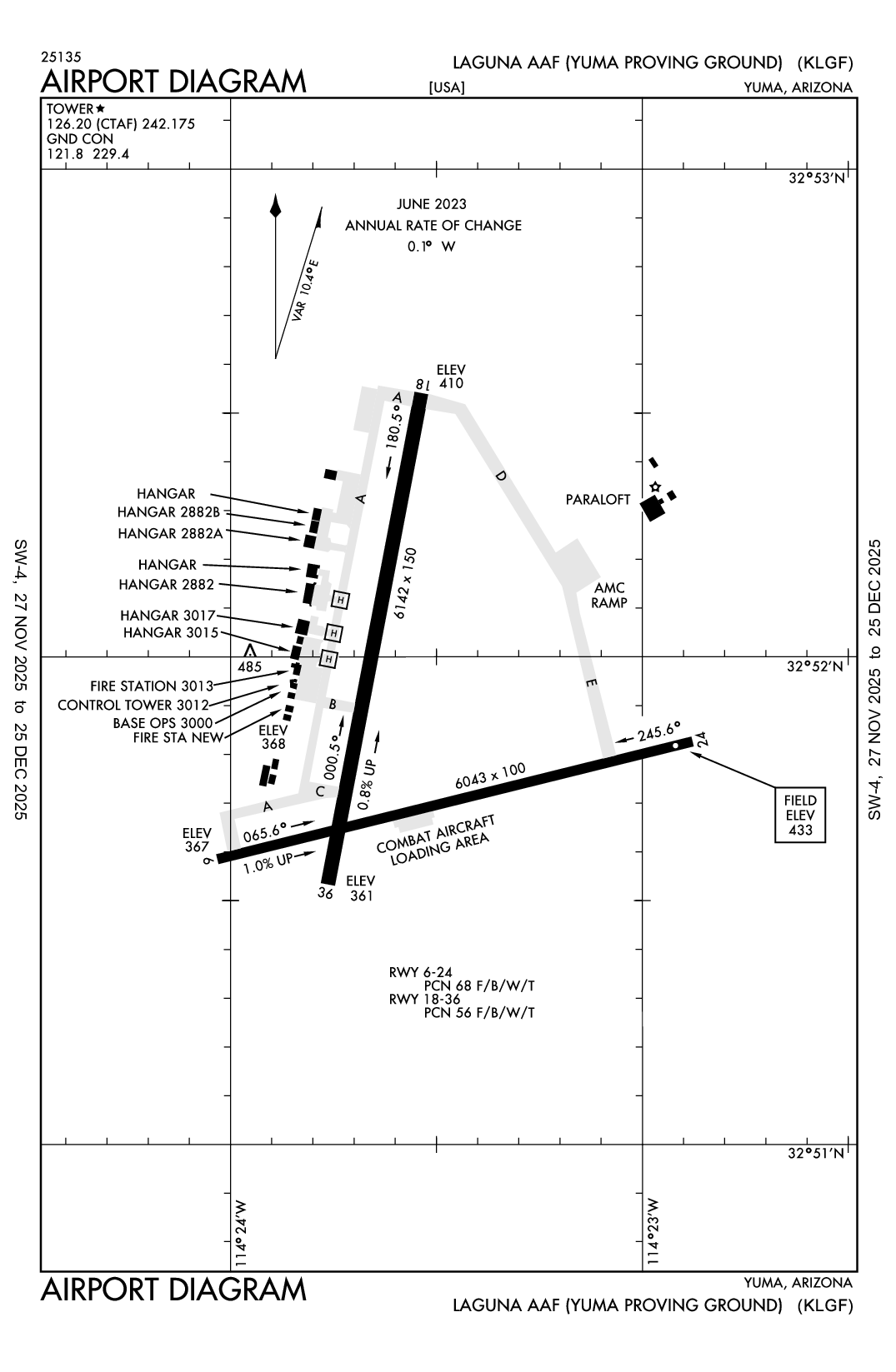

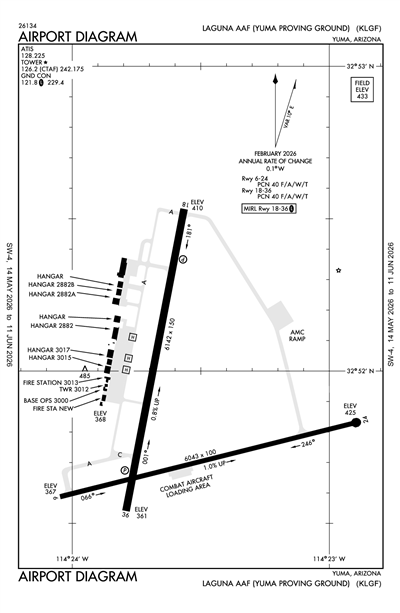

LAGUNA AAF (YUMA PROVING GROUND) - Airport Diagram

KLGF

LAGUNA AAF (YUMA PROVING GROUND)

PrivatePVT

12 miles NE of YUMA PROVING GROUND (YUMA), AZ

View on Map

Status

Operational

Coordinates

32° 51' 52"N 114° 23' 35"W

Elevation

433' MSL

Pattern Alt

1433' MSL

Mag Variation

13E

Fuel

100LL

FSS

PRESCOTT (PRC)

Sectional

PHOENIX

ARTCC

LOS ANGELES (ZLA)

Data Effective

4/18/24-5/16/24

KLGF VFR

2:55 PM MST RAW

Clear

Viz

10sm

Temp

90°F

Dew

36°F

Pres

29.82"Hg

Wind

230° 8kts

RMK

AO2 SLP095 T03220023 $

KLGF 242155Z AUTO 23008KT 10SM CLR 32/02 A2982 RMK AO2 SLP095 T03220023 $

List Your Business

KLGF FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

KLGF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLGF Hotels

No hotels are listed for this airport.

KLGF Restaurants

No restaurants are listed for this airport.

KLGF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM -- CTAF 126.2

ATIS

128.225

Ground

GND/P

121.8

Tower

LCL/P

126.2

Other

RANGE CTL

119.0

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KNYL (16nm)

RAW

Reported

Wed, 4/24 2:03 PM MST

Valid

Wed, 4/24 2:00 PM MST - Thu, 4/25 2:00 PM MST

VFR

2:00 PM MST - 3:30 PM MST

Few 20,000'

Viz

6sm

Pres

29.82"Hg

Wind

260° 6kts

VFR

3:30 PM MST - 7:00 PM MST

Few 20,000'

Viz

6sm

Pres

29.76"Hg

Wind

260° 8kts

VFR

Becoming 7:00 PM MST - 3:30 AM MST

Scattered 15,000'
Few 8,000'

Viz

6sm

Pres

29.76"Hg

Wind

280° 15kts

Gusts 25kts

Turbulence

Moderate, In Cloud, Occasional: 8,000 - 12,000'
Moderate, Clear Air, Occasional: 9,000 - 8,000'

MVFR

Temporary 9:00 PM MST - 3:00 AM MST

Blowing Dust

No Clouds

Viz

4.97sm

Wind

290° 20kts

Gusts 30kts

VFR

3:30 AM MST - 7:00 AM MST

Few 25,000'
Few 15,000'

Viz

6sm

Pres

29.88"Hg

Wind

280° 15kts

Gusts 25kts

Turbulence

Moderate, Clear Air, Occasional: 8,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 12,000'

MVFR

Becoming 7:00 AM MST - 2:00 PM MST

Blowing Dust

Few 25,000'

Viz

4.97sm

Pres

29.91"Hg

Wind

290° 18kts

Gusts 28kts

Turbulence

Moderate, Clear Air, Occasional: 9,000 - 9,000'
Moderate, Clear Air, Occasional: 9,000 - 12,000'

TAF KNYL 2421/2521 26006KT 9999 FEW200 QNH2981INS
   FM242230 26008KT 9999 FEW200 QNH2975INS
   BECMG 2502/2504 28015G25KT 9999 FEW080 SCT150 520008 540804 522109 523003 QNH2977INS
   TEMPO 2504/2510 29020G30KT 8000 BLDU
   FM251030 28015G25KT 9999 FEW150 FEW250 520009 520903 522104 542502 522706 QNH2987INS
   BECMG 2514/2516 29018G28KT 8000 BLDU FEW250 520009 520903 522104 542502 522706 QNH2990INS T32/2423Z T17/2513Z

KLGF

Military
4/3/241927Z	TWY FOXTROT OPEN TO ONLY HIGH WING ACFT. NO AFCT SMALLER THAN A CASA 212 ALLOWED TO ENTER TWY FOXTROT FROM RWY 18/36.
2/2/241336Z	INTS PARADROPS OPERATIONS VCNTY 5NM OF AFLD ALL YR ROUND

ATC Tower

Yes

Attendance

MON-FRI 0600-1600
CLSD HOL

Owner

US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060

Manager

N/A

FSS

PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF

NOTAM

PRC

Light Schedule

Lights

ACTVT MIRL RWY 18/36 - 121.8. PAPI RWY 18 & 36 OPR CONSLY DURG OPS; OTR TIME ON REQ - BASE OPS.

Beacon

N/A

Wind Indicator

Yes

Segmented Cir.

Landing Fee

Parking

None

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 06/24

Dimensions

6043 ft. x 100 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

68 /F/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06	Runway 24
True Heading	76°	256°
Traffic Pattern	Right	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	32° 51' 35"N	32° 51' 50"N
Longitude	114° 24' 03"W	114° 22' 54"W
Elevation	367'	425'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

Dimensions

6142 ft. x 151 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

56 /F/B/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	191°	11°
Traffic Pattern	Left	Right
Markings	NONE	NONE
Markings Condition	POOR	POOR
Latitude	32° 52' 32"N	32° 51' 32"N
Longitude	114° 23' 34"W	114° 23' 47"W
Elevation	410'	361'
Threshold Crossing Height	43 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	76°	256°
Traffic Pattern
Markings
Markings Condition
Latitude	32° 52' 07"N	N/A
Longitude	114° 23' 46"W	N/A
Elevation	365'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H2	Runway
True Heading	76°	256°
Traffic Pattern
Markings
Markings Condition
Latitude	32° 52' 03"N	N/A
Longitude	114° 23' 47"W	N/A
Elevation	360'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

Dimensions

40 ft. x 40 ft.

Surface Type

Surface Cond

ASPH

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H3	Runway
True Heading	76°	256°
Traffic Pattern
Markings
Markings Condition
Latitude	32° 51' 60"N	N/A
Longitude	114° 23' 47"W	N/A
Elevation	362'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	CTN: WILDLIFE & COYOTES ON & INVOF ARPT; SPCLY AT NGT.
A110-10	CTN: OPS ON CIBOLA RANGE 1 NM. PAJA INVOF 5 NM.
A110-11	OPS 0600-1600 MON-FRI; CLSD HOL; OTR TIME BY NOTAM.
A110-13	RSTD: OFFL BUS ONLY. RSTD AREA 4 NM E. OVFT OF HOUSING AREA 3 NM SW NA. TSNT 24 HR PPR - D899-2014/2241, C928-328-2014/2241.
A110-16	MISC: LATE ARR - BASE OPS D899-2014/2241, 928-328-2014/2241.
A110-17	SVC: FUEL, LOX SVC AVBL - BASE OPS.
A110-18	RSTD: CLSD FLD OPS PPR - BASE OPS OR LAGUNA OPS.
A110-19	CTN: UAS OPS FM LAGUNA AAF WHEN RSTD ASP ACTV; CTC LAGUNA ATCT PRIOR TO ENTRY.
A110-20	FOR CD CTC YUMA CERAP CD AT 982-269-9569.
A110-21	FOR CLEARANCE DELIVERY CALL YUMA CERAP CD ON 982-269-9569.
A110-6	CTN: C-130 & LRGR TURN AROUND ON RWY NA EXC PRIOR APVL FOR EMERG OR CONGESTION.
A110-7	JASU-5(GPU) 3(59B2-1B).
A110-8	FUEL: 100LL, F24 AVBL 1340-2400Z MON-FRI; CLSD HOL. POL AVBL WITH 24 HR PPR FOR TSNT. CONTR FUEL - AVCARD ONLY.
A110-9	TRAN ALERT: LTD MAINT SVC AVBL.

LAGUNA AAF (YUMA PROVING GROUND) (ICAO: KLGF, IATA: LGF) is a private airport located in YUMA PROVING GROUND (YUMA), AZ.
