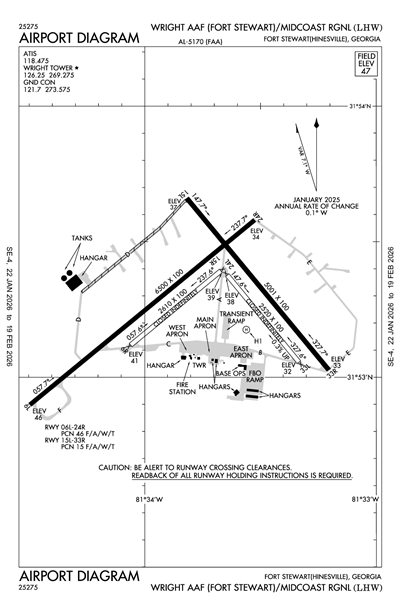

WRIGHT AAF (FORT STEWART)/MIDCOAST RGNL - Airport Diagram

KLHW

ICAO KLHWIATA LIYLocal LHW

WRIGHT AAF (FORT STEWART)/MIDCOAST RGNL

PublicPUB

FORT STEWART (HINESVILLE), GA, US

View on Map

Status

Operational

Coordinates

31° 53' 16"N 81° 33' 46"W

Elevation

47' MSL

Pattern Alt

1047' MSL

Mag Variation

7°W

Declination

4°W

Fuel

JET A (FSII), 100LL

FSS

MACON (MCN)

Sectional

JACKSONVILLE

ARTCC

JACKSONVILLE (ZJX)

Data Effective

2/19/26-3/19/26

KLHW VFR

7:55 PM EDT RAW

Few 15,000'
Few 12,000'

Viz

10sm

Temp

66°F

Dew

48°F

Pres

30.11"Hg

Wind

120° 4kts

RMK

AO2 SLP199 T01910090 10273 20191 52012 $

METAR KLHW 142355Z AUTO 12004KT 10SM FEW120 FEW150 19/09 A3011 RMK AO2 SLP199 T01910090 10273 20191 52012 $

Add Your Business

KLHW FBOs

Promote Listing

Midcoast Regional Airport

UNICOM: 126.25

Phone: (912) 877-4359

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 2/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.70
Full Serve	5.49		5.36

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

ATIS

118.475

Common

CTAF	126.25
WHEN ATCT & MARNE RDO BOTH CLSD, ACTVT PAPI RWY 06L & 33R; HIRL RWY 06L/24R & 15L/33R; TWY A, B, C, & F - CTAF.; COMM: CTAF MARNE RDO - OPR 1230Z++ MON-0400Z++ SAT, SUN 1230Z++ - 0400Z++ EXC HOL. MIDCOAST REGIONAL-FBO OPR 1200-0000Z++. 123.075.
Pilot-To-Dispatcher (PTD)	140.55

Ground

WRIGHT GROUND	121.7
1230-0400Z++ M-F, EXCEPT HOLIDAYS.

Tower

WRIGHT TOWER	126.25
1230-0400Z++ M-F, EXCEPT HOLIDAYS.

Approach

Ground Controlled Approach	134.65
SAVANNAH APPROACH	120.4

Departure

SAVANNAH DEPARTURE

120.4

Operations

Operations	41.3
MARNE RDO, OPR H24.
Operations	127.35
MARNE RDO, OPR H24.
Operations	140.55

Center

SAVANNAH CENTER	132.925
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 132.925/363.2 (SAVANNAH RCAG) WHEN SAVANNAH APCH CTL CLSD.

Flight Service

Flight Following	41.3
OPR H24.
Flight Following	127.35
OPR H24.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSVN (23nm)

RAW

Reported

Sat, 3/14 6:15 PM EDT

Valid

Sat, 3/14 6:00 PM EDT - Sun, 3/15 7:00 PM EDT

VFR

6:00 PM EDT - 3:00 AM EDT

Sky Clear

Viz

6sm

Pres

30.12"Hg

Wind

120° 6kts

VFR

Becoming 3:00 AM EDT - 7:00 AM EDT

Overcast 4,000'

Viz

6sm

Pres

30.06"Hg

Wind

090° 6kts

MVFR

Becoming 7:00 AM EDT - 5:00 PM EDT

Light Rain

Overcast 2,500'

Viz

4.97sm

Pres

30.03"Hg

Wind

070° 6kts

MVFR

Becoming 5:00 PM EDT - 7:00 PM EDT

Overcast 2,000'

Viz

6sm

Pres

29.94"Hg

Wind

130° 6kts

TAF AMD KSVN 142215Z 1422/1523 12006KT 9999 SKC QNH3011INS
   BECMG 1507/1508 09006KT 9999 OVC040 QNH3005INS
   BECMG 1511/1512 07006KT 8000 -RA OVC025 QNH3002INS
   BECMG 1521/1522 13006KT 9999 NSW OVC020 QNH2993INS TX25/1519Z TN16/1504Z LAST NO AMDS AFT 1423 NEXT 1503

KLHW

Effective	Expires	Category	NOTAM
Domestic
3/14/26 2220Z	6/12/26 0400Z		!LHW 03/009 LHW OBST TOWER LGT (ASR 1231717) 315254.40N0815056.20W (14.6NM W LHW) 434.7FT (308.7FT AGL) U/S 2603142220-2606120400
3/13/26 1300Z			!LHW 03/007 LHW AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF LHW SFC-3500FT AGL ACFT CS FLC67 2603131300-2603132200EST
3/6/26 1607Z	6/4/26 0500Z		!LHW 03/004 LHW OBST TOWER LGT (ASR 1054096) 314849.20N0813601.90W (4.9NM SSW LHW) 316.9FT (255.9FT AGL) U/S 2603061607-2606040500
2/27/26 2034Z	3/31/26 1700Z		!LHW 02/026 LHW OBST TOWER LGT (ASR 1237587) 315149.70N0814541.60W (10.3NM W LHW) 423.9FT (338.9FT AGL) U/S 2602272034-2603311700
2/17/26 1310Z	4/3/26 1309Z		!LHW 02/012 LHW OBST TOWER LGT (ASR 1295677) 315300.10N0813758.80W (3.6NM W LHW) 252.0FT (184.7FT AGL) U/S 2602171310-2604031309
2/15/26 0123Z	5/16/26 0500Z		!LHW 02/005 LHW OBST TOWER LGT (ASR 1023092) 315652.30N0812021.60W (12.1NM ENE LHW) 282.2FT (269.0FT AGL) U/S 2602150123-2605160500
2/3/26 0204Z	5/5/26 0500Z		!LHW 02/001 LHW OBST TOWER LGT (ASR 1022214) 313906.00N0812342.10W (16.3NM SSE LHW) 280.2FT (267.1FT AGL) U/S 2602030204-2605050500
1/2/26 2234Z	12/31/26 1226Z	Runway	!LHW 01/001 LHW RWY 15L/33R CLSD EXC MIL ACFT LGT OUT TRG OPS DLY SS-SR 2601022234-2612311226
12/30/25 1900Z	3/30/26 0500Z		!LHW 12/023 LHW OBST TOWER LGT (ASR 1254824) 315331.90N0813601.40W (1.9NM W LHW) 220.1FT (147.0FT AGL) U/S 2512301900-2603300500
12/30/25 1257Z	12/31/26 2359Z	Runway	!LHW 12/021 LHW RWY 06L/24R NOW RWY 06/24 2512301257-2612312359
12/29/25 1551Z	6/29/26 2359Z	Runway	!LHW 12/019 LHW RWY 06L/24R RWY INDICATOR SIGNS NOT STD 2512291551-2606292359
12/29/25 1545Z			!LHW 12/018 LHW SVC PCL ALL U/S 2512291545-PERM
12/12/25 1820Z	12/12/26 2359Z		!LHW 12/011 LHW OBST TOWER LGT (ASR 1004117) 315102.00N0813603.00W (3.0NM SW LHW) 272.0FT (203.1FT AGL) U/S 2512121820-2612122359
11/6/25 1858Z	5/31/26 2359Z	Runway	!LHW 11/007 LHW RWY 33R PAPI U/S 2511061858-2605312359
4/3/25 1237Z	4/3/26 2359Z	Runway	!LHW 04/004 LHW RWY 33R RENL U/S 2504031237-2604032359
4/3/25 1236Z	4/3/26 2359Z	Runway	!LHW 04/003 LHW RWY 15L RENL U/S 2504031236-2604032359
11/3/22 1725Z		Runway	!LHW 11/003 LHW RWY 15L SIGNS LGT U/S 2211031725-PERM
2/4/22 1557Z			!LHW 02/011 LHW TWY C SIGNS LGT U/S 2202041557-PERM
2/4/22 1554Z			!LHW 02/010 LHW TWY B SIGNS LGT U/S 2202041554-PERM
2/4/22 1553Z			!LHW 02/009 LHW TWY A SIGNS LGT U/S 2202041553-PERM
2/4/22 1552Z		Runway	!LHW 02/008 LHW RWY 24R SIGNS LGT U/S 2202041552-PERM
2/4/22 1547Z		Runway	!LHW 02/006 LHW RWY 33R SIGNS LGT U/S 2202041547-PERM
Military
3/13/26 1132Z	3/16/26 2301Z	Aerodrome	AERODROME CRANE OPERATIONS 0700-1900L 16 MAR @ BLDG 3003 31°51'24.62"N 81°38'16.26"W 168 FT AGL FLAGGED
3/13/26 1129Z	3/14/26 0301Z	Services	!KLHW M0024/26 LHW SVC BASE OPS NOT AVBL 202603131900-202603140300 2603131129-2603140301
3/9/26 1344Z	3/13/26 2201Z	Aerodrome	AERODROME SUAS OPERATIONS WITHIN 2NM RADIUS OF EVANS MTC DAILY 1300-2200Z 10-13 MARCH 2026 SURFACE TO 300? AGL
3/9/26 1158Z	3/13/26 2301Z	Aerodrome	AERODROME CRANE OPERATIONS 0700-1900 DAILY 12 AND 13 MAR @ BLDG 3003 31°51'24.62"N 81°38'16.26"W 168 FT AGL FLAGGED

ATC Tower

Yes

Attendance

MON-FRI 0600-2300
TWR WILL OPEN FOR JOSAC MISSIONS, DSN 435-3103. WHEN BASE OPS CLSD, CTC HUNTER BASE OPS DSN 729-5110, SEE FLIP AP/1 FLT HAZ AND SUPPLEMENTARY ARPT RMK.

Owner

US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060

Manager

JESSE WILLETT
1116 E. LOWE CIRCLE
HINESVILLE, GA 31315
Phone: (912) 435-3130

FSS

MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF

NOTAM

LHW

Light Schedule

Lights

WHEN ATCT & MARNE RDO BOTH CLSD, ACTVT PAPI RWY 06L & 33R; HIRL RWY 06L/24R & 15L/33R; TWY A, B, C, & F - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

None

Pwrplant Repair

None

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 06L/24R

Dimensions

6500 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

46/F/A/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06L	Runway 24R
True Heading	51°	231°
Traffic Pattern	Right
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	31° 52' 54"N	31° 53' 35"N
Longitude	81° 34' 30"W	81° 33' 32"W
Elevation	46'	34'
Threshold Crossing Height	48 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4L	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06R/24L

Dimensions

2610 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Poor

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 06R	Runway 24L
True Heading	51°	231°
Traffic Pattern
Markings	BSC	BSC
Markings Condition	POOR	POOR
Latitude	31° 53' 07"N	31° 53' 24"N
Longitude	81° 34' 04"W	81° 33' 40"W
Elevation	41'	39'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15L/33R

Dimensions

5001 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

15/F/A/W/T

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15L	Runway 33R
True Heading	141°	321°
Traffic Pattern	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	31° 53' 40"N	31° 53' 01"N
Longitude	81° 33' 49"W	81° 33' 12"W
Elevation	37'	33'
Threshold Crossing Height	--	65 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15R/33L

Dimensions

2520 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Failed

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 15R	Runway 33L
True Heading	141°	321°
Traffic Pattern
Markings	BSC	BSC
Markings Condition	POOR	POOR
Latitude	31° 53' 23"N	31° 53' 03"N
Longitude	81° 33' 39"W	81° 33' 20"W
Elevation	38'	32'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

Dimensions

50 ft. x 50 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway H1	Runway
True Heading	Not Listed	Not Listed
Traffic Pattern
Markings	BSC
Markings Condition	GOOD
Latitude	31° 53' 10"N	N/A
Longitude	81° 33' 34"W	N/A
Elevation	41'	--
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-13	FUEL: J8 AVBL FBO, C912-877-4359 (NC 100LL) 1300-0600Z++ MON-FRI, EXC HOL, OT 24 HR PPR. TRAN FUEL PPR, CTC BASE OPS 571-801-1579/1580.
A110-16	CAUTION: EXTV R/W TRNG MIN LGT SS-SR. CTC TWR PRIOR TO ENTERING CLASS D AIRSPACE. R3005 1.4 NM NW OF AFLD. DEER AND PIG HAZ.
A110-18	MISC: MOORING/TIE-DOWN STRAPS NOT AVBL.
A110-19	RSTD: AVIATORS BRIEFED IN THE LAST 6 MOS MAY RECEIVE A TELEPHONIC UPDATE BRIEFING. CTC HUNTER AAF OPS C571-801-8263/64. 1200-0100Z++ MON-FRI.
A110-20	CIVILIAN FBO PH#'S 912-877-4364 & 912877-4359.
A110-23	UNMANNED ACFT ACT IN CLASS D.
A110-25	MISC: FULL WX SVC EFF 1100-0400Z++MON-FRI, CLSD WEEKEND AND FEDERAL HOL, OT REMOTE BRIEFING FR 26 OWS BARKSDALE AFB, LA, DSN 331-2651/2/3, C318-529-2651/2/3. DUR PERIODS OF AUGMENT ATC WILL ASSIST IN COOPERATIVE WX WATCH BY NOTIFYING WX OF UNREPORTED COND. AUGMENTATION MODE, PREVAIL SFC VIS MAY NOT BE REPRESENTED OF ENTIRE AFLD DUE TO BLDG OBST AND LACK OF VIS. MARK BYD 1 1/2 SM. KLHW FCST 571-801-1585/86.
A110-26	MISC: OPR HRS MAY VARY WITH LCL FLYING SHED.
A110-27	COMM: CTAF MARNE RDO - OPR 1230Z++ MON-0400Z++ SAT, SUN 1230Z++ - 0400Z++ EXC HOL. MIDCOAST REGIONAL-FBO OPR 1200-0000Z++. 123.075.
A110-28	MISC: MAIN RAMP PARKING PADS 15-18 PERM CLSD / SOUTHERN TAXI LANE PERM CLSD.
A110-29	CAUTION: TWYS A, B, C SIGNS REMOVED OR U/S. TWY E PERM CLSD.
A110-3	R/W ACFT PILOTS PLANNING TO CONDUCT OPR WITHIN R3005 MUST RCV A RNG BRIEFING PRIOR TO ANY OPR. BRIEFING SHALL BE ACCOMPLISHED AT LEAST 4 HRS PRIOR TO FLT ON THE RESERVATION.
A110-30	CAUITON: RWY 33R/15L SIGNS REMOVED OR U/S. RWY 24R SIGNS REMOVED OR UNSERVICEABLE.
A110-31	CAUTION: ALL DISTANCE REMAINING SIGNS MISSING FROM ALL RWYS.
A110-32	MISC: NO OVERRUNS FOR RWY 24R, 15L/33R.
A110-5	RSTD: ALL MIL PPR AND MIL TRAN ACFT, CTC BASE OPS 571-801-1579/1580.
A110-8	NS ABTMT: NO OVFT OF CANTONMENT AREA OR CITY OF HINESVILLE BELOW 1000 FT AGL.
A110-MANAGER	OTR CTC: JESSE.A.WILLETT.CIV@ARMY.MIL
A17-M1	TWR WILL OPEN FOR JOSAC MISSIONS, DSN 435-3103. WHEN BASE OPS CLSD, CTC HUNTER BASE OPS DSN 729-5110, SEE FLIP AP/1 FLT HAZ AND SUPPLEMENTARY ARPT RMK.
A23-06L	RIGHT TFC RWY 06L CATS B C D & E.
A30-06R/24L	RWY 6R/24L CLSD INDEFLY.
A30-15R/33L	RWY 15R/33L CLSD INDEFLY.
A42-06R_COND	RWY 6R/24L MARKINGS BADLY FADED.
A42-15R_COND	RWY 15R/33L MARKINGS BADLY FADED.
A81-APT	WHEN ATCT & MARNE RDO BOTH CLSD, ACTVT PAPI RWY 06L & 33R; HIRL RWY 06L/24R & 15L/33R; TWY A, B, C, & F - CTAF.

WRIGHT AAF (FORT STEWART)/MIDCOAST RGNL (ICAO: KLHW, IATA: LHW) is a public airport located in FORT STEWART (HINESVILLE), GA, US.
