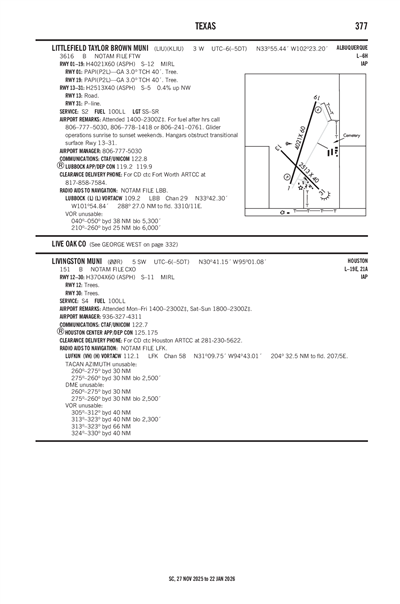

LITTLEFIELD TAYLOR BROWN MUNI - Airport Diagram

KLIU

LITTLEFIELD TAYLOR BROWN MUNI

PublicPUB

3 miles W of LITTLEFIELD, TX

View on Map

Status

Operational

Coordinates

33° 55' 26"N 102° 23' 12"W

Elevation

3616' MSL

Pattern Alt

4616' MSL

Mag Variation

07E

Fuel

100LL

FSS

FORT WORTH (FTW)

Sectional

ALBUQUERQUE

ARTCC

FORT WORTH (ZFW)

Data Effective

12/25/25-1/22/26

KLLN (22nm) VFR

5:15 PM CST RAW

Few 11,000'

Viz

10sm

Temp

68°F

Dew

21°F

Pres

29.80"Hg

Wind

210° 9kts

RMK

AO2

METAR KLLN 072315Z AUTO 21009KT 10SM FEW110 20/M06 A2980 RMK AO2

Add Your Business

KLIU FBOs

Promote Listing

Brown Flying Service

UNICOM: 122.8

Phone: (806) 777-5030

0 Reviews (Read | Sign In To Write)

Your Information

Business

UNICOM 122.8 CTAF 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

RNAV (GPS) RWY 01

Terminal Area Forecast

KLBB (32nm)

RAW

Reported

Wed, 1/7 5:20 PM CST

Valid

Wed, 1/7 6:00 PM CST - Thu, 1/8 6:00 PM CST

VFR

6:00 PM CST - 12:00 AM CST

Broken 15,000'

Viz

6sm

Wind

190° 8kts

VFR

12:00 AM CST - 7:00 AM CST

Light Showers and Rain

Overcast 6,000'

Viz

6sm

Wind

240° 11kts

VFR

7:00 AM CST - 6:00 PM CST

Sky Clear

Viz

6sm

Wind

250° 23kts

Gusts 33kts

TAF KLBB 072320Z 0800/0824 19008KT P6SM BKN150
FM080600 24011KT P6SM -SHRA OVC060 WS008/25040KT
FM081300 25023G33KT P6SM SKC

KLIU

Effective	Expires	NOTAM
Domestic
12/11/25 1450Z	1/25/26 1449Z	!FTW 12/322 LIU OBST TOWER LGT (ASN 2024-ASW-10882-OE) 341054N1020951W (19.0NM NE LIU) 4022FT (400FT AGL) U/S 2512111450-2601251449
FDC
2/19/25 1704Z		!FDC 5/4307 LIU IAP LITTLEFIELD TAYLOR BROWN MUNI, LITTLEFIELD, TX. RNAV (GPS) RWY 1, ORIG-A... MSA RW01 25 NM 5500. 2502191704-2702191704EST

ATC Tower

Attendance

0800-1700

Owner

CITY OF LITTLEFIELD
201 XIT DR, BOX 1267
LITTLEFIELD, TX 79339
Phone: 806-385-9202

Manager

TOM BROWN
BOX 1102
LITTLEFIELD, TX 79339
Phone: 806-777-5030

FSS

FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF

NOTAM

FTW

Light Schedule

Sunset to Sunrise

Lights

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Crop Dusting
Glider Service
Pilot Instruction
Glider Towing

Runway 01/19

Dimensions

4021 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 01	Runway 19
True Heading	17°	197°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	33° 55' 12"N	33° 55' 50"N
Longitude	102° 23' 18"W	102° 23' 04"W
Elevation	3,611'	3,608'
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 13/31

Dimensions

2513 ft. x 40 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

5,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 13	Runway 31
True Heading	136°	316°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	33° 55' 27"N	33° 55' 10"N
Longitude	102° 23' 24"W	102° 23' 03"W
Elevation	3,616'	3,607'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	GLIDER OPNS SR-SS WEEKENDS.
A110-2	HANGARS OBSTRUCT TRANSITIONAL SFC RWY 13/31.
A110-3	FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.

LITTLEFIELD TAYLOR BROWN MUNI (ICAO: KLIU, IATA: LIU) is a public airport located in LITTLEFIELD, TX.
