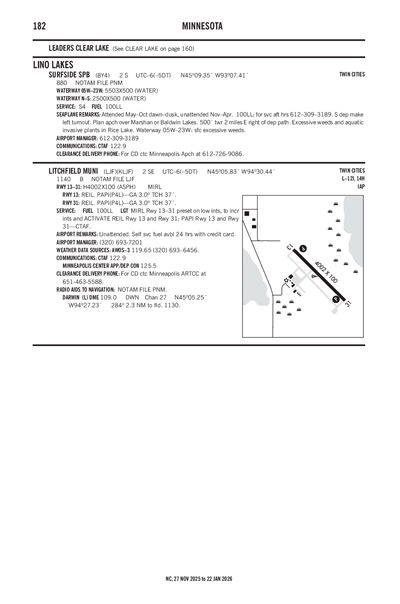

LITCHFIELD MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLJF
LITCHFIELD MUNI
PublicPUB

2 miles SE of LITCHFIELD, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 05' 50"N 94° 30' 26"W
1140' MSL
2140' MSL
02E
100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
4/18/24-5/16/24
KLJF VFR
8:15 AM CDT
Rain
Overcast 4,600'
Broken 3,900'
7sm
45°F
39°F
29.84"Hg
130° 19kts
Gusts 22kts
AO2
KLJF 261315Z AUTO 13019G22KT 7SM RA BKN039 OVC046 07/04 A2984 RMK AO2
List Your Business

KLJF FBOs, Flight Schools and Ground Support

Promote Listing
Litchfield Municipal Airport
Freq: 122.9
Phone: (320) 693-7201
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.85
Full Serve

KLJF Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLJF Hotels

No hotels are listed for this airport.

KLJF Restaurants

No restaurants are listed for this airport.

KLJF Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3

AWOS-3
320-693-6456
 119.65

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSTC (33nm)
Fri, 4/26 6:40 AM CDT
Fri, 4/26 7:00 AM CDT - Sat, 4/27 7:00 AM CDT
VFR
7:00 AM CDT - 9:00 AM CDT
Overcast 12,000'
6sm
130° 16kts
Gusts 26kts
VFR
9:00 AM CDT - 12:00 PM CDT
Light Showers and Rain
Overcast 4,000'
6sm
130° 18kts
Gusts 28kts
MVFR
12:00 PM CDT - 5:00 PM CDT
Overcast 2,000'
6sm
120° 17kts
Gusts 28kts
MVFR
5:00 PM CDT - 8:00 PM CDT
Light Showers and Rain and Mist
Overcast 1,000'
5sm
120° 16kts
Gusts 25kts
IFR
Temporary 5:00 PM CDT - 7:00 PM CDT
Light Thunderstorm and Rain and Mist
Overcast 800'
3sm
Calm
IFR
8:00 PM CDT - 12:00 AM CDT
Light Showers and Rain and Mist
Overcast 600'
4sm
110° 14kts
Gusts 23kts
IFR
Temporary 9:00 PM CDT - 12:00 AM CDT
Light Thunderstorm and Rain and Mist
Overcast 600'
3sm
Calm
IFR
12:00 AM CDT - 4:00 AM CDT
Light Showers and Rain and Mist
Overcast 500'
4sm
100° 13kts
Gusts 20kts
IFR
4:00 AM CDT - 7:00 AM CDT
Light Showers and Rain and Mist
Overcast 500'
5sm
100° 8kts
KSTC 261140Z 2612/2712 13016G26KT P6SM OVC120
   FM261400 13018G28KT P6SM -SHRA OVC040
   FM261700 12017G28KT P6SM OVC020
   FM262200 12016G25KT 5SM -SHRA BR OVC010
   TEMPO 2622/2624 3SM -TSRA BR OVC008CB
   FM270100 11014G23KT 4SM -SHRA BR OVC006
   TEMPO 2702/2705 3SM -TSRA BR OVC006CB
   FM270500 10013G20KT 4SM -SHRA BR OVC005
   FM270900 10008KT 5SM -SHRA BR OVC005
KLJF
Domestic
1/9/242307Z !LJF 01/002 LJF SVC AUTOMATED WX BCST SYSTEM WIND UNREL 2401092307-2501312200EST
No
UNATNDD
CITY OF LITCHFIELD
126 NORTH MARSHALL AVENUE
LITCHFIELD, MN 55355
Phone: 320-693-7201
MIKE GEERS
703 PARK AVE.
LITCHFIELD, MN 55355
Phone: (320) 693-7201
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
LJF
--
MIRL RY 13/31 PRESET ON LOW INTST, TO INCR INTST AND ACTVT REIL RY 13/ 31; PAPI RY 13/31 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
17
0
0
0
0
0
None
None
None
None
Aircraft Sales

Runway 13/31

4002 ft. x 100 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 13 Runway 31
True Heading 138°318°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 06' 04"N 45° 05' 35"N
Longitude 94° 30' 45"W 94° 30' 08"W
Elevation 1,140' 1,140'
Threshold Crossing Height 37 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1TRSNL SFC OBSTN - TREES - NORTHEAST OF RY 13/31.
A110-2FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
LITCHFIELD MUNI (ICAO: KLJF, IATA: LJF) is a public airport located in LITCHFIELD, MN.
