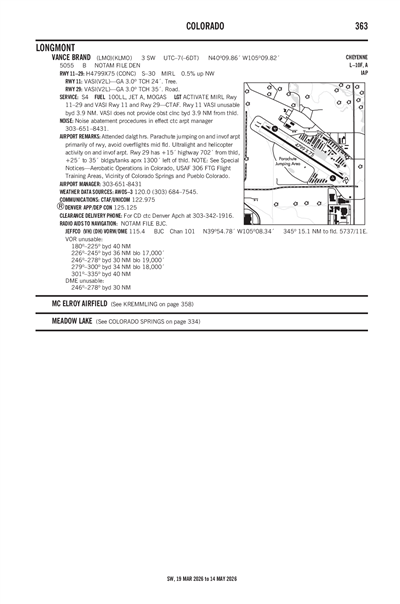

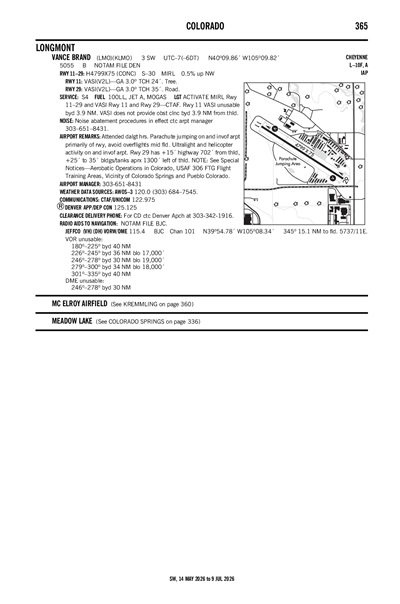

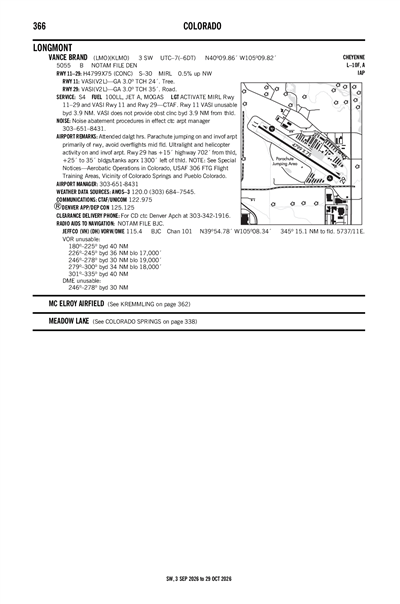

VANCE BRAND - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLMO
ICAO KLMOLocal LMO
VANCE BRAND
PublicPUB

3 miles SW of LONGMONT, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 09' 52"N 105° 09' 49"W
Elevation
5055' MSL
Pattern Alt
6055' MSL
Mag Variation
8°E
Declination
10°E
Fuel
JET A, 100LL, MOGAS
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
9/3/26-10/1/26
KLMO VFR
1:55 PM MDT
Rain
Broken 11,000'
Scattered 6,000'
Scattered 3,800'
10sm
67°F
49°F
30.17"Hg
080° 9kts
AO2 T01970094
METAR KLMO 121955Z AUTO 08009KT 10SM RA SCT038 SCT060 BKN110 20/09 A3017 RMK AO2 T01970094
+ Add Your Business

KLMO FBOs

Promote Listing
Fly Elite Aviation
UNICOM: 122.975
Phone: (303) 774-8081
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.69
Full Serve 7.69 7.39 6.29
Fuel Notes
Prices include tax
JET A is premixed with Prist (FSII).
Fuel Hours
fueling operations end @ 4:45pm, Self-Service pump available 24 hours.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.0
(303) 684-7545

Common

CTAF 122.975
ACTVT MIRL RY 11/29 AND VASI RY 11/29 - CTAF.
UNICOM 122.975

Arrival

BRNKO RNAV STAR 127.05
PINNR RNAV STAR 127.05

Approach

DENVER APPROACH 125.125

Departure

DENVER DEPARTURE 125.125

Center

DENVER CENTER 126.5
LOW/HIGH, DENVER ARTCC (ZDV) FREQS 126.5/371.85 (DENVER/A/ RCAG) USED FOR PINNR RNAV STAR 26000 FT AND BLW.
DENVER CENTER 128.325
HIGH, DENVER ARTCC (ZDV) FREQS 128.325/377.075 (HAYDEN RCAG) USED FOR PINNR RNAV STAR 27000 FT AND ABV.

Terminal Area Forecast

KBJC (16nm)
Sat, 9/12 1:58 PM MDT
Sat, 9/12 2:00 PM MDT - Sun, 9/13 12:00 PM MDT
VFR
2:00 PM MDT - 7:00 PM MDT
Light Showers and Rain
Broken 10,000'
N/A
VRB° 18kts
Gusts 30kts
VFR
2:00 PM MDT - 9:00 PM MDT
Broken 12,000'
Scattered 10,000'
6sm
110° 8kts
VFR
9:00 PM MDT - 1:00 AM MDT
Few 12,000'
6sm
300° 7kts
VFR
1:00 AM MDT - 12:00 PM MDT
Few 12,000'
6sm
VRB° 5kts
TAF KBJC 121958Z 1220/1318 11008KT P6SM SCT100 BKN120
   PROB30 1220/1301 VRB18G30KT -SHRA BKN100
   FM130300 30007KT P6SM FEW120
   FM130700 VRB05KT P6SM FEW120
KLMO
EffectiveExpiresCategoryNOTAM
Domestic
9/11/26
2300Z
9/12/26
0400Z
!DEN 09/241 LMO AIRSPACE NUMEROUS UAS WI AN AREA DEFINED AS .3NM RADIUS OF 401247N1051557W (4.5NM W LMO) SFC-400FT AGL 2609112300-2609120400
9/9/26
1400Z
9/18/26
0300Z
!DEN 09/219 LMO AIRSPACE SEE FDC 6/1854 ZDV 91.137 HAZARD DLY 1400-0300 2609091400-2609180300
2/27/26
2200Z
2/27/27
2200Z
!DEN 02/500 LMO AIRSPACE UAS WI AN AREA DEFINED AS .3NM RADIUS OF 400841N1050530W (4.1NM SE LMO) SFC-400FT AGL 2602272200-2702272200
FDC
8/16/26
1829Z
9/16/26
1829Z
!FDC 6/5415 LMO IAP VANCE BRAND, LONGMONT, CO.
VOR/DME-A, AMDT 2B...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GLL VOR/DME UNMONITORED. 2608161829-2609161829EST
6/3/26
1525Z
!FDC 6/5281 LMO SID VANCE BRAND, LONGMONT, CO.
ECHOO ONE DEPARTURE (RNAV)...
DUUZE TRANSITION: POIZN TO COTNN MOCA 6400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2606031525-2701131525EST
No
DALGT
CITY OF LONGMONT
350 KIMBARK ST
LONGMONT, CO 80501
Phone: 303-651-8431
LEVI BROWN
229 AIRPORT ROAD
LONGMONT, CO 80503
Phone: 303-651-8431
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT MIRL RY 11/29 AND VASI RY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Charter Service
Pilot Instruction
Parachute Jump Activity
Aircraft Rental
Aircraft Sales

Runway 11/29

4799 ft. x 75 ft.
CONC
Good
NONE
MED

30,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 123°303°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition FAIR FAIR
Latitude 40° 10' 05"N 40° 09' 39"N
Longitude 105° 10' 15"W 105° 09' 23"W
Elevation 5,055' 5,031'
Threshold Crossing Height 24 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V2L V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10FOR CD CTC DENVER APCH AT 303-342-1916.
A110-3ULTRALIGHT & HELICOPTER ACTIVITY ON & INVOF ARPT.
A110-4RY 11 HAS -7 FT DITCH 420 FT AND 900 FT FM THLD ON EXTDD THLD.
A110-5RY 29 HAS +15 FT HWY 702 FT FM THLD; +25 TO 35 FT BLDGS/TANKS APROXLY 1300 FT L OF THLD.
A110-8NOISE ABATEMENT PROCEDURES IN EFFECT CTC ARPT MANAGER 303-651-8431.
A110-9PARAJUMPING ON AND IN VICINITY OF ARPT PRIMARILY S OF RY, AVOID OVERFLIGHTS MID FIELD.
A43-11VASI UNUSLB BYD 3.9 NM. VASI DOES NOT PRVD OBST CLNC BYD 3.9 NM FROM THLD.
A81-APTACTVT MIRL RY 11/29 AND VASI RY 11/29 - CTAF.
VANCE BRAND (ICAO: KLMO, IATA: LMO) is a public airport located in LONGMONT, CO, US.
