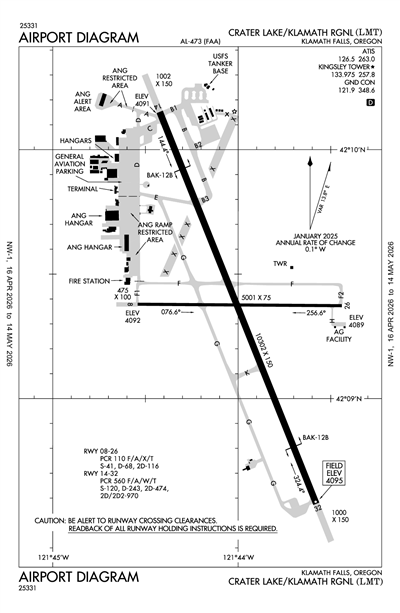

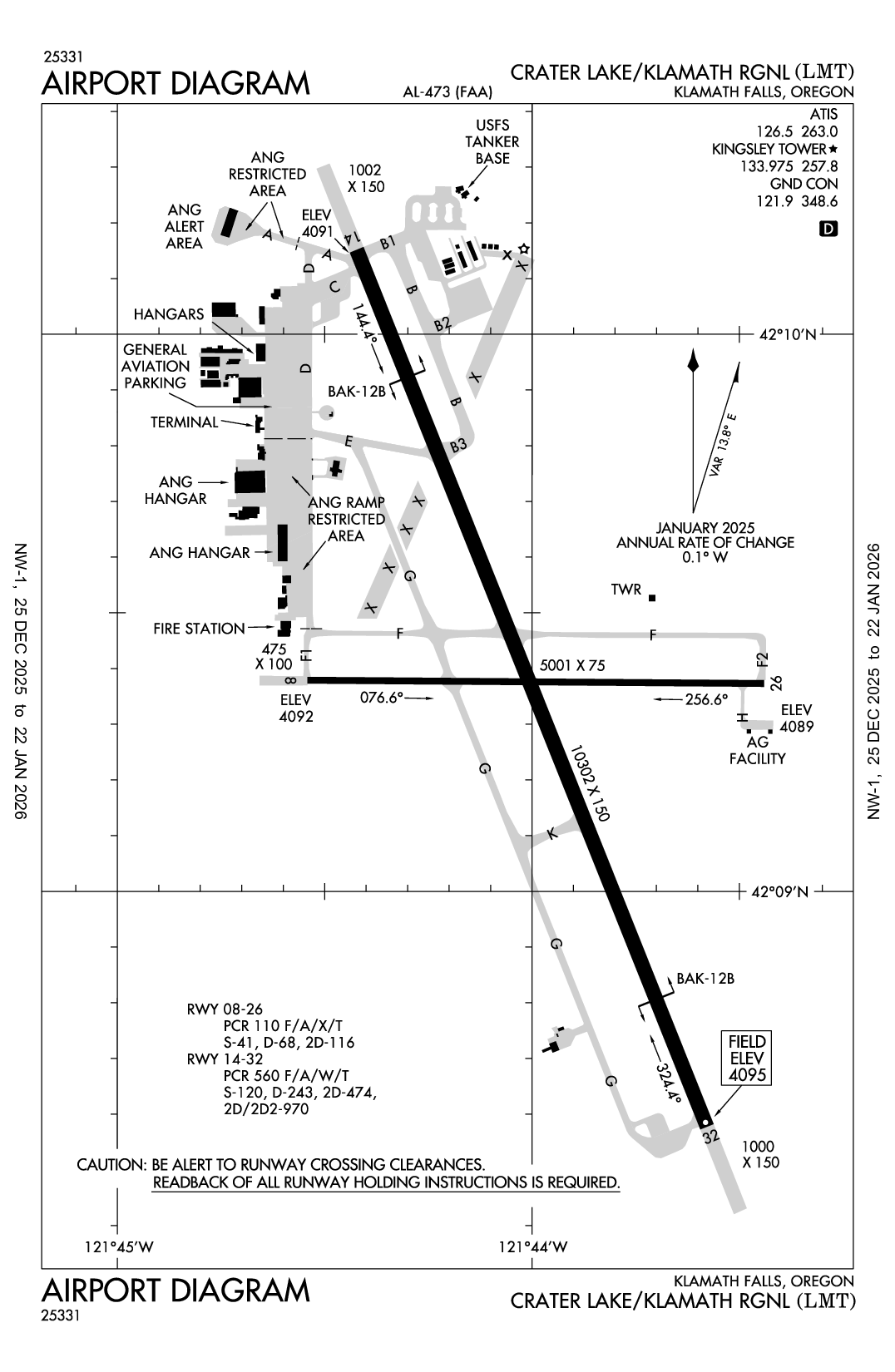

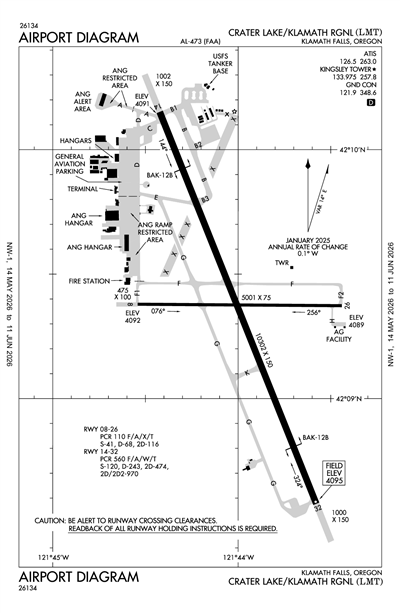

CRATER LAKE/KLAMATH RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLMT
ICAO KLMTIATA LMTLocal LMT
CRATER LAKE/KLAMATH RGNL
PublicPUB

4 miles SE of KLAMATH FALLS, OR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 09' 22"N 121° 44' 00"W
Elevation
4095' MSL
Pattern Alt
5095' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, JET A+, CILI, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
5/14/26-6/11/26
KLMT VFR
2:53 PM PDT
Clear
10sm
72°F
15°F
30.08"Hg
270° 15kts
Gusts 23kts
AO2 SLP165 T02221094
METAR KLMT 142153Z 27015G23KT 10SM CLR 22/M09 A3008 RMK AO2 SLP165 T02221094
+ Add Your Business

KLMT FBOs

Promote Listing
Century Aviation Services
UNICOM: 122.95
Phone: (541) 882-4681
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.65 6.27 6.33
Fuel Notes
Prices include tax
Fuel Hours
After hour call outs available: $150
Promote Listing
RMC Aviation
UNICOM: 122.95
Phone: (541) 891-9372
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.50 6.38
Full Serve 6.80 6.63 6.71
Fuel Notes
Prices include tax
Self-Serve available 24/7 just north of our FBO, across from taxiway C
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.5
ASOS (541) 883-8127

Common

CTAF 133.975
WHEN ATCT CLSD ACTVT MALSF RWY 14, MALSR RWY 32, HIRL RWY 14/32, MIRL RWY 08/26 & TWY LGTS - CTAF. RWY & TWY LGTS ALSO ACTVT ON 257.8. REIL RWY 26; PAPI RWY 26, PAPI RWY 14 & VASI RWY 32 OPR CONSLY.
UNICOM 122.95

Ground

KINGSLEY GROUND 121.9
0700-2000

Tower

KINGSLEY TOWER 133.975
0700-2000

Approach

KINGSLEY APPROACH 123.675

Departure

KINGSLEY DEPARTURE 123.675

Center

KINGSLEY CENTER 127.6
LOW, APCH/DEP CTL SVC PRVDD BY SEATTLE ARTCC (ZSE) ON FREQS 127.6/346.35 (KLAMATH FALLS RCAG) WHEN KINGSLEY APCH (LMT) CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KLMT
Thu, 5/14 10:27 AM PDT
Thu, 5/14 11:00 AM PDT - Fri, 5/15 11:00 AM PDT
VFR
11:00 AM PDT - 2:00 PM PDT
Sky Clear
6sm
250° 6kts
VFR
2:00 PM PDT - 5:00 PM PDT
Sky Clear
6sm
280° 15kts
Gusts 20kts
VFR
5:00 PM PDT - 8:00 PM PDT
Sky Clear
6sm
310° 18kts
Gusts 28kts
VFR
8:00 PM PDT - 11:00 PM PDT
Sky Clear
6sm
320° 15kts
VFR
11:00 PM PDT - 11:00 AM PDT
Sky Clear
6sm
310° 10kts
TAF KLMT 141727Z 1418/1518 25006KT P6SM SKC
   FM142100 28015G20KT P6SM SKC
   FM150000 31018G28KT P6SM SKC
   FM150300 32015KT P6SM SKC
   FM150600 31010KT P6SM SKC
KLMT
EffectiveExpiresCategoryNOTAM
Domestic
5/14/26
0233Z
!LMT 05/017 LMT NAV ILS RWY 32 GP U/S 2605140233-2606262000EST
5/13/26
2355Z
5/25/26
2359Z
!LMT 05/016 LMT APRON NORTHEAST APN CLSD 2605132355-2605252359
5/13/26
2145Z
9/10/26
2145Z
!LMT 05/015 LMT OBST TOWER LGT (ASR 1217658) 421217.90N1214116.20W (3.6NM NE LMT) 4779.9FT (207.0FT AGL) U/S 2605132145-2609102145
5/13/26
0044Z
!LMT 05/012 LMT NAV ILS RWY 32 GP U/S 2605130044-2605152000EST
5/6/26
1500Z
5/20/26
0001Z
!LMT 05/004 LMT AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF 421116N1214516W (1.9NM NW LMT) SFC-100FT AGL DLY 1500-0001 2605061500-2605200001
4/20/26
1330Z
8/31/26
2359Z
!LMT 04/017 LMT TWY G BTN TWY E AND RWY 08/26 CLSD 2604201330-2608312359
4/20/26
1330Z
8/31/26
2359Z
!LMT 04/016 LMT TWY F BTN TWY F1 AND RWY 14/32 CLSD 2604201330-2608312359
4/10/26
1524Z
6/30/26
2359Z
!LMT 04/010 LMT OBST TOWER LGT (ASR 1035900) 420943.00N1213901.00W (3.7NM E LMT) 4368.1FT (267.1FT AGL) U/S 2604101524-2606302359
3/31/26
1840Z
5/31/26
2359Z
!LMT 03/019 LMT OBST TOWER LGT (ASR 1252711) 420614.80N1214219.80W (3.4NM SSE LMT) 4234.9FT (140.1FT AGL) U/S 2603311840-2605312359
3/31/26
1507Z
!LMT 03/018 LMT NAV ILS RWY 14 LOC U/S 2603311507-2608282000EST
1/8/26
1653Z
9/30/26
2359Z
!LMT 01/005 LMT TWY F CLSD TO AIR CARRIERS 2601081653-2609302359
12/1/25
1623Z
9/30/26
2359Z
!LMT 12/002 LMT TWY F BTN TWY F1 AND TWY G CLSD 2512011623-2609302359
3/30/17
0310Z
!LMT 03/069 LMT OBST HILL (ASN UNKNOWN) 421433N1214222W (5.35NM NNE LMT)
6183FT NOT LGTD 1703300310-PERM
FDC
4/8/26
1825Z
!FDC 6/9732 LMT IAP CRATER LAKE/KLAMATH RGNL,
KLAMATH FALLS, OR.
VOR/DME OR TACAN RWY 32, AMDT 5A...
S-32 CAT C VISIBILITY RVR 5000. CHANGE FOR INOPERATIVE MALSR NOTE
TO READ: FOR INOPERATIVE ALS, INCREASE S-32 CATS C/D/E VISIBILITY
TO 1 3/8 SM.
THIS IS VOR/DME OR TACAN RWY 32, AMDT 5B. 2604081825-PERM
Military
5/14/26
1400Z
5/14/26
1600Z
Runway!KLMT M0043/26 LMT RWY 14 BAK-12 ARST SYSTEM U/S NORTH AAS 2605141400-2605141600
5/12/26
1546Z
5/15/26
1546Z
M0042/26 NOTAMC M0041/26
2/19/26
1640Z
5/19/26
2359Z
LOX SVNG UNVBL
Yes
MON-FRI 0630-1700
UNATNDD WKEND & HOL.
CITY OF KLAMATH FALLS
CITY HALL PO BOX 237
KLAMATH FALLS, OR 97601
Phone: 541-883-5316
JONATHAN TEICHERT
3000 AIRPORT WAY STE. 300
KLAMATH FALLS, OR 97603
Phone: 541-883-5373
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
LMT
--
WHEN ATCT CLSD ACTVT MALSF RWY 14, MALSR RWY 32, HIRL RWY 14/32, MIRL RWY 08/26 & TWY LGTS - CTAF. RWY & TWY LGTS ALSO ACTVT ON 257.8. REIL RWY 26; PAPI RWY 26, PAPI RWY 14 & VASI RWY 32 OPR CONSLY.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Freight
Crop Dusting
Cargo Handling
Charter Service
Pilot Instruction

Runway 08/26

5001 ft. x 75 ft.
ASPH
Good
GRVD
MED

41,000lbs
68,000lbs
116,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 09' 23"N 42° 09' 22"N
Longitude 121° 44' 33"W 121° 43' 27"W
Elevation 4,092' 4,089'
Threshold Crossing Height -- 34 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 14/32

10302 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
243,000lbs
474,000lbs
970,000lbs
  Runway 14 Runway 32
True Heading 158°338°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD FAIR
Latitude 42° 10' 09"N 42° 08' 35"N
Longitude 121° 44' 25"W 121° 43' 35"W
Elevation 4,091' 4,095'
Threshold Crossing Height 53 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3.2° 3°
Visual Slope Indicator P4L V4L
Approach Lights MALSF MALSR
Centerline Lights
Runway End Identifier Lights
A110-1WATERFOWL INVOF ARPT NOV-MAY.
A110-10ANG: OFFL BUS, PPR COMM 541-885-6686. BASE OPS OPR 1430-2359Z++ MON-+FRI EXC HOL.
A110-11MIL FUEL SVC 1500-0300Z++; 20 MIN PRIOR NOTICE & FEE - C541-882-4681
A110-12MIL BASH PHASE II - FEB - MAY & SEP - NOV. OTR TIMES BASH PHASE I.
A110-14RSTD: TWY A WEST OF TWY D & TWY D BTN TWY E & F MIL OPS ONLY.
A110-17FBO - 541-882-4681.
A110-19TWY G SOUTH RUN UP PAD MIL OPS ONLY.
A110-20CONDS UNMTR WKDAY 2230 - 0630, WKEND & HOL.
A110-22FOR CD IF UNA TO CTC ON FSS FREQ, CTC SEATTLE ARTCC AT 253-351-3694.
A110-23MIL ANG: CLASSIFIED MTRL STORAGE SECRET & BLW - AMGMT.
A110-24RSTD: TWY G S RUN UP PAD MIL OPS ONLY. TWY B BTN TWY B1 & TWY B2 WINGTIP TO FIXED OBJECT SEPARATION NSTD; WINGSPAN GREATER THAN 133 FT MINIMIZE TAXI SPEED.
A110-5MIL ANG: HVY ACFT AFT LNDG TAX TO N OR S EOR; SHTDN OUTBOARD ENGS BFR TAX TO MIL RAMP.
A110-8CSTMS/AG/IMG SVC NA. KPDX CUST - C503-326-3249.
A16541-539-8977.
A17-H1UNATNDD WKEND & HOL.
A39-08/26PCR VALUE: 110/F/A/X/T
A39-14/32PCR VALUE: 560/F/A/W/T
A43-14RWY 14 PAPI UNUSBL BYD 3.5 NM.
A57-08APCH SLOPE 29:1 TO DTHR.
A57-26APCH SLOPE 34:1 TO DTHR.
A81-APTWHEN ATCT CLSD ACTVT MALSF RWY 14, MALSR RWY 32, HIRL RWY 14/32, MIRL RWY 08/26 & TWY LGTS - CTAF. RWY & TWY LGTS ALSO ACTVT ON 257.8. REIL RWY 26; PAPI RWY 26, PAPI RWY 14 & VASI RWY 32 OPR CONSLY.
E60-14_BAK-12TYPE H BAK-12B(B)(1500')
E60-32_BAK-12TYPE H BAK-12B(B)(1500')
CRATER LAKE/KLAMATH RGNL (ICAO: KLMT, IATA: LMT) is a public airport located in KLAMATH FALLS, OR, US.
