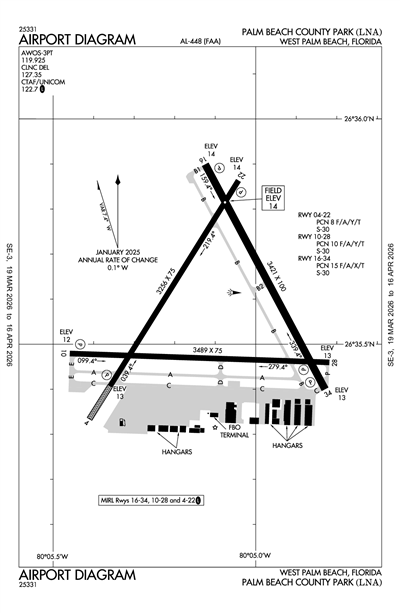

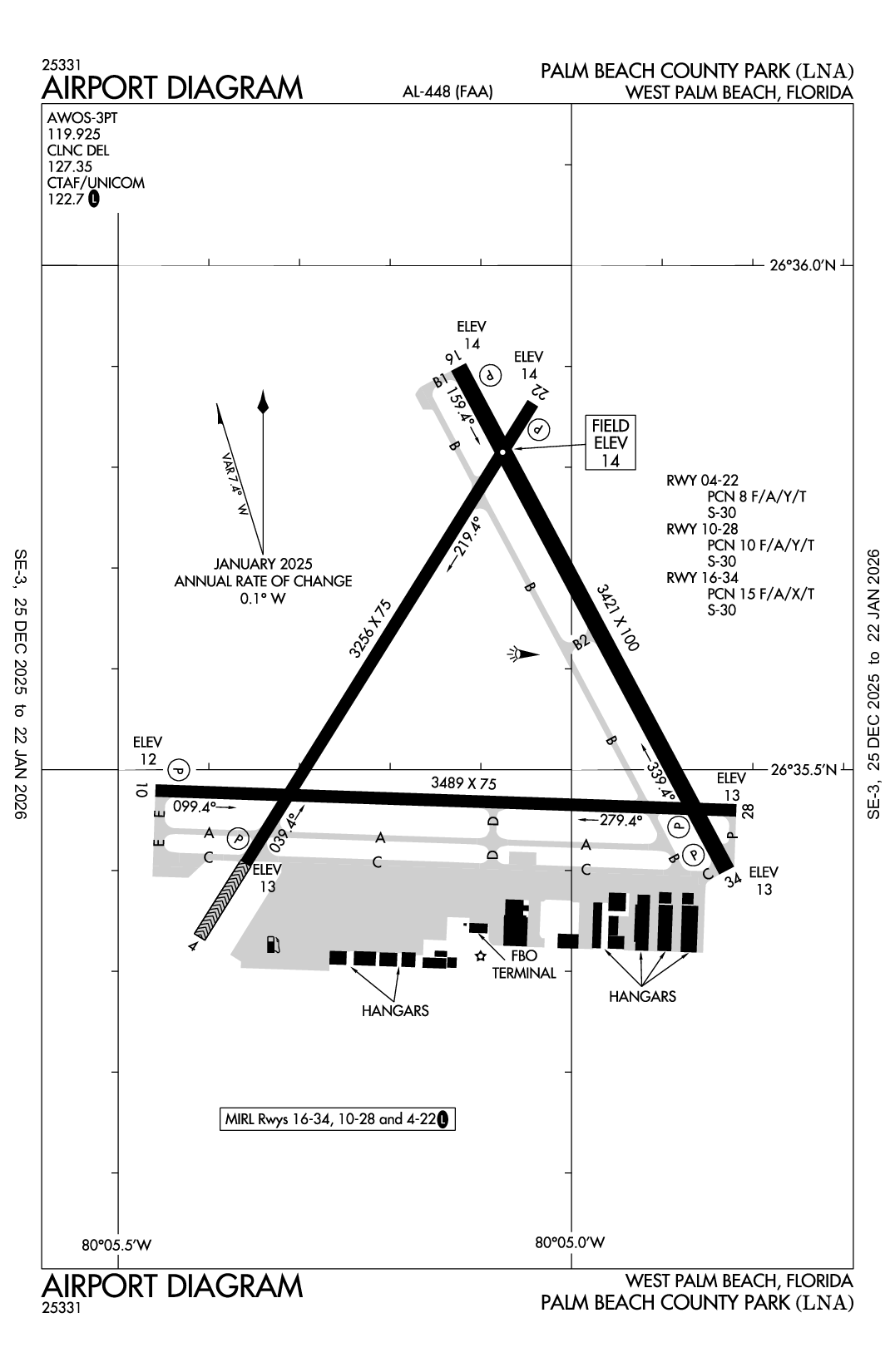

PALM BEACH COUNTY PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLNA
ICAO KLNAIATA LNALocal LNA
PALM BEACH COUNTY PARK
PublicPUB

6 miles S of WEST PALM BEACH, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
26° 35' 35"N 80° 05' 06"W
Elevation
14' MSL
Pattern Alt
1014' MSL
Mag Variation
7°W
Declination
7°W
Fuel
JET A, 100LL
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
10/1/26-10/29/26
KLNA VFR
3:35 AM EDT
Clear
10sm
76°F
73°F
29.97"Hg
Calm
AO2 T02460230
METAR KLNA 170735Z AUTO 00000KT 10SM CLR 25/23 A2997 RMK AO2 T02460230
+ Add Your Business

KLNA FBOs

Promote Listing
Stellar Aviation of South Palm Beach
UNICOM: 122.7
Phone: (561) 656-9815
Fax: (561) 283-1006
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 10/12
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.74
Full Serve 8.24 7.54 7.64
Fuel Notes
Prices include tax

KLNA Flight Schools & Aircraft Rental

Promote Listing
Aamro Aviation
UNICOM: 122.7
Phone: (561) 660-7468
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.925
(561) 964-0308

Common

CTAF 122.7
DUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.
UNICOM 122.7

Clearance

Clearance Delivery 127.35

Arrival

JESTR STAR 124.6
MELBOURNE STAR 124.6
TTYLR STAR 125.2

Approach

PALM BEACH APPROACH 127.35

Departure

PALM BEACH DEPARTURE 127.35

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KDJT (6nm)
Sat, 10/17 1:34 AM EDT
Sat, 10/17 2:00 AM EDT - Sun, 10/18 2:00 AM EDT
VFR
2:00 AM EDT - 2:00 PM EDT
Scattered 3,000'
6sm
VRB° 4kts
VFR
2:00 PM EDT - 6:00 PM EDT
Showers in vicinity
Overcast 5,000'
Scattered 3,000'
6sm
350° 6kts
VFR
6:00 PM EDT - 9:00 PM EDT
Thunderstorm in vicinity
Overcast 5,000'
Scattered 3,000'
Scattered 2,000'
6sm
350° 6kts
VFR
9:00 PM EDT - 2:00 AM EDT
Overcast 5,000'
Scattered 2,000'
6sm
010° 12kts
TAF KDJT 170534Z 1706/1806 VRB04KT P6SM SCT030
   FM171800 35006KT P6SM VCSH SCT030 OVC050
   FM172200 35006KT P6SM VCTS SCT020CB SCT030 OVC050
   FM180100 01012KT P6SM SCT020 OVC050
KLNA
EffectiveExpiresCategoryNOTAM
Domestic
10/17/26
2030Z
10/18/26
2345Z
!MIA 10/235 LNA AIRSPACE SEE FDC 6/9528 ZMA 91.141 VIP 2610172030-2610182345
10/16/26
2130Z
10/17/26
1630Z
!MIA 10/196 LNA AIRSPACE SEE FDC 6/9368 ZMA 91.141 VIP 2610162130-2610171630
10/5/26
1657Z
10/31/26
2359Z
!MIA 10/070 LNA SVC AUTOMATED WX BCST SYSTEM 119.925 U/S CALL 561-964-0308 2610051657-2610312359
9/2/26
0931Z
12/2/26
2359Z
!MIA 09/023 LNA OBST TOWER LGT (ASR 1220033) 263521.20N0801242.80W (6.9NM W LNA) 1314.0FT (1295.9FT AGL) U/S 2609020931-2612022359
7/23/26
0057Z
10/21/26
0057Z
!MIA 07/322 LNA OBST TOWER LGT (ASR 1029713) 263717.60N0800651.80W (2.3NM NW LNA) 181.1FT (163.1FT AGL) U/S 2607230057-2610210057
FDC
8/21/26
1324Z
!FDC 6/6996 LNA IAP PALM BEACH COUNTY PARK, WEST PALM BEACH, FL.
RNAV (GPS) RWY 34, AMDT 1...
LP MDA 460/HAT 446 ALL CATS, VIS CAT C 1 3/8. LNAV MDA 420/HAT 406 ALL CATS. CIRCLING CAT A MDA 480/HAA 466, CAT B MDA 540/HAA 526.
2608211324-2702051324EST
6/26/26
1808Z
!FDC 6/0997 LNA IAP PALM BEACH COUNTY PARK, WEST PALM BEACH, FL.
RNAV (GPS)-B, AMDT 1...
CIRCLING CAT A MDA 480/HAA 466, CAT B MDA 540/HAA 526.
2606261808-2702051808EST
No
0800-1830
PALM BEACH COUNTY
DEPARTMENT OF AIRPORTS 846 PBIA
WEST PALM BEACH, FL 33406
Phone: 561-471-7403
LAURA BEEBE
846 PALM BEACH INTL AIRPORT
WEST PALM BEACH, FL 33406
Phone: 561-471-7405
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
MIA
--
DUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 04/22

3256 ft. x 75 ft.
ASPH
Fair
NONE
MED
8/F/A/Y/T
30,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 32°212°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 35' 24"N 26° 35' 52"N
Longitude 80° 05' 22"W 80° 05' 03"W
Elevation 12' 14'
Threshold Crossing Height 30 ft. AGL 30 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

3489 ft. x 75 ft.
ASPH
Good
NONE
MED
10/F/A/Y/T
30,000lbs
--
--
--
  Runway 10 Runway 28
True Heading 92°272°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 26° 35' 29"N 26° 35' 28"N
Longitude 80° 05' 28"W 80° 04' 49"W
Elevation 12' 13'
Threshold Crossing Height 46 ft. AGL 45 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

3421 ft. x 100 ft.
ASPH
Fair
NONE
MED
15/F/A/X/T
30,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 152°332°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 26° 35' 54"N 26° 35' 24"N
Longitude 80° 05' 07"W 80° 04' 50"W
Elevation 14' 13'
Threshold Crossing Height 41 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RWY 34 APCH END HAS 25 FT BLDG 50 FT FM RWY END 225 FT LEFT OF EXTDD CTLN.
A110-1124-HR PPR RQ FOR ALL ACFT EQUIPPED WITH WX MODIFICATION EQPT OR ACFT CPBL OF WX MODIFICATION AND/OR GEOENGINEERING BY CTC THE DEPT OF ARPT COMMUNICATIONS CNTR AT (561) 471-7420.
A110-3LNA IS A NOISE-SENSITIVE ARPT; USE OF THE PREF NOISE ABATEMENT RWY, RWY 4-22, CONDS PMTG, IS STGLY ENCOURAGED. CALL (561)471-7468
A110-4NO TGLS ON RY 10/28.
A110-5HELICOPTERS USE RIGHT TRAFFIC TO ALL RYS.
A110-6EXTENSIVE FLIGHT TRAINING, MULTIPLE RUNWAYS IN USE.
A110-7NONSTANDARD HOLD SHORT MARKINGS ON TWY P BTN RWYS 10/28 AND 16/34.
A110-8AIRPORT SURFACE CONDITIONS NOT REPORTED FOR ALL RUNWAYS.
A110-9FOR CD CTC PALM BEACH APCH AT 561-684-9047.
A58-34RWY 34 HAS 2 FT BRUSH 200 FT FM RWY END 150 FT RIGHT.
A81-APTDUSK-2000. AFTER 2000, ACTVT MIRL RWYS 04/22, 10/28 & 16/34 - CTAF. PAPI RWY 10, 16, 28, & 34 OPR CONSLY.
E147STANDARD PATTERN ENTRY TO ALL RUNWAYS STRONGLY RECOMMENDED.
PALM BEACH COUNTY PARK (ICAO: KLNA, IATA: LNA) is a public airport located in WEST PALM BEACH, FL, US.
