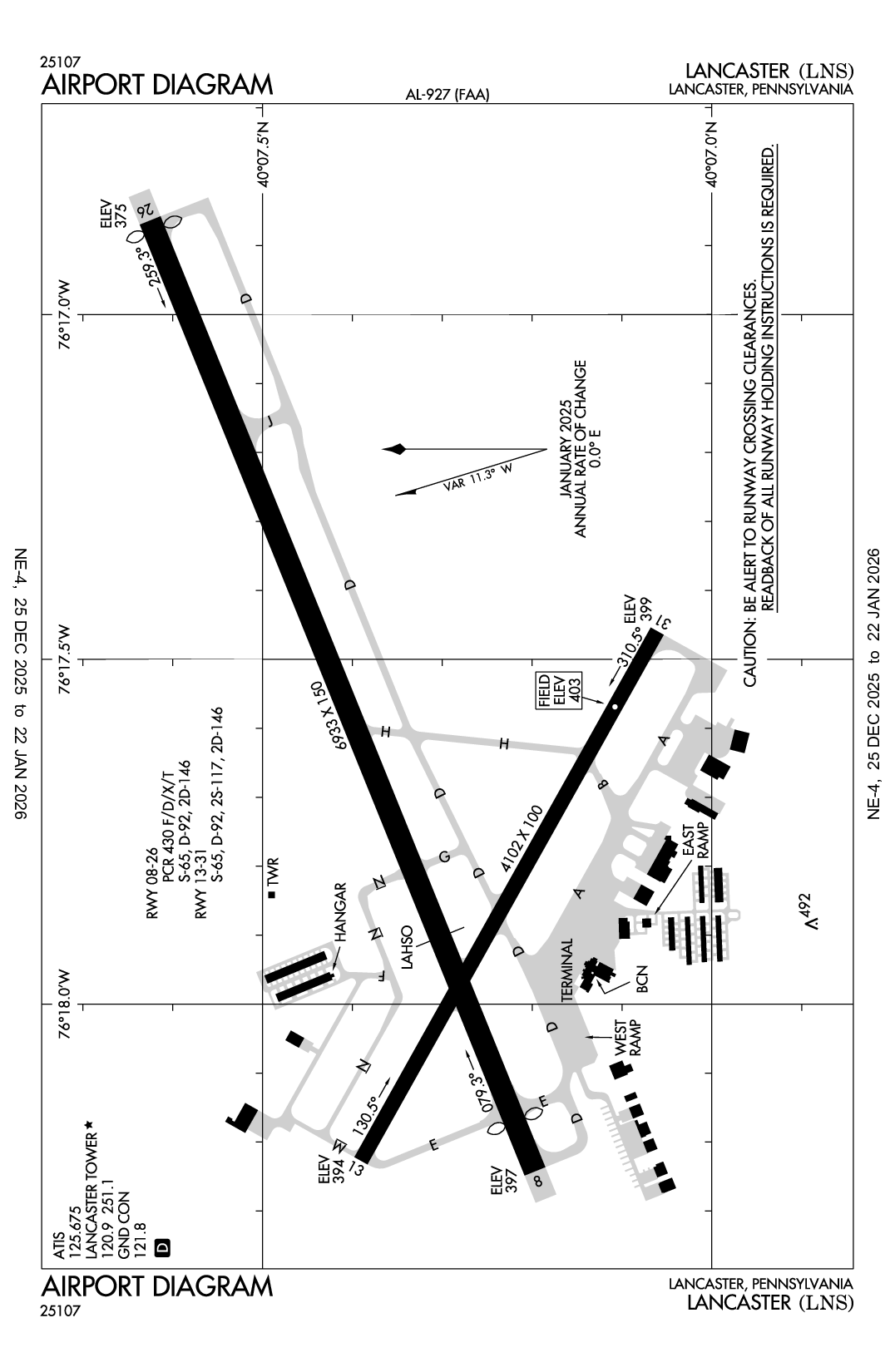

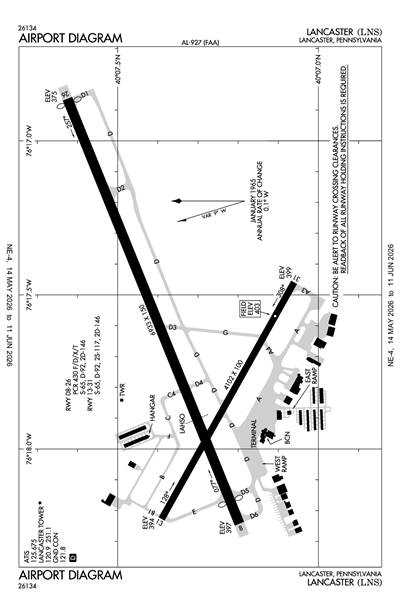

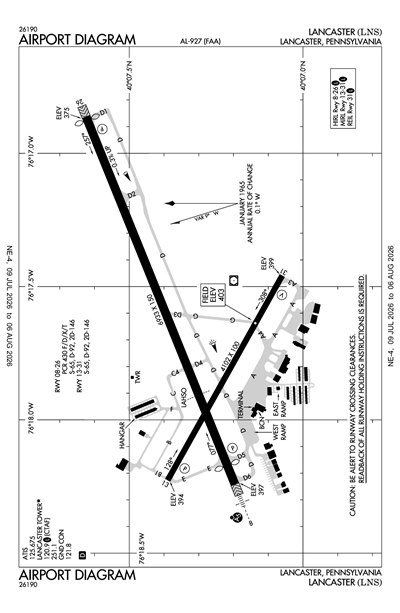

LANCASTER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLNS
ICAO KLNSIATA LNSLocal LNS
LANCASTER
PublicPUB

4 miles N of LANCASTER, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 07' 20"N 76° 17' 40"W
Elevation
403' MSL
Pattern Alt
1403' MSL
Mag Variation
11°W
Declination
9°W
Fuel
JET A, 100LL
FSS
WILLIAMSPORT (IPT)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
7/9/26-8/6/26
KLNS VFR
11:53 AM EDT
Broken 6,000'
10sm
79°F
62°F
29.93"Hg
130° 4kts
AO2 SLP132 T02610167
METAR KLNS 261553Z 13004KT 10SM BKN060 26/17 A2993 RMK AO2 SLP132 T02610167
+ Add Your Business

KLNS FBOs

Promote Listing
LNS Alliance Aviation
UNICOM: 122.95
Phone: (717) 735-9507
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 7/22
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 7.37
Full Serve 7.67 8.07 8.18
Fuel Notes
Prices include tax

KLNS Aircraft Service & Maintenance

Promote Listing
Lancaster Avionics Inc.
Phone: (717) 569-1953
Fax: (717) 569-1722
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 125.675
ASOS 125.675
(717) 568-6942

Common

CTAF 120.9
WHEN ATCT CLSD ACTVT MALSR RWY 08; REIL RWY 31; HIRL 08/26; MIRL RWY 13/31; TWY LGTS - CTAF.
UNICOM 122.95

Ground

LANCASTER GROUND 121.8
0600-2300

Tower

LANCASTER TOWER 120.9
0600-2300

Approach

HARRISBURG APPROACH 126.45

Departure

HARRISBURG DEPARTURE 126.45

Emergency

Emergency 121.5

Terminal Area Forecast

KLNS
Sun, 7/26 7:20 AM EDT
Sun, 7/26 8:00 AM EDT - Mon, 7/27 8:00 AM EDT
VFR
8:00 AM EDT - 11:00 AM EDT
Overcast 8,000'
Broken 5,000'
6sm
120° 3kts
VFR
11:00 AM EDT - 10:00 PM EDT
Broken 6,000'
6sm
140° 5kts
VFR
7:00 PM EDT - 10:00 PM EDT
Light Showers and Rain
Overcast 6,000'
6sm
Calm
VFR
10:00 PM EDT - 4:00 AM EDT
Broken 25,000'
Scattered 10,000'
6sm
230° 3kts
VFR
4:00 AM EDT - 8:00 AM EDT
Mist
Broken 10,000'
Scattered 5,000'
6sm
Calm
TAF KLNS 261120Z 2612/2712 12003KT P6SM BKN050 OVC080
   FM261500 14005KT P6SM BKN060
   PROB30 2623/2702 6SM -SHRA OVC060
   FM270200 23003KT P6SM SCT100 BKN250
   FM270800 00000KT 6SM BR SCT050 BKN100
KLNS
EffectiveExpiresCategoryNOTAM
Domestic
7/6/26
0400Z
8/3/26
2359Z
!LNS 06/042 LNS OBST CRANE (ASN 2024-AEA-3650-NRA) 400730N0761814W (0.5NM WNW LNS) 472FT (100FT AGL) FLAGGED AND LGTD 2607060400-2608032359
7/6/26
0400Z
8/3/26
2359Z
!LNS 06/041 LNS OBST CRANE (ASN 2024-AEA-3649-NRA) 400729N0761811W (0.4NM WNW LNS) 480FT (100FT AGL) FLAGGED AND LGTD 2607060400-2608032359
7/6/26
0400Z
8/3/26
2359Z
!LNS 06/040 LNS OBST CRANE (ASN 2024-AEA-3648-NRA) 400730N0761810W (0.4NM WNW LNS) 480FT (100FT AGL) FLAGGED 2607060400-2608032359
7/6/26
0400Z
8/3/26
2359Z
!LNS 06/039 LNS OBST CRANE (ASN 2024-AEA-3647-NRA) 400732N0761813W (0.5NM WNW LNS) 476FT (100FT AGL) FLAGGED AND LGTD 2607060400-2608032359
7/2/26
1944Z
8/12/26
2359Z
!LNS 07/005 LNS TWY E ENHANCED CL RWY 08 MARKING NOT STD PARTIALLY FADED 2607021944-2608122359
6/22/26
0336Z
9/20/26
0336Z
!LNS 06/034 LNS OBST TOWER LGT (ASR 1025763) 401004.50N0762302.90W (4.9NM NW LNS) 691.3FT (284.1FT AGL) U/S 2606220336-2609200336
5/1/26
1430Z
8/30/26
2359Z
Runway!LNS 05/003 LNS RWY 13 PAPI U/S 2605011430-2608302359
FDC
4/8/26
1830Z
!FDC 6/9736 LNS IAP LANCASTER, LANCASTER, PA.
VOR RWY 31, AMDT 16B...
S-31 AND CIRCLING CAT C VISIBILITY 1 7/8. CHANGE NIGHT LANDING NOTE
TO READ: STRAIGHT-IN RWY 31 NA AT NIGHT, CIRCLING RWY 13, 31 NA AT
NIGHT. CHANGE HELICOPTER VISIBILITY REDUCTION NOTE TO READ: RWY 31
HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED.
THIS IS VOR RWY 31, AMDT 16C. 2604081830-PERM
Yes
DAILY 0700-2100
LANCASTER ARPT AUTHORITY
500 AIRPORT RD SUITE G
LITITZ, PA 17543
Phone: 717-569-1221
ED FOSTER
500 AIRPORT RD SUITE G
LITITZ, PA 17543
Phone: 717-569-1221
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
LNS
--
WHEN ATCT CLSD ACTVT MALSR RWY 08; REIL RWY 31; HIRL 08/26; MIRL RWY 13/31; TWY LGTS - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
None
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 08/26

6933 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

65,000lbs
92,000lbs
146,000lbs
--
  Runway 08 Runway 26
True Heading 68°248°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 40° 07' 12"N 40° 07' 38"N
Longitude 76° 18' 15"W 76° 16' 52"W
Elevation 397' 375'
Threshold Crossing Height 40 ft. AGL 47 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights

Runway 13/31

4102 ft. x 100 ft.
ASPH
Good
NONE
MED

65,000lbs
92,000lbs
146,000lbs
--
  Runway 13 Runway 31
True Heading 119°299°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 07' 23"N 40° 07' 04"N
Longitude 76° 18' 14"W 76° 17' 28"W
Elevation 394' 399'
Threshold Crossing Height 40 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R V2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1RWY LGTS AND MALSR UNMONITORED WHEN TWR CLSD.
A110-2RWY AND TWY CONDS NOT MNT OUTSIDE OF ARFF COVERAGE HRS.
A110-3FOR CD WHEN ATCT CLSD, CTC HARRISBURG APCH AT 800-932-0712.
A26ARFF AVBL FM 0600-2100 MON-FRI, 0600-1800 SAT, 0800-2100 SUN. EMERGS OUTSIDE ATCT OPN HRS & ARFF HRS CALL MANHEIM TOWNSHIP EMERG SVCS AT 911.
A39-08/26PCR VALUE: 430/F/D/X/T
A57-08RWY 08 APCH RATIO 50:1 TO DTHR.
A57-26RWY 26 APCH RATIO 33:1 TO DTHR.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 08; REIL RWY 31; HIRL 08/26; MIRL RWY 13/31; TWY LGTS - CTAF.
E111PREDATES ACT.
LANCASTER (ICAO: KLNS, IATA: LNS) is a public airport located in LANCASTER, PA, US.
