iFlightPlanner



...

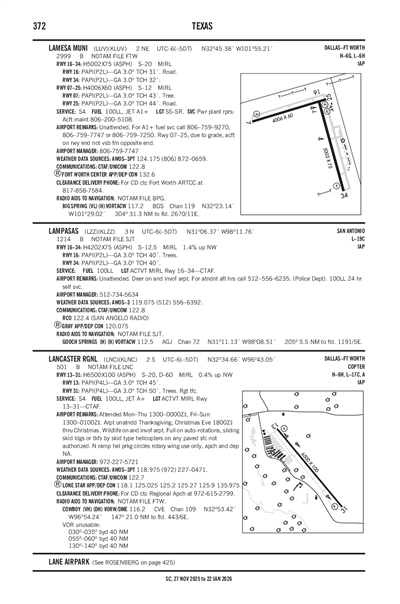

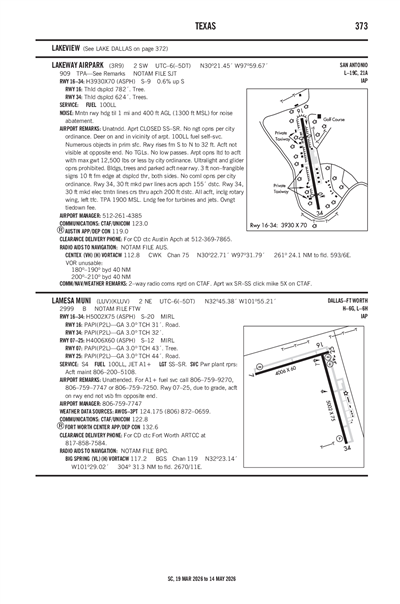

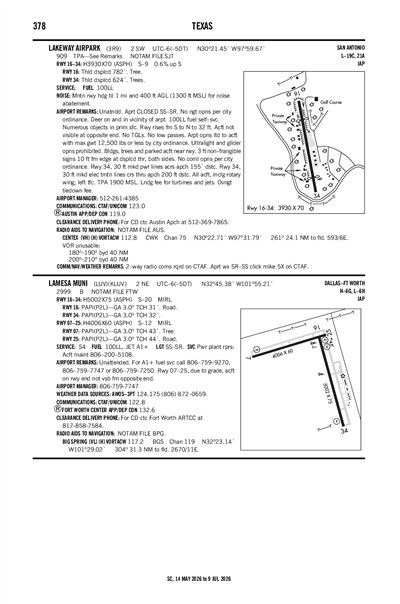

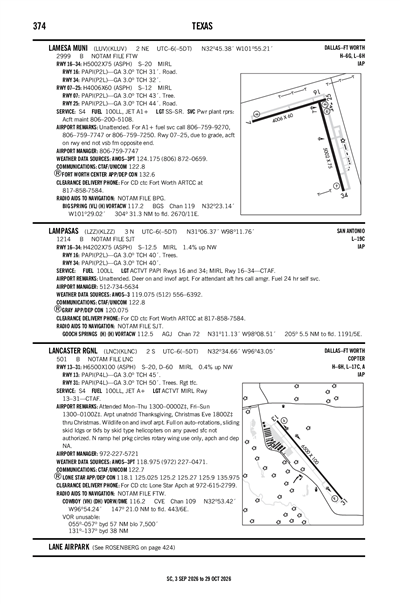

LAMESA MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLUV
LAMESA MUNI
PublicPUB

2 miles NE of LAMESA, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 45' 23"N 101° 55' 13"W
2999' MSL
3999' MSL
06E
Jet A-1+, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
4/18/24-5/16/24
KLUV VFR
2:55 PM CDT
Scattered 12,000'
Scattered 10,000'
10sm
88°F
52°F
29.81"Hg
210° 14kts
Gusts 23kts
AO2
KLUV 251955Z AUTO 21014G23KT 10SM SCT100 SCT120 31/11 A2981 RMK AO2
List Your Business

KLUV FBOs, Flight Schools and Ground Support

Promote Listing
Lamesa Municipal Airport
Freq: 122.8
Phone: (806) 759-7747
Other: (806) 759-9270
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 4/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 4.94 4.30
Full Serve

KLUV Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLUV Hotels

No hotels are listed for this airport.

KLUV Restaurants

No restaurants are listed for this airport.

KLUV Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
806-872-0659
 124.175

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMAF (51nm)
Thu, 4/25 12:21 PM CDT
Thu, 4/25 1:00 PM CDT - Fri, 4/26 1:00 PM CDT
VFR
1:00 PM CDT - 12:00 AM CDT
Broken 25,000'
6sm
220° 17kts
Gusts 25kts
VFR
12:00 AM CDT - 1:00 PM CDT
Sky Clear
6sm
250° 8kts
KMAF 251721Z 2518/2618 22017G25KT P6SM BKN250
   FM260500 25008KT P6SM SKC
KLUV
Domestic
4/25/242022Z !FTW 04/756 LUV OBST TOWER LGT (ASR 1259516) 323105.00N1020245.00W (15.6NM SSW LUV) 3389.4FT (489.8FT AGL) U/S 2404252022-2408232022
4/23/242035Z !FTW 04/678 LUV OBST TOWER LGT (ASR 1059364) 324253.40N1015829.00W (3.7NM SW LUV) 3480.0FT (509.8FT AGL) U/S 2404232035-2407220400
4/10/240115Z !FTW 04/289 LUV OBST TOWER LGT (ASR 1257169) 324543.40N1012721.50W (23.6NM E LUV) 3159.1FT (265.1FT AGL) U/S 2404100115-2406072359
1/31/241511Z !FTW 01/846 LUV RWY 34 PAPI U/S 2401311511-2407312111EST
1/31/241509Z !FTW 01/845 LUV RWY 16 PAPI U/S 2401311509-2407312111EST
No
UNATNDD
LAMESA CITY & DAWSON CO
601 S. 1ST
LAMESA, TX 79331
Phone: (806) 872-4321
JOHN FARRIS
P.O. BOX 259
LAMESA, TX 79331
Phone: (806) 759-7747
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
30
3
0
0
0
0
Major
Major
None
None
Crop Dusting
Aircraft Rental

Runway 07/25

4006 ft. x 60 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 75°255°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 32° 45' 29"N 32° 45' 39"N
Longitude 101° 55' 53"W 101° 55' 08"W
Elevation 2,992' 2,991'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

5002 ft. x 75 ft.
ASPH
Good
NONE
MED

20,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 165°345°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 45' 38"N 32° 44' 50"N
Longitude 101° 55' 06"W 101° 54' 51"W
Elevation 2,992' 2,986'
Threshold Crossing Height 31 ft. AGL 32 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2TWO COURTESY CARS AVBL.
A110-3RWY 7/25, DUE TO GRADE, ACFT ON RWY END NOT VSB FM OPPOSITE END.
LAMESA MUNI (ICAO: KLUV, IATA: LUV) is a public airport located in LAMESA, TX.
