AIRLAKE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLVN
AIRLAKE
PublicPUB

22 miles S of MINNEAPOLIS, MN
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 37' 40"N 93° 13' 41"W
960' MSL
1960' MSL
03E
Jet A, 100LL
PRINCETON (PNM)
TWIN CITIES
MINNEAPOLIS (ZMP)
2/22/24-3/21/24
KSYN (13nm) VFR
3:35 AM CST
Scattered 11,000'
10sm
28°F
24°F
29.76"Hg
Calm
AO2 T10211043
KSYN 260935Z AUTO 00000KT 10SM SCT110 M02/M04 A2976 RMK AO2 T10211043

KLVN FBOs, Flight Schools and Ground Support

Waypoint Flight Services
Freq: 123.0
Phone: (952) 469-4414
Other: (218) 839-1067
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 2/20
100LL Jet A Jet A+ Mogas UL94
Self Serve 6.45
Full Serve 6.75 7.19

KLVN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLVN Hotels

No hotels are listed for this airport.

KLVN Restaurants

No restaurants are listed for this airport.

KLVN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3

AWOS-3
952-469-5850
118.0

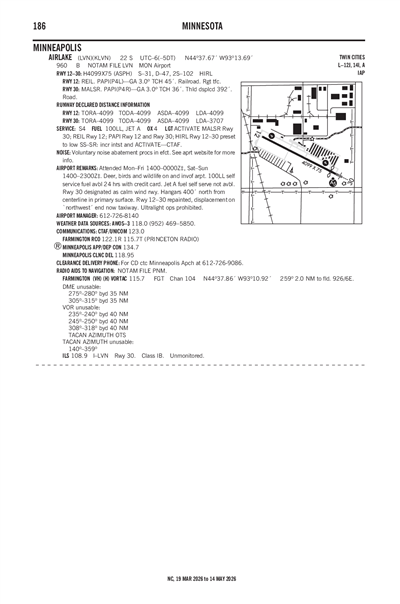

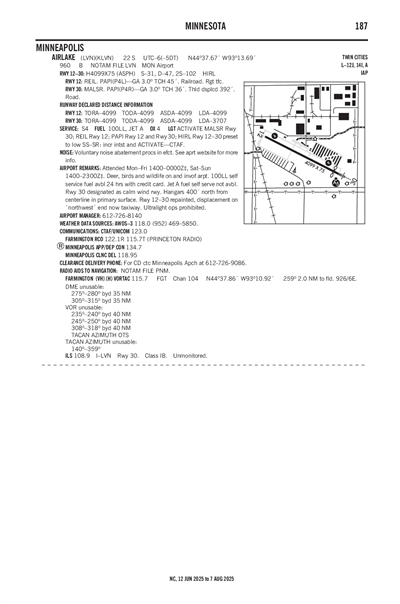

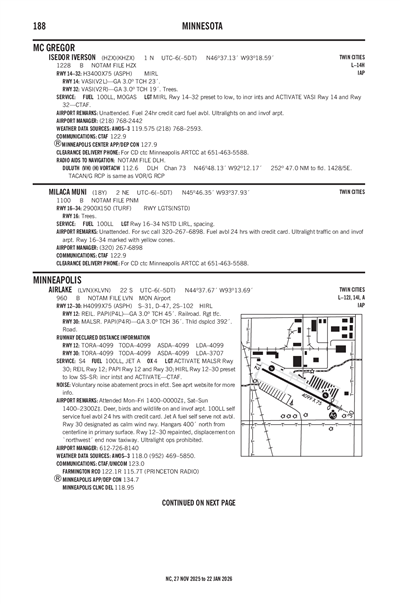

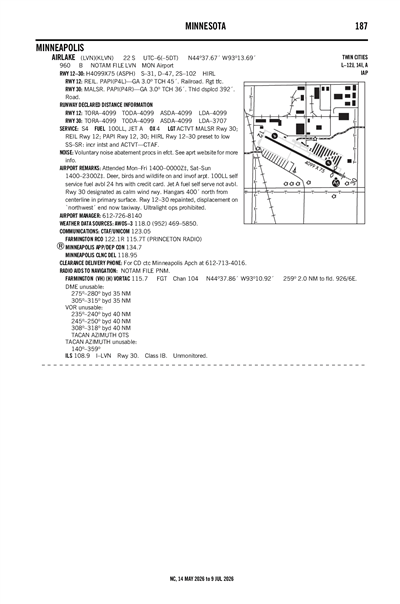

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Terminal Area Forecast

KMSP (15nm)
Mon, 2/26 2:42 AM CST
Mon, 2/26 3:00 AM CST - Tue, 2/27 6:00 AM CST
VFR
3:00 AM CST - 9:00 AM CST
Few 15,000'
6sm
130° 8kts
VFR
9:00 AM CST - 1:00 PM CST
Few 25,000'
6sm
170° 18kts
Gusts 26kts
VFR
1:00 PM CST - 4:00 PM CST
Few 25,000'
6sm
200° 14kts
Gusts 22kts
VFR
4:00 PM CST - 6:00 AM CST
Scattered 25,000'
6sm
220° 10kts
KMSP 260842Z 2609/2712 13008KT P6SM FEW150
   FM261500 17018G26KT P6SM FEW250
   FM261900 20014G22KT P6SM FEW250
   FM262200 22010KT P6SM SCT250
KLVN
Domestic
2/12/241559Z !LVN 02/013 LVN OBST TOWER LGT (ASR 1028602) 443851.00N0932330.00W (7.1NM W LVN) 1230.0FT (288.1FT AGL) U/S 2402121559-2403281456
2/1/241156Z !LVN 02/001 LVN RWY 12 RWY END ID LGT U/S 2402011156-2404052000
10/24/231105Z !LVN 10/026 LVN OBST TOWER LGT (ASR UNKNOWN) 443812.98N0930906.01W (3.3NM E LVN) 900FT (205FT AGL) U/S 2310241105-2403312359
FDC
5/11/231739Z !FDC 3/4997 LVN IAP AIRLAKE, MINNEAPOLIS, MN.
ILS OR LOC RWY 30, ORIG-G...
DISREGARD NOTE: WHEN CIRCLING TO RWY 12 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD.
CIRCLING RWY 12 NA AT NIGHT.
2305111739-2505101739EST
5/11/231739Z !FDC 3/4996 LVN IAP AIRLAKE, MINNEAPOLIS, MN.
VOR RWY 12, AMDT 3A...
CHANGE NOTE TO READ: STRAIGHT-IN RWY 12 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD.
2305111739-2505101739EST
5/11/231739Z !FDC 3/4995 LVN IAP AIRLAKE, MINNEAPOLIS, MN.
RNAV (GPS) RWY 30, ORIG-B...
LPV DA 1208/HAT 250 ALL CATS.
LNAV MDA 1340/HAT 382 ALL CATS.
CHANGE ALTERNATE MINIMUMS TO READ: STANDARD - CAT D 800-2 1/4; NA WHEN LOCAL WEATHER NOT AVAILABLE.
DISREGARD NOTE: WHEN CIRCLING TO RWY 12 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD.
CIRCLING RWY 12 NA AT NIGHT.
DISREGARD NOTE: RWY 30 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NA.
2305111739-2505101739EST
5/11/231739Z !FDC 3/4994 LVN IAP AIRLAKE, MINNEAPOLIS, MN.
RNAV (GPS) RWY 12, AMDT 1...
LNAV/VNAV DA 1350/HAT 390 ALL CATS.
CHANGE NOTE TO READ: STRAIGHT-IN RWY 12 AT NIGHT, OPERATIONAL VGSI REQUIRED, REMAIN ON OR ABOVE VGSI GLIDEPATH UNTIL THRESHOLD.
CHANGE ALTERNATE MINIMUMS TO READ: STANDARD - 800-2 1/4; NA WHEN LOCAL WEATHER NOT AVAILABLE.
2305111739-2505101739EST
4/18/231948Z !FDC 3/3353 LVN PART 1 OF 3 ODP AIRLAKE, MINNEAPOLIS, MN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 12: TERRAIN 11 FT FROM DER, 191 FT
RIGHT OF CENTERLINE, 954 FT MSL.
LIGHT POLE 38 FT FROM DER, 4 FT LEFT OF CENTERLINE, 3 FT AGL/955 FT
MSL.
LIGHT POLE 39 FT FROM DER, 6 FT RIGHT OF CENTERLINE, 3 FT AGL/955
FT MSL.
TERRAIN 94 FT FROM DER, 297 FT RIGHT OF CENTERLINE, 958 FT MSL.
TERRAIN 108 FT FROM DER, 453 FT RIGHT OF CENTERLINE, 959 FT MSL.
TERRAIN 168 FT FROM DER, 378 FT RIGHT OF CENTERLINE, 961 FT MSL.
TERRAIN, LIGHT POLES BEGINNING 187 FT FROM DER, 7 FT RIGHT OF
CENTERLINE, UP TO 964 FT MSL.
LIGHT POLE 258 FT FROM DER, 5 FT LEFT OF CENTERLINE, 10 FT AGL/961
FT MSL.
TRAVERSE WAYS, TERRAIN, TREE, LIGHT POLES BEGINNING 334 FT FROM
DER, 6 FT RIGHT OF CENTERLINE, UP TO 979 FT MSL.
LIGHT POLE 479 FT FROM DER, 4 FT LEFT OF CENTERLINE, 14 FT AGL/965
FT MSL.
LIGHT POLES BEGINNING 697 FT FROM DER, 3 FT LEFT OF CENTERLINE, UP
TO 20 FT AGL/969 FT MSL.
FT AGL/1056 FT MSL. 2304181948-2504181948EST
END PART 1 OF 3
!FDC 3/3353 LVN PART 2 OF 3 ODP AIRLAKE, MINNEAPOLIS, MN.
TREE 1291 FT FROM DER, 506 FT LEFT OF CENTERLINE, 1002 FT MSL.
TREES BEGINNING 3623 FT FROM DER, 874 FT RIGHT OF CENTERLINE, UP
TO 104 FT AGL/1046 FT MSL.
RWY 30: LIGHT POLE 1 FT FROM DER, 111 FT RIGHT OF CENTERLINE, 3 FT
AGL/961 FT MSL.
LIGHT POLE 1 FT FROM DER, 112 FT LEFT OF CENTERLINE, 2 FT AGL/963
FT MSL.
TERRAIN BEGINNING 108 FT FROM DER, 482 FT LEFT OF CENTERLINE, UP TO
965 FT MSL.
BUILDING 172 FT FROM DER, 407 FT RIGHT OF CENTERLINE, 985 FT MSL.
POLES, TRAVERSE WAYS, BUILDINGS, TREE BEGINNING 337 FT FROM DER,
258 FT RIGHT OF CENTERLINE, UP TO 1000 FT MSL.
TREES, TRAVERSE WAYS BEGINNING 407 FT FROM DER, 508 FT LEFT OF
CENTERLINE, UP TO 995 FT MSL.
POLE, BUILDING, TRAVERSE WAYS, TREE BEGINNING 548 FT FROM DER, 81
FT LEFT OF CENTERLINE, UP TO 34 FT AGL/999 FT MSL.
BUILDINGS, TRAVERSE WAYS BEGINNING 821 FT FROM DER, 1 FT RIGHT OF
CENTERLINE, UP TO 48 FT AGL/1008 FT MSL.
TREES BEGINNING 1364 FT FROM DER, 530 FT RIGHT OF CENTERLINE, UP TO
1028 FT MSL.
FT AGL/1056 FT MSL. 2304181948-2504181948EST
END PART 2 OF 3
!FDC 3/3353 LVN PART 3 OF 3 ODP AIRLAKE, MINNEAPOLIS, MN.
TREE 2026 FT FROM DER, 977 FT LEFT OF CENTERLINE, 1040 FT MSL.
TRANSMISSION LINE 3187 FT FROM DER, 1284 FT RIGHT OF CENTERLINE, 73
FT AGL/1048 FT MSL.
TRANSMISSION LINE 3496 FT FROM DER, 1124 FT RIGHT OF CENTERLINE, 76
FT AGL/1052 FT MSL.
TRANSMISSION LINE 3818 FT FROM DER, 969 FT RIGHT OF CENTERLINE, 77
FT AGL/1056 FT MSL. 2304181948-2504181948EST
END PART 3 OF 3
No
MON-FRI 0800-1800
SAT-SUN 0800-1700
METRO ARPTS CMSN
6040 28TH AVE SO.
MINNEAPOLIS, MN 55450
Phone: 612-726-8100
ROBERT DOCKRY
8140 220TH STREET W.
LAKEVILLE, MN 55044
Phone: 612-726-8140
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
LVN
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 12, 30; HIRL RWY 12/30 PRESET TO LOW SS-SR: INCR INTST AND ACTVT - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
91
1
3
0
0
0
Major
Major
Low Pressure
None
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 12/30

4099 ft. x 75 ft.
ASPH
Fair
NONE
HIGH

31,000lbs
47,000lbs
--
--
  Runway 12 Runway 30
True Heading 117°297°
Traffic Pattern Right Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 44° 37' 50"N 44° 37' 31"N
Longitude 93° 14' 06"W 93° 13' 16"W
Elevation 960' 951'
Threshold Crossing Height 45 ft. AGL 36 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-2DEER, BIRDS & WILDLIFE ON & INVOF ARPT.
A110-3ULTRALIGHT OPNS PROHIBITED.
A110-4HANGARS 400 FT NORTH FM CENTERLINE IN PRIMARY SURFACE.
A110-5FOR NOISE ABATEMENT PROCS, WWW.MACNOISE.COM/PILOTS. ACFT PLS FLW VOLUNTARY NOISE ABATEMENT PROCS.
A110-6RY 30 DSGND AS CALM WND RY.
A110-7FOR CD CTC MINNEAPOLIS APCH AT 612-726-9086.
AIRLAKE (ICAO: KLVN, IATA: LVN) is a public airport located in MINNEAPOLIS, MN.
