iFlightPlanner



...

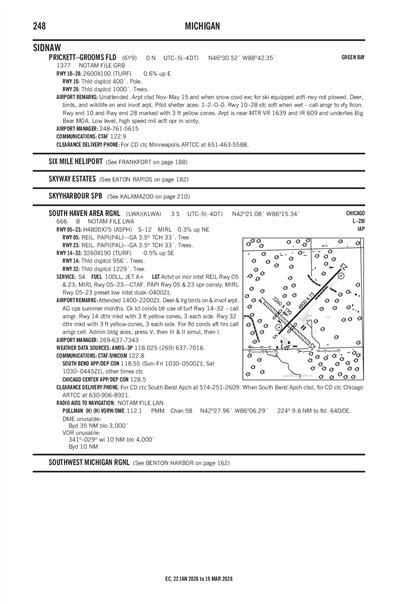

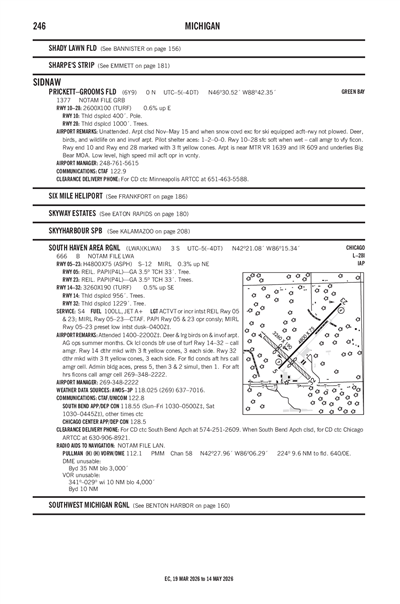

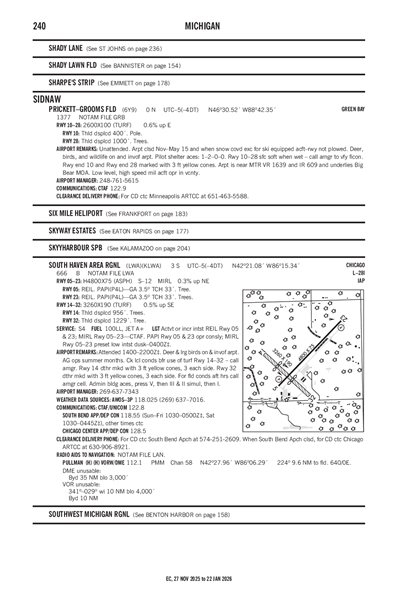

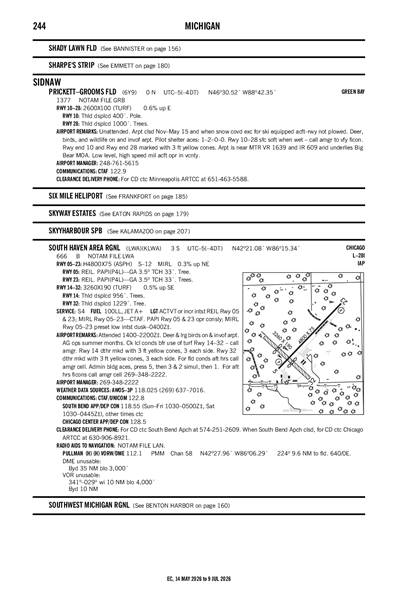

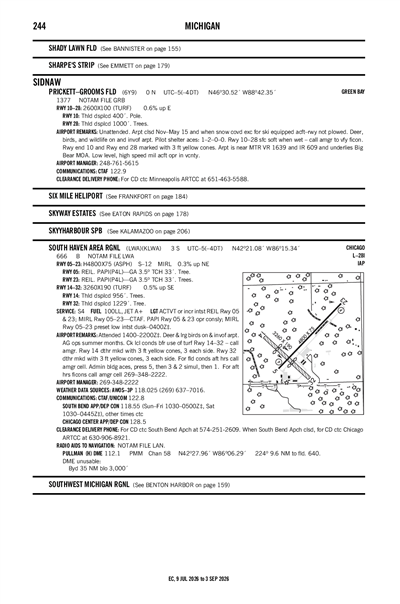

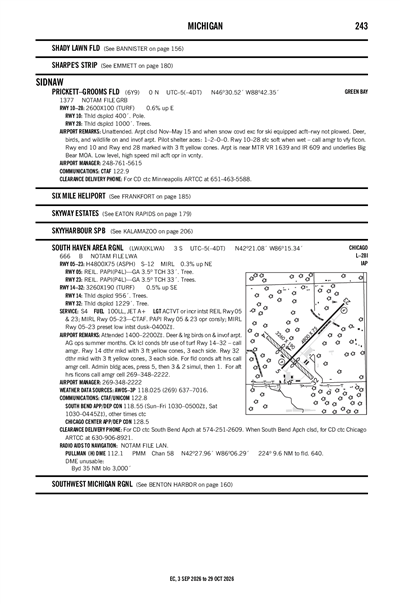

SOUTH HAVEN AREA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLWA
ICAO KLWALocal LWA
SOUTH HAVEN AREA RGNL
PublicPUB

3 miles S of SOUTH HAVEN, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 21' 05"N 86° 15' 21"W
Elevation
666' MSL
Pattern Alt
1666' MSL
Mag Variation
5°W
Declination
3°W
Fuel
JET A (FSII), 100LL
FSS
LANSING (LAN)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
8/6/26-9/3/26
KLWA VFR
11:15 AM EDT
Few 3,000'
7sm
72°F
55°F
30.01"Hg
330° 10kts
Gusts 16kts
AO2
METAR KLWA 231515Z AUTO 33010G16KT 290V350 7SM FEW030 22/13 A3001 RMK AO2
+ Add Your Business

KLWA FBOs

Promote Listing
South Haven Area Regional Airport
UNICOM: 122.8
Phone: (269) 637-7343
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/18
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.37
Full Serve 6.30
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 118.025
(269) 637-7016

Common

CTAF 122.8
ACTVT OR INCR INTST REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF. PAPI RWY 05 & 23 OPR CONSLY; MIRL RWY 05/23 PRESET LOW INTST DUSK-2300.
UNICOM 122.8

Approach

SOUTH BEND APPROACH 118.55

Departure

SOUTH BEND DEPARTURE 118.55

Center

SOUTH BEND CENTER 128.5
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 128.5/273.525 (PULLMAN RCAG) WHEN SBN TWR CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAZO (32nm)
Sun, 8/23 7:40 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT
VFR
8:00 AM EDT - 10:00 AM EDT
Light Showers and Rain
No Clouds
6sm
Calm
VFR
8:00 AM EDT - 11:00 AM EDT
Few 17,000'
6sm
300° 5kts
VFR
11:00 AM EDT - 9:00 PM EDT
Scattered 5,000'
6sm
320° 13kts
Gusts 25kts
VFR
9:00 PM EDT - 8:00 AM EDT
Sky Clear
6sm
320° 5kts
TAF KAZO 231140Z 2312/2412 30005KT P6SM FEW170
   PROB30 2312/2314 6SM -SHRA
   FM231500 32013G25KT P6SM SCT050
   FM240100 32005KT P6SM SKC
KLWA
EffectiveExpiresCategoryNOTAM
Domestic
8/20/26
2116Z
10/20/26
2359Z
!LWA 08/006 LWA OBST TOWER LGT (ASR 1007582) 421802.30N0861503.30W (3.1NM S LWA) 1077.1FT (367.1FT AGL) U/S 2608202116-2610202359
8/20/26
0751Z
11/18/26
0851Z
!LWA 08/005 LWA OBST TOWER LGT (ASR 1057222) 421851.70N0861812.20W (3.1NM SW LWA) 847.8FT (255.9FT AGL) U/S 2608200751-2611180851
FDC
8/19/26
1500Z
!FDC 6/6292 LWA IAP SOUTH HAVEN AREA RGNL, SOUTH HAVEN, MI.
RNAV (GPS) RWY 23, AMDT 1H...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE BEH ALTIMETER SETTING: INCREASE ALL MDAS 40 FEET, INCREASE LNAV CATS C AND D VISIBILITY 1/8 SM, AND CIRCLING CATS C AND D VISIBILITY 1/4 SM. AWOS OUT OF SERVICE.
2608191500-2703311800EST
8/19/26
1500Z
!FDC 6/6291 LWA IAP SOUTH HAVEN AREA RGNL, SOUTH HAVEN, MI.
RNAV (GPS) RWY 5, AMDT 2...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE BEH ALTIMETER SETTING AND INCREASE ALL MDAS 40 FEET, INCREASE LNAV CATS C AND D VISIBILITY 1/8 SM AND CIRCLING CATS C AND D VISIBILITY 1/4 SM. AWOS OUT OF SERVICE.
2608191500-2703311800EST
6/14/25
1257Z
!FDC 5/4580 LWA ODP SOUTH HAVEN AREA RGNL, SOUTH HAVEN, MI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4A...
TAKEOFF OBSTACLE NOTES: RWY 5: POLES BEGINNING 3914 FT FROM DER, 388 FT LEFT OF CENTERLINE, 86 FT AGL/764 FT MSL. POLES BEGINNING 3565 FT FROM DER, 761 FT LEFT OF CENTERLINE, 86 FT AGL/770 FT MSL. POLES BEGINNING 3236 FT FROM DER, 1111 FT LEFT OF CENTERLINE, 86 FT AGL/779 FT MSL. (2023-AGL-5303/5304/3327-OE PERMANENT) ALL OTHER DATA REMAINS AS PUBLISHED. 2506141257-2706141257EST
No
0900-1700
SO HAVEN AREA RGNL ARPT AUTH
73020 COUNTY ROAD 380
SOUTH HAVEN, MI 49090
Phone: 269-637-7343
DAN SANBORN
73020 COUNTY ROAD 380
SOUTH HAVEN, MI 49090
Phone: 269-348-2222
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LWA
--
ACTVT OR INCR INTST REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF. PAPI RWY 05 & 23 OPR CONSLY; MIRL RWY 05/23 PRESET LOW INTST DUSK-2300.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting

Runway 05/23

4800 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 20' 52"N 42° 21' 26"N
Longitude 86° 15' 36"W 86° 14' 52"W
Elevation 652' 665'
Threshold Crossing Height 33 ft. AGL 33 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 14/32

3260 ft. x 190 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 14 Runway 32
True Heading 133°313°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 21' 09"N 42° 20' 47"N
Longitude 86° 15' 46"W 86° 15' 14"W
Elevation 648' 664'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-3AG OPS SUMMER MONTHS.
A110-4ADMIN BLDG ACES: PRESS 5, THEN 3 & 2 SIMUL, THEN 1.
A110-5FOR AFT HRS FICONS CALL AMGR CELL 269-348-2222.
A110-6CK LCL CONDS BFR USE OF TURF RWY 14/32 - CALL AMGR.
A110-7FOR CD CTC SOUTH BEND APCH AT 574-251-2609. WHEN SOUTH BEND APCH CLSD, FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A16CELL 269-348-2222.
A42-14_MARKDTHR MKD WITH 3 FT YELLOW CONES, 3 EACH SIDE.
A42-32_MARKDTHR MKD WITH 3 FT YELLOW CONES, 3 EACH SIDE.
A57-14APCH RATIO 12:1 TO DTHR OVR 78 FT TREES, 966 FT DIST, 110 FT L.
A81-APTACTVT OR INCR INTST REIL RWY 05 & 23; MIRL RWY 05/23 - CTAF. PAPI RWY 05 & 23 OPR CONSLY; MIRL RWY 05/23 PRESET LOW INTST DUSK-2300.
SOUTH HAVEN AREA RGNL (ICAO: KLWA, IATA: LWA) is a public airport located in SOUTH HAVEN, MI, US.
