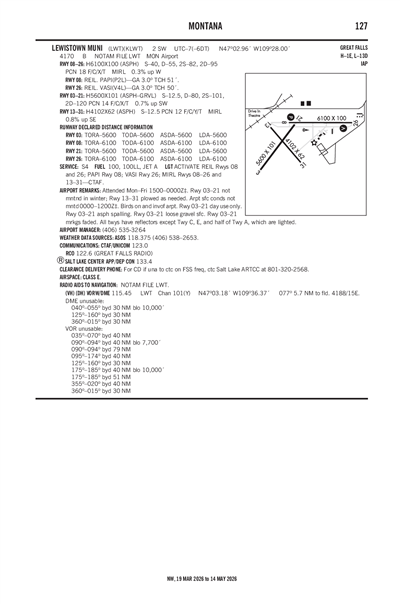

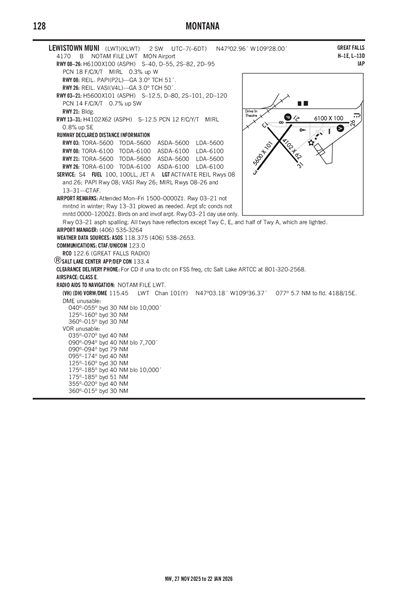

LEWISTOWN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLWT
LEWISTOWN MUNI
PublicPUB

2 miles SW of LEWISTOWN, MT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 02' 57"N 109° 28' 00"W
4170' MSL
5170' MSL
11E
Jet A, 100LL, 100
GREAT FALLS (GTF)
GREAT FALLS
SALT LAKE CITY (ZLC)
4/18/24-5/16/24
KLWT VFR
11:54 PM MDT
Clear
10sm
40°F
22°F
29.98"Hg
110° 7kts
AO2 SLP150 T00441056 10156 20044 58003 $
KLWT 240554Z AUTO 11007KT 10SM CLR 04/M06 A2998 RMK AO2 SLP150 T00441056 10156 20044 58003 $
List Your Business

KLWT FBOs, Flight Schools and Ground Support

Promote Listing
Skyline Aviation
Freq: 123.0
Phone: (406) 538-8150
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 4/16
 100LL Jet A Jet A+ Mogas UL94
Self Serve 5.85
Full Serve 5.85 6.00 6.06
Promote Listing
Lewistown Flying Club
Freq: 123.0
Phone: (406) 350-2213
No Rating Available
0 Reviews (Read | Sign In To Write)

KLWT Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KLWT Hotels

No hotels are listed for this airport.

KLWT Restaurants

No restaurants are listed for this airport.

KLWT Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
406-538-2653
 118.375

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KLWT
Tue, 4/23 11:22 PM MDT
Wed, 4/24 12:00 AM MDT - Thu, 4/25 12:00 AM MDT
VFR
12:00 AM MDT - 11:00 AM MDT
Few 25,000'
6sm
VRB° 6kts
VFR
11:00 AM MDT - 3:00 PM MDT
Few 25,000'
6sm
270° 9kts
VFR
3:00 PM MDT - 7:00 PM MDT
Few 25,000'
6sm
310° 10kts
VFR
7:00 PM MDT - 12:00 AM MDT
Scattered 20,000'
6sm
VRB° 6kts
KLWT 240522Z 2406/2506 VRB06KT P6SM FEW250
   FM241700 27009KT P6SM FEW250
   FM242100 31010KT P6SM FEW250
   FM250100 VRB06KT P6SM SCT200
KLWT
Domestic
4/23/241500Z !LWT 04/017 LWT COM REMOTE COM OUTLET 122.6 U/S 2404231500-2405032000EST
4/10/241359Z !LWT 04/009 LWT AD AP ABN U/S 2404101359-2404251359
3/18/241600Z !LWT 03/027 LWT SVC PCL RWY 03/21 REDL DECOMMISSIONED 2403181600-2410011200
2/10/242117Z !LWT 02/042 LWT OBST TOWER LGT (ASR 1003808) 470558.90N1092538.70W (3.4NM NNE LWT) 4377.0FT (314.0FT AGL) U/S 2402102117-2406092117
FDC
1/11/232147Z !FDC 3/2815 LWT IAP LEWISTOWN MUNI, LEWISTOWN, MT.
VOR RWY 8, AMDT 16...
CHANGE MISSED APPROACH TO READ: CLIMB TO 6000 THEN CLIMBING RIGHT TO 7100 DIRECT LWT VOR/DME AND HOLD, CONTINUE CLIMB-IN-HOLD TO 7100.
2301112147-2501102147EST
No
MON-FRI 0800-1700
LEWISTOWN & FERGUS COUNTY
BOX 343
LEWISTOWN, MT 59457
Phone: 406-535-5119
BRYON ARMOUR
P.O. BOX 343, 190 TERMINAL DRIVE
LEWISTOWN, MT 59457
Phone: (406) 535-3264
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
LWT
--
ACTVT REIL RWYS 08 & 26; PAPI RWY 08; VASI RWY 26; MIRL RWYS 08/26 & 13/31; - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
56
5
0
1
0
0
Major
Major
None
None
Crop Dusting
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

5600 ft. x 101 ft.
ASPH
Poor
NONE

14 /F/C/X/T
12,000lbs
80,000lbs
120,000lbs
--
  Runway 03 Runway 21
True Heading 38°218°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 47° 02' 25"N 47° 03' 09"N
Longitude 109° 28' 51"W 109° 28' 02"W
Elevation 4,170' 4,130'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

6100 ft. x 100 ft.
ASPH
Good
NONE
MED
18 /F/C/X/T
40,000lbs
55,000lbs
95,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 03' 11"N 47° 03' 11"N
Longitude 109° 28' 10"W 109° 26' 42"W
Elevation 4,128' 4,112'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

4102 ft. x 62 ft.
ASPH
Good
NONE
MED
12 /F/C/Y/T
12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 03' 07"N 47° 02' 36"N
Longitude 109° 28' 33"W 109° 27' 55"W
Elevation 4,132' 4,163'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2ALL TWYS HAVE REFLECTORS EXCEPT TWY C, E, AND HALF OF A, WHICH ARE LGTD.
A110-3RY 03/21 DAY USE ONLY.
A110-4RWY 03/21 NOT MNTND IN WINTER; RWY 13/31 PLOWED AS NEEDED.
A110-5ARPT SFC CONDS NOT MNTD 1700-0500.
A110-6BIRDS ON AND INVOF AIRPORT.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
LEWISTOWN MUNI (ICAO: KLWT, IATA: LWT) is a public airport located in LEWISTOWN, MT.
