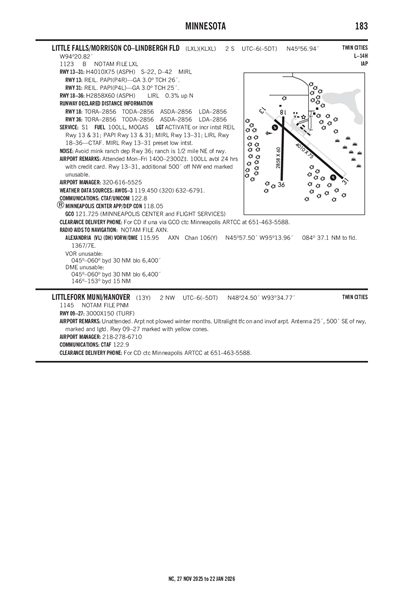

LITTLE FALLS/MORRISON COUNTY-LINDBERGH FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLXL
ICAO KLXLIATA LXLLocal LXL
LITTLE FALLS/MORRISON COUNTY-LINDBERGH FLD
PublicPUB

2 miles S of LITTLE FALLS, MN, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
45° 56' 57"N 94° 20' 49"W
Elevation
1123' MSL
Pattern Alt
2123' MSL
Mag Variation
1°E
Declination
3°E
Fuel
100LL, UL91
FSS
PRINCETON (PNM)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
5/14/26-6/11/26
KLXL VFR
12:55 PM CDT
Clear
10sm
77°F
36°F
29.66"Hg
260° 13kts
Gusts 22kts
AO2
METAR KLXL 151755Z AUTO 26013G22KT 10SM CLR 25/02 A2966 RMK AO2
+ Add Your Business

KLXL FBOs

Promote Listing
Big Sky Aviation
UNICOM: 122.8
Phone: (320) 616-5525
Other: (320) 360-6661
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 4/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.32 4.78
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.45
(320) 632-6791

Common

CTAF 122.8
ACTVT OR INCR INTST REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31; LIRL RWY 18/36 - CTAF. MIRL RWY 13/31 PRESET LOW INTST.
UNICOM 122.8

Center

MINNEAPOLIS CENTER 118.05
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 118.05/239.0 (BRAINERD RCAG).

Flight Service

Ground Communication Outlet 121.725
GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSTC (27nm)
Fri, 5/15 12:20 PM CDT
Fri, 5/15 1:00 PM CDT - Sat, 5/16 1:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Few 10,000'
6sm
260° 14kts
Gusts 24kts
VFR
8:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
280° 8kts
VFR
1:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
280° 4kts
VFR
10:00 AM CDT - 1:00 PM CDT
Few 15,000'
6sm
300° 8kts
TAF KSTC 151720Z 1518/1618 26014G24KT P6SM FEW100
   FM160100 28008KT P6SM SKC
   FM160600 28004KT P6SM SKC
   FM161500 30008KT P6SM FEW150
KLXL
EffectiveExpiresCategoryNOTAM
Domestic
5/14/26
1427Z
9/11/26
1426Z
!LXL 05/002 LXL OBST TOWER LGT (ASR 1012111) 460857.30N0942000.80W (12.0NM NE LXL) 1639.8FT (418.0FT AGL) U/S 2605141427-2609111426
5/10/26
0701Z
5/25/26
0601Z
!LXL 05/001 LXL OBST TOWER LGT (ASR 1210783) 454819.80N0941544.60W (9.3NM SSE LXL) 1423.2FT (307.1FT AGL) U/S 2605100701-2605250601
FDC
4/29/26
1340Z
!FDC 6/6798 LXL IAP LITTLE FALLS/MORRISON COUNTY-LINDBERGH FLD, LITTLE FALLS, MN. RNAV (GPS) RWY 31, ORIG-D... CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE STC ALTIMETER SETTING AND INCREASE ALL DAS 76 FT AND ALL MDAS 80 FT; INCREASE LPV ALL CATS VISIBILITY 1/2 SM AND LNAV/VNAV ALL CATS, LNAV CAT C/D AND CIRCLING CAT C/D VISIBILITY 1/4 SM. CHANGE BARO-VNAV NOTE TO READ: BARO-VNAV NA WHEN USING STC ALTIMETER SETTING. CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH â?? GPS. ALTERNATE MINIMUMS: CAT A, B, C 800-2 1/4, CAT D 900-2 3/4, NA WHEN LOCAL WEATHER NOT AVAILABLE. THIS IS RNAV (GPS) RWY 31, ORIG-E. 2604291340-PERM
No
MON-FRI 0800-1700
CITY LITTLE FALLS/MORRISON CO
100 7TH AVE NE
LITTLE FALLS, MN 56345
Phone: 320-616-5500
TOM OLSON
13129 AIRPORT RD
LITTLE FALLS, MN 56345
Phone: 320-616-5525
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
LXL
--
ACTVT OR INCR INTST REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31; LIRL RWY 18/36 - CTAF. MIRL RWY 13/31 PRESET LOW INTST.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
None
None
None
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 13/31

4010 ft. x 75 ft.
ASPH
Fair
NONE
MED

22,000lbs
42,000lbs
--
--
  Runway 13 Runway 31
True Heading 131°311°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 57' 09"N 45° 56' 44"N
Longitude 94° 21' 04"W 94° 20' 21"W
Elevation 1,119' 1,123'
Threshold Crossing Height 26 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 18/36

2858 ft. x 60 ft.
ASPH
Excellent
NONE
LOW

--
--
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 57' 11"N 45° 56' 43"N
Longitude 94° 20' 58"W 94° 20' 59"W
Elevation 1,118' 1,119'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1RWY 36 DEPS AVOID MINK RANCH 0.5 NM NE OF RWY.
A110-3GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-4FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A2OFFL ARPT NAME: LITTLE FALLS/MORRISON COUNTY-CHARLES A LINDBERGH FLD.
A31-13/31ADNL 500 FT OFF NW END MKD UNUSBL.
A58-363 FT CROPS, 67 FT DIST, 87 FT R.
A70-100LLFUEL AVBL H24 VIA CREDIT CARD.
A81-APTACTVT OR INCR INTST REIL RWY 13 & 31; PAPI RWY 13 & 31; MIRL RWY 13/31; LIRL RWY 18/36 - CTAF. MIRL RWY 13/31 PRESET LOW INTST.
LITTLE FALLS/MORRISON COUNTY-LINDBERGH FLD (ICAO: KLXL, IATA: LXL) is a public airport located in LITTLE FALLS, MN, US.
