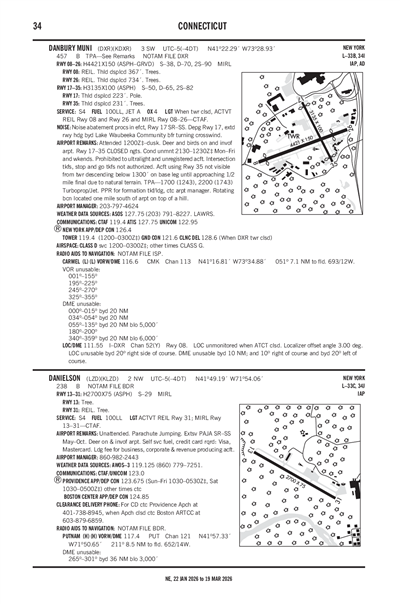

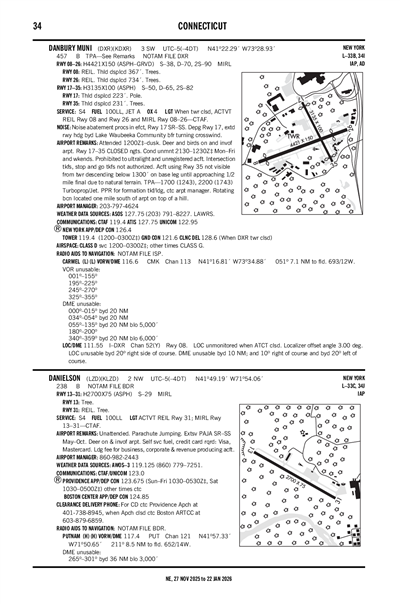

DANIELSON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLZD
ICAO KLZDIATA LZDLocal LZD
DANIELSON
PublicPUB

2 miles NW of DANIELSON, CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 49' 11"N 71° 54' 03"W
Elevation
238' MSL
Pattern Alt
1238' MSL
Mag Variation
14°W
Declination
14°W
Fuel
100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
6/11/26-7/9/26
KIJD (13nm) VFR
4:52 PM EDT
Broken 8,000'
Scattered 6,500'
10sm
82°F
54°F
30.05"Hg
170° 4kts
AO2 SLP175 T02780122 56009
METAR KIJD 252052Z AUTO 17004KT 10SM SCT065 BKN080 28/12 A3005 RMK AO2 SLP175 T02780122 56009
+ Add Your Business

KLZD FBOs

Promote Listing
Danielson Airport
UNICOM: 123.0
Phone: (860) 445-8549
Other: (860) 942-1629
No Rating Available
0 Reviews (Read | Sign In To Write)
As of 6/19
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve
Fuel Notes
Prices include tax
Call ahead for availability and pricing of fuel.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.125
(860) 779-7251

Common

CTAF 123.0
ACTVT REIL RWY 31; MIRL RWY 13/31 - CTAF.
UNICOM 123.0

Approach

PROVIDENCE APPROACH 123.675

Departure

PROVIDENCE DEPARTURE 123.675

Center

PROVIDENCE CENTER 124.85
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 124.85/307.9 (WOODSTOCK RCAG) WHEN PROVIDENCE APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPVD (22nm)
Thu, 6/25 5:20 PM EDT
Thu, 6/25 5:00 PM EDT - Fri, 6/26 2:00 PM EDT
VFR
5:00 PM EDT - 3:00 AM EDT
Scattered 25,000'
Few 7,000'
6sm
Calm
VFR
3:00 AM EDT - 8:00 AM EDT
Overcast 7,000'
6sm
200° 5kts
VFR
8:00 AM EDT - 9:00 AM EDT
Light Rain
Overcast 10,000'
6sm
Calm
MVFR
8:00 AM EDT - 11:00 AM EDT
Overcast 1,500'
6sm
180° 6kts
VFR
11:00 AM EDT - 2:00 PM EDT
Broken 5,000'
6sm
200° 9kts
TAF KPVD 252120Z 2521/2618 00000KT P6SM FEW070 SCT250
   FM260700 20005KT P6SM OVC070
   FM261200 18006KT P6SM OVC015
   PROB30 2612/2613 P6SM -RA OVC100
   FM261500 20009KT P6SM BKN050
KLZD
EffectiveExpiresCategoryNOTAM
Domestic
6/26/26
0000Z
6/26/26
0400Z
!BDR 06/226 LZD AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF LZD SFC-14000FT 2606260000-2606260400
6/24/26
0317Z
7/9/26
0317Z
!BDR 06/208 LZD OBST POWER LINE LGT (ASN 2013-ANE-701-OE) 414958N0715457W (1.0NM NW LZD) 454FT (92FT AGL) U/S 2606240317-2607090317
6/24/26
0317Z
7/9/26
0317Z
!BDR 06/207 LZD OBST POWER LINE LGT (ASN 2013-ANE-2327-OE) 414932N0715456W (0.7NM WNW LZD) 338FT (82FT AGL) U/S 2606240317-2607090317
6/24/26
0317Z
7/9/26
0317Z
!BDR 06/206 LZD OBST POWER LINE LGT (ASN 2012-ANE-736-OE) 414944N0715455W (0.8NM NW LZD) 410FT (77FT AGL) U/S 2606240317-2607090317
6/24/26
0316Z
7/9/26
0316Z
!BDR 06/205 LZD OBST POWER LINE LGT (ASN 2012-ANE-726-OE) 414911N0715526W (1.0NM W LZD) 440FT (119FT AGL) U/S 2606240316-2607090316
6/24/26
0315Z
7/9/26
0315Z
!BDR 06/203 LZD OBST POWER LINE LGT (ASN 2012-ANE-737-OE) 414948N0715455W (0.9NM NW LZD) 426FT (72FT AGL) U/S 2606240315-2607090315
6/16/26
2201Z
7/1/26
2201Z
!BDR 06/140 LZD OBST POWER LINE LGT (ASN 2012-ANE-727-OE) 414911N0715521W (1.0NM W LZD) 441FT (119FT AGL) U/S 2606162201-2607012201
6/16/26
2201Z
7/1/26
2201Z
!BDR 06/139 LZD OBST POWER LINE LGT (ASN 2013-ANE-702-OE) 415004N0715459W (1.1NM NW LZD) 445FT (92FT AGL) U/S 2606162201-2607012201
6/16/26
2159Z
7/1/26
2159Z
!BDR 06/134 LZD OBST POWER LINE LGT (ASN 2022-ANE-7113-OE) 414952N0715452W (0.9NM NW LZD) 442FT (87FT AGL) U/S 2606162159-2607012159
6/13/26
1901Z
6/28/26
1901Z
!BDR 06/124 LZD OBST POWER LINE LGT (ASN 2012-ANE-735-OE) 414937N0715455W (0.8NM NW LZD) 374FT (82FT AGL) U/S 2606131901-2606281901
6/13/26
1900Z
6/28/26
1900Z
!BDR 06/123 LZD OBST POWER LINE LGT (ASN 2021-ANE-3583-OE) 414932N0715455W (0.7NM WNW LZD) 328FT (79FT AGL) U/S 2606131900-2606281900
6/13/26
1859Z
6/28/26
1859Z
!BDR 06/121 LZD OBST POWER LINE LGT (ASN 2012-ANE-733-OE) 414926N0715456W (0.7NM WNW LZD) 305FT (82FT AGL) U/S 2606131859-2606281859
5/17/26
1928Z
8/15/26
2359Z
!BDR 05/108 LZD OBST TOWER LGT (ASN 2025-ANE-2459-OE) 415325N0715720W (4.9NM NNW LZD) 839FT (156FT AGL) U/S 2605171928-2608152359
4/29/26
0947Z
7/25/26
0014Z
!BDR 04/187 LZD AIRSPACE PJE WI AN AREA DEFINED AS 5NM RADIUS OF LZD SFC-14000FT DLY SR-SS 2604290947-2607250014
No
UNATTENDED
CONNECTICUT AIRPORT AUTHORITY
SUITE 160 334 ELLA GRASSO TURNPIKE
WINDSOR LOCKS, CT 06096
Phone: 860-386-6000
ROBERT PELLEGRINO
CONNECTICUT AIRPORT AUTHORITY 239 MAXIM RD
HARTFORD, CT 06114
Phone: 860-982-2443
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
BDR
--
ACTVT REIL RWY 31; MIRL RWY 13/31 - CTAF.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Glider Service
Parachute Jump Activity
Glider Towing

Runway 13/31

2700 ft. x 75 ft.
ASPH
Good
NONE
MED

29,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 120°300°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 49' 18"N 41° 49' 04"N
Longitude 71° 54' 19"W 71° 53' 48"W
Elevation 231' 233'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No Yes
A110-2DEER ON & INVOF ARPT.
A110-5FOR CD CTC PROVIDENCE APCH AT 401-738-8945, WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A24LDG FEE FOR BUS/CORPORATE & REVENUE PRODUCING ACFT.
A70-100LLSELF SVC FUEL, CREDIT CARD RQRD: VISA, MASTER-CARD.
A76-PAJAEXTSV PAJA SR-SS MAY-OCT.
A81-APTACTVT REIL RWY 31; MIRL RWY 13/31 - CTAF.
E111VFR USE ONLY.
DANIELSON (ICAO: KLZD, IATA: LZD) is a public airport located in DANIELSON, CT, US.
