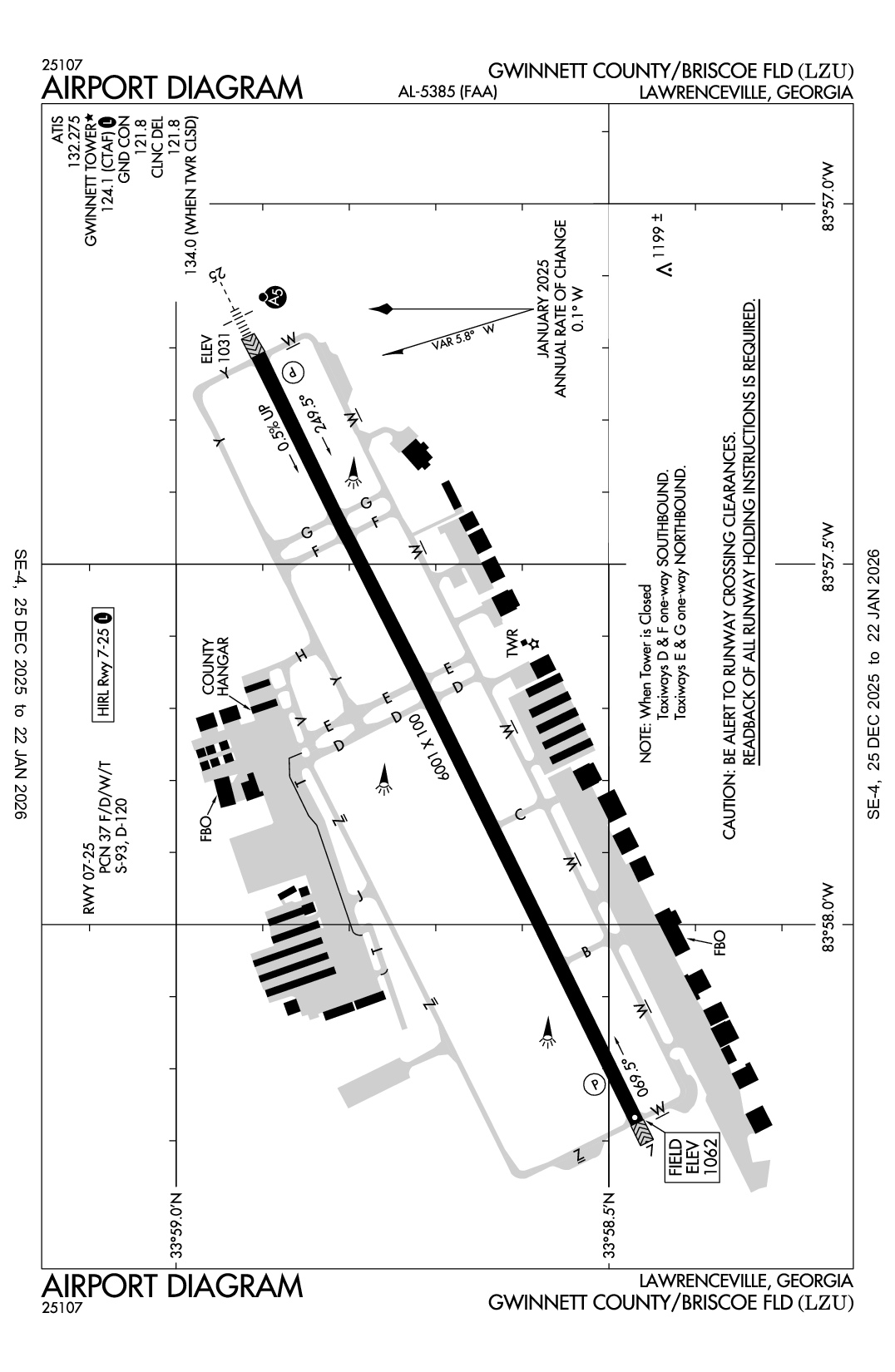

GWINNETT COUNTY/BRISCOE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLZU
ICAO KLZUIATA LZULocal LZU
GWINNETT COUNTY/BRISCOE FLD
PublicPUB

2 miles NE of LAWRENCEVILLE, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 58' 41"N 83° 57' 45"W
Elevation
1062' MSL
Pattern Alt
2101' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
9/3/26-10/1/26
KLZU MVFR
3:56 PM EDT
Broken 1,900'
10sm
81°F
75°F
29.99"Hg
VRB° 3kts
AO2 SLP156 T02720239 $
METAR KLZU 121956Z VRB03KT 10SM BKN019 27/24 A2999 RMK AO2 SLP156 T02720239 $
+ Add Your Business

KLZU FBOs

Promote Listing
Sheltair
ASRI: 130.225
Phone: (678) 373-2700
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.42 6.42 6.49
Fuel Notes
Prices include tax
Promote Listing
Aircraft Specialists Jet Center
ASRI: 128.85
Phone: (770) 277-9000
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 8/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.24 6.97
Fuel Notes
Prices include tax

KLZU Aircraft Service & Maintenance

Gwinnett Aero FBO
UNICOM: 130.225
Phone: (770) 962-9092
Fax: (770) 338-7775
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.275
AWOS-3PT (770) 339-7753

Common

CTAF 124.1
WHEN ATCT CLSD ACTVT MALSR RWY 25; HIRL RWY 07/25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
UNICOM 123.05

Clearance

Clearance Delivery 121.8
Clearance Delivery 134.0
WHEN TWR CLSD

Ground

GWINNETT GROUND 121.8
0700-2100

Tower

GWINNETT TOWER 124.1
0700-2100

Arrival

BOKRT STAR 119.8
WRGNZ STAR 128.575

Approach

ATLANTA APPROACH 126.975

Departure

ATLANTA DEPARTURE 126.975

FAA A/FD Pages

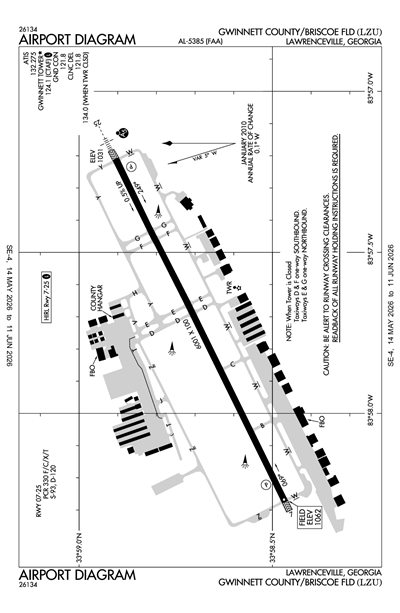

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPDK (18nm)
Sat, 9/12 3:41 PM EDT
Sat, 9/12 4:00 PM EDT - Sun, 9/13 2:00 PM EDT
MVFR
4:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain
Overcast 2,500'
4sm
Calm
MVFR
4:00 PM EDT - 9:00 PM EDT
Broken 3,500'
Broken 2,500'
6sm
220° 6kts
VFR
9:00 PM EDT - 4:00 AM EDT
Scattered 20,000'
Scattered 2,500'
6sm
Calm
MVFR
4:00 AM EDT - 10:00 AM EDT
Mist
Few 8,000'
Few 600'
4sm
Calm
VFR
10:00 AM EDT - 2:00 PM EDT
Few 2,500'
6sm
300° 4kts
TAF KPDK 121941Z 1220/1318 22006KT P6SM BKN025 BKN035
   PROB30 1220/1224 4SM -TSRA OVC025CB
   FM130100 00000KT P6SM SCT025 SCT200
   FM130800 00000KT 4SM BR FEW006 FEW080
   FM131400 30004KT P6SM FEW025
KLZU
EffectiveExpiresCategoryNOTAM
Domestic
9/16/26
1200Z
9/16/26
2000Z
!LZU 09/017 LZU NAV ILS RWY 25 U/S 2609161200-2609162000
9/14/26
0400Z
9/14/26
0900Z
!LZU 09/014 LZU SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2609140400-2609140900
9/12/26
1210Z
9/23/26
2000Z
!LZU 09/019 LZU SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2609121210-2609232000
9/11/26
2222Z
1/9/27
2222Z
!LZU 09/018 LZU OBST TOWER LGT (ASR 1021629) 340522.00N0834918.00W (9.8NM NE LZU) 1240.2FT (262.5FT AGL) U/S 2609112222-2701092222
9/11/26
0100Z
9/26/26
0001Z
!LZU 09/016 LZU OBST TOWER LGT (ASR 1226007) 334852.60N0835618.60W (9.9NM S LZU) 1198.8FT (259.8FT AGL) U/S 2609110100-2609260001
8/25/26
0055Z
11/23/26
0155Z
!LZU 08/024 LZU OBST TOWER LGT (ASR 1202439) 340011.80N0840418.10W (5.6NM WNW LZU) 1306.1FT (205.1FT AGL) U/S 2608250055-2611230155
8/10/26
1238Z
11/8/26
1338Z
!LZU 08/007 LZU OBST TOWER LGT (ASR 1239673) 335257.10N0835114.30W (7.8NM SE LZU) 1154.2FT (265.1FT AGL) U/S 2608101238-2611081338
8/4/26
1349Z
12/31/26
2359Z
!LZU 08/001 LZU OBST TOWER LGT (ASR 1033741) 340558.00N0835500.00W (7.7NM NNE LZU) 1880.2FT (820.2FT AGL) U/S 2608041349-2612312359
7/31/26
2013Z
10/29/26
2013Z
!LZU 07/034 LZU OBST TOWER LGT (ASR 1048763) 335100.00N0840211.00W (8.6NM SSW LZU) 1390.1FT (270.0FT AGL) U/S 2607312013-2610292013
7/29/26
0342Z
10/27/26
0342Z
!LZU 07/030 LZU OBST TOWER LGT (ASR 1204792) 340754.00N0840420.00W (10.6NM NNW LZU) 1324.8FT (315.0FT AGL) U/S 2607290342-2610270342
7/13/26
1111Z
10/12/26
0400Z
!LZU 07/011 LZU OBST TOWER LGT (ASR 1020080) 335755.60N0840353.00W (5.2NM W LZU) 1265.1FT (286.1FT AGL) U/S 2607131111-2610120400
4/15/26
1159Z
!LZU 04/013 LZU NAV ILS RWY 25 OM U/S 2604151159-2712052111EST
FDC
8/20/26
1711Z
!FDC 6/6855 LZU IAP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
RNAV (GPS) RWY 25, AMDT 1A...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WDR ALTIMETER SETTING AND INCREASE LPV DA TO 1444 FEET; INCREASE LNAV/VNAV DA TO 1567 FEET; INCREASE ALL MDAS 60
FEET AND LNAV VISIBILITY CAT C/D 1/8 SM, AND CIRCLING VISIBILITY CAT C/D 1/4 SM.
BARO-VNAV AND VDP NA WHEN USING WDR ALTIMETER SETTING.
FOR INOPERATIVE ALS WHEN USING WDR ALTIMETER SETTING; INCREASE LPV ALL CATS VISIBILITY TO 1 1/8 SM AND LNAV CAT A/B VISIBILITY TO 1 SM. LZU AWOS OUT OF SERVICE.
2608201711-2610211711EST
8/20/26
1711Z
!FDC 6/6854 LZU IAP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
RNAV (GPS) RWY 7, AMDT 1...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WINDER ALTIMETER SETTING AND INCREASE ALL MDA 60 FT AND CIRCLING CAT C/D VISIBILITY 1/4 SM.
VDP NA WHEN USING WINDER ALTIMETER SETTING. LZU AWOS OUT OF SERVICE.
2608201711-2610211711EST
8/20/26
1711Z
!FDC 6/6851 LZU IAP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
ILS OR LOC RWY 25, AMDT 4A...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WDR ALTIMETER SETTING AND INCREASE S-ILS 25 DA TO 1444 FT; INCREASE ALL MDAS 60 FT AND
CIRCLING VISIBILITY CAT C/D 1/4 SM.
FOR INOPERATIVE ALS WHEN USING WDR ALTIMETER SETTING; INCREASE S-ILS 25 ALL CATS VISIBILITY TO 1 1/8 SM AND INCREASE S-LOC 25 CAT A/B TO 1 SM. LZU AWOS OUT OF SERVICE.
2608201711-2610211711EST
4/23/26
1433Z
!FDC 6/5419 LZU ODP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
TAKE-OFF MINIMUMS RWY 25, 300-1 7/8 OR STANDARD WITH MINIMUM CLIMB OF 330 FT/NM TO 1400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2604231433-2804231433EST
Yes
ALL
GWINNETT COUNTY
75 LANGELY DR
LAWRENCEVILLE, GA 30046
Phone: 770-822-7000
MATTHEW SMITH
600 BRISCOE BLVD
LAWRENCEVILLE, GA 30046
Phone: 770-822-5196
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
LZU
--
WHEN ATCT CLSD ACTVT MALSR RWY 25; HIRL RWY 07/25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying
Glider Towing

Runway 07/25

6001 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

93,000lbs
120,000lbs
--
--
  Runway 07 Runway 25
True Heading 64°244°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 58' 28"N 33° 58' 54"N
Longitude 83° 58' 16"W 83° 57' 13"W
Elevation 1,062' 1,031'
Threshold Crossing Height 41 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1TWY T HAS NSTD MARKING.
A39-07/25PCR VALUE: 330/F/C/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 25; HIRL RWY 07/25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
A83SECONDARY WIND ANEMOMETER SENSOR ON FIELD SUPPORTING ATCT OPS.
E147TPA FOR LIGHT ACFT 1039 FT; TPA FOR JET & TURBO PROP ACFT 1539 FT.
GWINNETT COUNTY/BRISCOE FLD (ICAO: KLZU, IATA: LZU) is a public airport located in LAWRENCEVILLE, GA, US.
