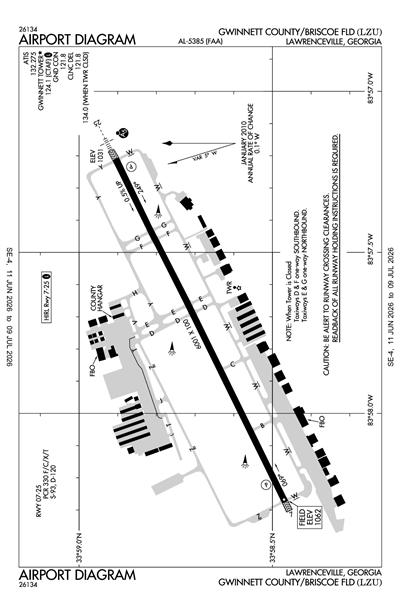

GWINNETT COUNTY/BRISCOE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLZU
ICAO KLZUIATA LZULocal LZU
GWINNETT COUNTY/BRISCOE FLD
PublicPUB

2 miles NE of LAWRENCEVILLE, GA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 58' 41"N 83° 57' 45"W
Elevation
1062' MSL
Pattern Alt
2101' MSL
Mag Variation
6°W
Declination
5°W
Fuel
JET A (FSII), 100LL
FSS
MACON (MCN)
Sectional
ATLANTA
ARTCC
ATLANTA (ZTL)
Data Effective
8/6/26-9/3/26
KLZU VFR
7:56 PM EDT
Broken 12,000'
10sm
76°F
76°F
30.19"Hg
090° 3kts
AO2 LTG DSNT N TSE21 SLP227 6//// T02440244 10300 20244 50002 PNO $
METAR KLZU 072356Z 09003KT 10SM BKN120 24/24 A3019 RMK AO2 LTG DSNT N TSE21 SLP227 6//// T02440244 10300 20244 50002 PNO $
+ Add Your Business

KLZU FBOs

Promote Listing
Aircraft Specialists Jet Center
ASRI: 128.85
Phone: (770) 277-9000
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 7/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.24 6.79
Fuel Notes
Prices include tax
Promote Listing
Sheltair
ASRI: 130.225
Phone: (678) 373-2700
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.52 6.28 6.35
Fuel Notes
Prices include tax

KLZU Aircraft Service & Maintenance

Gwinnett Aero FBO
UNICOM: 130.225
Phone: (770) 962-9092
Fax: (770) 338-7775
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 132.275
AWOS-3PT (770) 339-7753

Common

CTAF 124.1
WHEN ATCT CLSD ACTVT MALSR RWY 25; HIRL RWY 07/25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
UNICOM 123.05

Clearance

Clearance Delivery 121.8
Clearance Delivery 134.0
WHEN TWR CLSD

Ground

GWINNETT GROUND 121.8
0700-2100

Tower

GWINNETT TOWER 124.1
0700-2100

Arrival

BOKRT STAR 119.8
WRGNZ STAR 128.575

Approach

ATLANTA APPROACH 126.975

Departure

ATLANTA DEPARTURE 126.975

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KPDK (18nm)
Fri, 8/7 7:37 PM EDT
Fri, 8/7 8:00 PM EDT - Sat, 8/8 8:00 PM EDT
VFR
8:00 PM EDT - 9:00 PM EDT
Scattered 3,500'
6sm
170° 4kts
VFR
9:00 PM EDT - 5:00 AM EDT
Scattered 15,000'
Few 5,000'
6sm
Calm
VFR
5:00 AM EDT - 11:00 AM EDT
Scattered 20,000'
Scattered 1,000'
6sm
Calm
VFR
11:00 AM EDT - 2:00 PM EDT
Broken 3,500'
Scattered 2,000'
6sm
180° 3kts
VFR
2:00 PM EDT - 8:00 PM EDT
Scattered 4,000'
6sm
150° 4kts
MVFR
3:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain
Broken 3,500'
5sm
Calm
TAF KPDK 072337Z 0800/0824 17004KT P6SM SCT035
   FM080100 00000KT P6SM FEW050 SCT150
   FM080900 00000KT P6SM SCT010 SCT200
   FM081500 18003KT P6SM SCT020 BKN035
   FM081800 15004KT P6SM SCT040
   PROB30 0819/0824 5SM -TSRA BKN035CB
KLZU
EffectiveExpiresCategoryNOTAM
Domestic
8/7/26
0400Z
8/7/26
0900Z
!LZU 08/003 LZU SVC AUTOMATED WX BCST SYSTEM NOT AVBL 2608070400-2608070900
8/6/26
1757Z
12/4/26
1757Z
!LZU 08/004 LZU OBST TOWER LGT (ASR 1021607) 335734.60N0835911.10W (1.6NM SW LZU) 1266.1FT (174.9FT AGL) U/S 2608061757-2612041757
8/4/26
1349Z
12/31/26
2359Z
!LZU 08/001 LZU OBST TOWER LGT (ASR 1033741) 340558.00N0835500.00W (7.7NM NNE LZU) 1880.2FT (820.2FT AGL) U/S 2608041349-2612312359
7/31/26
2013Z
10/29/26
2013Z
!LZU 07/034 LZU OBST TOWER LGT (ASR 1048763) 335100.00N0840211.00W (8.6NM SSW LZU) 1390.1FT (270.0FT AGL) U/S 2607312013-2610292013
7/29/26
0348Z
10/27/26
0348Z
!LZU 07/032 LZU OBST TOWER LGT (ASR 1041263) 340141.90N0840603.40W (7.5NM WNW LZU) 1246.1FT (214.9FT AGL) U/S 2607290348-2610270348
7/29/26
0342Z
10/27/26
0342Z
!LZU 07/030 LZU OBST TOWER LGT (ASR 1204792) 340754.00N0840420.00W (10.6NM NNW LZU) 1324.8FT (315.0FT AGL) U/S 2607290342-2610270342
7/26/26
0113Z
10/24/26
0113Z
!LZU 07/026 LZU OBST TOWER LGT (ASR 1262129) 340216.70N0834947.80W (7.6NM ENE LZU) 1236.9FT (259.8FT AGL) U/S 2607260113-2610240113
7/25/26
0816Z
11/22/26
0816Z
!LZU 07/025 LZU OBST TOWER LGT (ASR 1035910) 335005.50N0840507.80W (10.7NM SW LZU) 1100.4FT (205.7FT AGL) U/S 2607250816-2611220816
7/22/26
0853Z
10/20/26
2359Z
!LZU 07/022 LZU OBST TOWER LGT (ASN 1996-ASO-2917-OE) 335917N0835322W (3.7NM E LZU) 1280FT (166FT AGL) U/S 2607220853-2610202359
7/13/26
1111Z
10/12/26
0400Z
!LZU 07/011 LZU OBST TOWER LGT (ASR 1020080) 335755.60N0840353.00W (5.2NM W LZU) 1265.1FT (286.1FT AGL) U/S 2607131111-2610120400
6/13/26
0754Z
9/11/26
0754Z
!LZU 06/009 LZU OBST TOWER LGT (ASR 1019900) 340639.80N0841129.60W (13.8NM NW LZU) 1466.9FT (254.9FT AGL) U/S 2606130754-2609110754
4/15/26
1159Z
!LZU 04/013 LZU NAV ILS RWY 25 OM U/S 2604151159-2712052111EST
FDC
8/7/26
0400Z
!FDC 6/2557 LZU IAP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
RNAV (GPS) RWY 25, AMDT 1A...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WDR ALTIMETER SETTING AND INCREASE LPV DA TO 1444 FEET; INCREASE LNAV/VNAV DA TO 1567 FEET; INCREASE ALL MDAS 60 FEET AND LNAV VISIBILITY CAT C/D 1/8 SM, AND CIRCLING VISIBILITY CAT C/D 1/4 SM.
NOTE: BARO-VNAV AND VDP NA WHEN USING WDR ALTIMETER SETTING. NOTE: FOR INOPERATIVE ALS WHEN USING WDR ALTIMETER SETTING; INCREASE LPV ALL CATS VISIBILITY TO 1 1/8 SM AND LNAV CAT A/B VISIBILITY TO 1 SM. LZU AWOS OUT OF SERVICE.
2608070400-2608070900EST
8/7/26
0400Z
!FDC 6/2556 LZU IAP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
RNAV (GPS) RWY 7, AMDT 1...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WINDER ALTIMETER SETTING AND INCREASE ALL MDA 60 FT AND CIRCLING CAT C/D VISIBILITY 1/4 SM. NOTE: VDP NA WHEN USING WINDER ALTIMETER SETTING. LZU AWOS OUT OF SERVICE.
2608070400-2608070900EST
8/7/26
0400Z
!FDC 6/2555 LZU IAP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
ILS OR LOC RWY 25, AMDT 4A...
NOTE: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE WDR ALTIMETER SETTING AND INCREASE S-ILS 25 DA TO 1444 FT; INCREASE ALL MDAS 60 FT AND CIRCLING VISIBILITY CAT C/D 1/4 SM. NOTE: FOR INOPERATIVE ALS WHEN USING WDR ALTIMETER SETTING; INCREASE S-ILS 25 ALL CATS VISIBILITY TO 1 1/8 SM AND INCREASE S-LOC 25 CAT A/B TO 1 SM. LZU AWOS OUT OF SERVICE.
2608070400-2608070900EST
4/23/26
1433Z
!FDC 6/5419 LZU ODP GWINNETT COUNTY/BRISCOE FLD, LAWRENCEVILLE, GA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 6...
TAKE-OFF MINIMUMS RWY 25, 300-1 7/8 OR STANDARD WITH MINIMUM CLIMB OF 330 FT/NM TO 1400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2604231433-2804231433EST
Yes
ALL
GWINNETT COUNTY
75 LANGELY DR
LAWRENCEVILLE, GA 30046
Phone: 770-822-7000
MATTHEW SMITH
600 BRISCOE BLVD
LAWRENCEVILLE, GA 30046
Phone: 770-822-5196
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
LZU
--
WHEN ATCT CLSD ACTVT MALSR RWY 25; HIRL RWY 07/25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying
Glider Towing

Runway 07/25

6001 ft. x 100 ft.
ASPH
Good
GRVD
HIGH

93,000lbs
120,000lbs
--
--
  Runway 07 Runway 25
True Heading 64°244°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 58' 28"N 33° 58' 54"N
Longitude 83° 58' 16"W 83° 57' 13"W
Elevation 1,062' 1,031'
Threshold Crossing Height 41 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1TWY T HAS NSTD MARKING.
A39-07/25PCR VALUE: 330/F/C/X/T
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 25; HIRL RWY 07/25 - CTAF. PAPI RWY 07 & 25 OPR CONSLY.
A83SECONDARY WIND ANEMOMETER SENSOR ON FIELD SUPPORTING ATCT OPS.
E147TPA FOR LIGHT ACFT 1039 FT; TPA FOR JET & TURBO PROP ACFT 1539 FT.
GWINNETT COUNTY/BRISCOE FLD (ICAO: KLZU, IATA: LZU) is a public airport located in LAWRENCEVILLE, GA, US.
