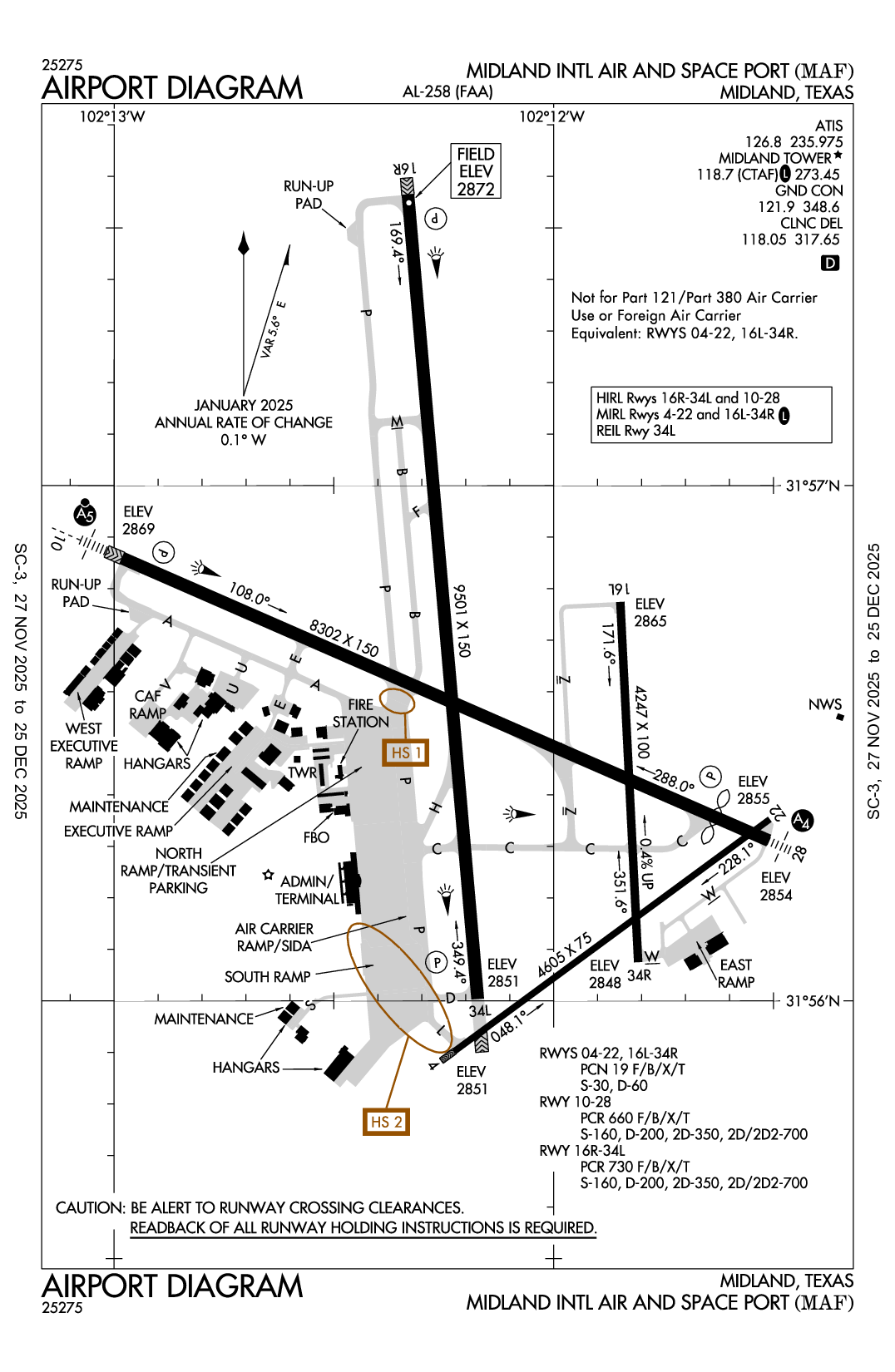

MIDLAND INTL AIR AND SPACE PORT - Airport Diagram

KMAF

ICAO KMAFIATA MAFLocal MAF

MIDLAND INTL AIR AND SPACE PORT

PublicPUB

8 miles SW of MIDLAND, TX, US

View on Map

Status

Operational

Coordinates

31° 56' 33"N 102° 12' 07"W

Elevation

2872' MSL

Pattern Alt

3872' MSL

Mag Variation

6°E

Declination

9°E

Fuel

JET A, JET A-1, 100LL

FSS

SAN ANGELO (SJT)

Sectional

SAN ANTONIO

ARTCC

FORT WORTH (ZFW)

Data Effective

2/19/26-3/19/26

KMAF VFR

12:53 PM CST RAW

Clear

Viz

10sm

Temp

52°F

Dew

11°F

Pres

30.63"Hg

Wind

110° 10kts

RMK

AO2 SLP363 T01111117

METAR KMAF 221853Z 11010KT 10SM CLR 11/M12 A3063 RMK AO2 SLP363 T01111117

Add Your Business

KMAF FBOs

Promote Listing

Signature Aviation

UNICOM: 122.95

Phone: (432) 563-2033

0 Reviews (Read | Sign In To Write)

Other

As of 2/18	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	8.45	6.42

Fuel Notes

Prices include tax

KMAF Aircraft Service & Maintenance

Promote Listing

Quality Avionics

Phone: (432) 553-4462

Fax: (432) 561-5167

0 Reviews (Read | Sign In To Write)

KMAF Other Businesses

Promote Listing

Liége Aviation Flight School & Flying Club

UNICOM: 122.95

Phone: (432) 235-7025

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

ATIS	126.8
ASOS	(432) 201-2813

Common

CTAF	118.7
ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
UNICOM	122.95

Clearance

Clearance Delivery

118.05

Ground

MIDLAND GROUND	121.9
0600-0000

Tower

MIDLAND TOWER	118.7
0600-0000

Approach

MIDLAND APPROACH	121.1
137-240
MIDLAND APPROACH	124.6
Initial Contact - 241-136

Departure

MIDLAND DEPARTURE	121.1
137-240
MIDLAND DEPARTURE	124.6
Initial Contact - 241-136

Center

MIDLAND CENTER	133.1
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.1/298.95 (MIDLAND RCAG) WHEN MIDLAND APCH CLSD.

Flight Service

Flight Service	122.6
(SJT)

Emergency

121.5

Other

CLASS C	121.1
137-240
CLASS C	124.6
241-136

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Instrument Approach

Hotspot

HOT SPOT

Terminal Area Forecast

KMAF

RAW

Reported

Sun, 2/22 11:22 AM CST

Valid

Sun, 2/22 12:00 PM CST - Mon, 2/23 12:00 PM CST

VFR

12:00 PM CST - 12:00 PM CST

Scattered 25,000'

Viz

6sm

Wind

120° 10kts

TAF KMAF 221722Z 2218/2318 12010KT P6SM SCT250

KMAF

Effective	Expires	Category	NOTAM
Domestic
2/22/26 0600Z	3/1/26 0600Z		!MAF 02/129 MAF AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF MAF270016 SFC-200FT AGL 2602220600-2603010600
2/22/26 0400Z	2/22/26 0600Z		!MAF 02/136 MAF SVC SEE ZFW 02/582 MIDLAND APP CLSD 2602220400-2602220600
2/22/26 0400Z	2/22/26 0600Z		!MAF 02/135 MAF SVC TWR CLSD MNT CTAF 118.7 CLASS C SER INVOLVING VFR ACFT NOT AVBL CTC FORT WORTH ARTCC FOR CLASS C ARR COM ON 133.1 OR 298.95, FOR CLR DELIVERY AT 817-858-7584 2602220400-2602220600
2/17/26 1330Z	2/22/26 0500Z		!MAF 02/116 MAF AIRSPACE UAS WI AN AREA DEFINED AS 3NM RADIUS OF MAF270016 SFC-200FT AGL 2602171330-2602220500
2/14/26 1804Z	3/31/26 1803Z		!MAF 02/103 MAF OBST TOWER LGT (ASR 1053361) 320511.00N1021712.00W (9.6NM NNW MAF) 4041.0FT (1131.9FT AGL) U/S 2602141804-2603311803
2/7/26 1018Z	3/1/26 0610Z	Runway	!MAF 02/051 MAF RWY 16R/34L REDL NOT STD 2602071018-2603010610
1/31/26 2153Z	3/1/26 0610Z	Runway	!MAF 01/244 MAF RWY 10/28 REDL NOT STD 2601312153-2603010610
1/31/26 2153Z	3/1/26 0610Z	Runway	!MAF 01/243 MAF RWY 22 HLDG PSN SIGN AT RWY 16R/34L LEFT SIDE LGT U/S 2601312153-2603010610
1/31/26 2152Z	3/1/26 0610Z	Runway	!MAF 01/242 MAF RWY 28 HLDG PSN SIGN AT RWY16R/34L LEFT SIDE LGT U/S 2601312152-2603010610
1/31/26 2152Z	3/1/26 0610Z		!MAF 01/241 MAF TWY C HLDG PSN SIGN SOUTHEAST SIDE FOR RWY 16L/34R LGT U/S 2601312152-2603010610
1/31/26 2151Z	3/1/26 0610Z		!MAF 01/240 MAF TWY W HLDG PSN SIGN FOR APCH END RWY 34R LGT U/S 2601312151-2603010610
1/31/26 2151Z	3/1/26 0610Z		!MAF 01/239 MAF OBST STACK (ASN UNKNOWN) 315629N1021239W (0.46NM SE APCH END RWY 10) UNKNOWN (50FT AGL) NOT LGTD 2601312151-2603010610
1/31/26 2150Z	3/1/26 0610Z		!MAF 01/238 MAF TWY U CLSD 2601312150-2603010610
1/31/26 2148Z	3/1/26 0610Z	Runway	!MAF 01/237 MAF RWY 34L 6000FT DIST REMAINING SIGN LGT U/S 2601312148-2603010610
1/31/26 2147Z	3/1/26 0610Z	Runway	!MAF 01/236 MAF RWY 16R 3000FT DIST REMAINING SIGN LGT U/S 2601312147-2603010610
1/31/26 2147Z	3/1/26 0610Z	Runway	!MAF 01/235 MAF RWY 34L 7000FT DIST REMAINING SIGN LGT U/S 2601312147-2603010610
1/31/26 2146Z	3/1/26 0610Z	Runway	!MAF 01/234 MAF RWY 16R 2000FT DIST REMAINING SIGN LGT U/S 2601312146-2603010610
1/21/26 1747Z	4/21/26 0500Z		!MAF 01/107 MAF OBST TOWER LGT (ASR 1051408) 320551.40N1021722.50W (10.3NM NNW MAF) 4047.9FT (1133.9FT AGL) U/S 2601211747-2604210500
12/30/25 1521Z	3/1/26 2359Z		!MAF 12/128 MAF SVC PCL ALL U/S EXC MEDIUM INTST ON CONS 2512301521-2603012359
12/18/25 1500Z	12/18/26 1500Z		!MAF 12/073 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 314938N1015034W (12.5NM SE 7T7) SFC-400FT AGL 2512181500-2612181500
12/10/25 1500Z	12/10/26 1500Z		!MAF 12/041 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315015.90N1015758.40W (6.4NM E 7T7) SFC-400FT AGL 2512101500-2612101500
11/19/25 1500Z	11/19/26 1500Z		!MAF 11/068 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315215N1015441W (8.9NM W 7T7) SFC-400FT AGL 2511191500-2611191500
FDC
12/1/25 1636Z			!FDC 5/2909 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX. RNAV (GPS) RWY 10, AMDT 2C... RNAV (GPS) RWY 16R, AMDT 1B... RNAV (GPS) RWY 22, AMDT 1C... RNAV (GPS) RWY 28, AMDT 2B... RNAV (GPS) RWY 34L, AMDT 1B... RNAV (GPS) RWY 4, AMDT 1C... CIRCLING MDA CATS C/D 3540/HAT 668. TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE). 2512011636-2705042000EST
11/24/25 2000Z			!FDC 5/0638 MAF IAP U.S. DOD MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX. HI - VOR OR TACAN RWY 16R, AMDT 3... HI-VOR OR TACAN RWY 34L, AMDT 3... VOR OR TACAN RWY 16R, AMDT 23C... VOR OR TACAN RWY 34L, AMDT 10B... CIRCLING MDA CATS C/D 3540/HAT 668. TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE). 2511242000-2705042000EST
11/24/25 2000Z			!FDC 5/0634 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX. ILS OR LOC RWY 10, AMDT 16C... CIRCLING MDA CATS C/D 3540/HAT 668. USILE FIX MINIMUMS: CIRCLING MDA CATS C/D 3540/HAT 668. TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE). 2511242000-2705042000EST

ATC Tower

Yes

Attendance

ALL

Owner

CITY OF MIDLAND
PO BOX 1152
MIDLAND, TX 79702
Phone: 432-685-7100

Manager

JUSTINE RUFF
PO BOX 60305
MIDLAND, TX 79711
Phone: 432-560-2200

FSS

SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF

NOTAM

MAF

Light Schedule

Lights

ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Yes

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

Low Pressure

Other Services

Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

Dimensions

4605 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

19/F/B/X/T

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 04	Runway 22
True Heading	54°	234°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	31° 55' 54"N	31° 56' 21"N
Longitude	102° 12' 14"W	102° 11' 30"W
Elevation	2,851'	2,855'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

Dimensions

8302 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

160,000lbs

Double Wheel

200,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

700,000lbs

	Runway 10	Runway 28
True Heading	114°	294°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	31° 56' 52"N	31° 56' 19"N
Longitude	102° 12' 59"W	102° 11' 31"W
Elevation	2,869'	2,854'
Threshold Crossing Height	54 ft. AGL	53 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4R
Approach Lights	MALSR	MALS
Centerline Lights
Runway End Identifier Lights

Runway 16L/34R

Dimensions

4247 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

19/F/B/X/T

Single Wheel

30,000lbs

Double Wheel

60,000lbs

Double Tandem

Dual Dbl Tand

	Runway 16L	Runway 34R
True Heading	177°	357°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	GOOD	GOOD
Latitude	31° 56' 46"N	31° 56' 04"N
Longitude	102° 11' 51"W	102° 11' 48"W
Elevation	2,865'	2,848'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16R/34L

Dimensions

9501 ft. x 150 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

HIGH

Pavement Class

Single Wheel

160,000lbs

Double Wheel

200,000lbs

Double Tandem

350,000lbs

Dual Dbl Tand

700,000lbs

	Runway 16R	Runway 34L
True Heading	175°	355°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	31° 57' 34"N	31° 56' 00"N
Longitude	102° 12' 20"W	102° 12' 10"W
Elevation	2,872'	2,851'
Threshold Crossing Height	50 ft. AGL	50 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110*G	THIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10	OPRS ON NON PAVED SFC ARE PROHIBITED WO 24 HR PPR.
A110-2	RWYS 04/22 & 16L/34R CLSD TO ACFT OVER 60000 LBS.
A110-4	TWYS B & F NORTH RWY 10/28 CLSD TO ACFT OVER 60000 LBS.
A110-5	BIRD ACTIVITY ON & INVOF ARPT.
A110-6	NMRS OIL RIGS INVOF ARPT AT OR BLW 200 FT AGL.
A110-7	ALL RUNUP PADS ARE LTD USAGE TO ACFT 60000 LBS OR BLW.
A110-9	FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A26	FOR ARFF SVC BTN 0000-0600 DLY CTC FSS AT 800-992-7433.
A30-04/22	RWY 04/22 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-10/28	180 DEG TURN PROHIBITED TO ACFT 60000 LBS OR ABV.
A30-16L/34R	RWY 16L/34R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-16R/34L	180 DEG TURN PROHIBITED TO ACFT 60000 LBS OR ABV.
A31-10/28	EAST 692 FT CLSD TO ACFT OVER 60000 LBS.
A39-10/28	PCR VALUE: 660/F/B/X/T
A39-16R/34L	PCR VALUE: 730/F/B/X/T
A81-APT	ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.

MIDLAND INTL AIR AND SPACE PORT (ICAO: KMAF, IATA: MAF) is a public airport located in MIDLAND, TX, US.
