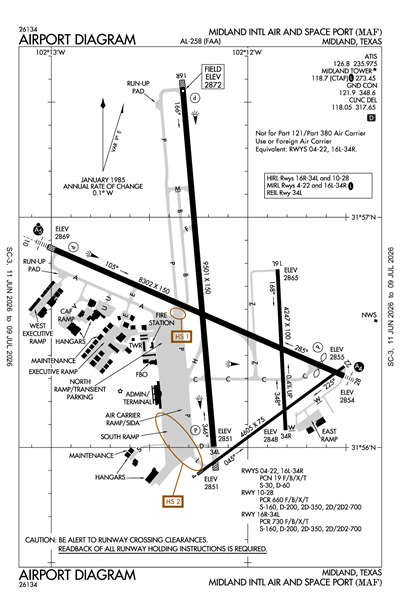

MIDLAND INTL AIR AND SPACE PORT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMAF
ICAO KMAFIATA MAFLocal MAF
MIDLAND INTL AIR AND SPACE PORT
PublicPUB

8 miles SW of MIDLAND, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
31° 56' 33"N 102° 12' 07"W
Elevation
2872' MSL
Pattern Alt
3872' MSL
Mag Variation
6°E
Declination
9°E
Fuel
JET A, JET A-1, 100LL
FSS
SAN ANGELO (SJT)
Sectional
SAN ANTONIO
ARTCC
FORT WORTH (ZFW)
Data Effective
4/16/26-5/14/26
KMAF VFR
7:53 PM CDT
Broken 12,000'
Broken 9,000'
Broken 3,900'
10sm
57°F
43°F
30.08"Hg
050° 15kts
AO2 SLP161 T01390061
METAR KMAF 020053Z 05015KT 10SM BKN039 BKN090 BKN120 14/06 A3008 RMK AO2 SLP161 T01390061
+ Add Your Business

KMAF FBOs

Promote Listing
Signature Aviation
UNICOM: 122.95
Phone: (432) 563-2033
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.45 8.19
Fuel Notes
Prices include tax

KMAF Aircraft Service & Maintenance

Promote Listing
Quality Avionics
Phone: (432) 553-4462
Fax: (432) 561-5167
No Rating Available
0 Reviews (Read | Sign In To Write)

KMAF Other Businesses

Promote Listing
Liége Aviation Flight School & Flying Club
UNICOM: 122.95
Phone: (432) 235-7025
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 126.8
ASOS (432) 201-2813

Common

CTAF 118.7
ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 118.05

Ground

MIDLAND GROUND 121.9
0600-0000

Tower

MIDLAND TOWER 118.7
0600-0000

Approach

MIDLAND APPROACH 121.1
137-240
MIDLAND APPROACH 124.6
Initial Contact - 241-136

Departure

MIDLAND DEPARTURE 121.1
137-240
MIDLAND DEPARTURE 124.6
Initial Contact - 241-136

Center

MIDLAND CENTER 133.1
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.1/298.95 (MIDLAND RCAG) WHEN MIDLAND APCH CLSD.

Flight Service

Flight Service 122.6
(SJT)

Emergency

Emergency 121.5

Other

CLASS C 121.1
137-240
CLASS C 124.6
241-136

Terminal Area Forecast

KMAF
Fri, 5/1 6:27 PM CDT
Fri, 5/1 7:00 PM CDT - Sat, 5/2 7:00 PM CDT
MVFR
7:00 PM CDT - 11:00 PM CDT
Broken 2,500'
6sm
070° 11kts
MVFR
11:00 PM CDT - 4:00 AM CDT
Mist
Broken 1,500'
5sm
030° 6kts
IFR
4:00 AM CDT - 10:00 AM CDT
Mist
Few 25,000'
2sm
360° 5kts
VFR
10:00 AM CDT - 7:00 PM CDT
Mist
Few 25,000'
6sm
VRB° 4kts
TAF KMAF 012327Z 0200/0224 07011KT P6SM BKN025
   FM020400 03006KT 5SM BR BKN015
   FM020900 36005KT 2SM BR FEW250
   FM021500 VRB04KT 6SM BR FEW250
KMAF
EffectiveExpiresCategoryNOTAM
Domestic
5/2/26
0000Z
5/2/26
1000Z
!MAF 05/008 MAF COM REMOTE COM OUTLET 122.6 U/S 2605020000-2605021000
5/2/26
0000Z
5/2/26
2359Z
!MAF 05/007 MAF COM REMOTE COM A/G 121.5, 243.0 NOT AVBL 2605020000-2605022359
4/30/26
1524Z
6/1/26
0510Z
!MAF 04/142 MAF OBST STACK (ASN UNKNOWN) 315629N1021239W (0.46NM SE APCH END RWY 10)
UNKNOWN (50FT AGL) NOT LGTD 2604301524-2606010510
4/30/26
1519Z
6/1/26
0510Z
Runway!MAF 04/141 MAF RWY 22 HLDG PSN SIGN AT RWY16R/34L LEFT SIDE LGT U/S 2604301519-2606010510
4/30/26
1517Z
6/1/26
0510Z
Runway!MAF 04/140 MAF RWY 28 HLDG PSN SIGN AT RWY16R/34L LEFT SIDE LGT U/S 2604301517-2606010510
4/30/26
1516Z
6/1/26
0510Z
!MAF 04/139 MAF TWY C HLDG PSN SIGN SOUTHEAST SIDE FOR RWY 16L/34R LGT U/S 2604301516-2606010510
4/30/26
1514Z
6/1/26
0510Z
!MAF 04/138 MAF TWY W HLDG PSN SIGN FOR APCH END RWY 34R LGT U/S 2604301514-2606010510
4/30/26
1509Z
6/1/26
0510Z
Runway!MAF 04/136 MAF RWY 34L 6000FT DIST REMAINING SIGN LGT U/S 2604301509-2606010510
4/30/26
1507Z
6/1/26
0510Z
Runway!MAF 04/135 MAF RWY 16R 3000FT DIST REMAINING SIGN LGT U/S 2604301507-2606010510
4/30/26
1505Z
6/1/26
0510Z
Runway!MAF 04/134 MAF RWY 34L 7000FT DIST REMAINING SIGN LGT U/S 2604301505-2606010510
4/30/26
1503Z
6/1/26
0510Z
Runway!MAF 04/133 MAF RWY 16R 2000FT DIST REMAINING SIGN LGT U/S 2604301503-2606010510
4/30/26
1501Z
6/1/26
0510Z
!MAF 04/132 MAF TWY U CLSD 2604301501-2606010510
4/21/26
1935Z
!MAF 04/116 MAF NAV FARLY LOM NDB U/S 2604211935-2610212111EST
4/20/26
1150Z
7/20/26
0400Z
!MAF 04/109 MAF OBST TOWER LGT (ASR 1051408) 320551.40N1021722.50W (10.3NM NNW MAF) 4047.9FT (1133.9FT AGL) U/S 2604201150-2607200400
4/5/26
2259Z
7/5/26
2359Z
!MAF 04/025 MAF AD AP PCL ALL U/S EXC MEDIUM INTST ON CONS 2604052259-2607052359
3/31/26
1400Z
3/30/27
1400Z
!MAF 03/124 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 321230N1015748W (6.6NM WNW 63F) SFC-400FT AGL 2603311400-2703301400
3/30/26
0604Z
5/14/26
0603Z
!MAF 03/121 MAF OBST TOWER LGT (ASR 1053361) 320511.00N1021712.00W (9.6NM NNW MAF) 4041.0FT (1131.9FT AGL) U/S 2603300604-2605140603
3/17/26
2000Z
3/16/27
1400Z
!MAF 03/067 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 320339N1014955W (7.3NM S 63F) SFC-400FT AGL 2603172000-2703161400
3/9/26
1143Z
!MAF 03/037 MAF NAV ILS RWY 10 OM U/S 2603091143-2708302111EST
2/27/26
2100Z
2/27/27
2100Z
!MAF 02/171 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315708N1014931W (14.3NM NE 7T7) SFC-400FT AGL 2602272100-2702272100
12/18/25
1500Z
12/18/26
1500Z
!MAF 12/073 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 314938N1015034W (12.5NM SE 7T7) SFC-400FT AGL 2512181500-2612181500
12/10/25
1500Z
12/10/26
1500Z
!MAF 12/041 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315015.90N1015758.40W (6.4NM E 7T7) SFC-400FT AGL 2512101500-2612101500
11/19/25
1500Z
11/19/26
1500Z
!MAF 11/068 MAF AIRSPACE UAS WI AN AREA DEFINED AS 4NM RADIUS OF 315215N1015441W (8.9NM W 7T7) SFC-400FT AGL 2511191500-2611191500
FDC
4/29/26
1025Z
!FDC 6/6754 MAF ODP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
TAKEOFF MINIMUMS: RWY 28, 300-1 3/8 OR STANDARD WITH A MINIMUM CLIMB OF 246FT PER NM TO 3200. TAKEOFF OBSTACLE NOTES: RWY 28, TEMPORARY RIGS, BEGINNING 1.06 NM FROM DER, BEGINNING 2070FT LEFT OF CENTERLINE, 175 AGL/UP TO 3067FT LEFT OF CENTERLINE (2026-ASW-4244/4245-OE), RWY 28, TEMPORARY RIGS, BEGINNING 1.05 NM FROM DER, BEGINNING 2172FT LEFT OF CENTERLINE, 175 AGL/3063 MSL (2026-ASW-3005/3006-OE), TEMPORARY RIGS, BEGINNING 1.1 NM FROM DER, BEGINNING 2102FT LEFT OF CENTERLINE, 175 AGL/3064 MSL (2025-ASW-2957/2958-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2604291025-2607131025EST
4/28/26
1144Z
!FDC 6/6328 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
RNAV (GPS) RWY 34L, AMDT 1B...
LNAV/VNAV DA 3248/HAT 390 ALL CATS.
LNAV MDA 3340/HAT 482 ALL CATS, VIS CAT C/D 1 3/8.
TEMPORARY RIGS, 3037 MSL, BEGINNING 4050FT SOUTHWEST OF RWY 34L (2025-ASW-4560/4562-OE).
2604281144-2612081144EST
12/1/25
1636Z
!FDC 5/2909 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
RNAV (GPS) RWY 10, AMDT 2C...
RNAV (GPS) RWY 16R, AMDT 1B...
RNAV (GPS) RWY 22, AMDT 1C...
RNAV (GPS) RWY 28, AMDT 2B...
RNAV (GPS) RWY 34L, AMDT 1B...
RNAV (GPS) RWY 4, AMDT 1C...
CIRCLING MDA CATS C/D 3540/HAT 668.
TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE).
2512011636-2705042000EST
11/24/25
2000Z
!FDC 5/0638 MAF IAP U.S. DOD MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
HI - VOR OR TACAN RWY 16R, AMDT 3...
HI-VOR OR TACAN RWY 34L, AMDT 3...
VOR OR TACAN RWY 16R, AMDT 23C...
VOR OR TACAN RWY 34L, AMDT 10B...
CIRCLING MDA CATS C/D 3540/HAT 668. TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE).
2511242000-2705042000EST
11/24/25
2000Z
!FDC 5/0634 MAF IAP MIDLAND INTL AIR AND SPACE PORT, MIDLAND, TX.
ILS OR LOC RWY 10, AMDT 16C...
CIRCLING MDA CATS C/D 3540/HAT 668.
USILE FIX MINIMUMS:
CIRCLING MDA CATS C/D 3540/HAT 668.
TEMPORARY CRANES STARTING AT 2.5NM NORTHEAST OF MAF AIRPORT, UP TO 300 AGL/3189 MSL (2025-ASW-11549-OE).
2511242000-2705042000EST
Yes
ALL
CITY OF MIDLAND
PO BOX 1152
MIDLAND, TX 79702
Phone: 432-685-7100
JUSTINE RUFF
PO BOX 60305
MIDLAND, TX 79711
Phone: 432-560-2200
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
MAF
--
ATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

4605 ft. x 75 ft.
ASPH
Good
NONE
MED
19/F/B/X/T
30,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 54°234°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 55' 54"N 31° 56' 21"N
Longitude 102° 12' 14"W 102° 11' 30"W
Elevation 2,851' 2,855'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10/28

8302 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

160,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 10 Runway 28
True Heading 114°294°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 56' 52"N 31° 56' 19"N
Longitude 102° 12' 59"W 102° 11' 31"W
Elevation 2,869' 2,854'
Threshold Crossing Height 54 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights

Runway 16L/34R

4247 ft. x 100 ft.
ASPH
Good
NONE
MED
19/F/B/X/T
30,000lbs
60,000lbs
--
--
  Runway 16L Runway 34R
True Heading 177°357°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 31° 56' 46"N 31° 56' 04"N
Longitude 102° 11' 51"W 102° 11' 48"W
Elevation 2,865' 2,848'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16R/34L

9501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

160,000lbs
200,000lbs
350,000lbs
700,000lbs
  Runway 16R Runway 34L
True Heading 175°355°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 57' 34"N 31° 56' 00"N
Longitude 102° 12' 20"W 102° 12' 10"W
Elevation 2,872' 2,851'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-10OPRS ON NON PAVED SFC ARE PROHIBITED WO 24 HR PPR.
A110-2RWYS 04/22 & 16L/34R CLSD TO ACFT OVER 60000 LBS.
A110-4TWYS B & F NORTH RWY 10/28 CLSD TO ACFT OVER 60000 LBS.
A110-5BIRD ACTIVITY ON & INVOF ARPT.
A110-6NMRS OIL RIGS INVOF ARPT AT OR BLW 200 FT AGL.
A110-7ALL RUNUP PADS ARE LTD USAGE TO ACFT 60000 LBS OR BLW.
A110-9FOR CD IF UNA TO CTC ON FSS FREQ, CTC FORT WORTH ARTCC AT 817-858-7584.
A26FOR ARFF SVC BTN 0000-0600 DLY CTC FSS AT 800-992-7433.
A30-04/22RWY 04/22 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-10/28180 DEG TURN PROHIBITED TO ACFT 60000 LBS OR ABV.
A30-16L/34RRWY 16L/34R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-16R/34L180 DEG TURN PROHIBITED TO ACFT 60000 LBS OR ABV.
A31-10/28EAST 692 FT CLSD TO ACFT OVER 60000 LBS.
A39-10/28PCR VALUE: 660/F/B/X/T
A39-16R/34LPCR VALUE: 730/F/B/X/T
A81-APTATC CTL. WHEN ATCT CLSD HIRL RWYS 10/28 & 16R/34L PRESET ON LOW INTST. WHEN ATCT CLSD ACTVT MALSR RWY 10; MALS RWY 28; MIRL RWYS 04/22 & 16L/34R - CTAF.
MIDLAND INTL AIR AND SPACE PORT (ICAO: KMAF, IATA: MAF) is a public airport located in MIDLAND, TX, US.
