KMAO
ICAO KMAOLocal MAO
MARION COUNTY
PublicPUB

3 miles E of MARION, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 10' 52"N 79° 20' 05"W
Elevation
93' MSL
Pattern Alt
1093' MSL
Mag Variation
9°W
Declination
8°W
Fuel
JET A, 100LL
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
4/16/26-5/14/26
KMAO VFR
6:55 PM EDT
Broken 12,000'
Scattered 8,500'
10sm
79°F
55°F
29.76"Hg
180° 7kts
AO2
METAR KMAO 252255Z AUTO 18007KT 10SM SCT085 BKN120 26/13 A2976 RMK AO2
+ Add Your Business

KMAO FBOs

View Profile
Visit Website
Send Message
Marion County Airport
UNICOM: 122.8
Phone: (843) 423-8265
No Rating Available
0 Reviews (Read | Sign In To Write)
Car Rental, Courtesy Car, Hangar Sales/Leasing, Internet Access, Pilot Lounge, Restaurant, Restrooms, Showers
Phillips 66
As of 4/14
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.38 6.02
Full Serve
Fuel Notes
Prices include tax
Assistance is available for self-serve 100LL and JET A.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.875
(843) 423-4231

Common

CTAF 122.8
UNICOM 122.8

Approach

FLORENCE APPROACH 135.25

Departure

FLORENCE DEPARTURE 135.25

Center

FLORENCE CENTER 133.45
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC ON FREQS 133.45/306.3 (FLORENCE RCAG) WHEN FLORENCE APCH CTL CLSD.

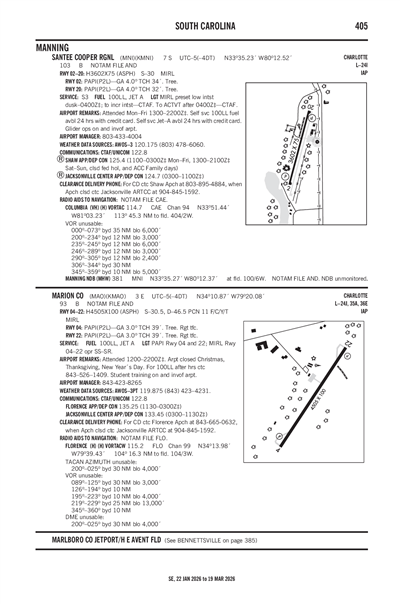

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFLO (20nm)
Sat, 4/25 1:20 PM EDT
Sat, 4/25 2:00 PM EDT - Sun, 4/26 2:00 PM EDT
VFR
2:00 PM EDT - 9:00 PM EDT
Broken 7,000'
6sm
220° 9kts
VFR
9:00 PM EDT - 1:00 AM EDT
Light Showers and Rain
Broken 6,000'
6sm
260° 7kts
MVFR
Temporary 9:00 PM EDT - 1:00 AM EDT
Thunderstorm and Rain
Broken 3,000'
4sm
Calm
MVFR
1:00 AM EDT - 7:00 AM EDT
Showers and Rain
Broken 1,000'
5sm
Calm
MVFR
1:00 AM EDT - 2:00 PM EDT
Light Showers and Rain
Broken 4,000'
Broken 2,000'
6sm
VRB° 4kts
TAF KFLO 251720Z 2518/2618 22009KT P6SM BKN070
   FM260100 26007KT 6SM -SHRA BKN060
   TEMPO 2601/2605 4SM TSRA BKN030CB
   FM260500 VRB04KT P6SM -SHRA BKN020 BKN040
   PROB30 2605/2611 5SM SHRA BKN010
KMAO
EffectiveExpiresCategoryNOTAM
Domestic
4/24/26
1626Z
6/8/26
1125Z
!AND 04/256 MAO OBST TOWER LGT (ASN 2025-ASO-13578-OE) 341907N0790921W (12.3NM NE MAO) 412FT (315FT AGL) U/S 2604241626-2606081125
4/20/26
1438Z
6/4/26
1438Z
!AND 04/197 MAO OBST TOWER LGT (ASN 2018-ASO-5628-OE) 341233N0793036W (8.8NM W MAO) 382FT (316FT AGL) U/S 2604201438-2606041438
4/5/26
0020Z
5/20/26
0020Z
!AND 04/041 MAO OBST TOWER LGT (ASR 1212015) 341002.80N0792534.20W (4.6NM W MAO) 404.9FT (345.1FT AGL) U/S 2604050020-2605200020
FDC
3/14/25
1924Z
!FDC 5/3348 MAO IAP MARION COUNTY, MARION, SC.
RNAV (GPS) RWY 4, AMDT 1A...
LPV ALL CATS VIS 1.
LNAV/VNAV DA 375/HAT 282 ALL CATS VIS 1.
LNAV MDA 480/HAT 388.
2503141924-2703141924EST
3/14/25
1841Z
!FDC 5/3342 MAO IAP MARION COUNTY, MARION, SC.
RNAV (GPS) RWY 22, ORIG-A...
LPV DA NA.
LNAV/VNAV DA NA.
NOTE: CIRCLING NA TO RWY 22 AT NIGHT.
2503141841-2703141841EST
No
0700-1700
ARPT CLOSED CHRISTMAS, THANKSGIVING, NEW YEAR'S DAY.
MARION COUNTY
PO BOX 183
MARION, SC 29571
Phone: 843-423-3904
CHARLES TAYLOR
225 AIRPORT COURT
MULLINS, SC 29574
Phone: 843-423-8265
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
PAPI RWY 04 & 22; MIRL RWY 04/22 OPR SS-SR.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance

Runway 04/22

4505 ft. x 100 ft.
ASPH
Fair
NONE
MED
11/F/C/Y/T
30,000lbs
46,000lbs
--
--
  Runway 04 Runway 22
True Heading 35°215°
Traffic Pattern Right Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 34° 10' 34"N 34° 11' 11"N
Longitude 79° 20' 20"W 79° 19' 50"W
Elevation 92' 91'
Threshold Crossing Height 39 ft. AGL 39 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1STUDENT TRG ON & INVOF ARPT.
A110-2FOR CD CTC FLORENCE APCH AT 843-665-0632, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A17-M1ARPT CLOSED CHRISTMAS, THANKSGIVING, NEW YEAR'S DAY.
A58-229 FT HIGH BRUSH 133 FT FROM THLD 129 FT LEFT OF CNTRLN.
A70-100LLFOR FUEL AFTER HRS CTC 843-526-1409.
A81-APTPAPI RWY 04 & 22; MIRL RWY 04/22 OPR SS-SR.
MARION COUNTY (ICAO: KMAO, IATA: MAO) is a public airport located in MARION, SC, US.
