iFlightPlanner



...

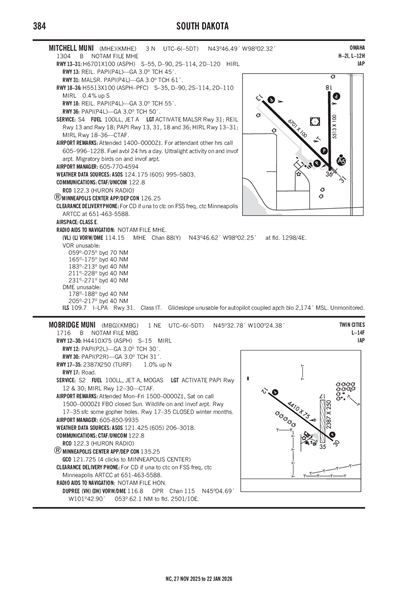

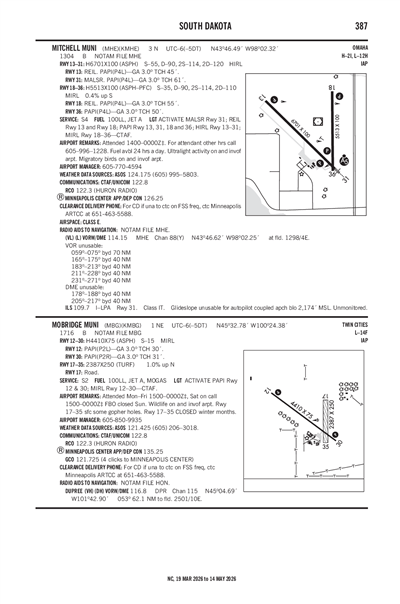

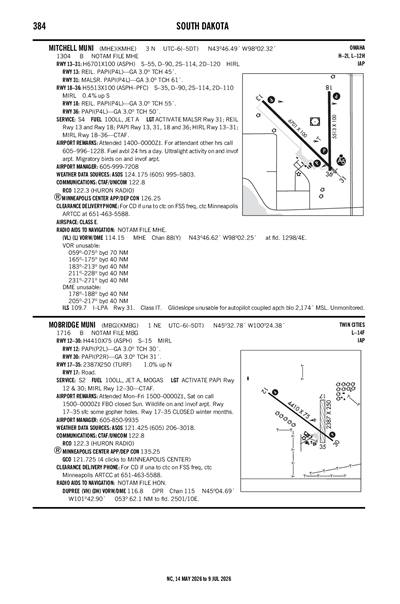

MOBRIDGE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMBG
MOBRIDGE MUNI
PublicPUB

1 miles NE of MOBRIDGE, SD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 32' 47"N 100° 24' 23"W
1716' MSL
2716' MSL
09E
Jet A, 100LL, MOGAS
HURON (HON)
TWIN CITIES
MINNEAPOLIS (ZMP)
4/18/24-5/16/24
KMBG IFR
9:34 PM CDT
Light Rain
Overcast 1,600'
Broken 900'
Broken 500'
10sm
50°F
47°F
29.51"Hg
350° 9kts
AO2 P0004 T01000083
KMBG 270234Z AUTO 35009KT 10SM -RA BKN005 BKN009 OVC016 10/08 A2951 RMK AO2 P0004 T01000083
List Your Business

KMBG FBOs, Flight Schools and Ground Support

Promote Listing
Mobridge Municipal Airport
Freq: 122.8
Phone: (605) 216-6565
Other: (605) 377-3073
No Rating Available
0 Reviews (Read | Sign In To Write)
World Fuel
As of 3/31
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.20 5.70 4.00
Full Serve 6.00

KMBG Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMBG Hotels

No hotels are listed for this airport.

KMBG Restaurants

No restaurants are listed for this airport.

KMBG Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

ASOS

ASOS
605-845-5024
 121.425

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMBG
Fri, 4/26 9:36 PM CDT
Fri, 4/26 10:00 PM CDT - Sat, 4/27 7:00 PM CDT
IFR
10:00 PM CDT - 12:00 AM CDT
Light Rain and Mist
Overcast 900'
6sm
360° 11kts
IFR
12:00 AM CDT - 4:00 PM CDT
Showers in vicinity
Overcast 700'
6sm
350° 18kts
Gusts 25kts
MVFR
4:00 PM CDT - 7:00 PM CDT
Overcast 1,000'
6sm
030° 16kts
Gusts 25kts
KMBG 270236Z 2703/2724 36011KT 6SM -RA BR OVC009
   FM270500 35018G25KT P6SM VCSH OVC007
   FM272100 03016G25KT P6SM OVC010
KMBG
No NOTAM Available
No
MON-FRI 0900-1800
SAT ON CALL 0900-1800 FBO CLSD SUN
CITY OF MOBRIDGE
114 1ST AVE. E
MOBRIDGE, SD 57601
Phone: 605-845-3509
BRADY FUHRER
114 1ST AVENUE E
MOBRIDGE, SD 57601
Phone: 605-850-9935
HURON FSS (HON)
Toll Free: 1-800-WX-BRIEF
MBG
--
ACTVT MIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
14
2
0
0
0
0
Minor
Minor
None
None
Air Freight
Crop Dusting
Pilot Instruction

Runway 12/30

4410 ft. x 75 ft.
ASPH
Excellent
NONE
MED

15,000lbs
--
--
--
  Runway 12 Runway 30
True Heading 127°307°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 33' 00"N 45° 32' 34"N
Longitude 100° 24' 53"W 100° 24' 04"W
Elevation 1,703' 1,700'
Threshold Crossing Height 30 ft. AGL 31 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 17/35

2399 ft. x 250 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NONE NONE
Markings Condition
Latitude 45° 32' 57"N 45° 32' 33"N
Longitude 100° 24' 12"W 100° 24' 11"W
Elevation 1,716' 1,692'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1WILDLIFE ON AND INVOF ARPT.
A110-2GCO AVBL ON FREQ 121.725 (4 CLICKS TO MINNEAPOLIS CENTER)
A110-4FOR JET FUEL PRE-ARRANGE AMGR 605-441-0165.
A110-5FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
MOBRIDGE MUNI (ICAO: KMBG, IATA: MBG) is a public airport located in MOBRIDGE, SD.
