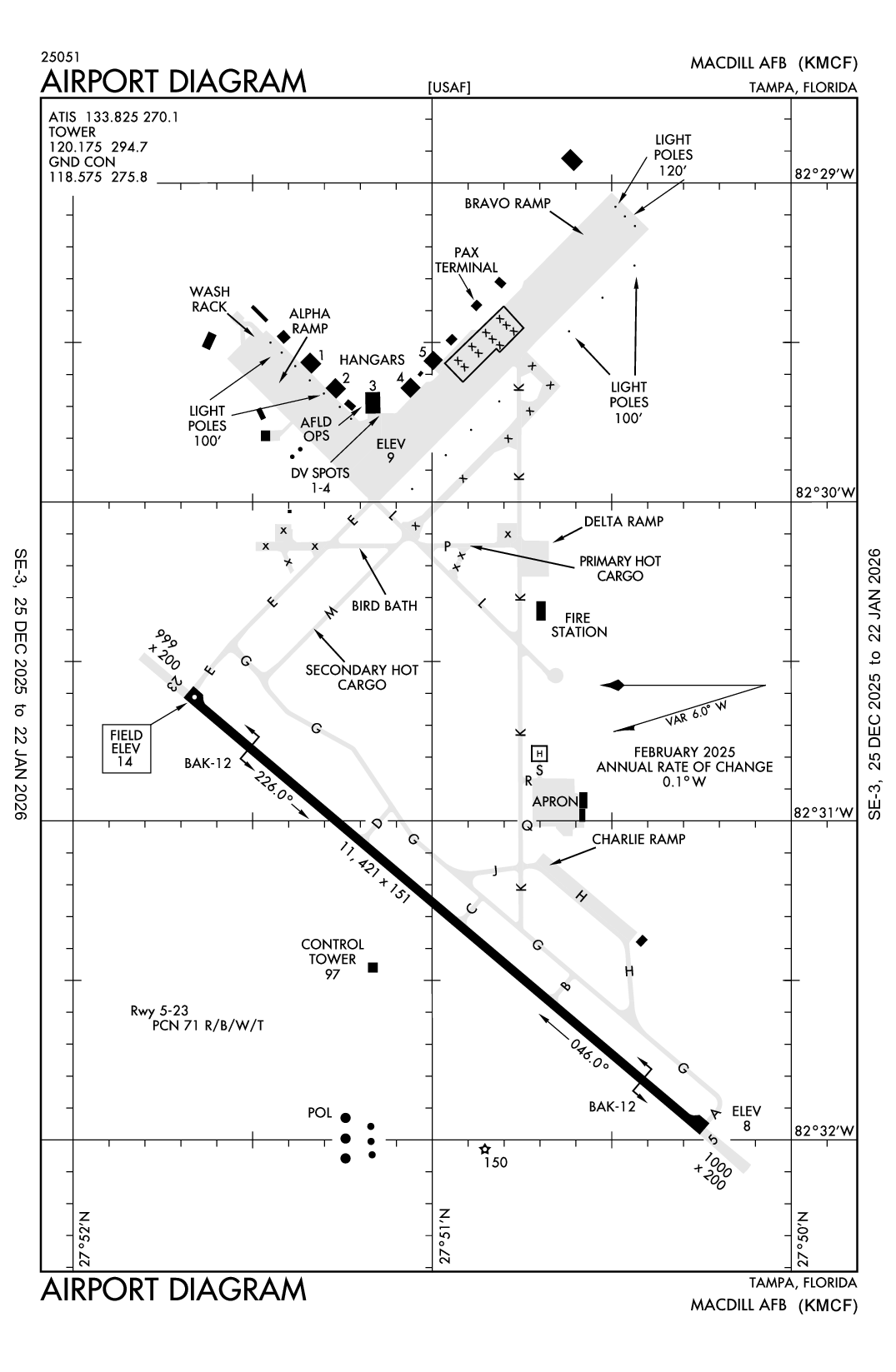

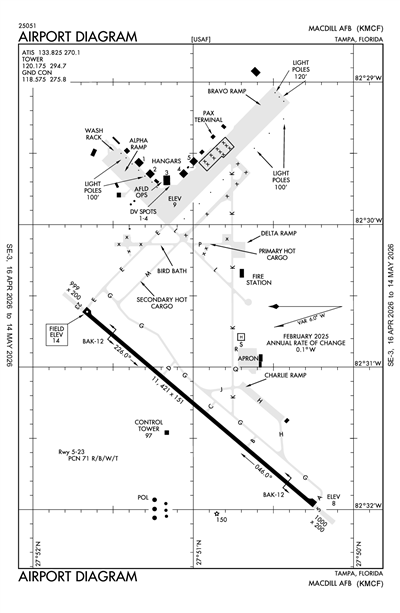

MACDILL AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCF
MACDILL AFB
PrivatePVT

4 miles S of TAMPA, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
27° 50' 58"N 82° 31' 16"W
14' MSL
1014' MSL
06W
JET A, JET A+, CILI
SAINT PETERSBURG (PIE)
MIAMI
MIAMI (ZMA)
12/25/25-1/22/26
KMCF VFR
6:55 PM EST
Clear
10sm
69°F
64°F
30.08"Hg
Calm
AO2 SLP189 T02080176 10272 20206 53008
METAR KMCF 082355Z AUTO 00000KT 10SM CLR 21/18 A3008 RMK AO2 SLP189 T02080176 10272 20206 53008
+ Add Your Business

KMCF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 133.825

Ground

GND/P
 118.575

Tower

LCL/P
 120.175

Other

COMD POST
 132.775
COMD POST
6 AMW
 134.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

  • No Documents

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KMCF
Thu, 1/8 12:00 PM EST
Thu, 1/8 12:00 PM EST - Fri, 1/9 6:00 PM EST
VFR
12:00 PM EST - 11:00 PM EST
Broken 15,000'
6sm
30.06"Hg
VRB° 4kts
VFR
Becoming 11:00 PM EST - 2:00 AM EST
Sky Clear
6sm
30.09"Hg
100° 7kts
LIFR
Becoming 2:00 AM EST - 4:00 AM EST
Mist
Broken 200'
3.73sm
30.12"Hg
VRB° 2kts
LIFR
Becoming 4:00 AM EST - 10:00 AM EST
Fog
Obscured
0.37sm
30.12"Hg
VRB° 2kts
MVFR
Becoming 10:00 AM EST - 12:00 PM EST
Mist
Few 600'
3.73sm
30.21"Hg
120° 7kts
VFR
Becoming 12:00 PM EST - 6:00 PM EST
Sky Clear
6sm
30.15"Hg
150° 5kts
TAF KMCF 081700Z 0817/0923 VRB04KT 9999 BKN150 QNH3006INS
   BECMG 0904/0905 10007KT 9999 SKC QNH3009INS
   BECMG 0907/0908 VRB02KT 6000 BR BKN002 QNH3012INS
   BECMG 0909/0910 VRB02KT 0600 FG VV001 QNH3011INS
   BECMG 0915/0916 12007KT 6000 BR FEW006 QNH3021INS
   BECMG 0917/0918 15005KT 9999 NSW SKC QNH3015INS TX26/0819Z TN18/0906Z
KMCF
EffectiveExpiresCategoryNOTAM
Military
1/12/26
1200Z
1/15/26
2359Z
NAVAID RUNWAY 05 GLIDESLOPE UNAVAILABLE BETWEEN 0700L - 1900L DAILY. RUNWAY 05 LOCALIZER REMAINS AVAILABLE.
1/12/26
1200Z
1/15/26
2359Z
MEN AND EQUIPMENT 496 FT WEST OF RUNWAY CENTERLINE LOCATED AT 27°50'26"N 82°31'53"W
1/10/26
1200Z
1/10/26
2359Z
MEN AND EQUIPMENT 496 FT WEST OF RUNWAY CENTERLINE LOCATED AT 27°50'26"N 82°31'53"W
1/10/26
1200Z
1/10/26
2359Z
NAVAID RUNWAY 05 GLIDESLOPE UNAVAILABLE BETWEEN 0700L - 1900L DAILY. RUNWAY 05 LOCALIZER REMAINS AVAILABLE.
1/9/26
0045Z
1/10/26
2359Z
ARFF IS REDUCED LEVEL OF SERVICE FOR DAF AIRFIELD CAT 1-9 DUE TO PERSONNEL AND VEHICLE SHORTAGE 15 PERSONNEL ON DUTY AND 11,000 GALLONS REMAINING (PREVIOUS USAF CAT 1-5).
1/9/26
0044Z
1/12/26
0044Z
M0031/26 NOTAMC M0016/26
1/8/26
2317Z
2/13/26
2359Z
AIRFIELD MANAGEMENT RELOCATED BACK TO HANGAR 3. FLIGHT PLANNING ROOM (COMPUTERS, PRINTERS, ECT) NOT AVAILABLE. CONTACT INFO (813)828-2929 OPT 3 OR (813)541-5552
1/8/26
2314Z
4/3/26
2359Z
AerodromeAERODROME OFFICIAL BUSINESS ONLY
1/8/26
1702Z
1/10/26
2359Z
Taxiway!KMCF M0029/26 MCF TWY B CLSD 2601081702-2601102359
1/8/26
1100Z
1/9/26
1700Z
MEN AND EQUIPMENT LOCATED 1,550 FEET FROM RUNWAY 23 THRESHOLD IN THE RUNWAY CLEAR ZONE.
1/7/26
1224Z
1/9/26
2359Z
NAVAID RWY 23 GLIDESLOPE UNAVAILABLE BETWEEN 0700L-1900L DAILY. RWY 23 LOCALIZER REMAINS AVAILABLE.
1/6/26
1506Z
1/9/26
1506Z
M0021/26 NOTAMC M1233/25
1/5/26
1850Z
1/9/26
2359Z
MEN AND EQUIPMENT 500 FT WEST OF RWY 23 CENTERLINE LOCATED AT 27°51'35"N 82°30'47"W
1/5/26
1804Z
1/16/26
2359Z
RunwayRWY 23 LOCALIZER OBSTRUCTION LIGHT UNLIT.
1/5/26
1239Z
1/9/26
2359Z
ARFF IS CRITICAL LEVEL OF SERVICE FOR DAF AIRFIELD CAT 10 (C5, VC-25, AND A-380)
12/29/25
0337Z
2/28/26
2359Z
BRAVO RAMP STADIUM LIGHT, OBSTRUCTION LIGHTS LOCATED 27°50'28.0N 82°29'03.1W OTS
12/7/25
1915Z
3/1/26
2359Z
MEN AND EQUIPMENT LOCATED 1,430 FEET FROM RUNWAY 05 THRESHOLD IN THE RUNWAY CLEAR ZONE.(DAILY 0600-1700)
11/30/25
1141Z
2/6/26
2359Z
BRAVO RAMP PARKING SPOT BRAVO 12 CLSD.
11/6/25
1558Z
1/27/26
2359Z
AerodromeAERODROME MOBILE OBST CRANE HEIGHT 62 FT MSL (55' AGL) WITHIN THE RWY 05 CLEARZONE AND 1,430 FEET FROM THRESHOLD (27°50'03.8"N 82°32'07.9"W) (MOBILE CRANE DAILY OPERATIONS MON-FRI 0700L-1700L)
10/30/25
2033Z
1/27/26
2359Z
TaxiwayTWY GOLF CLSD BETWEEN TWY DELTA AND TWY MIKE
Yes
ALL
USAF
MACDILL AFB
TAMPA, FL 33608
CHIEF OF AFLD MANAGEMENT
MACDILL AFB
TAMPA, FL 33608
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
MCF
--
HIRL RWY 5/23 OPR WHEN TWR OPN.
N/A
Yes
No
No
None
Landing Rights Airport
NOT an Airport of Entry
None
None
None
Low Pressure
None

Runway 05/23

11421 ft. x 151 ft.
ASPH
Good
GRVD
HIGH
71 /R/B/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 40°220°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 50' 15"N 27° 51' 41"N
Longitude 82° 31' 58"W 82° 30' 35"W
Elevation 8' 14'
Threshold Crossing Height 56 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

100 ft. x 100 ft.
CONC
Excellent
NONE


--
--
--
--
  Runway H1 Runway
True Heading 94°274°
Traffic Pattern
Markings
Markings Condition
Latitude 27° 50' 42"N N/A
Longitude 82° 30' 47"W N/A
Elevation 10' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-18JASU: (A/M32A-86) (AM32-95) (M32A-60)
A110-19FUEL: AIR CARD RQRD FOR AVN FUEL OR U.S. CASH; CASH FUEL PPR - FUELS DSN 968-2074.
A110-20FLUID: LPOX LOX
A110-21TRAN ALERT: OPR 1100-0300Z++. LAVATORY SVC ONLY PPR. LTD TRAN PRK FOR TACTICAL ACFT; EXP SVC DELAY FOR TACTICAL ACFT. UNABLE TO SVC ACFT WITH ORDINANCE. TRAN ALERT IS CONTRACT MAINT. TRAN ACFT MUST LAND BY 0230Z++ EXC VIP. ALL FTR TYPE/TRAINER ACFT MUST LAND BY 0200Z++. NO MULTIPLE IFR/VFR APCH FOR TRAN ACFT AFTER 0230Z++. TRAN ALERT CAN SUPPORT MINIMAL TRAN ACFT FOR LCL OR OUT AND BACK TRAN FLTS WITH PRIOR APVL.
A110-23RSTD: AVOID OVFT OF ST. PETERSBURG LAND MASS BY AT LEAST 1.5 NM. PPR - BASE OPS DSN 968-2929/2350, C813-828-2350/2929, FOR PPR NR, FOR SVC AND OTHER RSTD. PPR ISSUED UP TO 7 DAYS PRIOR TO ARR. ALL ACFT DEP MACDILL AFB MUST HAVE FLP ON FILE IN AMOPS PRIOR TO TKOF.
A110-27CAUTION: ON INST APCH TO RWY 23 USE CAUTION DUR OVFT OF PETER O. KNIGHT ARPT DUE TO LGT ACFT TFC BLW APCH LEG 4 NM NE.
A110-28CAUTION: COMMERCIAL ACFT CROSS APCH TO MACDILL AFB ENROUTE TO TAMPA INTL ARPT AT AND ABV 2100 FT. ON INST APCH TO RWY 05 USE CAUTION DUR OVFT OF ALBERT WHITTED ARPT DUE TO LGT TFC BLW APCH LEG 6 NM SW. MAINT RWY AND TWY CNTRLINE WHEN EXITING RWY.
A110-29CAUTION: UNCTL VFR TFC IN VCNTY OF KMCF BLW 1200 FT.
A110-31CSTMS/AG/IMG: SEE FLIP AP/1.
A110-35AG: SEE GLOBAL HF SYSTEMS LISTING IN FIH.
A110-36RSTD: ACFT OPR RSTD DUR BIRD WATCH COND MODERATE (TKOF OR LDG PERMS ONLY WHEN DEP AND ARR RTE AVOID IDENT BIRD ACT. NO LCL IFR/VFR TFC PAT ACT) AND SEVERE (TKOF AND LDG PROH WO OG/CC APVL), CTC ATIS, TWR, COMD POST, OR BASE OPS FOR CURRENT BIRD WATCH COND.
A110-38CAUTION: NSTD OVNR MRK MACDILL AFB ON RWY 05/23 ENDS. NSTD MRKS NORTH/SOUTH RAMPS, WING-TIP OBST LINES FOR TRNG.
A110-39CAUTION: BIRDBATH ONLY USED FOR P-3, C-130, E-3A, KC-135 & B-737 ACFT NO FTR OR COPTER UNLESS APVD BY AFM.
A110-42CAUTION: BIRD HAZ; EXP HVY BIRD ACT FM 1 NOV - 28 FEB DURG PHASE II BASH PERIOD; 24 HR BIRD WATCH ALERT IN EFCT.
A110-43CAUTION: ACFT MAKING 180 DEG TURNS ON RWY USE HAMMERHEADS LAST 1000 FT AT EACH END.
A110-44TSNT AIRCREWS MAY CTC 9 OWS FOR WX BRIEF - DSN 965-0939.
A110-45RSTD: CTC BASE OPS DSN 968-2929/2350, C813-8282350/2929, FOR PPR NR, FOR SVC AND OTHER RSTD.
A110-46MISC: WHEN NVD OPS IN EFCT CTC TWR 10 MIN PRIOR TO ARR OR DEP FOR AFLD LGT ADJ - INFO DSN 968-2120/4822.
A110-49AN/FMQ-19 AUTOMATED OBSERVING SYS IN USE; AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HRS.
A110-50MISC: WX OBSN AVBL H24 VIA AUTO SYS DSN 968-2627. DUR WX FLT CLOSURES REMOTE BRIEFING SVC AVBL FR 26 OWS DSN 331-2651, C318-529-2651. WHEN POSSIBLE 2 HR ADV NTC FOR ALL RQR BRIEFINGS.
A110-51RSTD: ALL DV & TSNT ACFT CTC MACDILL CMD POST 311.0 OR DSN 968-4361/4362 (C813-828-4361) 3 HR PRIOR TO ARR & 30 MIN PRIOR TO ARR WITH DV CODES, CUSTOMS INFO & SPACE-A PAX INFO.
A110-52RSTD: ALL AIRCREW DEP CIV ARPT OR GUARD/RESERVE BASE CALL COMD POST 1 HR PRIOR TO TAKEOFF WITH PAX/CARGO/ETA INFO.
A110-54CAUTION: NUMEROUS VOIDS/SINKHOLES ON AFLD; REMAIN ON TWY CNTRLN.
A110-59RSTD: ALL ACFT MUST LAND BY PPR APPROVED TIME OR CALL WITH DEVIATIONS OR PPR IS INVALID; EXC FOR VIP.
A110-60REMARKS - MISC - MACDILL CRASH FIRE RESPONSE (CFR) IS AN ACFT RESCUE AND FIREFIGHTING (ARFF) AFLD CAT 8 WITH 11,000 GAL CAP. STEADY ARFF COND FOR MACDILL AFB IS A REDUCED LEVEL OF SVC (RLS) FOR CAT 1-9 WK DAY 1030Z- 2000Z++ (0630L-1600L) AND CRITICAL LEVEL OF SVC (CLS) FOR CAT 8-9 WK NGT 2000Z-1030Z++ (1600L-0630L), RLS CAT 1-7 WKEND, CLS CAT 8-9 WKEND AND CLS CAT 10 WKLY.
A110-61MISC: CLASS B AIRSPACE SVC AUTO TERMINATES WHEN ACFT IS INSTR TO CTC TWR.
A110-63ALL SERIES B-747 & A-380 MUST ARRIVE WITH A TOW BAR.
A110-65RSTD: CARGO/HVY ACFT LNDG ON BAK-12 CABLES NA.
A110-66CAUTION: USE CTN DURG TAXIING OPS AT NIGHT ON SPOTS A1-A4 DUE TO REMOVED APN LGTG.
A110-67ALL ACFT REQ TO PARK ON ARMY APN MUST CTC ASF MACDILL C813-828-3180/3183 UP TO 7 DAYS PRIOR TO ARR/MNM NOTICE IS 24 HR PRIOR TO ARR.
A110-68RSTD: HELIPAD H1 (100 FT X 100 FT CON) USA RES AVN SUPPORT FAC MACDILL USE ONLY.
A110-69RSTD: DEPLOYED UNIT CMPLX APN (DELTA/DUCC RAMP) CLSD.
A110-70PMSV O/S UFN. PLS CTC 6 OSS/OSW WX AT (813) 828-4405 FOR WX INFO.
A110-73COMMUNICATIONS-PTD: UNSVC. CTC AMOPS C813-828-0002.
A110-74MISC: CLASS D ASP REVERTS TO CLASS G WHEN TWR IS CLSD.
A110-75TXY AND RAMP RESTRICTIONS - ACFT WITH WINGSPAN GREATER THAN 170FT RQR WING WALKERS AT THE INT OF THE BRAVO APRON AND TXY KILO DUE TO LIGHT POLE OBSTN. LIGHT POLE IS LOCATED 129 FT NORTH OF TXY KILO CNTRLN. WIDE BODY ACFT WITH WINGSPANS GREATER THAN 132.7 FT WILL NOT BE ALLOWED TO TXY ON TXY LANES LOCATED ON THE ALPHA APN WITHOUT WING-WALKERS.
MACDILL AFB (ICAO: KMCF, IATA: MCF) is a private airport located in TAMPA, FL.
