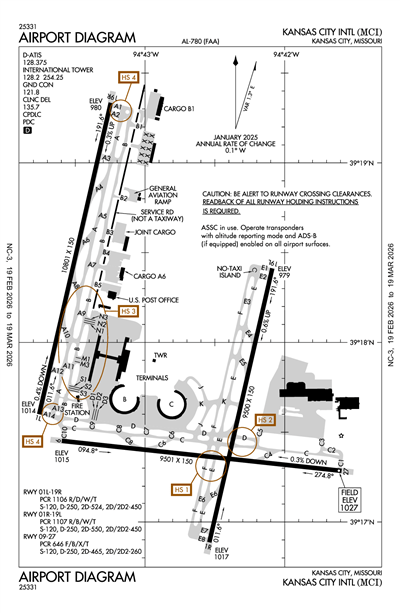

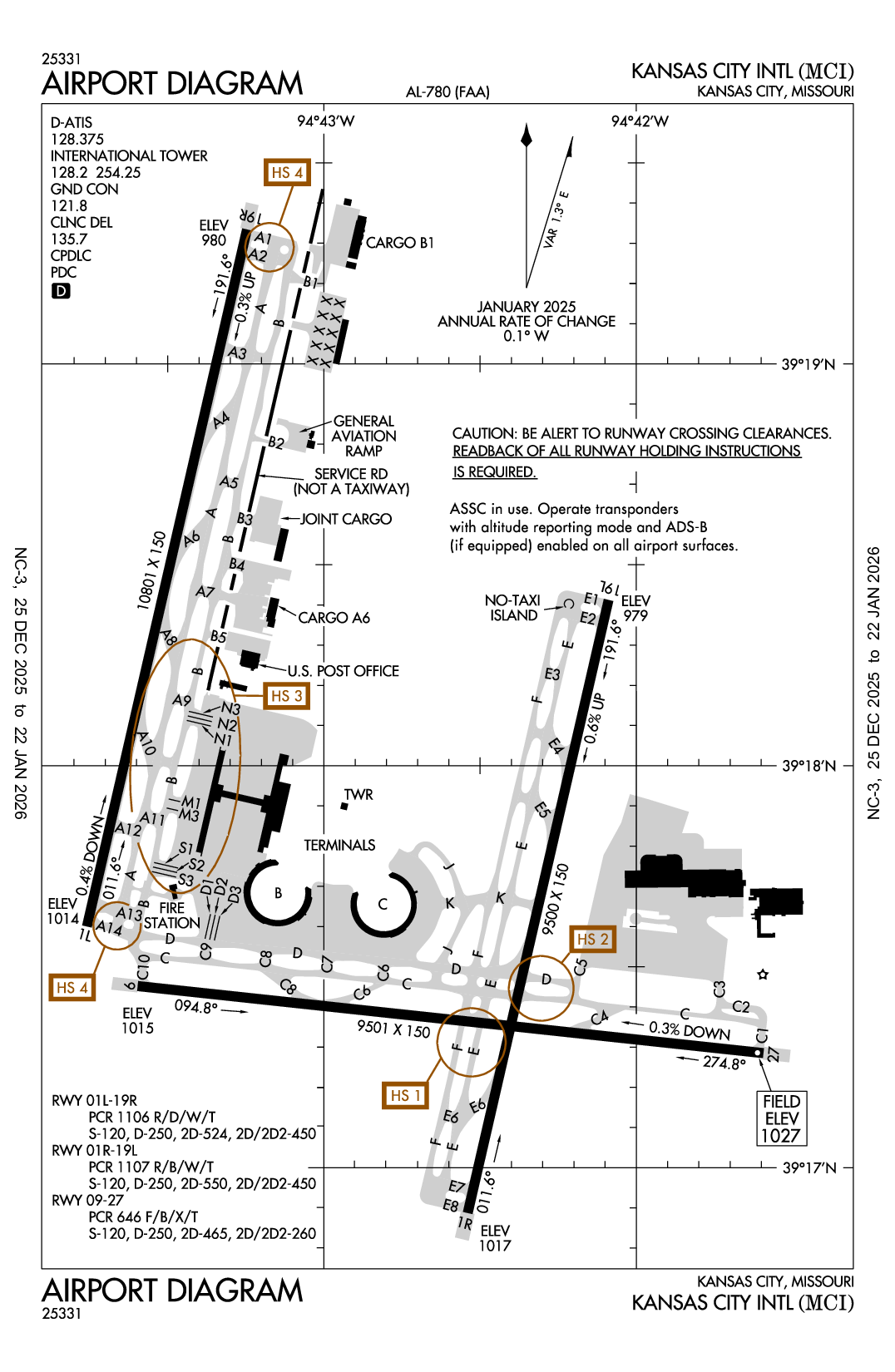

KANSAS CITY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCI
KANSAS CITY INTL
PublicPUB

15 miles NW of KANSAS CITY, MO
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 17' 51"N 94° 42' 50"W
1027' MSL
2027' MSL
02E
Jet A, 100LL
COLUMBIA (COU)
KANSAS CITY
KANSAS CITY (ZKC)
10/7/21-11/4/21
KMCI VFR
5:53 PM CDT
Clear
10sm
56°F
39°F
30.15"Hg
320° 4kts
AO2 SLP210 T01330039
KMCI 212253Z 32004KT 10SM CLR 13/04 A3015 RMK AO2 SLP210 T01330039

KMCI FBOs, Flight Schools and Ground Support

Signature Flight Support
Freq: 128.85
Phone: (816) 243-6440
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 10/21
  100LL Jet A Jet A+ Mogas UL94
SS
FS 6.10 8.15

KMCI Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMCI Hotels

No hotels are listed for this airport.

KMCI Restaurants

No restaurants are listed for this airport.

KMCI Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

D-ATIS
816-329-2725
128.375

Approach

APCH/P
120.95

Departure

DEP/P
010-190
123.95
DEP/P
191-009
124.7

Clearance Delivery

CD/P
135.7

Emergency

EMERG
121.5

Ground

GND/P
121.8
GND/S
121.65

Tower

LCL/P
128.2
LCL/S
125.75

Other

CHIEF DP
124.7
CLASS B
EAST OF RWY 01/19
118.4
CLASS B
S OF A LINE FROM LWC ARPT TO 3GV ARPT
118.9
CLASS B
WEST OF RWY 01/19
124.7
LAKES DP
123.95
RACER DP
BUTLER/SPRINGFIELD TRANSITION
123.95
RACER DP
DOSOA TRANSITION
124.7
ROYAL DP
ARENZ/BODYN TRANSITION
123.95
ROYAL DP
TONCE TRANSITION
124.7
TIFTO DP
124.7
WILDCAT DP
124.7

Terminal Area Forecast

KMCI
Thu, 10/21 12:20 PM CDT
Thu, 10/21 1:00 PM CDT - Fri, 10/22 1:00 PM CDT
VFR
1:00 PM CDT - 6:00 PM CDT
Few 2,500'
> 6sm
310° 10kts
Gusts 20kts
VFR
6:00 PM CDT - 2:00 AM CDT
Scattered 25,000'
> 6sm
340° 5kts
VFR
2:00 AM CDT - 1:00 PM CDT
Sky Clear
> 6sm
VRB° 3kts
KMCI 211720Z 2118/2218 31010G20KT P6SM FEW025
   FM212300 34005KT P6SM SCT250
   FM220700 VRB03KT P6SM SKC
KMCI
Domestic
10/12/210115Z !MCI 10/078 MCI TWY B3 CL LGT U/S 2110120115-2203312359EST
10/12/210114Z !MCI 10/077 MCI TWY B2 CL LGT U/S 2110120114-2203312359EST
10/12/210112Z !MCI 10/076 MCI TWY B1 CL LGT U/S 2110120112-2203312359EST
10/11/212305Z !MCI 10/075 MCI APRON TERMINAL C RAMP AT GATE 61 WIP CONST 2110112305-2111302359
10/8/211543Z !MCI 10/058 MCI TWY B CL LGT U/S 2110081543-2203312300EST
10/8/211319Z !MCI 10/055 MCI TWY A6 AT INT TWY B NONMOVEMENT AREA 2110081319-2203312359
10/8/211319Z !MCI 10/054 MCI TWY B3 AT INT TWY B NONMOVEMENT AREA 2110081319-2203312359
10/8/211243Z !MCI 10/053 MCI TWY B BTN TWY A6 AND TWY B3 CLSD 2110081243-2203312200
9/28/212126Z !MCI 09/108 MCI TWY C3 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2109282126-2111302359
6/2/212133Z !MCI 06/020 MCI TWY L BTN TWY D AND TXL L1 NONMOVEMENT AREA 2106022133-2205311700
5/11/211604Z !MCI 05/037 MCI TWY A10 HLDG PSN SIGN LGT U/S 2105111604-2112312300EST
4/27/211339Z !MCI 04/192 MCI TWY A11 SFC PAINTED DIRECTIONAL SIGN FOR RWY 01L/19R NOT STD 2104271339-2111302300
4/27/211204Z !MCI 04/191 MCI TWY A1 CLSD 2104271204-2111302300EST
4/26/211300Z !MCI 04/184 MCI RWY 01L/19R CLSD 2104261300-2111302300EST
4/26/211300Z !MCI 04/162 MCI NAV ILS RWY 01L U/S 2104261300-2211252200
4/26/211300Z !MCI 04/161 MCI NAV ILS RWY 19R U/S 2104261300-2211252200
4/26/211300Z !MCI 04/160 MCI RWY 01L ALS U/S 2104261300-2111252300
4/26/211300Z !MCI 04/159 MCI RWY 19R ALS U/S 2104261300-2111252300
4/26/211300Z !MCI 04/158 MCI RWY 19R PAPI U/S 2104261300-2111252300
4/26/211300Z !MCI 04/157 MCI RWY 01L PAPI U/S 2104261300-2111252300
4/19/211303Z !MCI 04/150 MCI TWY L BTN TWY A AND TXL L1 CLSD 2104191303-2205312300EST
4/19/211302Z !MCI 04/149 MCI TWY B BTN TWY D AND TWY A6 CLSD 2104191302-2205312300EST
6/18/191438Z !MCI 06/149 MCI TWY L CLSD TO ACFT WINGSPAN MORE THAN 118FT 1906181438-PERM
FDC
10/19/212308Z !FDC 1/5360 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
ILS OR LOC RWY 19R, AMDT 12A...
ILS OR LOC RWY 1L, AMDT 16...
ILS OR LOC RWY 27, AMDT 4...
ILS OR LOC RWY 9, AMDT 14A...
ILS RWY 19R (SA CAT I), AMDT 12A...
ILS RWY 19R (CAT II AND III), AMDT 12A...
ALTERNATE MINIMUMS NA,
MCI VORTAC UNMONITORED. 2110192308-2111192308EST
10/7/211934Z !FDC 1/1248 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
ILS OR LOC RWY 19L, AMDT 2B...
ILS OR LOC RWY 19R, AMDT 12A...
ILS OR LOC RWY 1R, AMDT 4A...
RNAV (GPS) Y RWY 19L, AMDT 2B...
RNAV (GPS) Y RWY 19R, AMDT 2C...
RNAV (GPS) Y RWY 1R, AMDT 2C...
RNAV (GPS) Y RWY 27, AMDT 2C...
CIRCLING MDA1620/HAA 593 ALL CATS.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 1622 FT WEST OF KMCI (2019-ACE-3291 THRU 3360-NRA), TEMPORARY CRANES, UP TO 1261MSL, BEGINNING 974FT SW OF KMCI (2020-ACE-210 THRU 213-NRA).
2110071934-2310081934EST
10/1/211401Z !FDC 1/6753 MCI SID KANSAS CITY INTL, KANSAS CITY, MO.
LAKES THREE DEPARTURE...
SPINNER TRANSITION: TWAIN TO SPI VORTAC MOCA 2300.
ALL OTHER DATA REMAINS AS PUBLISHED. 2110011401-2310011401EST
9/22/211345Z !FDC 1/1860 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
RNAV (RNP) Z RWY 1R, AMDT 1B...
RNP 0.30 DA1349/HAT 332 ALL CATS. VIS RVR 2600 ALL CATS.
TEMPORARY CRANE, 1138 MSL, 4515 FT EAST OF APCH END RWY 1R (2018-ACE-626-NRA).
2109221345-2205041345EST
6/1/211226Z !FDC 1/4902 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
RNAV (GPS) Y RWY 19L, AMDT 2B...
LPV DA 1331/HAT 336 ALL CATS. VIS RVR 2600 ALL CATS.
LNAV MDA 1440/HAT 445 ALL CATS. VIS CATS C/D/E RVR 4500.
VDP 1.26NM TO RW19L.
FOR INOPERATIVE ALS, INCREASE LPV ALL CATS VISIBILITY TO RVR 5000, LNAV/VNAV ALL CATS VISIBILITY TO 1 1/4 SM, AND LNAV CAT C/D/E TO 1 3/8 SM.
TEMPORARY CRANES, UP TO 1140MSL, BEGINNING 1084FT NE OF APCH END RWY 19L AND 1126FT NORTH OF APCH END RWY 19L (2020-ACE-2382 THRU 2388 AND 2788 THRU 2791-NRA), TEMPORARY CRANES, UP TO 1261MSL, BEGINNING 974FT SW OF KMCI (2020-ACE-210 THRU 213-NRA).
2106011226-2201111226EST
6/1/211226Z !FDC 1/4900 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
ILS OR LOC RWY 19L, AMDT 2B...
S-ILS 19L DA 1331/HAT 336 ALL CATS. VIS RVR 2600 ALL CATS.
S-LOC 19L MDA 1420/HAT 425 ALL CATS. VIS CAT C/D RVR 4000.
VDP AT (I-DYH) 2.93 DME; DISTANCE VDP TO THLD 1.20 MILES.
TEMPORARY CRANES, UP TO 1140MSL, BEGINNING 1084FT NE OF APCH END RWY 19L AND 1126FT NORTH OF APCH END RWY 19L (2020-ACE-2382 THRU 2388 AND 2788 THRU 2791-NRA).
2106011226-2201111226EST
4/30/211714Z !FDC 1/8383 MCI ODP KANSAS CITY INTL, KANSAS CITY, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 01R, TEMPORARY CRANES, 926FT FROM DER, 641FT LEFT OF CENTERLINE, 150AGL/1098MSL (2020-ACE-2789-NRA), TEMPORARY CRANE, 1015FT FROM DER, 382FT RIGHT OF CENTERLINE, 150AGL/1087MSL (2020-ACE-2788-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2104301714-2112101714EST
4/30/211714Z !FDC 1/8381 MCI SID KANSAS CITY INTL, KANSAS CITY, MO.
CHIEF SEVEN DEPARTURE...
LAKES THREE DEPARTURE...
RACER SEVEN DEPARTURE...
ROYAL NINE DEPARTURE...
TIFTO SIX DEPARTURE...
WILDCAT FIVE DEPARTURE...
TAKEOFF OBSTACLE NOTES: RWY 01R, TEMPORARY CRANES, 926FT FROM DER, 641FT LEFT OF CENTERLINE, 150AGL/1098MSL (2020-ACE-2789-NRA), TEMPORARY CRANE, 1015FT FROM DER, 382FT RIGHT OF CENTERLINE, 150AGL/1087MSL (2020-ACE-2788-NRA).
ALL OTHER DATA REMAINS AS PUBLISHED. 2104301714-2112101714EST
4/7/211549Z !FDC 1/6223 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
RNAV (GPS) Y RWY 1R, AMDT 2B...
LNAV MDA 1380/HAT 363 ALL CATS. VIS CATS C/D/E RVR 3500.
FOR INOPERATIVE ALSF, INCREASE LPV CAT E VISIBILITY TO RVR 4000, LNAV/VNAV CAT E VISIBILITY TO RVR 5000 AND LNAV ALL CATS VISIBILITY TO RVR 5500..
2104071549-2304071549EST
4/5/211438Z !FDC 1/4845 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
RNAV (RNP) Z RWY 9, AMDT 1A...
RNP 0.30 DA 1458/HAT 443 ALL CATS. VIS RVR 4500 ALL CATS.
FOR INOPERATIVE MALSR, INCREASE RNP 0.30 VISIBILITY TO 1 3/8 SM.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 2062 FT NE OF APCH END RWY 09 (2019-ACE-3291 THRU 3360-NRA), TEMPORARY CRANES, UP TO 1261MSL, BEGINNING 974FT SW OF KMCI (2020-ACE-210 THRU 213-NRA).
2104051438-2401151438EST
4/5/211438Z !FDC 1/4838 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
RNAV (GPS) Y RWY 9, AMDT 2A...
LPV DA 1368/HAT 353 ALL CATS.
LNAV/VNAV DA 1501/HAT 486 ALL CATS.
LNAV MDA 1560/HAT 545 ALL CATS. VIS CATS C/D/E RVR 6000.
CIRCLING MDA 1620/HAA 594 ALL CATS.
VDP 1.53 NM TO RW09.
FOR INOPERATIVE MALSR, INCREASE LNAV CAT A/B VISIBILITY TO RVR 5500 AND CAT C/D/E VISIBILITY TO 1 5/8 SM.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 2062 FT NE OF APCH END RWY 09 (2019-ACE-3291 THRU 3360-NRA), TEMPORARY CRANES, UP TO 1261MSL, BEGINNING 974FT SW OF KMCI (2020-ACE-210 THRU 213-NRA).
2104051438-2401151438EST
4/5/211438Z !FDC 1/4836 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
RNAV (GPS) Y RWY 1L, AMDT 2B...
LPV DA 1352/HAT 338 ALL CATS. VIS RVR 2600 ALL CATS.
LNAV/VNAV DA 1465/HAT 451 ALL CATS. VIS RVR 4500 ALL CATS.
LNAV MDA 1560/HAT 546 ALL CATS. VIS CATS C/D RVR 6000.
VDP 1.46 NM TO RW01L.
FOR INOPERATIVE ALS, INCREASE LNAV CAT C/D VISIBILITY TO 1 5/8 SM.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 1989 FT NE OF APCH END RWY 01L (2019-ACE-3291 THRU 3360-NRA), TEMPORARY CRANES, UP TO 1261MSL, BEGINNING 974FT SW OF KMCI (2020-ACE-210 THRU 213-NRA).
2104051438-2401151438EST
4/5/211438Z !FDC 1/4834 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
ILS OR LOC RWY 27, AMDT 4...
CIRCLING MDA1620/HAA 594 ALL CATS.
CARYE FIX MINIMUMS:
CIRCLING MDA1620/HAA 594 ALL CATS.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 1622 FT WEST OF KMCI (2019-ACE-3291 THRU 3360-NRA), TEMPORARY CRANES, UP TO 1261MSL, BEGINNING 974FT SW OF KMCI (2020-ACE-210 THRU 213-NRA).
2104051438-2401151438EST
10/29/201346Z !FDC 0/1011 MCI IAP KANSAS CITY INTL, KANSAS CITY, MO.
ILS OR LOC RWY 1L, AMDT 16...
S-ILS 1L DA 1352/HAT 338 ALL CATS. VIS RVR 2600 ALL CATS.
S-LOC 1L MDA 1520/HAT 506 ALL CATS. VIS CATS C/D/E RVR 5500.
CIRCLING MDA 1620/HAA 593 ALL CATS.
VDP AT I-DOT 3.30 DME; DISTANCE VDP TO THLD 1.34 NM.
FOR INOPERATIVE ALS, INCREASE S-LOC 1L CAT C/D/E VISIBILITY TO 1 3/8 SM.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 1989 FT NE OF APCH END RWY 01L (2019-ACE-3291 THRU 3360-NRA).
2010291346-2401151346EST
10/8/191801Z !FDC 9/2068 MCI IAP KANSAS CITY INTL, Kansas City, MO.
ILS OR LOC RWY 9, AMDT 14A...
S-ILS 9 DA 1315/HAT 300 ALL CATS.
CIRCLING MDA 1620/HAA 594 ALL CATS.
TEMPORARY CONSTRUCTION EQUIPMENT, UP TO 1304 MSL, BEGINNING 2062 FT NE OF APCH END RWY 09 (2019-ACE-3291 THRU 3360-NRA).
1910081801-2401151801EST
Yes
ALL
CITY OF KANSAS CITY
601 BRASILIA; PO BOX 20047
KANSAS CITY, MO 64141
Phone: 816-243-3100
MR. BOB JOHNSON
P.O. BOX 20047
KANSAS CITY, MO 64195
Phone: 816-243-5248
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
MCI
--
--
Clear-Green
Yes - Lighted
No
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
2
0
0
0
None
None
None
None
Cargo Handling

Runway 01L/19R

10801 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH
93 /F/D/W/T
75,000lbs
204,000lbs
400,000lbs
450,000lbs
  Runway 01L Runway 19R
True Heading 13°193°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 17' 36"N 39° 19' 20"N
Longitude 94° 43' 46"W 94° 43' 15"W
Elevation 1,014' 980'
Threshold Crossing Height 78 ft. AGL 80 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4R
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 01R/19L

9500 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
71 /R/B/W/T
75,000lbs
204,000lbs
400,000lbs
450,000lbs
  Runway 01R Runway 19L
True Heading 13°193°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 16' 53"N 39° 18' 25"N
Longitude 94° 42' 32"W 94° 42' 05"W
Elevation 1,017' 978'
Threshold Crossing Height 74 ft. AGL --
Visual Glide Path Angle --
Visual Slope Indicator P4R --
Approach Lights ALSF2 MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 09/27

9501 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
65 /F/D/W/T
75,000lbs
125,000lbs
180,000lbs
260,000lbs
  Runway 09 Runway 27
True Heading 96°276°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 17' 27"N 39° 17' 17"N
Longitude 94° 43' 36"W 94° 41' 36"W
Elevation 1,015' 1,027'
Threshold Crossing Height -- 72 ft. AGL
Visual Glide Path Angle --
Visual Slope Indicator -- P4L
Approach Lights MALSR MALSR
Centerline Lights No No
Runway End Identifier Lights No
A110-1WATERFOWL ON AND INVOF ARPT.
A110-11PPR TO PARK AT AIRLINE GATES CTC RESPECTIVE AIRLINE.
A110-14WHEN USING HIGH-SPEED EXITS C5 & C6 CONTINUE UNTIL FIRST PARALLEL TWY, THEN USE EXTREME CARE WHEN TURNING IN EXCESS OF 90 DEGREES.
A110-15NO ACFT PARKING ON POSTAL APRON.
A110-18PUSHBACK CLNC RQRD AT GATES 43 THRU 57 IN TRML B AND GATES 68 THRU 77 IN TRML C, PUSHBACK FROM THESE GATES ENTERS TWY D.
A110-19DESIGN GROUP V AND VI ACFT RQR AN ARPT ESCORT ON TWY DELTA BTN TWYS JULIET AND LIMA.
A110-20ASSC IN USE. OPERATE TRANSPONDERS WITH ALTITUDE REPORTING MODE AND ADS-B (IF EQUIPPED) ENABLED ON ALL AIRPORT SURFACES.
A110-21TWY B1 BTN TWY B AND FEDEX APN COCKPIT OVER CNTRLN STEERING RQRD
A110-22TWY L BTN TWY L1 AND TWY D WINGSPAN RESTRICTION OF 118 FT. TWY C2 BTN TWY C3 AND TWY C1 WINGSPAN RESTRICTION OF 118 FT.
A110-3WINDSHEAR ALERT SYSTEM ON ARPT.
A110-4NOISE ABATEMENT PROCEDURES IN EFFECT 2200-0600 WITH LANDING ON RYS 01L & 19L; TAKEOFFS ON RYS 01R & 19R.
A110-6MIL ACFT MAY BE CHARGED RAMP/PARKING FEES.
A110-9FLIGHT NOTIFICATION SVC (ADCUS) AVBL AT GATE 90.

View hangar and property listings at KMCI, provided by our partner Hangar Network.

No Hangar Network listings are currently available for this airport.

KANSAS CITY INTL (ICAO: KMCI, IATA: MCI) is a public airport located in KANSAS CITY, MO.
