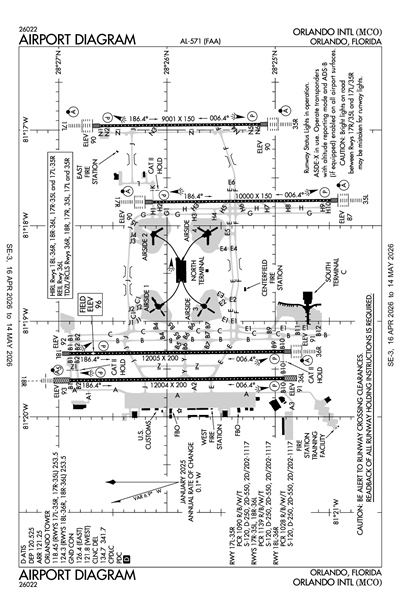

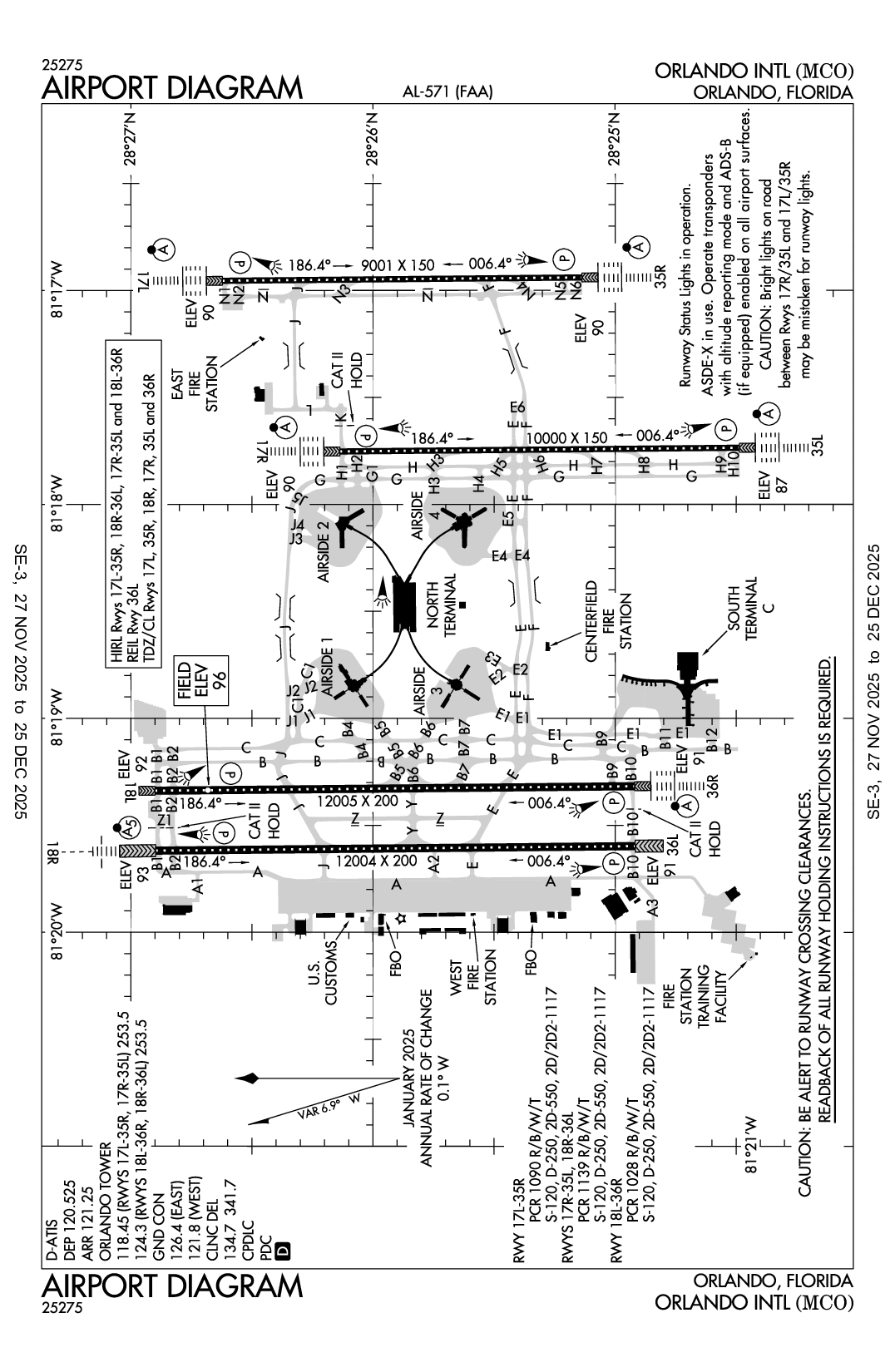

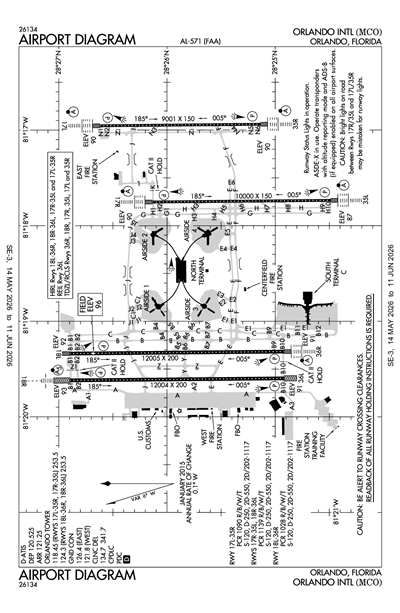

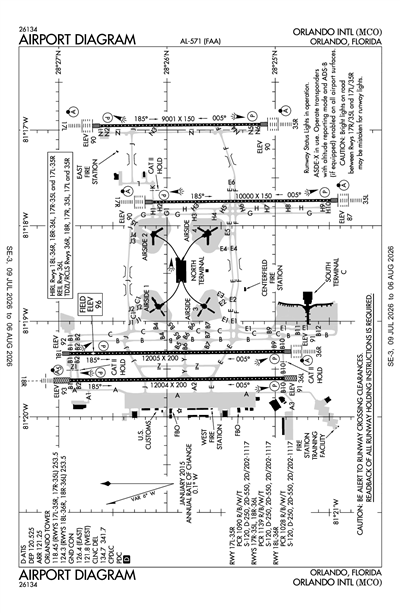

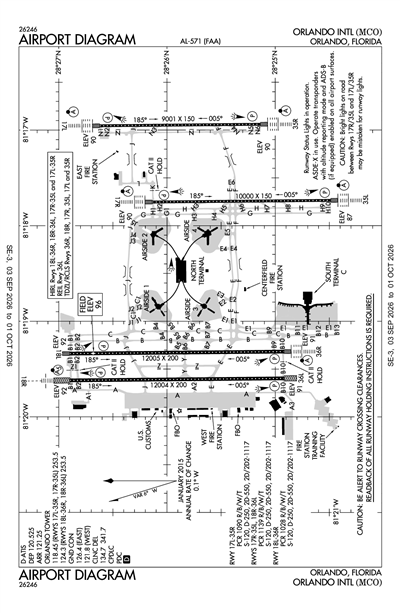

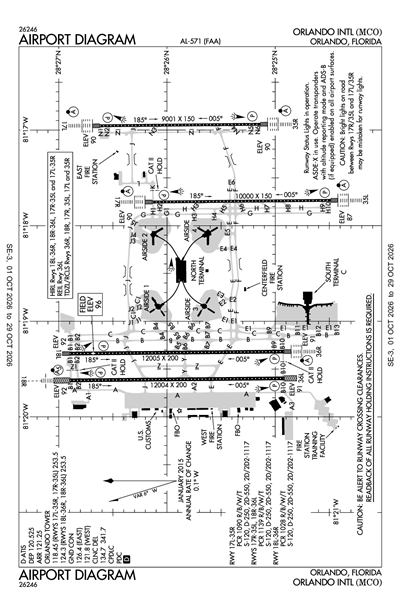

ORLANDO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMCO
ICAO KMCOIATA MCOLocal MCO
ORLANDO INTL
PublicPUB

6 miles SE of ORLANDO, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
28° 25' 46"N 81° 18' 32"W
Elevation
96' MSL
Pattern Alt
1096' MSL
Mag Variation
7°W
Declination
6°W
Fuel
JET A, 100LL
FSS
SAINT PETERSBURG (PIE)
Sectional
JACKSONVILLE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
9/3/26-10/1/26
KMCO VFR
4:53 PM EDT
Light Rain
Broken 25,000'
Broken 6,000'
Scattered 4,400'
Few 3,500'
10sm
82°F
73°F
29.99"Hg
350° 5kts
RAB38 TSB22E44
METAR KMCO 122053Z 35005KT 10SM -RA FEW035 SCT044 BKN060 BKN250 28/23 A2999 RMK RAB38 TSB22E44
+ Add Your Business

KMCO FBOs

Promote Listing
Signature Aviation
ASRI: 130.375, UNICOM: 122.95
Phone: (407) 825-6999
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 9/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.90 9.64
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 130.9
Phone: (407) 851-8304
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/26
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.70 9.58
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 120.525
DEP
Digital ATIS 121.25
ARR
ASOS (407) 270-2241

Common

UNICOM 122.95

Clearance

Clearance Delivery 134.7

Ground

ORLANDO GROUND 121.8
WEST
ORLANDO GROUND 126.4
EAST

Tower

ORLANDO TOWER 118.45
RWY 17L/35R, 17R/35L
ORLANDO TOWER 124.3
RWY 18L/36R, 18R/36L

Arrival

ALYNA STAR 124.8
BITHO STAR 128.375
GRNCH STAR 134.05
GTOUT STAR 128.375
JAFAR STAR 134.05
JOKRS STAR 134.05
LEESE STAR 128.675
LEESE STAR 134.05
MINEE STAR 134.05
MUNGI STAR 128.375
PRICY STAR 134.05
SNFLD STAR 128.375

Approach

ORLANDO APPROACH 119.4
181-310 5500 FT & BLW
ORLANDO APPROACH 119.4
061-180 4500 FT & BLW
ORLANDO APPROACH 120.15
ORLANDO APPROACH 120.15
181-359 ABV 5500 FT
ORLANDO APPROACH 124.8
ORLANDO APPROACH 124.8
Initial Contact - 000-180 ABV 5000 FT
ORLANDO APPROACH 135.3
311-060 5500 FT & BLW
ORLANDO APPROACH 123.85
Secondary
ORLANDO APPROACH 134.05
Secondary

Departure

CITRUS DP 119.4
DDANY DP 124.8
FATHE DP 124.8
FSHUN DP 120.15
JEEMY DP 120.15
DEPARTING SOUTH
JEEMY DP 124.8
DEPARTING NORTH
MZULO DP 124.8
ORLANDO DEPARTURE 119.4
181-310 5500 FT & BLW
ORLANDO DEPARTURE 119.4
061-180 4500 FT & BLW
ORLANDO DEPARTURE 120.15
ORLANDO DEPARTURE 120.15
181-359 ABV 5500 FT
ORLANDO DEPARTURE 124.8
Initial Contact - 000-180 ABV 5000 FT
ORLANDO DEPARTURE 124.8
ORLANDO DEPARTURE 135.3
311-060 5500 FT & BLW
ORLANDO DP 120.15
WEST
ORLANDO DP 124.8
EAST
OSPRY DP 120.15
RDSOX DP 120.15

Operations

Operations 41.5
Operations 148.8

Emergency

Emergency 121.5

Other

CLASS B 119.4
061-180 4500 FT & BLW
CLASS B 119.4
181-310 5500 FT & BLW
CLASS B 120.15
181-359 ABV 5500 FT
CLASS B 124.8
000-180 ABV 5500 FT
CLASS B 135.3
311-060 5500 FT & BLW

Terminal Area Forecast

KMCO
Sat, 9/12 3:28 PM EDT
Sat, 9/12 3:00 PM EDT - Sun, 9/13 8:00 PM EDT
VFR
3:00 PM EDT - 9:00 PM EDT
Thunderstorm in vicinity
Broken 20,000'
Scattered 6,000'
Scattered 3,500'
6sm
100° 7kts
MVFR
Temporary 4:00 PM EDT - 8:00 PM EDT
Thunderstorm and Rain
Broken 3,000'
3sm
VRB° 15kts
Gusts 28kts
VFR
9:00 PM EDT - 10:00 AM EDT
Broken 20,000'
Broken 12,000'
Scattered 6,000'
6sm
VRB° 4kts
VFR
10:00 AM EDT - 4:00 PM EDT
Broken 20,000'
Broken 15,000'
Few 2,500'
6sm
330° 5kts
VFR
4:00 PM EDT - 8:00 PM EDT
Thunderstorm in vicinity
Broken 20,000'
Scattered 6,000'
Scattered 3,500'
6sm
110° 7kts
TAF KMCO 121928Z 1219/1324 10007KT P6SM VCTS SCT035CB SCT060 BKN200
   TEMPO 1220/1224 VRB15G28KT 3SM TSRA BKN030CB
   FM130100 VRB04KT P6SM SCT060 BKN120 BKN200
   FM131400 33005KT P6SM FEW025 BKN150 BKN200
   FM132000 11007KT P6SM VCTS SCT035CB SCT060 BKN200
KMCO
EffectiveExpiresCategoryNOTAM
Domestic
9/16/26
0100Z
9/18/26
1000Z
!MCO 09/073 MCO OBST CRANE (ASN 2026-ASO-2043-OE) 282704N0811959W (1.8NM NW MCO) 144FT (50FT AGL) FLAGGED AND LGTD DLY 0100-1000 2609160100-2609181000
9/15/26
0100Z
9/16/26
1000Z
!MCO 09/072 MCO OBST CRANE (ASN 2025-ASO-20957-OE) 282704N0811910W (1.4NM NNW MCO) 179FT (90FT AGL) FLAGGED AND LGTD DLY 0100-1000 2609150100-2609161000
9/14/26
0430Z
10/2/26
2200Z
!MCO 09/067 MCO TWY B10 BTN APCH END RWY 36R AND TWY A CLSD LGTD AND BARRICADED 2609140430-2610022200
9/14/26
0430Z
9/14/26
0900Z
Runway!MCO 09/066 MCO RWY 18L/36R CLSD 2609140430-2609140900
9/13/26
0430Z
9/13/26
1000Z
!MCO 09/058 MCO COM REMOTE TRANS/REC U/S 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
!MCO 09/057 MCO NAV ILS RWY 35L CAT II/III NA 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
!MCO 09/056 MCO NAV ILS RWY 17R CAT II/III NA 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
!MCO 09/055 MCO NAV ILS RWY 36R CAT II/III NA 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
Runway!MCO 09/054 MCO RWY 17R RVR U/S 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
Runway!MCO 09/053 MCO RWY 36R RVR U/S 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
Runway!MCO 09/052 MCO RWY 35L RVR U/S 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
Runway!MCO 09/051 MCO RWY 18L RVR U/S 2609130430-2609131000
9/13/26
0430Z
9/13/26
1000Z
!MCO 09/050 MCO SVC TAR/SSR U/S 2609130430-2609131000
9/12/26
2041Z
!MCO 09/080 MCO NAV ILS RWY 36R DME U/S 2609122041-2610022000EST
9/12/26
2030Z
9/12/26
2130Z
!MCO 09/079 MCO SVC TFC MANAGEMENT PROGRAM ALERT SEE ATCSCC MSG 2609122030-2609122130
9/12/26
0300Z
9/12/26
1100Z
!MCO 09/065 MCO TWY B10 BTN APCH END RWY 36R AND TWY A CLSD LGTD AND BARRICADED 2609120300-2609121100
9/11/26
1128Z
11/2/26
1200Z
Runway!MCO 09/071 MCO RWY 17L/35R CL MARKINGS OBSC 2609111128-2611021200
9/10/26
1725Z
10/30/26
2359Z
!MCO 09/070 MCO TWY C CL MARKINGS BTN TWY B9 AND TWY B10 NOT STD 2609101725-2610302359
9/10/26
1204Z
12/31/26
2359Z
!MCO 09/064 MCO OBST SILO (ASN 2024-ASO-5804-NRA) 282410N0811848W (1.6NM S MCO) 147FT (65FT AGL) LGTD 2609101204-2612312359
9/4/26
1057Z
Runway!MCO 09/027 MCO RWY 17L ALSF-2 NOW SSALR 2609041057-2609182000EST
9/2/26
1657Z
9/18/26
2100Z
!MCO 09/011 MCO TWY B BTN TWY B12 AND TWY B13 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2609021657-2609182100
9/2/26
1657Z
9/18/26
2100Z
!MCO 09/010 MCO TWY B13 BTN TWY B AND TXL E1 CLSD TO ACFT WINGSPAN MORE THAN 118FT 2609021657-2609182100
9/2/26
0428Z
9/17/26
0328Z
!MCO 09/005 MCO OBST TOWER LGT (ASR 1050844) 282653.20N0812155.20W (3.2NM WNW MCO) 352.7FT (255.9FT AGL) U/S 2609020428-2609170328
8/31/26
1140Z
11/29/26
1240Z
!MCO 08/273 MCO OBST TOWER LGT (ASR 1030509) 282429.10N0811404.90W (4.1NM ESE MCO) 365.8FT (294.0FT AGL) U/S 2608311140-2611291240
8/31/26
1130Z
10/30/26
2100Z
Runway!MCO 08/174 MCO RWY 18R/36L CLSD 2608311130-2610302100
8/31/26
1130Z
10/30/26
2000Z
Runway!MCO 08/171 MCO RWY 36L RWY END ID LGT U/S 2608311130-2610302000
8/31/26
1130Z
10/30/26
2000Z
Runway!MCO 08/170 MCO RWY 36L PAPI U/S 2608311130-2610302000
8/31/26
1130Z
10/30/26
2000Z
Runway!MCO 08/169 MCO RWY 18R PAPI U/S 2608311130-2610302000
8/31/26
1130Z
10/30/26
2000Z
Runway!MCO 08/168 MCO RWY 18R ALS U/S 2608311130-2610302000
8/31/26
1130Z
10/30/26
2000Z
!MCO 08/167 MCO NAV ILS RWY 18R U/S 2608311130-2610302000
8/27/26
1705Z
9/18/26
2359Z
!MCO 08/234 MCO OBST WATERTOWER LGT (ASN 1994-ASO-2408-OE) 282849N0810946W (8.4NM ENE MCO) 543FT (462FT AGL) U/S 2608271705-2609182359
8/14/26
1000Z
12/31/26
2359Z
!MCO 08/109 MCO TWY F SFC PAINTED HLDG PSN SIGNS FOR RWY 17R/35L WEST SIDE NOT STD 2608141000-2612312359
8/6/26
0400Z
10/30/26
1100Z
!MCO 07/216 MCO OBST CRANE (ASN 2025-ASO-13170-NRA) 282552N0811820W (0.2NM ENE MCO) 265FT (173FT AGL) FLAGGED AND LGTD DLY 0400-1100 2608060400-2610301100
7/24/26
1030Z
10/30/26
2230Z
!MCO 07/154 MCO OBST CRANE (ASN 2025-ASO-4448-NRA) 282625N0811954W (1.4NM WNW MCO) 232FT (140FT AGL) FLAGGED AND LGTD DLY 1030-2230 2607241030-2610302230
7/24/26
1030Z
10/30/26
2230Z
!MCO 07/153 MCO OBST CRANE (ASN 2025-ASO-4447-NRA) 282625N0812001W (1.4NM WNW MCO) 232FT (140FT AGL) FLAGGED AND LGTD DLY 1030-2230 2607241030-2610302230
7/24/26
1030Z
10/30/26
2230Z
!MCO 07/152 MCO OBST CRANE (ASN 2025-ASO-4441-NRA) 282621N0811951W (1.3NM WNW MCO) 252FT (160FT AGL) FLAGGED AND LGTD DLY 1030-2230 2607241030-2610302230
7/24/26
1030Z
10/30/26
2230Z
!MCO 07/151 MCO OBST CRANE (ASN 2025-ASO-4436-NRA) 282621N0811960W (1.4NM WNW MCO) 252FT (160FT AGL) FLAGGED AND LGTD DLY 1030-2230 2607241030-2610302230
7/17/26
1414Z
10/31/26
2359Z
!MCO 07/116 MCO TWY E2 CL MARKINGS BTN TWY E AND TWY F NOT STD 2607171414-2610312359
7/6/26
1356Z
!MCO 07/026 MCO NAV ILS RWY 36L LOC/GP/DME U/S 2607061356-2611162000EST
6/26/26
1505Z
12/31/26
2359Z
!MCO 06/184 MCO TWY A BTN WEST RAMP SOUTH END AND TWY B10 NONMOVEMENT AREA 2606261505-2612312359
6/15/26
1626Z
9/30/26
2359Z
Runway!MCO 06/108 MCO RWY 17L LEAD OFF CL MARKINGS RIGHT SIDE AT TWY F OBSC 2606151626-2609302359
6/15/26
1623Z
9/30/26
2359Z
Runway!MCO 06/107 MCO RWY 18R LEAD OFF CL MARKINGS AT TWY E OBSC 2606151623-2609302359
6/15/26
1622Z
9/30/26
2359Z
Runway!MCO 06/106 MCO RWY 36L LEAD OFF CL MARKINGS AT TWY J OBSC 2606151622-2609302359
6/15/26
1622Z
9/30/26
2359Z
Runway!MCO 06/105 MCO RWY 36L LEAD OFF CL MARKINGS AT TWY E OBSC 2606151622-2609302359
6/15/26
1621Z
9/30/26
2359Z
Runway!MCO 06/104 MCO RWY 35R LEAD OFF CL MARKINGS LEFT SIDE AT TWY J OBSC 2606151621-2609302359
6/15/26
1619Z
9/30/26
2359Z
Runway!MCO 06/103 MCO RWY 35R LEAD OFF CL MARKINGS LEFT SIDE AT TWY N2 OBSC 2606151619-2609302359
6/15/26
1618Z
9/30/26
2359Z
Runway!MCO 06/102 MCO RWY 35R LEAD OFF CL MARKINGS LEFT SIDE AT TWY N3 OBSC 2606151618-2609302359
6/15/26
1615Z
9/30/26
2359Z
Runway!MCO 06/101 MCO RWY 17L LEAD OFF CL MARKINGS RIGHT SIDE AT TWY N5 OBSC 2606151615-2609302359
6/15/26
1613Z
9/30/26
2359Z
Runway!MCO 06/100 MCO RWY 18R LEAD OFF CL MARKINGS AT TWY J OBSC 2606151613-2609302359
6/15/26
1612Z
9/30/26
2359Z
Runway!MCO 06/099 MCO RWY 17L LEAD OFF CL MARKINGS RIGHT SIDE AT TWY N4 OBSC 2606151612-2609302359
4/28/26
1200Z
12/18/26
2200Z
!MCO 04/233 MCO APRON TXL E1 BTN TWY B9 AND TWY B11 CLSD LGTD AND BARRICADED 2604281200-2612182200
4/14/26
1723Z
12/26/26
2359Z
!MCO 04/132 MCO TWY F BTN TWY E2 AND TWY E4 CLSD TO ACFT WINGSPAN
MORE THAN 171FT WITH TAX SPEED MORE THAN 9 KNOTS 2604141723-2612262359
11/24/25
1533Z
12/31/26
2359Z
!MCO 11/188 MCO TWY E BTN TWY E2 AND TWY E4 CLSD TO ACFT WINGSPAN
MORE THAN 171FT WITH TAXI MORE THAN 9KT 2511241533-2612312359
FDC
9/12/26
2044Z
!FDC 6/2559 MCO IAP ORLANDO INTL, ORLANDO, FL.
ILS OR LOC RWY 36R, AMDT 11A...
S-LOC RWY 36R MINIMUMS NA. UVEKE FIX MINIMUMS NA. VDP NA,
OJP DME OUT OF SERVICE. 2609122044-2610122044EST
4/9/26
1100Z
4/15/27
0900Z
!FDC 6/0138 MCO STAR ORLANDO INTL ARPT, ORLANDO, FL. GTOUT ONE RNAV
ARRIVAL..CROSS NICCK AT 12000 AND 250KT. 2604091100-2704150900
4/9/26
1100Z
4/15/27
0900Z
!FDC 6/0135 MCO STAR ORLANDO INTL ARPT, ORLANDO, FL. SNFLD THREE
RNAV ARRIVAL..CROSS SNFLD AT OR ABOVE 12000. 2604091100-2704150900
Yes
ALL
GREATER ORLANDO AVIATION AUTHORITY
1 JEFF FUQUA BLVD
ORLANDO, FL 32827
Phone: 407-825-2001
LANCE LYTTLE
1 JEFF FUQUA BLVD
ORLANDO, FL 32827
Phone: 407-825-2020
SAINT PETERSBURG FSS (PIE)
Toll Free: 1-800-WX-BRIEF
MCO
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
Air Freight
Cargo Handling

Runway 17L/35R

9001 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,117,000lbs
  Runway 17L Runway 35R
True Heading 179°359°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 37"N 28° 25' 08"N
Longitude 81° 16' 57"W 81° 16' 56"W
Elevation 90' 90'
Threshold Crossing Height 72 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 17R/35L

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,117,000lbs
  Runway 17R Runway 35L
True Heading 179°359°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 08"N 28° 24' 29"N
Longitude 81° 17' 45"W 81° 17' 44"W
Elevation 90' 87'
Threshold Crossing Height 71 ft. AGL 72 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18L/36R

12005 ft. x 200 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,117,000lbs
  Runway 18L Runway 36R
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 54"N 28° 24' 55"N
Longitude 81° 19' 20"W 81° 19' 19"W
Elevation 92' 91'
Threshold Crossing Height 71 ft. AGL 70 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 18R/36L

12004 ft. x 200 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
250,000lbs
550,000lbs
1,117,000lbs
  Runway 18R Runway 36L
True Heading 179°359°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 28° 26' 54"N 28° 24' 55"N
Longitude 81° 19' 37"W 81° 19' 36"W
Elevation 92' 91'
Threshold Crossing Height 71 ft. AGL 69 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes
A110-1BIRDS ON & INVOF ARPT.
A110-13USE CAUTION IN VCNTY OF TWY "A" ALONG WEST RAMP.
A110-14UNLESS ADV BY ATIS, DEP FLTS ON INITIAL CTC WITH GND CTL: ACFT ON WEST RAMP, AIRSIDE 1 & 3 (GATES 1-59) USE GND CTL 121.8. ACFT AT AIRSIDE 2 & 4 (GATES 60 AND HIGHER), USE GND CTL 126.4.
A110-15TWY J3 AND TWY J4 RSTD TO WINGSPAN OF LESS THAN 118 FT.
A110-16RUNWAY STATUS LIGHTS ARE IN OPERATION.
A110-17ACFT WITH WINGSPAN GREATER THAN 214 FT MUST ADHERE TO SPECIFIC RY AND TAXI ROUTES. CONTACT AIRFIELD OPS AT 407-825-2036 FOR DETAILS.
A110-18TWY A, SOUTH OF TWY A3 RSTD TO WINGSPAN OF LESS THAN 118 FT. PPR REQUIRED FOR WINGSPAN 118 FT OR GREATER.
A110-1924 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 407-825-2036.
A110-2024 HR PPR FOR ACFT EQUIPPED WITH WEATHER MODIFICATION OR GEOENGINEERING EQPT 407-825-2036.
A110-7ALL AIRCRAFT DETERMINED TO BE FAA DESIGN GROUP IV AND ABOVE MUST PERFORM JUDGEMENTAL OVERSTEERING INSTEAD OF COCKPIT CNTRLN STEERING WHEN TAXIING.
A110-8WHEN ORL ILS RY 7 AND MCO ILS RYS 17 & 18R SIMULTANEOUS OPERATIONS ARE CONDUCTED, ATC RADAR REQUIRED.
A110-9BRIGHT LGTS ON ROAD BTN RY 17R/35L AND RY 17L/35R MAY BE MISTAKEN FOR RY LGTS.
A33-18L/36R_SURFCENTER 75 FOOT KEEL SECTION OF RY CONCRETE FULL LENGTH; CENTER 100 FOOT KEEL SECTION OF RY CONCRETE FIRST 1000 FT, BOTH ENDS. REST OF RY WIDTH IS ASPHALT.
A33-18R/36L_SURFCENTER 87 FOOT KEEL SECTION OF RY CONCRETE FULL LENGTH; REST OF RY WIDTH IS ASPHALT. LAST 3000 FT OF RY 18R IS CONCRETE FULL WIDTH.
A39-17L/35RPCR VALUE: 1090/R/B/W/T
A39-17R/35LPCR VALUE: 1139/R/B/W/T
A39-18L/36RPCR VALUE: 1028/R/B/W/T
A39-18R/36LPCR VALUE: 1139/R/B/W/T
ORLANDO INTL (ICAO: KMCO, IATA: MCO) is a public airport located in ORLANDO, FL, US.
