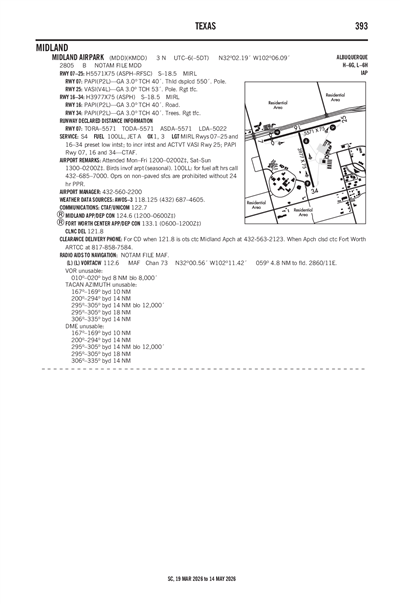

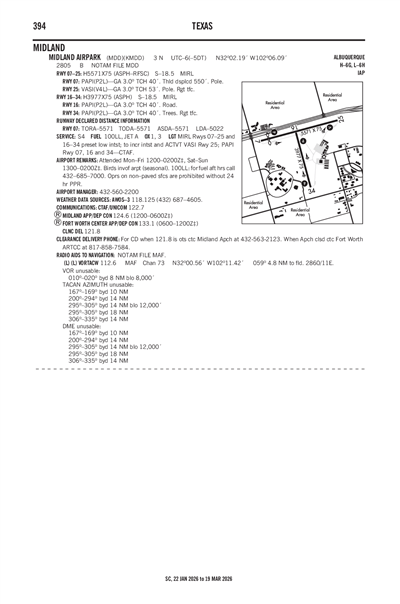

MIDLAND AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDD
ICAO KMDDIATA MDDLocal MDD
MIDLAND AIRPARK
PublicPUB

3 miles N of MIDLAND, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 02' 12"N 102° 06' 05"W
Elevation
2805' MSL
Pattern Alt
3805' MSL
Mag Variation
6°E
Declination
7°E
Fuel
JET A, 100LL
FSS
SAN ANGELO (SJT)
Sectional
ALBUQUERQUE
ARTCC
FORT WORTH (ZFW)
Data Effective
10/1/26-10/29/26
KMDD MVFR
9:15 AM CDT
Overcast 1,100'
10sm
64°F
61°F
30.13"Hg
160° 9kts
AO2 T01790159
METAR KMDD 231415Z AUTO 16009KT 10SM OVC011 18/16 A3013 RMK AO2 T01790159
+ Add Your Business

KMDD FBOs

Promote Listing
DV Aviation (fka, Basin Aviation)
UNICOM: 122.7
Phone: (432) 685-7000
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 10/16
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.39 8.35
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.125
(432) 687-4605

Common

CTAF 122.7
MIRL RWYS 07/25 & 16/34 PRESET LOW INTST; TO INCR INTST & ACTVT VASI RWY 25; PAPI RWYS 07, 16 & 34 - CTAF.
UNICOM 122.7

Clearance

Clearance Delivery 121.8

Approach

MIDLAND APPROACH 124.6

Departure

MIDLAND DEPARTURE 124.6

Center

MIDLAND CENTER 133.1
LOW, APCH/DEP SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 133.1/298.95 (MIDLAND RCAG) WHEN MIDLAND APCH CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMAF (8nm)
Fri, 10/23 9:02 AM CDT
Fri, 10/23 9:00 AM CDT - Sat, 10/24 7:00 AM CDT
IFR
9:00 AM CDT - 12:00 PM CDT
Overcast 800'
6sm
160° 17kts
VFR
12:00 PM CDT - 7:00 PM CDT
Few 25,000'
6sm
160° 18kts
Gusts 26kts
VFR
7:00 PM CDT - 7:00 AM CDT
Broken 20,000'
6sm
140° 12kts
TAF KMAF 231402Z 2314/2412 16017KT P6SM OVC008
   FM231700 16018G26KT P6SM FEW250
   FM240000 14012KT P6SM BKN200
KMDD
EffectiveExpiresCategoryNOTAM
Domestic
10/22/26
0805Z
11/6/26
0705Z
!MDD 10/019 MDD OBST TOWER LGT (ASR 1228160) 321918.90N1021023.00W (17.4NM NNW MDD) 3249.0FT (315.0FT AGL) U/S 2610220805-2611060705
10/15/26
1140Z
10/30/26
1040Z
!MDD 10/012 MDD OBST TOWER LGT (ASR 1049345) 320405.00N1021353.00W (6.9NM WNW MDD) 3548.9FT (651.9FT AGL) U/S 2610151140-2610301040
10/14/26
2216Z
1/14/27
2359Z
!MDD 10/011 MDD OBST TOWER LGT (ASR 1293094) 315954.60N1020411.20W (2.8NM SE MDD) 3089.9FT (319.9FT AGL) U/S 2610142216-2701142359
10/5/26
1527Z
11/1/26
0300Z
!MDD 10/003 MDD TWY A BTN TWY B AND NORTH RAMP WIP CONST 2610051527-2611010300
10/2/26
1200Z
11/1/26
0300Z
!MDD 09/025 MDD TWY A BTN TWY B AND NORTH RAMP CLSD 2610021200-2611010300
9/30/26
1803Z
11/1/26
0300Z
Runway!MDD 09/024 MDD RWY 07 PAPI U/S 2609301803-2611010300
9/30/26
1803Z
11/1/26
0300Z
Runway!MDD 09/023 MDD RWY 16 PAPI U/S 2609301803-2611010300
9/30/26
1802Z
11/1/26
0300Z
Runway!MDD 09/022 MDD RWY 34 PAPI U/S 2609301802-2611010300
9/30/26
1802Z
11/1/26
0300Z
!MDD 09/021 MDD TWY A CL MARKINGS FOR NORTH RAMP REMOVED 2609301802-2611010300
9/30/26
1801Z
11/1/26
0300Z
!MDD 09/020 MDD APRON NORTH RUNUP RAMP CLSD 2609301801-2611010300
9/30/26
1800Z
11/1/26
0300Z
!MDD 09/019 MDD TWY D HLDG PSN SIGN FOR APCH END RWY 34 LGT U/S 2609301800-2611010300
9/30/26
1759Z
11/1/26
0300Z
!MDD 09/018 MDD APRON NORTH RAMP WIP MAINT 2609301759-2611010300
9/30/26
1758Z
11/1/26
0300Z
Runway!MDD 09/017 MDD RWY 16 DECLARED DIST: TORA 3828FT TODA 3828FT ASDA 3828FT LDA 3828FT. 2609301758-2611010300
9/30/26
1757Z
11/1/26
0300Z
Runway!MDD 09/016 MDD RWY 34 DECLARED DIST: TORA 3828FT TODA 3828FT ASDA 3828FT LDA 3828FT. 2609301757-2611010300
9/30/26
1756Z
11/1/26
0300Z
!MDD 09/015 MDD TWY C CL MARKINGS NOT STD 2609301756-2611010300
9/16/26
0550Z
12/15/26
0650Z
!MDD 09/003 MDD OBST TOWER LGT (ASR 1055984) 315739.00N1015825.00W (8.0NM SE MDD) 3225.1FT (498.7FT AGL) U/S 2609160550-2612150650
FDC
9/29/26
1352Z
!FDC 6/6076 MDD IAP MIDLAND AIRPARK, MIDLAND, TX.
RNAV (GPS) RWY 25, ORIG-B...
LNAV MDA 3240/HAT 440 ALL CATS. CIRCLING RWY 34 NA AT NIGHT.
2609291352-2809291352EST
9/29/26
1350Z
!FDC 6/6075 MDD IAP MIDLAND AIRPARK, MIDLAND, TX.
RNAV (GPS) RWY 34, ORIG-B...
LPV DA NA. VDP NA. STRAIGHT-IN RWY 34 AND CIRCLING RWY 34 NA AT NIGHT. CHANGE NOTE TO READ: RWY 34 HELICOPTER VISIBILITY REDUCTION BELOW 1 SM NOT AUTHORIZED. DISREGARD NOTE: VDP NA WITH MIDLAND INTL ALTIMETER SETTING. CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV NA BELOW -20C OR ABOVE 54C.
2609291350-2809291350EST
No
M-F 0600-2000
S-S 0700-2000
CITY OF MIDLAND
PO BOX 60305 A.T.S.
MIDLAND, TX 79711
Phone: 432-560-2200
JUSTINE RUFF
PO BOX 60305
MIDLAND, TX 79711
Phone: 432-560-2200
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
MDD
--
MIRL RWYS 07/25 & 16/34 PRESET LOW INTST; TO INCR INTST & ACTVT VASI RWY 25; PAPI RWYS 07, 16 & 34 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

5571 ft. x 75 ft.
ASPH
Good
RFSC
MED

18,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 75°255°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 32° 02' 13"N 32° 02' 27"N
Longitude 102° 06' 38"W 102° 05' 36"W
Elevation 2,805' 2,790'
Threshold Crossing Height 40 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

3839 ft. x 75 ft.
ASPH
Fair
NONE
MED

18,000lbs
--
--
--
  Runway 16 Runway 34
True Heading 165°345°
Traffic Pattern Left Right
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 32° 02' 17"N 32° 01' 41"N
Longitude 102° 06' 09"W 102° 05' 58"W
Elevation 2,800' 2,796'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2BIRDS INVOF ARPT (SEASONAL).
A110-3FOR CD WHEN 121.8 IS OTS CTC MIDLAND APCH AT 432-563-2123. WHEN APCH CLSD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-4OPRS ON NON-PAVED SFCS ARE PROHIBITED WITHOUT 24 HR PPR.
A16EXT 3001
A57-07APCH SLOPE AT DSPLCD THR 38:1.
A70-100LLFOR FUEL AFT HRS CALL 432-685-7000.
A81-APTMIRL RWYS 07/25 & 16/34 PRESET LOW INTST; TO INCR INTST & ACTVT VASI RWY 25; PAPI RWYS 07, 16 & 34 - CTAF.
MIDLAND AIRPARK (ICAO: KMDD, IATA: MDD) is a public airport located in MIDLAND, TX, US.
