iFlightPlanner



...
MOORELAND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDF
ICAO KMDFLocal MDF
MOORELAND MUNI
PublicPUB

3 miles N of MOORELAND, OK, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 29' 05"N 99° 11' 39"W
Elevation
1970' MSL
Pattern Alt
2970' MSL
Mag Variation
4°E
Declination
8°E
Fuel
None Listed
FSS
MC ALESTER (MLC)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KWWR (16nm) MVFR
9:55 AM CDT
Overcast 2,300'
7sm
43°F
26°F
29.79"Hg
330° 26kts
Gusts 42kts
AO2 T00611035
METAR KWWR 151455Z AUTO 33026G42KT 7SM OVC023 06/M03 A2979 RMK AO2 T00611035
+ Add Your Business

KMDF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
DUSK - DAWN ACTVT MIRL RY 17/35 - CTAF.
UNICOM 122.8

Center

KANSAS CITY CENTER 126.95
LOW, APCH/DEP CTL SVC PRVDD BY KANSAS CITY ARTCC (ZKC) ON FREQS 126.95/379.2.(GAGE RCAG)

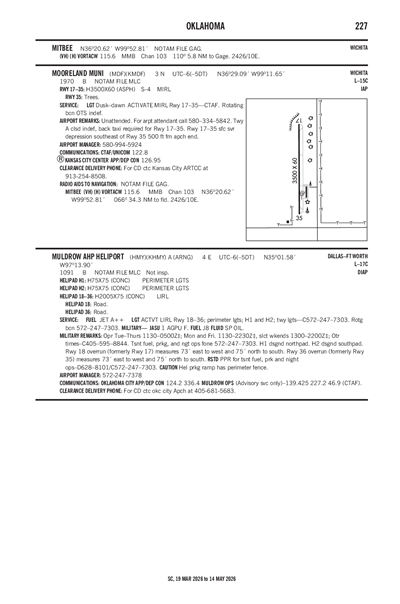

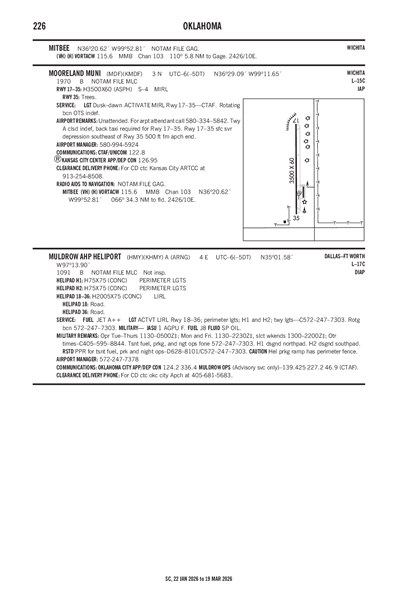

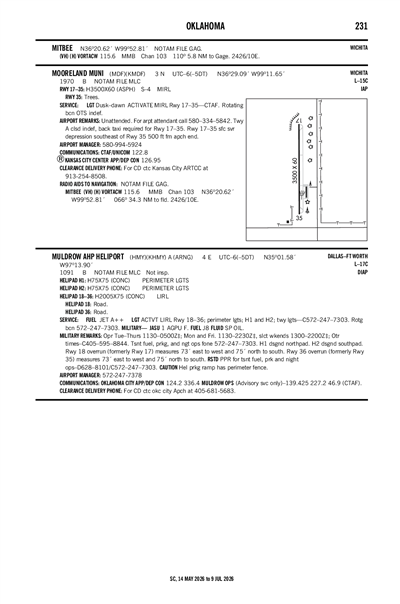

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KWWR (16nm)
Sun, 3/15 8:37 AM CDT
Sun, 3/15 9:00 AM CDT - Mon, 3/16 7:00 AM CDT
MVFR
Temporary 9:00 AM CDT - 10:00 AM CDT
Broken 2,000'
N/A
Calm
MVFR
9:00 AM CDT - 8:00 PM CDT
Blowing Dust
Broken 25,000'
5sm
340° 34kts
Gusts 44kts
VFR
8:00 PM CDT - 2:00 AM CDT
Sky Clear
6sm
350° 20kts
Gusts 29kts
VFR
2:00 AM CDT - 7:00 AM CDT
Sky Clear
6sm
340° 15kts
TAF KWWR 151337Z 1514/1612 34034G44KT 5SM BLDU BKN250
   TEMPO 1514/1515 BKN020
   FM160100 35020G29KT P6SM SKC
   FM160700 34015KT P6SM SKC
KMDF
EffectiveExpiresCategoryNOTAM
Domestic
3/11/26
2241Z
3/26/26
2141Z
!MLC 03/178 MDF OBST TOWER LGT (ASR 1245157) 362525.10N0990922.80W (4.1NM SSE MDF) 2212.6FT (299.9FT AGL) U/S 2603112241-2603262141
3/7/26
0120Z
3/22/26
0020Z
!MLC 03/106 MDF OBST TOWER LGT (ASR 1261951) 362734.70N0991859.70W (6.1NM WSW MDF) 2180.1FT (245.1FT AGL) U/S 2603070120-2603220020
No
UNATNDD
FOR AIRPORT ATTENDANT CALL DARWIN LOOMIS 580-334-5842
CITY OF MOORELAND
214 S. MAIN PO BOX 157
MOORELAND, OK 73852
Phone: 580-994-5924
BOBBY KEHN
214 S. MAIN, PO BOX 157 PO BOX 157
MOORELAND, OK 73852
Phone: 580-994-5924
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
DUSK - DAWN ACTVT MIRL RY 17/35 - CTAF.
N/A
ROTG BCN OTS INDEFLY.
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

3500 ft. x 60 ft.
ASPH
Fair
NONE
MED

4,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 29' 22"N 36° 28' 48"N
Longitude 99° 11' 39"W 99° 11' 39"W
Elevation 1,970' 1,966'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWY A CLSD INDEFLY; BACK TAXI REQUIRED FOR RY 17/35.
A110-2FOR CD CTC KANSAS CITY ARTCC AT 913-254-8508.
A14CITY MANAGER.
A17-M2FOR AIRPORT ATTENDANT CALL DARWIN LOOMIS 580-334-5842
A33-17/35_CONDSVR DEPRESSION SOUTHEAST OF RWY 35 500 FT FM APCH END.
A58-3534 FT TREES 288 FT FM RWY END, 202 FT LEFT OF CNTRLN.
A80ROTG BCN OTS INDEFLY.
A81-APTDUSK - DAWN ACTVT MIRL RY 17/35 - CTAF.
MOORELAND MUNI (ICAO: KMDF, IATA: MDF) is a public airport located in MOORELAND, OK, US.
