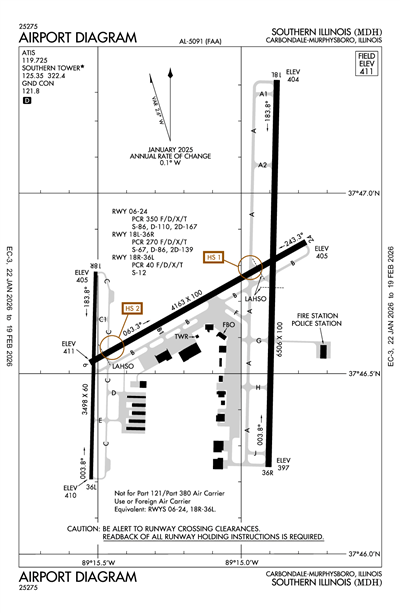

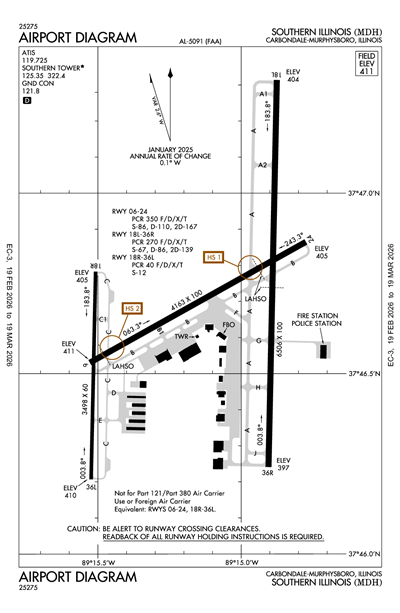

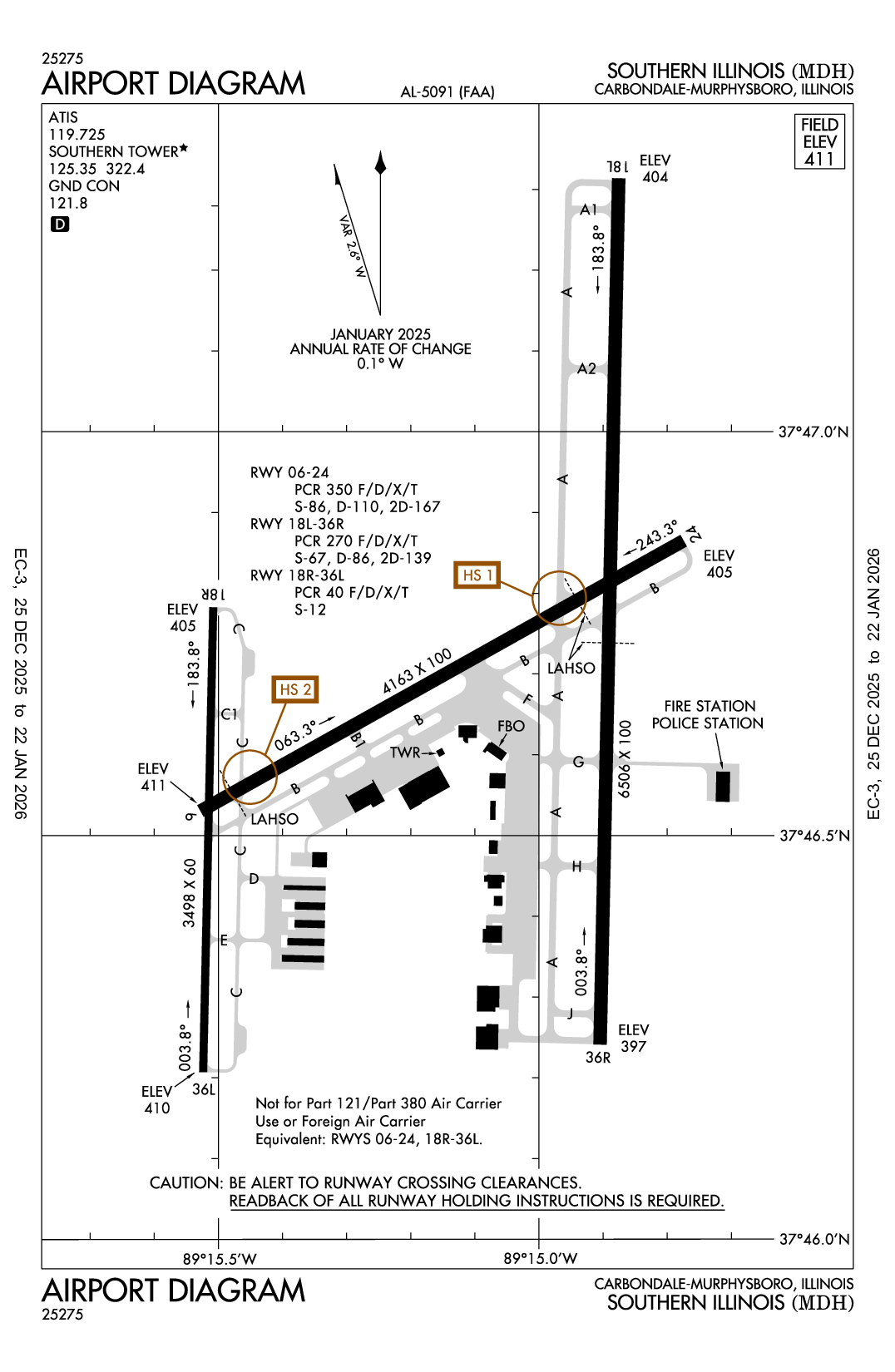

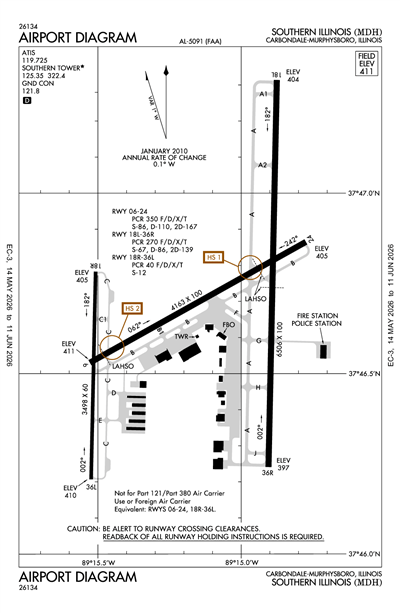

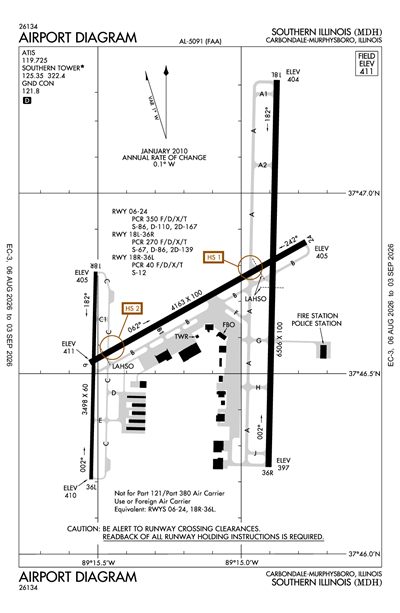

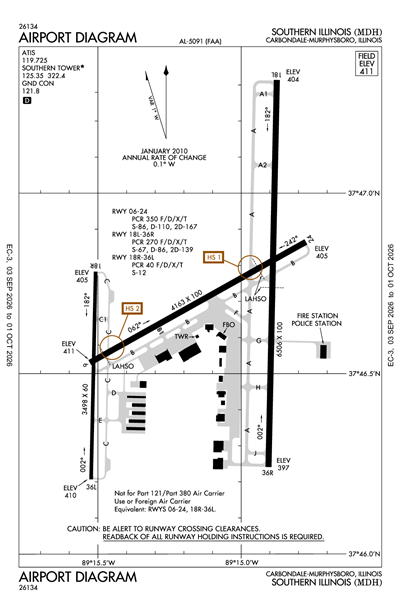

SOUTHERN ILLINOIS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDH
ICAO KMDHIATA MDHLocal MDH
SOUTHERN ILLINOIS
PublicPUB

3 miles NW of CARBONDALE/MURPHYSBORO, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 46' 41"N 89° 15' 07"W
Elevation
411' MSL
Pattern Alt
1411' MSL
Mag Variation
2°W
Declination
1°W
Fuel
JET A, 100LL
FSS
SAINT LOUIS (STL)
Sectional
ST LOUIS
ARTCC
KANSAS CITY (ZKC)
Data Effective
9/3/26-10/1/26
KMDH VFR
12:52 PM CDT
Clear
10sm
91°F
64°F
29.90"Hg
VRB° 4kts
METAR KMDH 201752Z VRB04KT 10SM CLR 33/18 A2990
+ Add Your Business

KMDH FBOs

Promote Listing
Flightline
UNICOM: 122.95
Phone: (618) 529-3377
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.99
Full Serve 7.48 6.53
Fuel Notes
Prices include tax

KMDH Aircraft Service & Maintenance

Promote Listing
Enhanced Aero LLC
Phone: (618) 992-2376
No Rating Available
0 Reviews (Read | Sign In To Write)

KMDH Flight Schools & Aircraft Rental

Promote Listing
Southern Illinois University
Phone: (618) 536-3371
Fax: (618) 453-0244
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.725
ASOS (618) 529-1821

Common

CTAF 125.35
ACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQUEST ONLY - CALL 618-534-3662.
UNICOM 122.95

Ground

SOUTHERN GROUND 121.8
0700-2100

Tower

SOUTHERN TOWER 125.35
0700-2100
SOUTHERN TOWER 126.25
0700-2100, Secondary

Center

KANSAS CITY CENTER 127.475
LOW, APCH/DEP SVC PRVDD BY KANSAS CITY ARTCC ON FREQS 127.475/346.275 (MARION RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Hotspot

Terminal Area Forecast

KCGI (37nm)
Sun, 9/20 12:30 PM CDT
Sun, 9/20 1:00 PM CDT - Mon, 9/21 1:00 PM CDT
VFR
1:00 PM CDT - 6:00 PM CDT
Scattered 25,000'
6sm
240° 6kts
VFR
6:00 PM CDT - 3:00 AM CDT
Broken 10,000'
6sm
VRB° 3kts
VFR
3:00 AM CDT - 5:00 AM CDT
Broken 7,000'
6sm
020° 6kts
VFR
5:00 AM CDT - 9:00 AM CDT
Broken 9,000'
Scattered 600'
6sm
030° 7kts
VFR
9:00 AM CDT - 1:00 PM CDT
Broken 8,000'
6sm
050° 5kts
TAF KCGI 201730Z 2018/2118 24006KT P6SM SCT250
   FM202300 VRB03KT P6SM BKN100
   FM210800 02006KT P6SM BKN070
   FM211000 03007KT P6SM SCT006 BKN090
   FM211400 05005KT P6SM BKN080
KMDH
EffectiveExpiresCategoryNOTAM
Domestic
9/18/26
1734Z
10/3/26
1634Z
!MDH 09/013 MDH OBST TOWER LGT (ASR 1214140) 374634.20N0892143.10W (5.2NM W MDH) 745.4FT (259.8FT AGL) U/S 2609181734-2610031634
9/18/26
1729Z
Runway!MDH 09/012 MDH RWY 36R PAPI U/S 2609181729-2609252000EST
9/18/26
1350Z
9/25/26
1800Z
!MDH 09/011 MDH OBST CRANE (ASN UNKNOWN) 374641N0891507W (.5NM W APCH END RWY 36R)
UNKNOWN (100FT AGL) FLAGGED 2609181350-2609251800
9/2/26
1328Z
10/19/26
2200Z
!MDH 09/003 MDH TWY A BTN TWY H AND APCH END RWY 36R CLSD DUE TO CONSTRUCTION 2609021328-2610192200
9/1/26
1241Z
9/30/26
2000Z
!MDH 09/001 MDH AD AP WINDCONE FOR RWY 36R U/S 2609011241-2609302000
8/2/26
0103Z
11/1/26
2359Z
!MDH 08/002 MDH OBST TOWER LGT (ASR 1009440) 373923.00N0893029.00W (14.2NM WSW MDH) 620.1FT (250.0FT AGL) U/S 2608020103-2611012359
7/23/26
1123Z
10/22/26
0400Z
!MDH 07/013 MDH OBST TOWER LGT (ASR 1263332) 374835.10N0891224.10W (2.9NM NE MDH) 611.9FT (237.9FT AGL) U/S 2607231123-2610220400
7/22/26
0544Z
Runway!MDH 07/011 MDH RWY 24 RWY END ID LGT U/S 2607220544-PERM
7/22/26
0537Z
Runway!MDH 07/010 MDH RWY 06 RWY END ID LGT U/S 2607220537-PERM
5/27/26
1118Z
!MDH 05/007 MDH NAV ILS RWY 18L OM U/S 2605271118-2612042000EST
Yes
ALL
SOUTHERN ILLINOIS ARPT AUTH
PO BOX 1086
CARBONDALE, IL 62903
Phone: 618-529-1721
ALYSSA CONNELL
P O BOX 1086
CARBONDALE, IL 62903
Phone: 618-529-1721
SAINT LOUIS FSS (STL)
Toll Free: 1-800-WX-BRIEF
MDH
--
ACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQUEST ONLY - CALL 618-534-3662.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 06/24

4163 ft. x 100 ft.
ASPH
Fair
PFC
MED

86,000lbs
110,000lbs
167,000lbs
--
  Runway 06 Runway 24
True Heading 61°241°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 46' 32"N 37° 46' 52"N
Longitude 89° 15' 32"W 89° 14' 46"W
Elevation 411' 405'
Threshold Crossing Height 48 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3.5° 3.5°
Visual Slope Indicator V4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 18L/36R

6506 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

--
--
--
--
  Runway 18L Runway 36R
True Heading 181°1°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 37° 47' 19"N 37° 46' 15"N
Longitude 89° 14' 53"W 89° 14' 54"W
Elevation 404' 397'
Threshold Crossing Height -- 45 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 18R/36L

3498 ft. x 60 ft.
ASPH
Excellent
NONE
MED

--
--
--
--
  Runway 18R Runway 36L
True Heading 181°1°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 37° 46' 47"N 37° 46' 12"N
Longitude 89° 15' 31"W 89° 15' 31"W
Elevation 405' 410'
Threshold Crossing Height 27 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator PSIL PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1BIRDS ON & INVOF ARPT.
A110-2HIGH STUDENT TRNG ACTVTY.
A110-3RWY 6 & RWY 18R-36L INTERSECT; VERIFY CORRECT COMPASS HDG FOR RWY 6 DEP.
A26-CCLSD TO SKED ACR OPS GTR THAN 9 PSGR SEATS. UNSKED ACR OPS GTR THAN 30 PSGR SEATS RQR 24 HR PPR - CALL AMGR MON-FRI.
A30-06/24RWY 06/24 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-18R/36LRWY 18R/36L NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A35-06/24RSTRD TO ACFT 12500 LBS OR LESS UNLESS PPR WITH ATCT.
A39-06/24PCR VALUE: 350/F/D/X/T
A39-18L/36RPCR VALUE: 270/F/D/X/T
A39-18R/36LPCR VALUE: 40/F/D/X/T
A43-18RUNUSBL BYD 6 DEG RIGHT OF COURSE. PVASI OTS INDEF.
A52-36R39 FT MKD PLINE 1872 FT FM RWY 192 FT L OF CNTRLN. APCH RATIO 42:1.
A81-APTACTVT MALSR RWY 18L; VASI RWY 06; PAPI RWY 24 & 36R; MIRL RWY 06/24; HIRL RWY 18L/36R - CTAF. WHEN ATCT CLSD HIRL RWY 18L/36R PRESET MED INTST; INCREASE INTST - CTAF. WHEN ATCT CLSD 18R/36L LTG BY REQUEST ONLY - CALL 618-534-3662.
SOUTHERN ILLINOIS (ICAO: KMDH, IATA: MDH) is a public airport located in CARBONDALE/MURPHYSBORO, IL, US.
