HUNTSVILLE EXEC TOM SHARP JR FLD - Airport Diagram

KMDQ

ICAO KMDQLocal MDQ

HUNTSVILLE EXEC TOM SHARP JR FLD

PublicPUB

1 miles NE of HUNTSVILLE, AL, US

View on Map

Status

Operational

Coordinates

34° 51' 34"N 86° 33' 27"W

Elevation

763' MSL

Pattern Alt

1763' MSL

Mag Variation

4°W

Declination

4°W

Fuel

JET A, 100LL

FSS

ANNISTON (ANB)

Sectional

ATLANTA

ARTCC

MEMPHIS (ZME)

Data Effective

3/19/26-4/16/26

KMDQ VFR

4:35 PM CDT RAW

Scattered 7,500'
Broken 6,000'
Scattered 5,000'

Viz

10sm

Temp

80°F

Dew

60°F

Pres

30.06"Hg

Wind

220° 10kts

Gusts 17kts

RMK

A02 T02640156

METAR KMDQ 042135Z AUTO 22010G17KT 10SM SCT050 BKN060 SCT075 26/16 A3006 RMK A02 T02640156

Add Your Business

KMDQ FBOs

Promote Listing

Executive Flight Center

UNICOM: 123.0

Phone: (256) 828-1403

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 4/3	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.50		7.71

Fuel Notes

Prices include tax
Jet A Preblended

Volume Discounts

Contract Fuel Accepted - AEG, Arrow, Avfuel, Phillips Into Plane, World Fuel
Discounts begin at 100 gallons.

KMDQ Aircraft Service & Maintenance

Promote Listing

Executive Flight Center

Phone: (256) 828-1403

0 Reviews (Read | Sign In To Write)

Your Information

Business

Weather and Advisory

AWOS-3PT	120.0
(256) 829-1242

Common

CTAF	123.0
ACTVT REILS RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.
UNICOM	123.0

Approach

HUNTSVILLE APPROACH

125.6

Departure

HUNTSVILLE DEPARTURE

125.6

Center

HUNTSVILLE CENTER	120.8
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 120.8/307.0 (HUNTSVILLE RCAG) WHEN HUNTSVILLE APCH CTL CLSD.

Flight Service

Ground Communication Outlet	121.725
GCO AVBL ON FREQ 121.725 THRU HUNTSVILLE APCH & ANNISTON FSS.

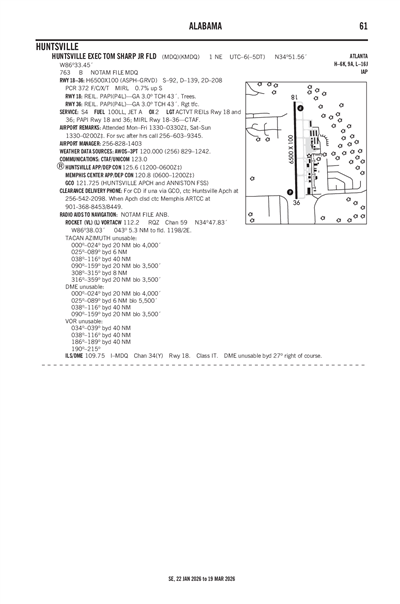

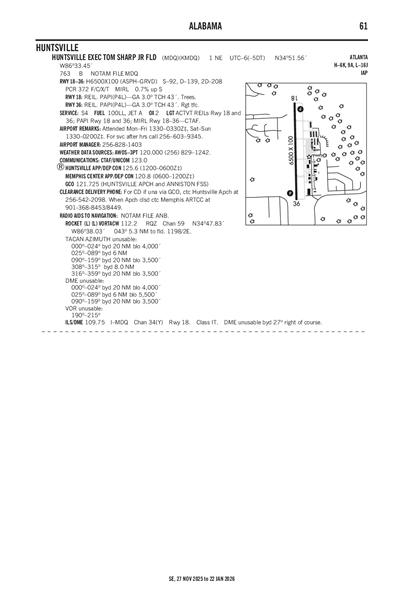

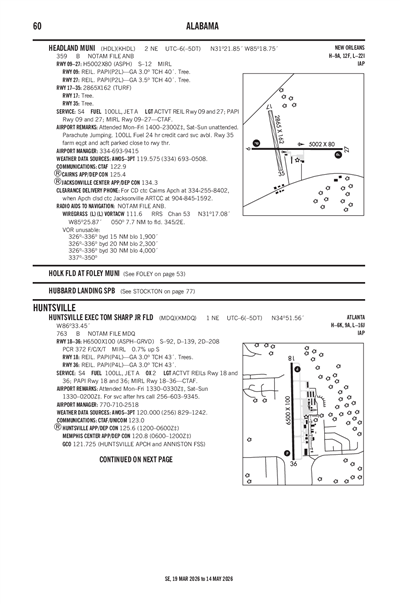

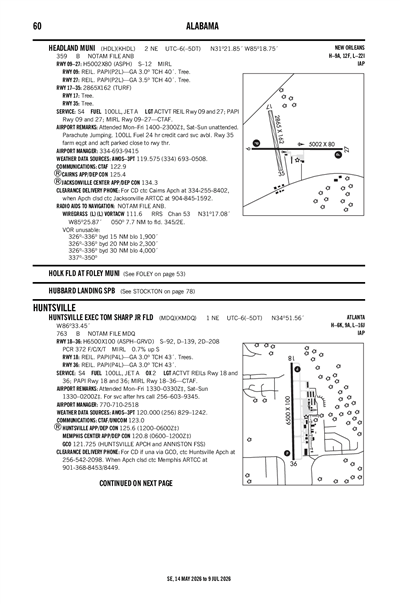

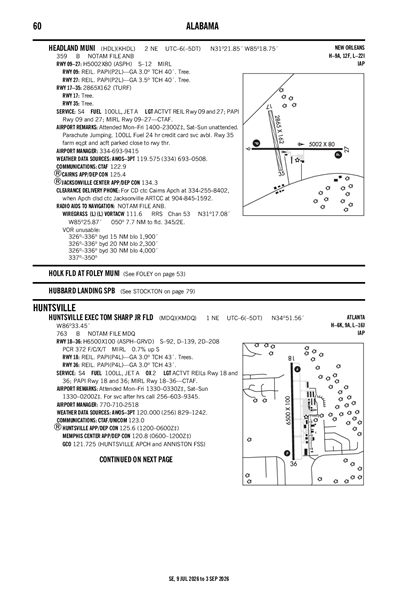

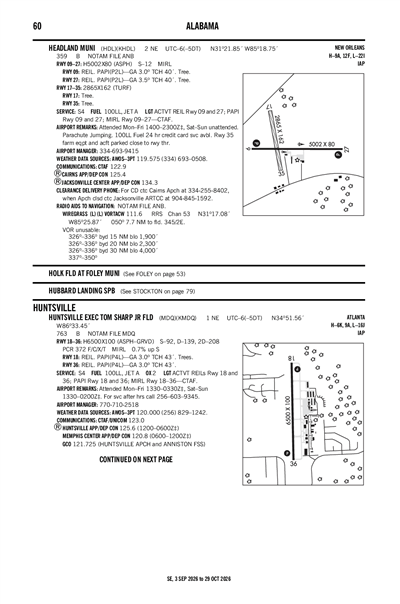

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHSV (17nm)

RAW

Reported

Sat, 4/4 1:31 PM CDT

Valid

Sat, 4/4 2:00 PM CDT - Sun, 4/5 1:00 PM CDT

VFR

2:00 PM CDT - 6:00 PM CDT

Broken 12,000'
Broken 3,500'

Viz

6sm

Wind

200° 13kts

Gusts 22kts

VFR

6:00 PM CDT - 8:00 PM CDT

Showers in vicinity

Broken 5,000'

Viz

6sm

Wind

210° 6kts

IFR

Temporary 6:00 PM CDT - 8:00 PM CDT

Heavy Thunderstorm and Rain

Overcast 2,500'
Broken 900'

Viz

2sm

Wind

Calm

IFR

8:00 PM CDT - 4:00 AM CDT

Showers and Rain and Thunderstorm in vicinity

Overcast 700'

Viz

3sm

Wind

290° 5kts

MVFR

4:00 AM CDT - 9:00 AM CDT

Light Showers and Rain and Mist

Overcast 1,500'

Viz

4sm

Wind

340° 12kts

Gusts 20kts

VFR

9:00 AM CDT - 1:00 PM CDT

Scattered 6,000'

Viz

6sm

Wind

350° 12kts

Gusts 18kts

TAF KHSV 041831Z 0419/0518 20013G22KT P6SM BKN035 BKN120
   FM042300 21006KT P6SM VCSH BKN050
   TEMPO 0423/0501 2SM +TSRA BKN009 OVC025CB
   FM050100 29005KT 3SM SHRA VCTS OVC007CB
   FM050900 34012G20KT 4SM -SHRA BR OVC015
   FM051400 35012G18KT P6SM SCT060

KMDQ

Effective	Expires	Category	NOTAM
Domestic
3/26/26 2044Z			!MDQ 03/019 MDQ SVC AUTOMATED WX BCST SYSTEM 120.0 U/S 2603262044-2605142359EST
3/19/26 0001Z	9/30/26 2359Z	Runway	!MDQ 03/009 MDQ RWY 36 LEFT TFC PATTERN 2603190001-2609302359
2/10/26 1400Z	5/9/26 2300Z	Runway	!MDQ 02/004 MDQ RWY 18/36 WIP 500FT W 2602101400-2605092300
FDC
10/8/25 1357Z			!FDC 5/7906 MDQ IAP HUNTSVILLE EXEC TOM SHARP JR FLD, HUNTSVILLE, AL. RNAV (GPS) RWY 36, AMDT 1C... RWY 36 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 2510081357-2710081357EST
10/1/25 1825Z			!FDC 5/4027 MDQ IAP HUNTSVILLE EXEC TOM SHARP JR FLD, HUNTSVILLE, AL. ILS OR LOC RWY 18, AMDT 1C... S-LOC 18 CAT C/D VISIBILITY 1 3/8 SM. 2510011825-2710012355EST

ATC Tower

Attendance

MON-FRI 0730-2130
SAT-SUN 0730-2000
FOR SVC AFT HRS CALL 256-603-9345.

Owner

MADISON CO EXEC ARPT AUTH
PO BOX 110
MERIDIANVILLE, AL 35759
Phone: 256-828-3883

Manager

LEVI WILLOUGHBY
360 CLYDE SHELTON DRIVE
MERIDIANVILLE, AL 35759
Phone: 770-710-2518

FSS

ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF

NOTAM

MDQ

Light Schedule

Lights

ACTVT REILS RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

Low Pressure

Other Services

Pilot Instruction
Aircraft Rental

Runway 18/36

Dimensions

6500 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

92,000lbs

Double Wheel

139,000lbs

Double Tandem

208,000lbs

Dual Dbl Tand

	Runway 18	Runway 36
True Heading	181°	1°
Traffic Pattern	Left	Left
Markings	PIR	NPI
Markings Condition	GOOD	GOOD
Latitude	34° 52' 06"N	34° 51' 02"N
Longitude	86° 33' 26"W	86° 33' 28"W
Elevation	719'	763'
Threshold Crossing Height	43 ft. AGL	43 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A11	TOM SHARP.
A110-1	GCO AVBL ON FREQ 121.725 THRU HUNTSVILLE APCH & ANNISTON FSS.
A110-2	FOR CD IF UNA VIA GCO, CTC HUNTSVILLE APCH AT 256-542-2098. WHEN APCH CLSD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A17-M1	FOR SVC AFT HRS CALL 256-603-9345.
A39-18/36	PCR VALUE: 372/F/C/X/T
A81-APT	ACTVT REILS RWY 18 & 36; PAPI RWY 18 & 36; MIRL RWY 18/36 - CTAF.

HUNTSVILLE EXEC TOM SHARP JR FLD (ICAO: KMDQ, IATA: MDQ) is a public airport located in HUNTSVILLE, AL, US.
