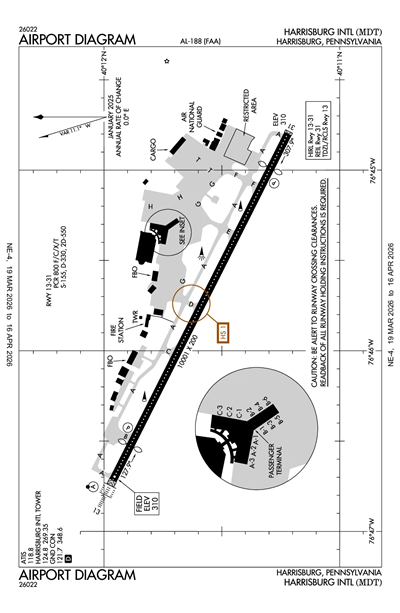

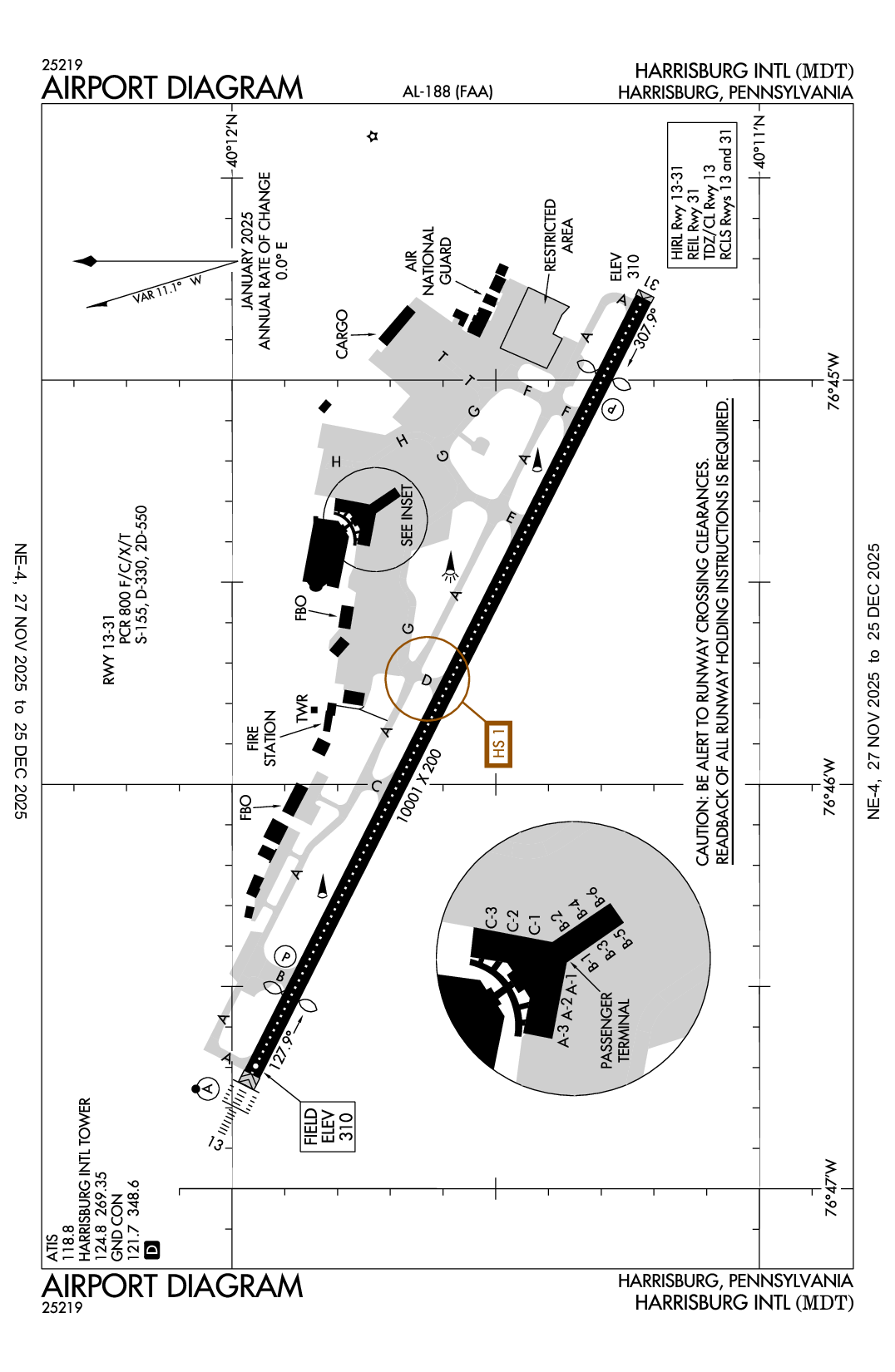

HARRISBURG INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDT
ICAO KMDTIATA MDTLocal MDT
HARRISBURG INTL
PublicPUB

8 miles SE of HARRISBURG, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 11' 35"N 76° 45' 45"W
Elevation
310' MSL
Pattern Alt
1310' MSL
Mag Variation
11°W
Declination
11°W
Fuel
JET A, 100LL
FSS
WILLIAMSPORT (IPT)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
3/19/26-4/16/26
KMDT VFR
11:56 AM EDT
Scattered 25,000'
Few 9,500'
Few 6,500'
10sm
73°F
59°F
30.12"Hg
140° 4kts
AO2 SLP201 T02280150 $
METAR KMDT 041556Z 14004KT 10SM FEW065 FEW095 SCT250 23/15 A3012 RMK AO2 SLP201 T02280150 $
+ Add Your Business

KMDT FBOs

Avflight Harrisburg
UNICOM: 122.95
Phone: (717) 944-4666
Fax: (717) 944-2322
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 3/31
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.15 9.25 9.35
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 118.8
VFR Advisory 124.8
ASOS (717) 944-1372, (SURVEY_METHOD_CODE) 3RD PS, 12 FEB 2014.

Ground

HARRISBURG INTL GROUND 121.7

Tower

HARRISBURG INTL TOWER 124.8

Approach

HARRISBURG APPROACH 118.25
330-079
HARRISBURG APPROACH 124.1
180-329
HARRISBURG APPROACH 126.45
080-179

Departure

HARRISBURG DEPARTURE 118.25
330-079
HARRISBURG DEPARTURE 124.1
180-329
HARRISBURG DEPARTURE 126.45
080-179

Emergency

Emergency 121.5

Other

CLASS C 118.25
330-079
CLASS C 124.1
180-329
CLASS C 126.45
080-179

Terminal Area Forecast

KMDT
Sat, 4/4 11:05 AM EDT
Sat, 4/4 11:00 AM EDT - Sun, 4/5 8:00 AM EDT
VFR
11:00 AM EDT - 12:00 PM EDT
Haze
Broken 22,000'
Scattered 6,000'
6sm
VRB° 3kts
VFR
12:00 PM EDT - 8:00 PM EDT
Broken 20,000'
Broken 5,000'
6sm
140° 7kts
MVFR
4:00 PM EDT - 8:00 PM EDT
Light Showers and Rain
Overcast 5,000'
5sm
Calm
VFR
8:00 PM EDT - 9:00 PM EDT
Overcast 10,000'
6sm
130° 15kts
Gusts 22kts
VFR
9:00 PM EDT - 11:00 PM EDT
Overcast 10,000'
6sm
130° 14kts
MVFR
11:00 PM EDT - 6:00 AM EDT
Mist
Overcast 1,500'
4sm
130° 8kts
MVFR
6:00 AM EDT - 8:00 AM EDT
Light Showers and Rain and Mist
Overcast 2,500'
4sm
130° 4kts
TAF KMDT 041505Z 0415/0512 VRB03KT 6SM HZ SCT060 BKN220
   FM041600 14007KT P6SM BKN050 BKN200
   PROB30 0420/0424 5SM -SHRA OVC050
   FM050000 13015G22KT P6SM OVC100
   FM050100 13014KT P6SM OVC100
   FM050300 13008KT 4SM BR OVC015 WS020/20037KT
   FM051000 13004KT 4SM -SHRA BR OVC025
KMDT
EffectiveExpiresCategoryNOTAM
Domestic
4/6/26
1400Z
4/6/26
2100Z
!MDT 04/002 MDT NAV ILS RWY 13 U/S 2604061400-2604062100
4/6/26
1400Z
4/6/26
2100Z
!MDT 04/001 MDT NAV ILS RWY 31 U/S 2604061400-2604062100
2/25/26
2008Z
5/25/26
2000Z
!MDT 02/073 MDT TWY F HLDG PSN MARKINGS AT RWY 13/31 FADED 2602252008-2605252000
1/8/26
1509Z
!MDT 01/046 MDT NAV ILS RWY 13 ENOLA LOM U/S 2601081509-2607082000EST
1/5/26
1657Z
12/31/26
2359Z
!MDT 01/031 MDT OBST TOWER LGT (ASR 1258297) 400909.40N0764252.20W (3.3NM SE MDT) 554.1FT (225.1FT AGL) U/S 2601051657-2612312359
12/8/25
1035Z
4/30/26
2200Z
Runway!MDT 12/043 MDT RWY 13/31 CL MARKINGS FADED 2512081035-2604302200
FDC
4/3/26
1812Z
!FDC 6/8065 MDT IAP HARRISBURG INTL, HARRISBURG, PA.
ILS OR LOC RWY 13 , AMDT 3A...
ILS OR LOC RWY 31, AMDT 1F...
VOR RWY 31, AMDT 2C...
ILS RWY 13 (SA CAT I), AMDT 3A...
ILS RWY 13 (CAT II-III), AMDT 3A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
RAV VORTAC UNMONITORED. 2604031812-2605031812EST
3/27/26
1347Z
!FDC 6/4713 MDT IAP HARRISBURG INTL, HARRISBURG, PA.
VOR RWY 31, AMDT 2C...
CHART EQUIPMENT REQUIREMENTS NOTE: DME REQUIRED.
THIS IS VOR RWY 31, AMDT 2D. 2603271347-PERM
3/16/26
1522Z
!FDC 6/8804 MDT IAP HARRISBURG INTL, HARRISBURG, PA.
RNAV (GPS) RWY 13, AMDT 1A...
CHART KCXY IN PLAN AND PROFILE VIEWS. CIRCLING VIS CAT A 1 1/4.
CHANGE NOTE TO READ: FOR UNCOMPENSATED BARO-VNAV SYSTEMS, LNAV/VNAV
NA BELOW -15C OR ABOVE 48C. DELETE NOTE: DME/DME RNP-0.3 NA. CHART
PBN REQUIREMENTS NOTE: RNP APCH-GPS. DELETE NOTE FROM PROFILE VIEW:
ASTERISK LNAV ONLY. DELETE ASTERISK FROM 2.5 NM TO RW13 VDP IN
PROFILE VIEW.
THIS IS RNAV (GPS) RWY 13, AMDT 1B. 2603161522-PERM
1/12/26
1546Z
!FDC 6/2357 MDT IAP HARRISBURG INTL, HARRISBURG, PA.
ILS OR LOC RWY 13 , AMDT 3A...
S-LOC 13 NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ENOLA (MD) LOM OUT OF SERVICE. 2601121546-2608241546EST
Yes
ALL
SUSQUEHANNA AREA REGIONAL ARPT AUTH
ONE TERMINAL DRIVE
MIDDLETOWN, PA 17057
Phone: 717-948-3900
TIM EDWARDS
ONE TERMINAL DRIVE
MIDDLETOWN, PA 17057
Phone: 717-948-3900
WILLIAMSPORT FSS (IPT)
Toll Free: 1-800-WX-BRIEF
MDT
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
Low Pressure
High & Low Pressure
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 13/31

10001 ft. x 200 ft.
ASPH
Good
GRVD
HIGH

155,000lbs
330,000lbs
550,000lbs
--
  Runway 13 Runway 31
True Heading 117°297°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 11' 58"N 40° 11' 13"N
Longitude 76° 46' 43"W 76° 44' 48"W
Elevation 310' 310'
Threshold Crossing Height 75 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes
A110-10ACFT DESTINED FOR AVFLIGHT HARRISBURG SO INDICATE IN RMK SEC OF DD175 AND ATTEMPT TO CTC WITH ETA ON 122.95, 15 MIN PRIOR TO LND.
A110-11BIRD WATCH COND PHASE 1 (DEC-FEB & MAY-JUL) INDICATED LGT BIRD ACT. PHASE 2 (AUG-NOV & MAR-APR) INDICATES HVY BIRD ACT NML ASSOCIATED WITH MIGRATORY SEASON.
A110-12CARGO APRON PARKING SPOT 9 CLOSED TO ACFT WITH A WINGSPAN OF MORE THAN 52 FT.
A110-13COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A110-14USE CTN: DUE TO PROXIMITY & RWY ALMNT, AIRCREWS HAVE MISTAKEN CXY RWY 12/30 FOR MDT RWY 13/31 WHICH IS 4 NM E.
A110-4CARGO RAMP CLSD TO TSNT ACFT WO PRIOR PERMISSION; CALL AMGR 717-948-3919.
A110-5BIRD FLOCKS ON & INVOF ARPT.
A110-6NO TOUCH & GO LDGS 2300-0600 LCL.
A110-9REMARKS-ANG: ACFT NOT SUPPORTING ANG AND ALL FIGHTER ACFT MUST CTC FBO C 717-944-4666 FOR PRK AND FUEL. NSTD MRK ON C130J PRK APRON SPOT 5; WHITE PAINTED LINES DENOTING LAIRCM LASER TESTING AREA.
A39-13/31PCR VALUE: 800/F/C/X/T
A42-13_MARKRWY 13: PIR AND MIL ASSAULT LDG ZONE MKGS.
A42-31_MARKRWY 31: PIR AND MIL ASSAULT LDG ZONE MKGS.
A57-13APCH RATIO 47:1 TO DTHR.
A57-31RWY 31 APCH SLP 36:1 TO DTHR.
E147TPA 1300 FT MSL (990 FT AGL) PROPS; 1800 FT MSL (1490 FT AGL) JETS.
HARRISBURG INTL (ICAO: KMDT, IATA: MDT) is a public airport located in HARRISBURG, PA, US.
