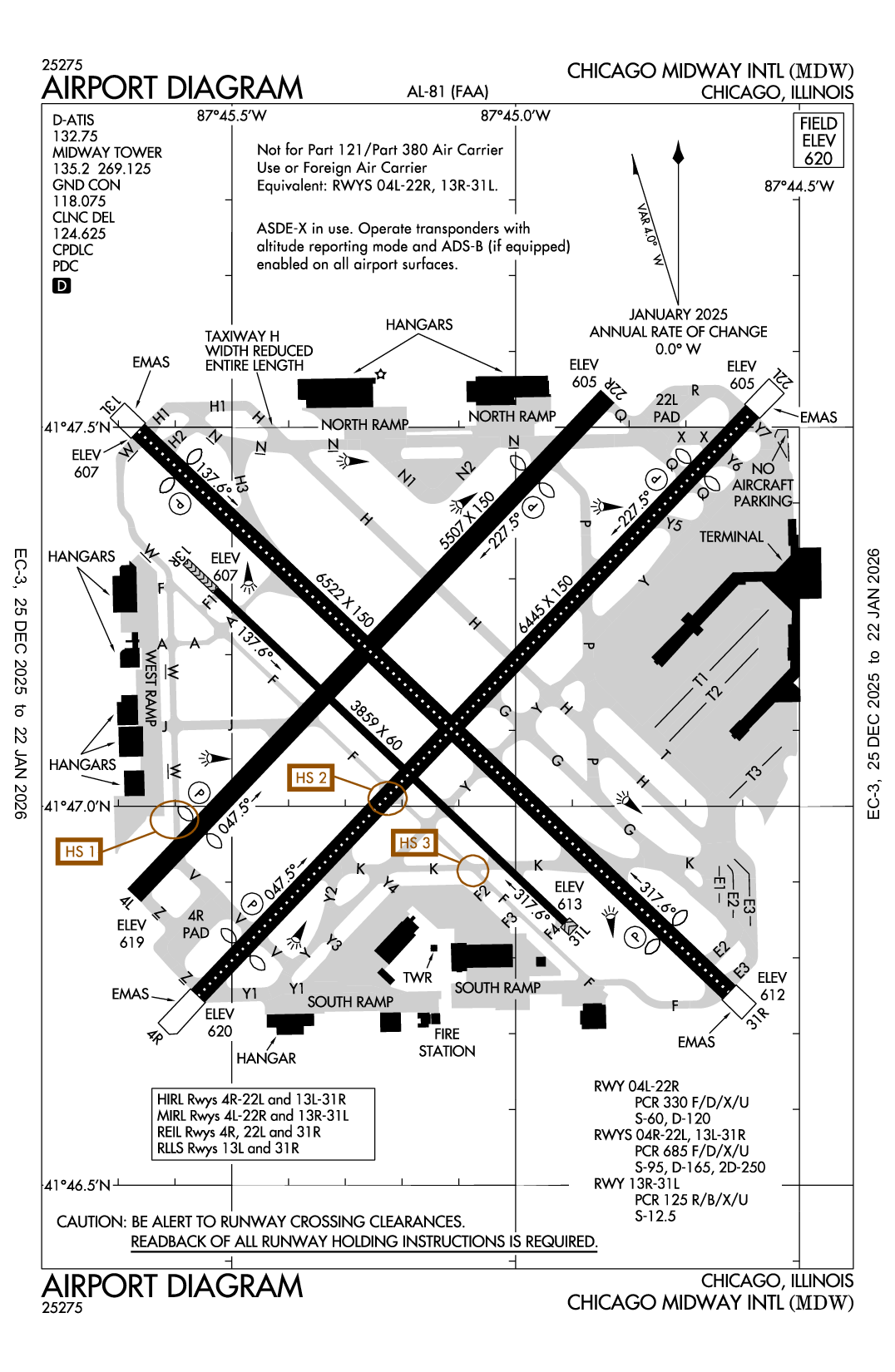

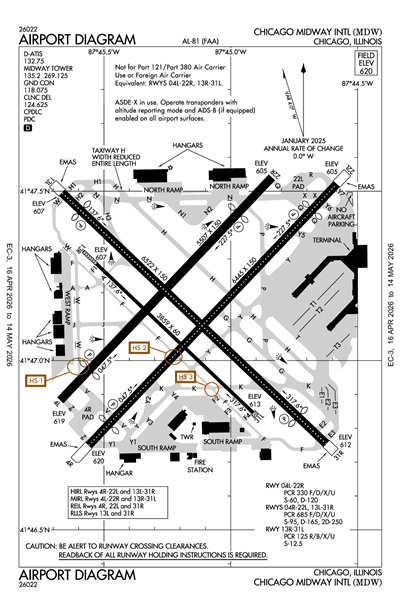

CHICAGO MIDWAY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMDW
ICAO KMDWIATA MDWLocal MDW
CHICAGO MIDWAY INTL
PublicPUB

9 miles SW of CHICAGO, IL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 47' 08"N 87° 45' 10"W
Elevation
620' MSL
Pattern Alt
1620' MSL
Mag Variation
4°W
Declination
4°W
Fuel
JET A-1+, 100LL
FSS
KANKAKEE (IKK)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
7/9/26-8/6/26
KMDW VFR
1:53 PM CDT
Scattered 25,000'
Scattered 5,000'
10sm
83°F
63°F
30.00"Hg
200° 11kts
Gusts 17kts
AO2 SLP150 T02830172
METAR KMDW 041853Z 20011G17KT 10SM SCT050 SCT250 28/17 A3000 RMK AO2 SLP150 T02830172
+ Add Your Business

KMDW FBOs

Promote Listing
Signature Aviation
UNICOM: 128.925
Phone: (773) 767-4400
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/4
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.99 9.75
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 131.425
Phone: (773) 582-5720
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 7/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.47 10.64
Fuel Notes
Prices include tax

KMDW Aircraft Service & Maintenance

Promote Listing
Advanced Technology Deployment
Phone: (708) 421-1225
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

Digital ATIS 132.75
(773) 581-9967
ASOS (773) 884-4424

Common

UNICOM 122.95

Clearance

Clearance Delivery 124.625

Ground

MIDWAY GROUND 118.075

Tower

MIDWAY TOWER 135.2

Approach

CHICAGO APPROACH 128.2
CHICAGO APPROACH 126.05
Secondary

Departure

CHICAGO DEPARTURE 128.2
CHICAGO DEPARTURE 126.05
Secondary

Emergency

Emergency 121.5

Other

CLASS C 119.45
CLASS C/S 135.2
Secondary

Terminal Area Forecast

KMDW
Tue, 8/4 12:20 PM CDT
Tue, 8/4 1:00 PM CDT - Wed, 8/5 7:00 PM CDT
VFR
1:00 PM CDT - 8:00 PM CDT
Scattered 15,000'
Scattered 4,000'
6sm
230° 10kts
VFR
8:00 PM CDT - 6:00 AM CDT
Broken 25,000'
Scattered 5,000'
6sm
190° 6kts
VFR
6:00 AM CDT - 1:00 PM CDT
Showers in vicinity
Broken 10,000'
Scattered 4,000'
6sm
220° 6kts
MVFR
Temporary 7:00 AM CDT - 11:00 AM CDT
Light Thunderstorm and Rain and Mist
Broken 4,000'
Scattered 2,000'
3sm
Calm
VFR
1:00 PM CDT - 7:00 PM CDT
Broken 10,000'
Scattered 4,000'
6sm
240° 8kts
MVFR
4:00 PM CDT - 7:00 PM CDT
Light Thunderstorm and Rain and Mist
Broken 3,500'
Scattered 2,000'
3sm
Calm
TAF KMDW 041720Z 0418/0524 23010KT P6SM SCT040 SCT150
   FM050100 19006KT P6SM SCT050 BKN250
   FM051100 22006KT P6SM VCSH SCT040 BKN100
   TEMPO 0512/0516 3SM -TSRA BR SCT020 BKN040CB
   FM051800 24008KT P6SM SCT040 BKN100
   PROB30 0521/0524 3SM -TSRA BR SCT020 BKN035CB
KMDW
EffectiveExpiresCategoryNOTAM
Domestic
8/5/26
0500Z
8/5/26
0900Z
Runway!MDW 08/064 MDW RWY 04R/22L CLSD 2608050500-2608050900
8/5/26
0200Z
8/5/26
1100Z
Runway!MDW 08/063 MDW RWY 13L/31R CLSD 2608050200-2608051100
8/4/26
1022Z
8/9/26
2359Z
!MDW 08/061 MDW NAV ILS RWY 31R DME NOT MNT 2608041022-2608092359
8/4/26
1021Z
8/7/26
2000Z
!MDW 08/060 MDW NAV LOC RWY 31R NOT MNT 2608041021-2608072000
8/4/26
0521Z
8/7/26
2359Z
Runway!MDW 08/055 MDW RWY 31R RVRR U/S 2608040521-2608072359
8/4/26
0520Z
8/7/26
2359Z
Runway!MDW 08/054 MDW RWY 13L RVRT U/S 2608040520-2608072359
8/4/26
0513Z
8/7/26
2359Z
!MDW 08/053 MDW NAV ILS RWY 13L GP NOT MNT 2608040513-2608072359
8/3/26
2033Z
9/17/26
1600Z
!MDW 08/045 MDW OBST TOWER LGT (ASN 2018-AGL-17298-OE) 414453N0875124W (5.2NM WSW MDW) 866FT (273FT AGL) U/S 2608032033-2609171600
8/2/26
0304Z
9/16/26
0602Z
!MDW 08/025 MDW OBST POLE LGT (ASN 2017-AGL-1186-OE) 414540N0874325W (2.0NM SE MDW) 708FT (91FT AGL) U/S 2608020304-2609160602
7/31/26
1336Z
8/31/26
2300Z
Runway!MDW 07/633 MDW RWY 13L/31R SAFETY AREA NOT STD NE EDGE BTN TWYS H1 & H2 2607311336-2608312300
7/29/26
2158Z
8/30/26
1600Z
!MDW 07/594 MDW TWY Y2 HLDG PSN MARKINGS FOR RWY 04R/22L SOUTHEAST SIDE OBSC 2607292158-2608301600
7/29/26
2154Z
8/30/26
1600Z
!MDW 07/592 MDW TWY Z HLDG PSN MARKINGS FOR APCH END RWY 04R NORTHWEST SIDE FADED 2607292154-2608301600
7/29/26
2148Z
8/30/26
1600Z
!MDW 07/591 MDW TWY H1 HLDG PSN MARKINGS AT RWY 13L/31R NORTHEAST SIDE FADED 2607292148-2608301600
7/29/26
2120Z
8/30/26
1600Z
!MDW 07/588 MDW TWY T SAFETY AREA BTN TWY P AND TWY E1 WEST SIDE IRREGULAR SFC 2607292120-2608301600
7/29/26
2112Z
8/30/26
1600Z
!MDW 07/586 MDW TWY U CLSD 2607292112-2608301600
7/29/26
2110Z
8/30/26
1600Z
!MDW 07/585 MDW TWY E3 ELEVATED RWY GUARD LGT FOR RWY 31R/13L U/S 2607292110-2608301600
7/29/26
2109Z
8/30/26
1600Z
!MDW 07/584 MDW TWY E3 IN PAVEMENT RWY GUARD LGT FOR RWY 31R/13L U/S 2607292109-2608301600
7/29/26
2106Z
8/30/26
1600Z
!MDW 07/583 MDW TWY E2 IN PAVEMENT RWY GUARD LGT FOR RWY 31R/13L U/S 2607292106-2608301600
7/29/26
2105Z
8/30/26
1600Z
!MDW 07/582 MDW TWY E2 ELEVATED RWY GUARD LGT AT RWY 13L/31R U/S 2607292105-2608301600
7/29/26
2101Z
8/30/26
1600Z
!MDW 07/581 MDW TWY Q HLDG PSN SIGN FOR RWY 04R/22L NOT STD 2607292101-2608301600
7/29/26
1847Z
8/31/26
1800Z
!MDW 07/578 MDW TWY W BTN APCH END RWY 13L AND TWY F EAST EDGE IRREGULAR SFC 2607291847-2608311800
7/28/26
0524Z
9/11/26
0622Z
!MDW 07/548 MDW OBST POLE LGT (ASN 2017-AGL-4578-OE) 415045N0873943W (5.4NM NE MDW) 836FT (247FT AGL) U/S 2607280524-2609110622
7/28/26
0524Z
9/11/26
0615Z
!MDW 07/547 MDW OBST POLE LGT (ASN 2016-AGL-13379-OE) 414545N0874354W (1.7NM SSE MDW) 704FT (85FT AGL) U/S 2607280524-2609110615
7/28/26
0524Z
9/11/26
0603Z
!MDW 07/546 MDW OBST POWER LINE LGT (ASN 2016-AGL-13381-OE) 414547N0874360W (1.6NM SSE MDW) 704FT (86FT AGL) U/S 2607280524-2609110603
7/28/26
0035Z
8/31/26
1100Z
Runway!MDW 07/544 MDW RWY 13L/31R SAFETY AREA SW SIDE BTN RWY 04L/22R AND TWY A NOT STD 2607280035-2608311100
7/28/26
0031Z
8/8/26
2359Z
Runway!MDW 07/543 MDW RWY 31R RWY END ID LGT U/S 2607280031-2608082359
7/27/26
0825Z
9/10/26
0608Z
!MDW 07/517 MDW OBST POWER LINE LGT (ASN 2017-AGL-4577-OE) 415042N0873950W (5.3NM NE MDW) 834FT (247FT AGL) U/S 2607270825-2609100608
7/27/26
0646Z
9/10/26
0601Z
!MDW 07/516 MDW OBST TOWER LGT (ASN 2017-AGL-9473-OE) 414511N0875222W (5.7NM WSW MDW) 837FT (235FT AGL) U/S 2607270646-2609100601
7/26/26
0523Z
9/9/26
0600Z
!MDW 07/503 MDW OBST TOWER LGT (ASN 2017-AGL-1187-OE) 414541N0874330W (1.9NM SE MDW) 707FT (90FT AGL) U/S 2607260523-2609090600
7/26/26
0512Z
9/9/26
0511Z
!MDW 07/502 MDW OBST POWER LINE LGT (ASN 2017-AGL-1199-OE) 414551N0874443W (1.4NM SSE MDW) 702FT (87FT AGL) U/S 2607260512-2609090511
7/25/26
1356Z
8/28/26
1600Z
!MDW 07/494 MDW TWY G SAFETY AREA BTN TWY Y AND TWY K WEST SIDE IRREGULAR SFC 2607251356-2608281600
7/25/26
0715Z
9/8/26
0600Z
!MDW 07/490 MDW OBST POWER LINE LGT (ASN 2017-AGL-1200-OE) 414551N0874448W (1.3NM S MDW) 702FT (87FT AGL) U/S 2607250715-2609080600
7/25/26
0714Z
9/8/26
0010Z
!MDW 07/489 MDW OBST POWER LINE LGT (ASN 2017-AGL-1188-OE) 414542N0874336W (1.9NM SE MDW) 708FT (91FT AGL) U/S 2607250714-2609080010
7/25/26
0657Z
10/10/26
2359Z
!MDW 07/488 MDW OBST TOWER LGT (ASR UNKNOWN) 414702.50N0874815.10W (2.32NM W MDW) 751FT (135FT AGL) U/S 2607250657-2610102359
7/25/26
0636Z
9/8/26
0622Z
!MDW 07/487 MDW OBST POWER LINE LGT (ASN 2017-AGL-1198-OE) 414551N0874437W (1.4NM SSE MDW) 702FT (86FT AGL) U/S 2607250636-2609080622
7/24/26
0543Z
9/7/26
0500Z
!MDW 07/457 MDW OBST POWER LINE LGT (ASN 2017-AGL-1182-OE) 414533N0874308W (2.2NM SE MDW) 707FT (89FT AGL) U/S 2607240543-2609070500
7/24/26
0528Z
9/7/26
0500Z
!MDW 07/456 MDW OBST TOWER LINE LGT (ASN 2017-AGL-1183-OE) 414536N0874312W (2.1NM SE MDW) 707FT (89FT AGL) U/S 2607240528-2609070500
7/24/26
0528Z
9/7/26
0152Z
!MDW 07/455 MDW OBST TOWER LGT (ASN 2017-AGL-1197-OE) 414551N0874432W (1.4NM SSE MDW) 703FT (86FT AGL) U/S 2607240528-2609070152
7/24/26
0527Z
9/7/26
0202Z
!MDW 07/454 MDW OBST POWER LINE LGT (ASN 2017-AGL-1189-OE) 414543N0874341W (1.8NM SE MDW) 707FT (90FT AGL) U/S 2607240527-2609070202
7/24/26
0526Z
9/7/26
0202Z
!MDW 07/453 MDW OBST POWER LINE LGT (ASN 2017-AGL-1190-OE) 414544N0874347W (1.7NM SE MDW) 703FT (84FT AGL) U/S 2607240526-2609070202
7/24/26
0524Z
9/7/26
0201Z
!MDW 07/452 MDW OBST POWER LINE LGT (ASN 2017-AGL-1196-OE) 414552N0874429W (1.4NM SSE MDW) 704FT (88FT AGL) U/S 2607240524-2609070201
7/23/26
0847Z
8/7/26
0747Z
!MDW 07/427 MDW OBST TOWER LGT (ASR 1042919) 414827.10N0874452.20W (1.3NM NE MDW) 770.0FT (174.9FT AGL) U/S 2607230847-2608070747
7/23/26
0521Z
9/6/26
0150Z
!MDW 07/421 MDW OBST WIND TURBINE LGT (ASN 2017-AGL-1194-OE) 414553N0874421W (1.4NM SSE MDW) 703FT (86FT AGL) U/S 2607230521-2609060150
7/17/26
0953Z
8/31/26
0953Z
!MDW 07/299 MDW OBST POWER LINE LGT (ASN 2017-AGL-1195-OE) 414554N0874425W (1.4NM SSE MDW) 702FT (85FT AGL) U/S 2607170953-2608310953
7/14/26
0729Z
8/30/26
2222Z
!MDW 07/240 MDW OBST POWER LINE LGT (ASN 2018-AGL-17297-OE) 414448N0875132W (5.3NM WSW MDW) 865FT (273FT AGL) U/S 2607140729-2608302222
7/12/26
0528Z
8/26/26
0603Z
!MDW 07/200 MDW OBST POWER LINE LGT (ASN 2017-AGL-1185-OE) 414539N0874321W (2.0NM SE MDW) 719FT (101FT AGL) U/S 2607120528-2608260603
7/7/26
0715Z
8/31/26
0609Z
!MDW 07/113 MDW OBST POWER LINE LGT (ASN 2017-AGL-1184-OE) 414539N0874317W (2.1NM SE MDW) 720FT (102FT AGL) U/S 2607070715-2608310609
7/6/26
0505Z
8/20/26
0603Z
!MDW 07/100 MDW OBST POWER LINE LGT (ASN 2016-AGL-13384-OE) 414552N0874416W (1.5NM SSE MDW) 704FT (86FT AGL) U/S 2607060505-2608200603
7/4/26
1759Z
8/18/26
2359Z
!MDW 07/078 MDW OBST POWER LINE (ASN 2018-AGL-4150-OE) 414510N0875221W (5.7NM WSW MDW) 813FT (212FT AGL) U/S 2607041759-2608182359
6/29/26
0438Z
8/13/26
0600Z
!MDW 06/600 MDW OBST TOWER LGT (ASN 2017-AGL-1191-OE) 414546N0874356W (1.7NM SSE MDW) 703FT (85FT AGL) U/S 2606290438-2608130600
6/25/26
0636Z
8/9/26
0608Z
!MDW 06/544 MDW OBST TOWER LGT (ASN 2017-AGL-1192-OE) 414548N0874405W (1.6NM SSE MDW) 702FT (86FT AGL) U/S 2606250636-2608090608
6/22/26
1136Z
8/6/26
1135Z
!MDW 06/461 MDW OBST TOWER LGT (ASR 1279395) 415320.70N0873736.00W (8.4NM NE MDW) 1973.1FT (1375.0FT AGL) U/S 2606221136-2608061135
6/16/26
1424Z
9/16/26
2359Z
!MDW 06/363 MDW OBST TOWER LGT (ASR 1005044) 414601.80N0873623.30W (6.6NM E MDW) 865.8FT (269.0FT AGL) U/S 2606161424-2609162359
6/11/26
0825Z
8/10/26
1212Z
!MDW 06/213 MDW OBST POWER LINE LGT (ASN 2017-AGL-1193-OE) 414550N0874411W (1.5NM SSE MDW) 703FT (86FT AGL) U/S 2606110825-2608101212
FDC
3/20/26
1411Z
!FDC 6/1586 MDW IAP CHICAGO MIDWAY INTL, CHICAGO, IL.
ILS OR LOC RWY 13L, ORIG...
TERMINAL ROUTE FROM DPA VOR/DME TO HEBKU INT NA.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
DPA VOR/DME RESTRICTED.
2603201411-2803201411EST
Yes
ALL
CITY OF CHICAGO
5700 S. CICERO
CHICAGO, IL 60638
Phone: 773-838-0608
MICHAEL MCMURRAY
10510 WEST ZEMKE ROAD
CHICAGO, IL 60666
Phone: 773-686-8060
KANKAKEE FSS (IKK)
Toll Free: 1-800-WX-BRIEF
MDW
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
Airport of Entry
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction

Runway 04L/22R

5507 ft. x 150 ft.
ASPH
Good
GRVD
MED

60,000lbs
120,000lbs
--
--
  Runway 04L Runway 22R
True Heading 43°223°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 46' 53"N 41° 47' 32"N
Longitude 87° 45' 40"W 87° 44' 50"W
Elevation 618' 605'
Threshold Crossing Height 39 ft. AGL 35 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 04R/22L

6445 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

95,000lbs
165,000lbs
250,000lbs
--
  Runway 04R Runway 22L
True Heading 43°223°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 46' 45"N 41° 47' 31"N
Longitude 87° 45' 34"W 87° 44' 35"W
Elevation 620' 605'
Threshold Crossing Height 66 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 13L/31R

6522 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

95,000lbs
165,000lbs
250,000lbs
--
  Runway 13L Runway 31R
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 47' 30"N 41° 46' 45"N
Longitude 87° 45' 40"W 87° 44' 37"W
Elevation 607' 612'
Threshold Crossing Height 47 ft. AGL 63 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights RLLS RLLS
Centerline Lights Yes Yes
Runway End Identifier Lights No Yes

Runway 13R/31L

3859 ft. x 60 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 13R Runway 31L
True Heading 134°314°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 47' 17"N 41° 46' 51"N
Longitude 87° 45' 32"W 87° 44' 55"W
Elevation 607' 613'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-15TWY A CLSD TO ACFT OVR 94 FT WINGSPAN.
A110-18TWY F CLSD TO ACFT OVR 94 FT WINGSPAN.
A110-19RY 13R/31L CLSD TO FLT OPS WHEN ACFT OVR 79 FT WINGSPAN ARE ON TWY F.
A110-2NOISE ABATEMENT PROCEDURES: ALL DEPARTURES ARE REQUESTED TO EXPEDITE CLIMB THROUGH 1500 FT MSL 2200-0600 DLY.
A110-20TWY N CLSD BTN TWY Y AND RWY 22L PAD.
A110-3ARPT CLSD TO SOLO STUDENT TRAINING.
A110-4BIRDS ON & INVOF ARPT.
A110-5CLOSE-IN OBST ALL RYS EXCEPT RY 13R/31L TOO NUMEROUS TO ITEMIZE.
A110-7RY 22L PREFERRED DEP RY 2200-0700.
A16ARPT OPNS 773-838-0677.
A26ARFF INDEX "D" EQPT AVBL WITH 8 HRS NOTIFICATION TO ARPT OPNS 773-838-0677.
A30-04L/22RRWY 04L/22R NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A30-13R/31LRWY 13R/31L NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-04L/22RPCR VALUE: 330/F/D/X/U
A39-04R/22LPCR VALUE: 685/F/D/X/U
A39-13L/31RPCR VALUE: 685/F/D/X/U
A39-13R/31LPCR VALUE: 125/R/B/X/U
A57-04LRWY 04L APCH RATIO 19:1 AT DSPLCD THLD. TREES 178 FT L 1313 FT FROM DSPLCD THLD.
A57-04RRWY 04R APCH RATIO 16:1 AT DSPLCD THLD. TREE 547 FT R 1122 FT FROM DSPLCD THLD.
A57-13LRWY 13L APCH RATIO 16:1 AT DSPLCD THLD. TREE 453 FT R 915 FT FROM DSPLCD THLD.
A57-22LRWY 22L APCH RATIO 19:1 AT DSPLCD THLD. LGT POLE 474 FT R 674 FT FROM DSPLCD THLD.
A57-22RRWY 22R APCH RATIO 37:1 AT DSPLCD THR. TREE 2490 FT FROM DSPLCD THR 319 FT L.
A57-31RRWY 31R APCH RATIO 24:1 AT DSPLCD THR. TREE 1211 FT FROM DSPLCD THR 459 FT R.
E60-04R_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 249 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 04R.
E60-13L_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 190 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 13L.
E60-22L_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 346 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 22L.
E60-31R_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 210 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 31R.
CHICAGO MIDWAY INTL (ICAO: KMDW, IATA: MDW) is a public airport located in CHICAGO, IL, US.
