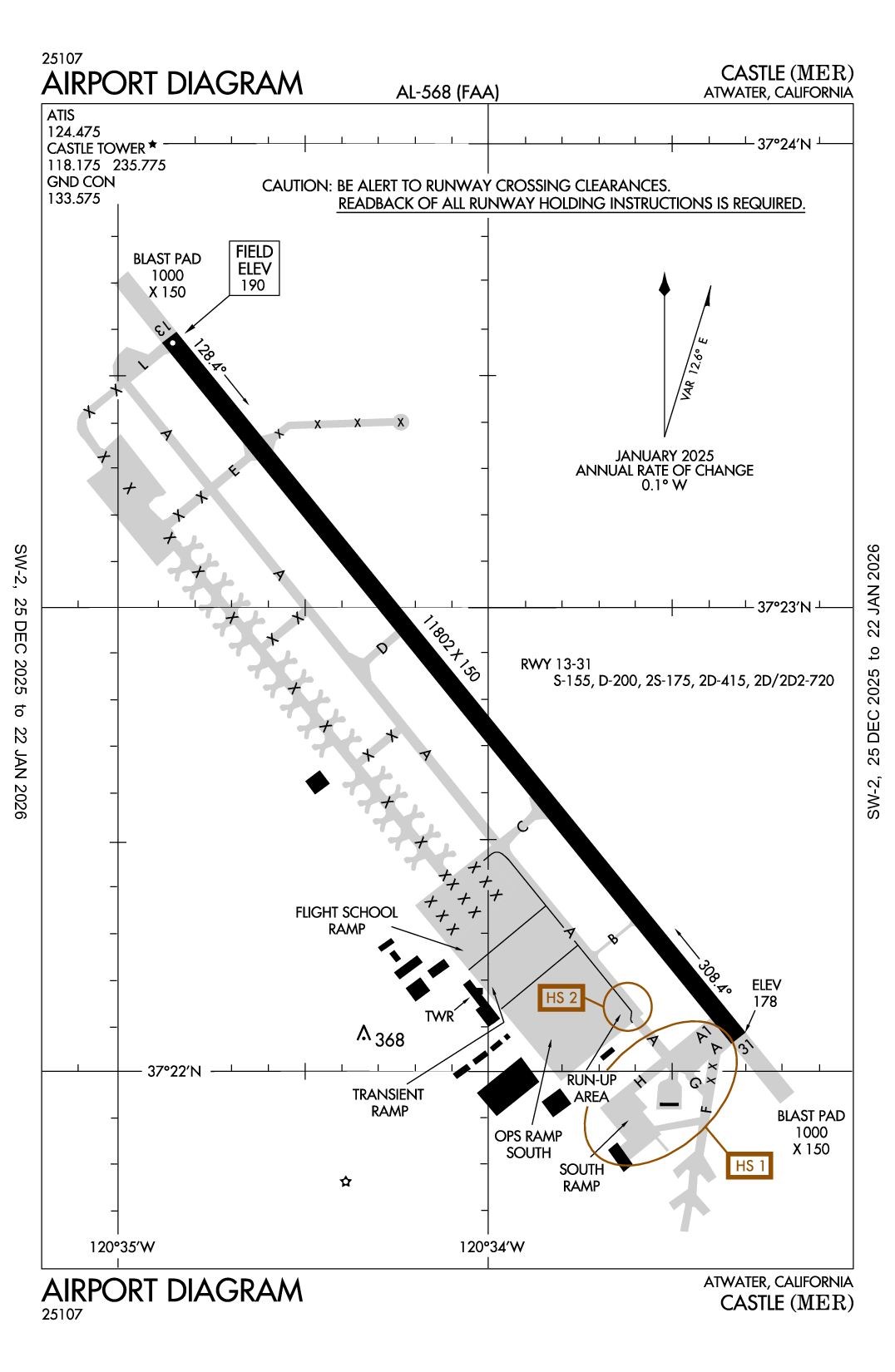

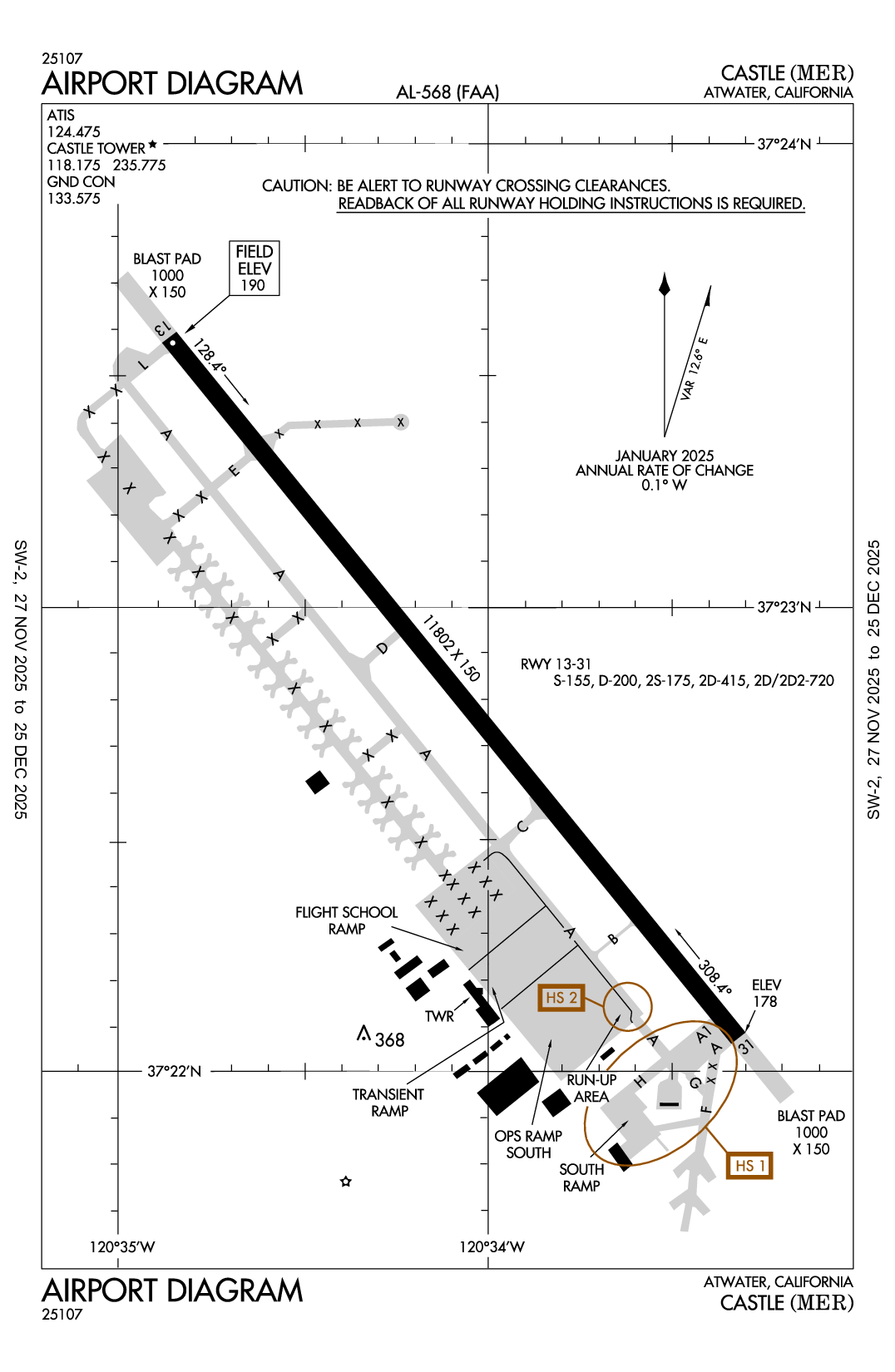

CASTLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMER
ICAO KMERIATA MERLocal MER
CASTLE
PublicPUB

3 miles NE of ATWATER, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
37° 22' 50"N 120° 34' 05"W
Elevation
190' MSL
Pattern Alt
1190' MSL
Mag Variation
13°E
Declination
15°E
Fuel
JET A, JET A-1, 100LL
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
5/14/26-6/11/26
KMER VFR
11:55 AM PDT
Clear
10sm
32°F
32°F
N/A
330° 10kts
METAR KMER 041855Z 33010KT 10SM CLR
+ Add Your Business

KMER FBOs

X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.475
AWOS-3 (209) 725-0104

Common

CTAF 118.175
WHEN ATCT CLSD ACTVT ALSF1 RWYS 13 & 31; HIRL RWY 13/31 - CTAF; 3 CLICKS ON, 5 CLICKS INCR INTST, 7 CLICKS OFF. PAPI RWYS 13 & 31 OPR CONSLY.
UNICOM 122.95

Ground

CASTLE GROUND 133.575
0700-2100

Tower

CASTLE TOWER 118.175
0700-2100

Approach

NORCAL APPROACH 120.95

Departure

NORCAL DEPARTURE 120.95

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Hotspot

Terminal Area Forecast

KMCE (6nm)
Thu, 6/4 10:20 AM PDT
Thu, 6/4 11:00 AM PDT - Fri, 6/5 11:00 AM PDT
VFR
11:00 AM PDT - 9:00 PM PDT
Sky Clear
6sm
330° 9kts
VFR
9:00 PM PDT - 11:00 AM PDT
Sky Clear
6sm
VRB° 6kts
TAF KMCE 041720Z 0418/0518 33009KT P6SM SKC
   FM050400 VRB06KT P6SM SKC
KMER
EffectiveExpiresCategoryNOTAM
Domestic
6/6/26
1400Z
6/8/26
0400Z
!MER 06/001 MER SVC TWR CLSD MNT CTAF 118.175 2606061400-2606080400
4/17/26
1427Z
!MER 04/003 MER SVC AUTOMATED WX BCST SYSTEM U/S 2604171427-2608132359EST
3/25/26
1515Z
Runway!MER 03/009 MER RWY 31 SEQUENCED FLG LGT U/S 2603251515-2609282111EST
FDC
5/27/26
1614Z
8/4/26
1614Z
!FDC 6/3270 MER IAP CASTLE, ATWATER, CA.
ILS OR LOC RWY 31, AMDT 3...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PXN VORTAC UNMONITORED. 2605271614-2608041614EST
4/10/26
1146Z
!FDC 6/0812 MER IAP CASTLE, ATWATER, CA.
RNAV (GPS) RWY 31, AMDT 1...
LNAV MDA 620/HAT 439 ALL CATS.
FAS OBST: 305 TWR (2026-AWP-6191-OE) 372027N/1203043W.
2604101146-2611201146EST
Yes
MON-FRI 0800-1700
MERCED COUNTY
2222 M STREET
MERCED, CA 95340
Phone: 209-385-7686
GEORGE CLOVER
2222 M STREET
MERCED, CA 95340
Phone: 209-617-5399
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
MER
--
WHEN ATCT CLSD ACTVT ALSF1 RWYS 13 & 31; HIRL RWY 13/31 - CTAF; 3 CLICKS ON, 5 CLICKS INCR INTST, 7 CLICKS OFF. PAPI RWYS 13 & 31 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
None
None

Runway 13/31

11802 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH

155,000lbs
200,000lbs
415,000lbs
720,000lbs
  Runway 13 Runway 31
True Heading 141°321°
Traffic Pattern Right
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 23' 35"N 37° 22' 04"N
Longitude 120° 34' 51"W 120° 33' 20"W
Elevation 190' 178'
Threshold Crossing Height 75 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights
Runway End Identifier Lights No
A11COMMUNITY & ECONOMIC DEVELOPMENT
A110-10WHEN ATCT CLSD MAX OF 5 ACFT PMTD IN VFR TFC PAT AT ANY ONE TIME AND 2000 FT CIG AND 3 MIS VIS RCMDD.
A110-11FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-0516.
A110-12TWY B CLSD TO ACFT GTR THAN 30000 LBS.
A110-2RY 13/31 180 DEGREE TURNS PROHIBITIED.
A110-3FOR ARPT INFO 209-385-7686, EXTN 4180.
A110-4RY 31 WILL BE THE DESIGNATED CALM WIND RY (WIND 5 KNOTS OR LESS).
A110-7OPPOSITE END OF RY NOT VISIBLE ON TKOF. WHEN ATCT CLSD OPPOSITE DIRECTION TAKEOFFS AND LANDINGS ARE NOT AUTHORIZED.
A110-9CIVILIAN AND MILITARY TRAINING MAY OCCASIONALLY CAUSE PATTERN CONGESTION.
A15MAILING ADDRESS
A16DESK PHONE 209-385-7686, EXTN 4180.
A30-13/311,000 FT PAVED BLAST PAD BOTH ENDS OF RY.
A49-31ALSF1 RY 13/31 SEQUENCED FLASHING LGTS OTS INDEFLY.
A70-100LLFOR FUEL FM 1800-0900 CALL (209) 725-1455.
A81-APTWHEN ATCT CLSD ACTVT ALSF1 RWYS 13 & 31; HIRL RWY 13/31 - CTAF; 3 CLICKS ON, 5 CLICKS INCR INTST, 7 CLICKS OFF. PAPI RWYS 13 & 31 OPR CONSLY.
E111NO OBJECTIONS
CASTLE (ICAO: KMER, IATA: MER) is a public airport located in ATWATER, CA, US.
