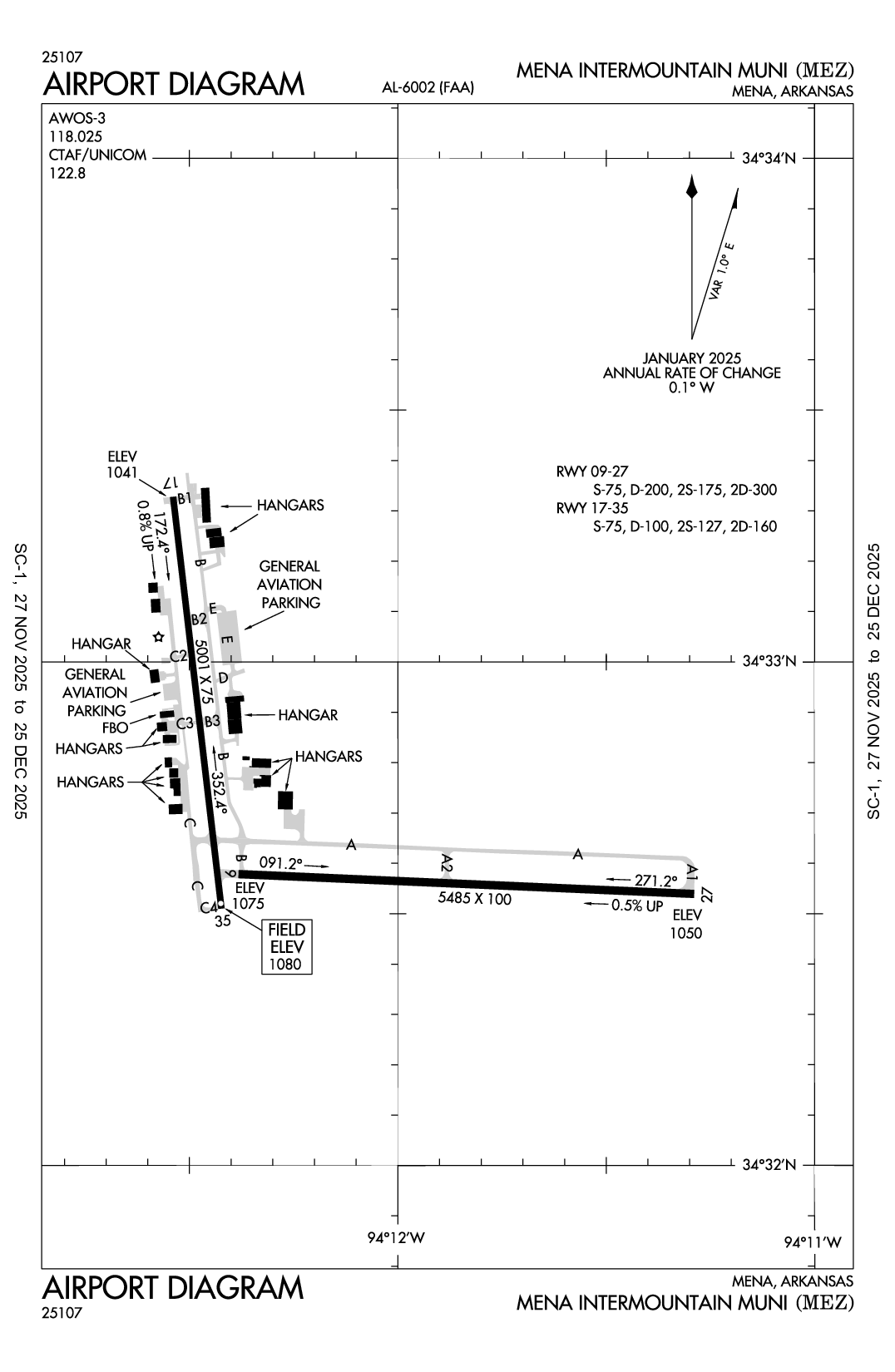

MENA INTERMOUNTAIN MUNI - Airport Diagram

KMEZ

MENA INTERMOUNTAIN MUNI

PublicPUB

2 miles SE of MENA, AR

View on Map

Status

Operational

Coordinates

34° 32' 44"N 94° 12' 09"W

Elevation

1080' MSL

Pattern Alt

2080' MSL

Mag Variation

03E

Fuel

Jet A, 100LL

FSS

JONESBORO (JBR)

Sectional

MEMPHIS

ARTCC

MEMPHIS (ZME)

Data Effective

4/18/24-5/16/24

KMEZ VFR

7:35 PM CDT RAW

Clear

Viz

8sm

Temp

71°F

Dew

65°F

Pres

30.10"Hg

Wind

Calm

RMK

AO2 T02170181

KMEZ 250035Z AUTO 00000KT 8SM CLR 22/18 A3010 RMK AO2 T02170181

List Your Business

KMEZ FBOs, Flight Schools and Ground Support

Promote Listing

Mena Air Center

Freq: 122.8

Phone: (479) 394-5800

0 Reviews (Read | Sign In To Write)

Titan

As of 4/22	100LL	Jet A	Jet A+	Mogas	UL94
Self Serve
Full Serve	6.39		5.79

KMEZ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMEZ Hotels

No hotels are listed for this airport.

KMEZ Restaurants

No restaurants are listed for this airport.

KMEZ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.

Your Information

Business

UNICOM 122.8 CTAF 122.8

AWOS-3

479-394-5149

118.025

FAA A/FD Pages

FAA A/FD Page

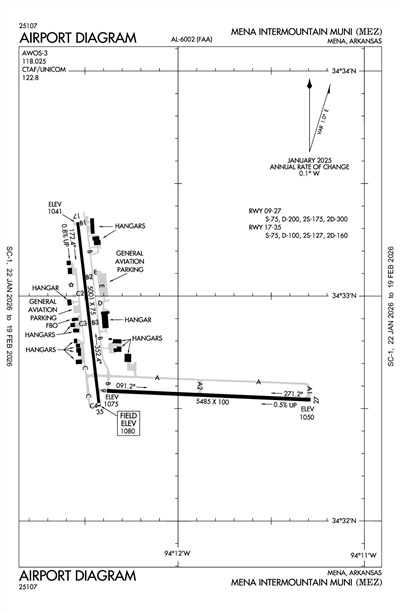

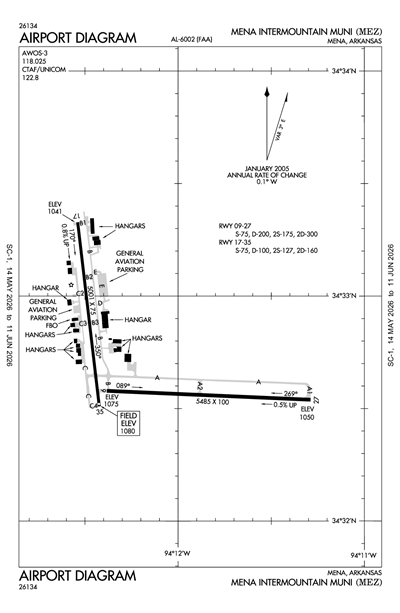

Airport Diagrams

AIRPORT DIAGRAM

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KFSM (48nm)

RAW

Reported

Wed, 4/24 6:20 PM CDT

Valid

Wed, 4/24 7:00 PM CDT - Thu, 4/25 7:00 PM CDT

VFR

7:00 PM CDT - 2:00 AM CDT

Broken 10,000'
Scattered 6,000'

Viz

6sm

Wind

090° 6kts

MVFR

Temporary 7:00 PM CDT - 9:00 PM CDT

Light Rain

Broken 5,000'

Viz

5sm

Wind

Calm

VFR

2:00 AM CDT - 7:00 AM CDT

Broken 3,500'
Scattered 2,500'

Viz

6sm

Wind

080° 7kts

MVFR

7:00 AM CDT - 1:00 PM CDT

Light Showers and Rain and Mist

Broken 2,500'

Viz

5sm

Wind

080° 8kts

MVFR

7:00 AM CDT - 1:00 PM CDT

Light Thunderstorm and Rain and Mist

Broken 1,500'

Viz

3sm

Wind

Calm

MVFR

1:00 PM CDT - 7:00 PM CDT

Broken 2,500'
Scattered 1,500'

Viz

6sm

Wind

120° 11kts

KFSM 242320Z 2500/2524 09006KT P6SM SCT060 BKN100
   TEMPO 2500/2502 5SM -RA BKN050
   FM250700 08007KT P6SM SCT025 BKN035
   FM251200 08008KT 5SM -SHRA BR BKN025
   PROB30 2512/2518 3SM -TSRA BR BKN015CB
   FM251800 12011KT P6SM SCT015 BKN025

KMEZ

Domestic
4/4/241849Z	!MEZ 04/001 MEZ OBST TOWER LGT (ASR 1038661) 343423.00N0941456.00W (2.8NM NW MEZ) 1529.2FT (404.2FT AGL) U/S 2404041849-2410092359
3/13/240234Z	!MEZ 03/001 MEZ OBST TOWER LGT (ASR 1226864) 343242.30N0941822.00W (5.1NM W MEZ) 1668.6FT (316.9FT AGL) U/S 2403130234-2408312359

ATC Tower

Attendance

DAWN-DUSK

Owner

CITY OF MENA
520 MENA ST
MENA, AR 71953
Phone: 479-394-5800

Manager

FRED OGDEN
520 MENA ST
MENA, AR 71953
Phone: 479-394-4077

FSS

JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF

NOTAM

MEZ

Light Schedule

Lights

MIRL RWYS 09/27 & 17/35 OPR SS-SR; ACTVT PAPI RWYS 09, 17 & 27 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

Low Pressure

Bulk Oxygen

None

Other Services

Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 09/27

Dimensions

5485 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

75,000lbs

Double Wheel

200,000lbs

Double Tandem

300,000lbs

Dual Dbl Tand

	Runway 09	Runway 27
True Heading	92°	272°
Traffic Pattern
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	34° 32' 35"N	34° 32' 33"N
Longitude	94° 12' 23"W	94° 11' 17"W
Elevation	1,075'	1,050'
Threshold Crossing Height	44 ft. AGL	49 ft. AGL
Visual Glide Path Angle	3.5°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

Runway 17/35

Dimensions

5001 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Excellent

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

75,000lbs

Double Wheel

100,000lbs

Double Tandem

160,000lbs

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	173°	353°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	34° 33' 20"N	34° 32' 31"N
Longitude	94° 12' 32"W	94° 12' 26"W
Elevation	1,041'	1,080'
Threshold Crossing Height	50 ft. AGL	--
Visual Glide Path Angle	3°	--
Visual Slope Indicator	P4R	--
Approach Lights
Centerline Lights
Runway End Identifier Lights		Yes

A110-1	MOUNTAINS NORTH AND SOUTH SOUTHWEST OF ARPT.
A110-2	MIGRATORY BIRDS & DEER ON & INVOF ARPT.
A110-3	FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.

MENA INTERMOUNTAIN MUNI (ICAO: KMEZ, IATA: MEZ) is a public airport located in MENA, AR.
