iFlightPlanner



...

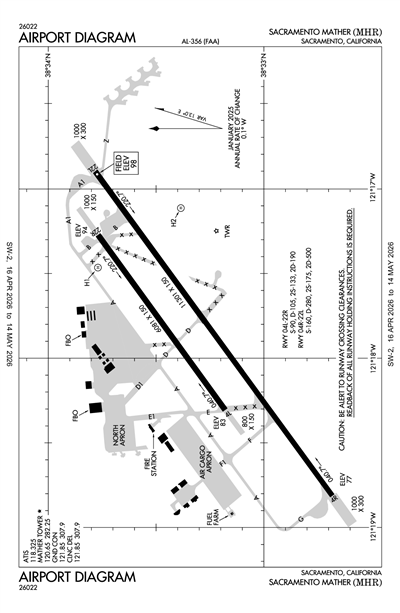

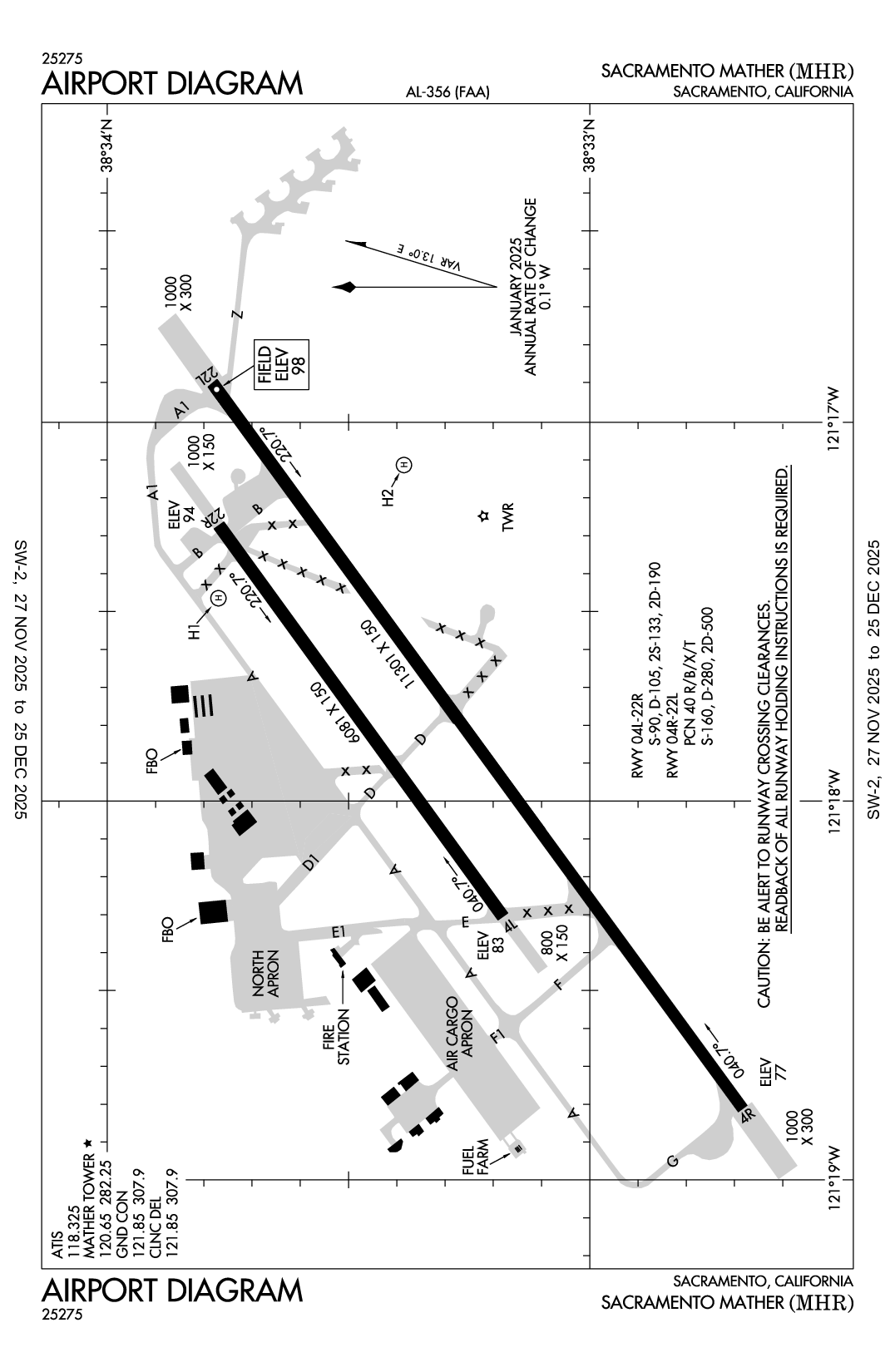

SACRAMENTO MATHER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMHR
SACRAMENTO MATHER
PublicPUB

10 miles E of SACRAMENTO, CA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 33' 19"N 121° 17' 50"W
98' MSL
1098' MSL
13E
Jet A, 100LL
RANCHO MURIETA (RIU)
SAN FRANCISCO
OAKLAND (ZOA)
9/8/22-10/6/22
KMHR VFR
10:35 PM PDT
Clear
10sm
64°F
55°F
29.93"Hg
140° 4kts
A01
KMHR 050535Z AUTO 14004KT 10SM CLR 18/13 A2993 RMK A01
List Your Business

KMHR FBOs, Flight Schools and Ground Support

Promote Listing
Modern Aviation
Freq: 122.95
Phone: (916) 428-8292 x3
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 10/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve
Full Serve 9.36 9.99 10.06

KMHR Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KMHR Hotels

No hotels are listed for this airport.

KMHR Restaurants

No restaurants are listed for this airport.

KMHR Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.65

ATIS

ATIS
 118.325

AWOS-3PT

AWOS-3PT
916-366-3371
 118.325

Clearance Delivery

CD/P
 121.85

Ground

GND/P
 121.85

Tower

LCL/P
 120.65

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KMHR
Tue, 10/4 10:20 PM PDT
Tue, 10/4 11:00 PM PDT - Wed, 10/5 11:00 PM PDT
VFR
11:00 PM PDT - 11:00 PM PDT
Sky Clear
> 6sm
VRB° 5kts
KMHR 050520Z 0506/0606 VRB05KT P6SM SKC
KMHR
Domestic
10/11/220400Z !MHR 10/013 MHR SVC TWR CLSD MNT CTAF 120.65 2210110400-2210111300
10/10/220300Z !MHR 10/007 MHR SVC TWR CLSD MNT CTAF 120.65 2210100300-2210101200
10/9/220300Z !MHR 10/005 MHR SVC TWR CLSD MNT CTAF 120.65 2210090300-2210091300
10/8/220400Z !MHR 10/006 MHR SVC TWR CLSD MNT CTAF 120.65 2210080400-2210081300
10/7/220400Z !MHR 10/014 MHR SVC TWR CLSD MNT CTAF 120.65 2210070400-2210071200
10/6/220300Z !MHR 10/015 MHR SVC TWR CLSD MNT CTAF 120.65 2210060300-2210061200
10/5/220300Z !MHR 10/012 MHR SVC TWR CLSD MNT CTAF 120.65 2210050300-2210051300
9/27/222204Z !MHR 09/067 MHR RWY 04R/22L CLSD TO PLA 2209272204-2210052000
9/27/222204Z !MHR 09/066 MHR RWY 04L/22R CLSD TO PLA 2209272204-2210052000
9/23/221500Z !MHR 09/044 MHR TWY D1 CLSD 2209231500-2210052100
9/23/221500Z !MHR 09/043 MHR TWY D BTN RWY 04L/22R AND TWY A CLSD 2209231500-2210052100
9/23/221500Z !MHR 09/042 MHR TWY A BTN TWY E AND GA RAMP CLSD 2209231500-2210052100
9/23/220831Z !MHR 09/045 MHR RWY 04R/22L NE 3287FT WIP MAINT ADJ NE EDGE DLY SR-SS
2209230831-2210112300
9/22/221949Z !MHR 09/047 MHR OBST RIG (ASN UNKNOWN) 383327N1211727W (0.54NM W APCH END RWY 22L)
104FT (6FT AGL) LGTD 2209221949-2210112200
9/22/221946Z !MHR 09/046 MHR OBST RIG (ASN UNKNOWN) 383326N1211715W (0.54NM W APCH END RWY 22L)
104FT (6FT AGL) LGTD 2209221946-2210112200
8/11/221601Z !MHR 08/022 MHR RWY 04L/22R MIRL DECOMMISSIONED 2208111601-PERM
1/19/220501Z !MHR 01/013 MHR AD AP RDO ALTIMETER UNREL. AUTOLAND, HUD TO TOUCHDOWN, ENHANCED FLT VISION SYSTEMS TO TOUCHDOWN, HEL OPS REQUIRING RDO ALTIMETER DATA TO INCLUDE HOVER AUTOPILOT MODES AND CAT A/B/PERFORMANCE CLASS TKOF AND LDG NOT AUTHORIZED EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190501-2401190501
FDC
10/4/221502Z !FDC 2/7618 MHR IAP SACRAMENTO MATHER, SACRAMENTO, CA.
ILS OR LOC RWY 22L, AMDT 7A...
ILS RWY 22L (SA CAT I AND II), AMDT 7A...
NOTE: AUTOPILOT COUPLED APPROACH NA BELOW 380 MSL.
S-ILS 22L (SA CAT II) NA.
2210041502-2410041502EST
1/19/220500Z !FDC 2/3780 MHR IAP SACRAMENTO MATHER, SACRAMENTO, CA.
ILS RWY 22L (SA CAT I - II), AMDT 7A ...
PROCEDURE NA EXC FOR ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVES 2021-23-12, 2021-23-13 2201190500-2401190506EST
Yes
MON 0500-2330
TUE-FRI 0300-2330
SAT 0300-2100
SUN 0500-2100
COUNTY OF SACRAMENTO
6900 AIRPORT BLVD.
SACRAMENTO, CA 95837
Phone: 916-875-7077
JOHN PIRES
10425 NORDEN AVE
MATHER, CA 95655
Phone: 916-875-6760
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
MHR
--
WHEN ATCT CLSD ACTVT MIRL RY 04L/22R, HIRL RY 04R/22L, VASI RYS 04R, 22L AND MALSR RY 22L - CTAF.
Clear-Green
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
10
1
0
0
41
0
Major
Major
None
Low Pressure
Air Freight
Cargo Handling

Runway 04L/22R

6081 ft. x 150 ft.
ASPH
Good

MED

90,000lbs
105,000lbs
190,000lbs
--
  Runway 04L Runway 22R
True Heading 54°234°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 33' 11"N 38° 33' 46"N
Longitude 121° 18' 18"W 121° 17' 17"W
Elevation 81' 94'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 04R/22L

11301 ft. x 150 ft.
ASPH CONC
Good

HIGH

160,000lbs
280,000lbs
500,000lbs
--
  Runway 04R Runway 22L
True Heading 54°234°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 38° 32' 41"N 38° 33' 47"N
Longitude 121° 18' 49"W 121° 16' 54"W
Elevation 77' 98'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights

Runway H1

30 ft. x 30 ft.
ASPH
Fair



--
--
--
--
  Runway H1 Runway
True Heading 69°249°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 33' 46"N N/A
Longitude 121° 17' 29"W N/A
Elevation 95' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

100 ft. x 100 ft.
ASPH
Fair



--
--
--
--
  Runway H2 Runway
True Heading 69°249°
Traffic Pattern
Markings
Markings Condition
Latitude 38° 33' 22"N N/A
Longitude 121° 17' 08"W N/A
Elevation 92' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10BE ADVISED RY 4L THLD LGTS ARE NON-STANDARD.
A110-11FOR CD WHEN ATCT IS CLSD CTC NORCAL APCH AT 916-361-6874.
A110-12TWY D1 CLSD TO ACFT WITH WINGSPAN MORE THAN 69 FT.
A110-2RY 22L CALM WIND RY.
A110-3BE ALERT FOR LARGE TRANSPORT ACFT TKOFS & LNDGS AND HIGH PERFORMANCE MILITARY T-38 JETS.
A110-5AVOID NOISE SENSITIVE RESIDENTIAL AREAS NORTH/EAST OF RY 22L ILS FINAL APCH COURSE. TURBOJET NIGHTTIME NOISE ABATEMENT ARRIVAL AND DEPARTURE PROCEDURES IN EFFECT 2200-0700 DAILY.
A110-6PILOT INFORMATION ON NOISE ABATEMENT (916) 874-0359.
A110-7TWY D LTD TO ACFT WITH MAX GWT 50000 LBS OR LESS. TWY D1 LTD TO ACFT WITH MAX GWT OF 50000 LBS OR LESS.
A110-8BIRDS INVOF OF ARPT.
A110-9ACFT ENTERING RY 22R TFC PAT FM THE NORTH SHOULD EXPECT TO FLY BASE LEG EXTENDED 2 MILES FM RY THLD.
SACRAMENTO MATHER (ICAO: KMHR, IATA: MHR) is a public airport located in SACRAMENTO, CA.
