iFlightPlanner



...

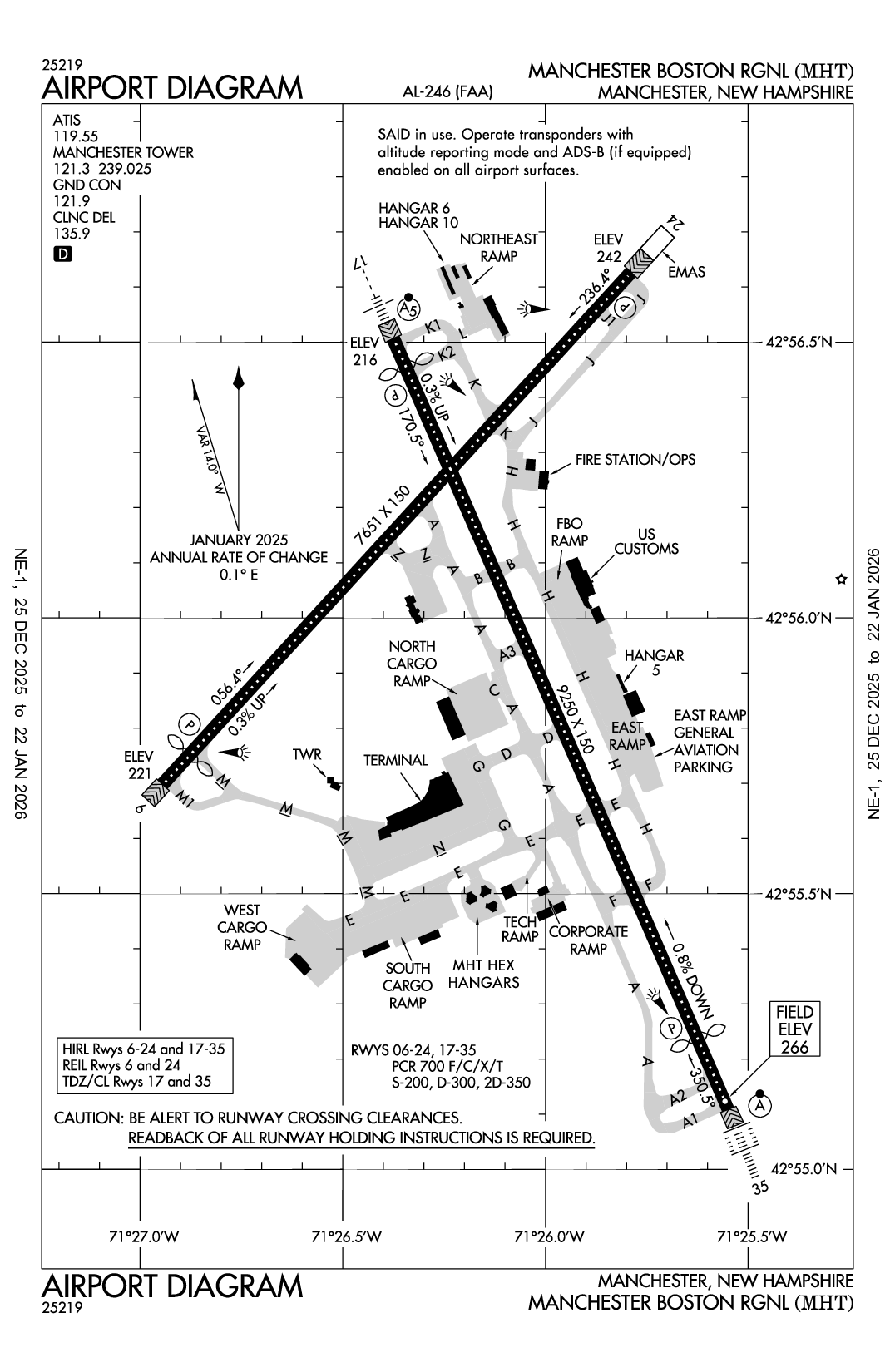

MANCHESTER BOSTON RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMHT
ICAO KMHTIATA MHTLocal MHT
MANCHESTER BOSTON RGNL
PublicPUB

3 miles S of MANCHESTER, NH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 55' 58"N 71° 26' 09"W
Elevation
266' MSL
Pattern Alt
1266' MSL
Mag Variation
14°W
Declination
15°W
Fuel
JET A, 100LL
FSS
BANGOR (BGR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
8/6/26-9/3/26
KMHT IFR
9:53 AM EDT
Light Rain and Mist
Overcast 500'
4sm
65°F
63°F
29.87"Hg
Calm
AO2 RAB44 SLP125 P0000 T01830172
METAR KMHT 231353Z 00000KT 4SM -RA BR OVC005 18/17 A2987 RMK AO2 RAB44 SLP125 P0000 T01830172
+ Add Your Business

KMHT FBOs

Promote Listing
Signature Aviation
ASRI: 130.325, UNICOM: 130.325
Phone: (603) 782-0151
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 8/20
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 8.99 8.44
Fuel Notes
Prices include tax

KMHT Aircraft Service & Maintenance

Promote Listing
Pro Star Aviation
Phone: (603) 627-7827
Fax: (603) 627-7801
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.55
(603) 626-6902
ASOS 119.55
(603) 626-6902

Common

UNICOM 122.95

Clearance

Clearance Delivery 135.9

Ground

MANCHESTER GROUND 121.9

Tower

MANCHESTER TOWER 121.3

Approach

BOSTON APPROACH 124.9

Departure

BOSTON DEPARTURE 124.9

Emergency

Emergency 121.5

Other

CLASS C 124.9
MANCHESTER/CONCORD AREA
CLASS C 125.05
NH SEACOAST AREA
CLASS C 134.75
NH LAKES REGION

Terminal Area Forecast

KMHT
Sun, 8/23 7:20 AM EDT
Sun, 8/23 8:00 AM EDT - Mon, 8/24 8:00 AM EDT
LIFR
8:00 AM EDT - 10:00 AM EDT
Mist
Overcast 300'
2sm
100° 3kts
MVFR
10:00 AM EDT - 2:00 PM EDT
Mist
Overcast 1,000'
6sm
110° 7kts
MVFR
2:00 PM EDT - 6:00 PM EDT
Overcast 1,500'
6sm
130° 5kts
MVFR
6:00 PM EDT - 11:00 PM EDT
Light Showers and Rain and Mist
Broken 1,500'
4sm
130° 7kts
IFR
11:00 PM EDT - 8:00 AM EDT
Mist
Broken 500'
2sm
VRB° 3kts
TAF KMHT 231120Z 2312/2412 10003KT 2SM BR OVC003
   FM231400 11007KT 6SM BR OVC010
   FM231800 13005KT P6SM OVC015
   FM232200 13007KT 4SM -SHRA BR BKN015
   FM240300 VRB03KT 2SM BR BKN005
KMHT
EffectiveExpiresCategoryNOTAM
Domestic
8/17/26
1123Z
8/26/26
2359Z
!MHT 08/053 MHT NAV ILS RWY 06 GP NOT MNT 2608171123-2608262359
8/12/26
1430Z
9/7/26
2200Z
!MHT 08/045 MHT TWY G BTN TWY D AND ABEAM JETWAY GATE 14 CLSD 2608121430-2609072200
8/12/26
1430Z
9/7/26
2200Z
!MHT 08/044 MHT TWY D BTN TWY A AND TWY G CLSD 2608121430-2609072200
8/1/26
1745Z
!MHT 08/003 MHT NAV ILS RWY 35 IM U/S 2608011745-2609032359EST
8/1/26
1742Z
!MHT 08/002 MHT NAV ILS RWY 35 MM U/S 2608011742-2609032359EST
7/17/26
0955Z
8/31/26
0955Z
!MHT 07/040 MHT OBST TOWER LGT (ASN 2020-ANE-5582-OE) 425432N0712460W (1.7NM SSE MHT) 365FT (40FT AGL) U/S 2607170955-2608310955
7/10/26
1531Z
9/10/26
1530Z
!MHT 07/025 MHT OBST TOWER LGT (ASR 1011108) 425603.00N0712515.00W (0.7NM E MHT) 510.2FT (120.1FT AGL) U/S 2607101531-2609101530
6/29/26
1313Z
10/27/26
1313Z
!MHT 06/101 MHT OBST TOWER LGT (ASR 1061764) 425328.60N0711845.30W (5.9NM ESE MHT) 447.5FT (198.8FT AGL) U/S 2606291313-2610271313
6/26/26
0409Z
12/31/26
2100Z
!MHT 06/094 MHT APRON EAST RAMP S 500FT CLSD 2606260409-2612312100
3/4/26
2103Z
!MHT 03/074 MHT NAV ILS RWY 06 OM U/S 2603042103-2609302359EST
FDC
8/18/26
1200Z
8/24/26
1800Z
!FDC 6/5537 MHT IAP MANCHESTER BOSTON RGNL, MANCHESTER, NH.
ILS OR LOC RWY 35, AMDT 5...
ILS RWY 35 (SA CAT I), AMDT 5...
ILS RWY 35 (CAT II-III), AMDT 5...
S-LOC 35 NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
RADAR REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
XOHWI FIX MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
VDP NA, I-MHT DME OUT OF SERVICE.
2608181200-2608241800EST
8/10/26
1948Z
8/28/26
1948Z
!FDC 6/3485 MHT ODP MANCHESTER BOSTON RGNL, MANCHESTER, NH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 10B...
TAKEOFF OBSTACLE NOTES: RWY 17, TEMPORARY CRANE, 2929FT FROM DER, 1010FT LEFT OF CENTERLINE, 50 AGL/351 MSL (2025-ANE-8-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2608101948-2608281948EST
4/11/25
1619Z
!FDC 5/5435 MHT IAP MANCHESTER BOSTON RGNL, MANCHESTER, NH.
RNAV (RNP) Z RWY 17, AMDT 1A...
RNP 0.11 DA 614/HAT 385 ALL CATS.
(PERM OBST: BLDG 33-031921, TRANSMISSION LINE 33-035982).
2504111619-2704151619EST
Yes
ALL
CITY OF MANCHESTER
CITY HALL
MANCHESTER, NH 03101
Phone: 603-624-6539
THOMAS J. MALAFRONTE
1 AIRPORT RD SUITE 300
MANCHESTER, NH 03103
Phone: 603-624-6539
BANGOR FSS (BGR)
Toll Free: 1-800-WX-BRIEF
MHT
Sunset to Sunrise
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental

Runway 06/24

7651 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

200,000lbs
300,000lbs
350,000lbs
--
  Runway 06 Runway 24
True Heading 42°222°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 42° 55' 42"N 42° 56' 38"N
Longitude 71° 26' 57"W 71° 25' 47"W
Elevation 221' 242'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes

Runway 17/35

9250 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

200,000lbs
300,000lbs
350,000lbs
--
  Runway 17 Runway 35
True Heading 157°337°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 42° 56' 30"N 42° 55' 07"N
Longitude 71° 26' 22"W 71° 25' 33"W
Elevation 216' 266'
Threshold Crossing Height 67 ft. AGL 68 ft. AGL
Visual Glide Path Angle 3.1° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-10AIR CARRIER ACFT ONLY PERMITTED TO OPR ON AIRLINE TERMINAL RAMP.
A110-16JET ACFT TAXIING WB ACRS RWY 17/35 AT TWY E MUST USE CTN & LOW SETTINGS DUE TO LGT ACFT PRKG ON E RAMP.
A110-17NO TAXIING BTWN PUSHED BACK ACFT & THE AIRLINE TERMINAL OR CARGO RAMPS.
A110-2AIR CARRIERS EXCLUDED FM OPERATING ON TWY L.
A110-40TWY A SAFETY AREA S OF TWY E TO TWY A2 IS 65 FT.
A110-41ACFT WITH WINGSPAN GREATER THAN 124 FT RSTRD FM TWY G AND TWY N.
A110-42AMMON RAMP RSTRD TO ACFT WITH WINGSPAN LESS THAN 118 FT. ACFT ARE REQ TO MNTN TAXILANE CNTRLN TO AVOID PARKED GA ACFT TIEDOWNS. ACFT WITH WINGSPAN 118 FT OR GTR REQ GND CREW ASSISTANCE FOR TAXI & PRKG.
A110-6NO TGLS PERMITTED DURG SNOW REMOVAL OPNS.
A110-8NOISE ABATEMENT PROCEDURES: TURBOJET ACFT SHOULD EXPECT A RIGHT TURN WHEN DEPARTING RY 17.
A110-9ACFT NOT PERMITTED TO TAXI BETWEEN AIRLINE TERMINAL BLDG & ACFT THAT HAVE PUSHED BACK OR ARE TAXIING ON TWY G OR N.
A39-06/24PCR VALUE: 700/F/C/X/T
A39-17/35PCR VALUE: 700/F/C/X/T
A43-06PAPI UNUSBL BYD 6 DEGS R OF CNTRLN.
E111ESTAB PRIOR TO 1959. HEL ASP: VFR WX OPNS ONLY.
E60-06_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 300 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 06.
MANCHESTER BOSTON RGNL (ICAO: KMHT, IATA: MHT) is a public airport located in MANCHESTER, NH, US.
