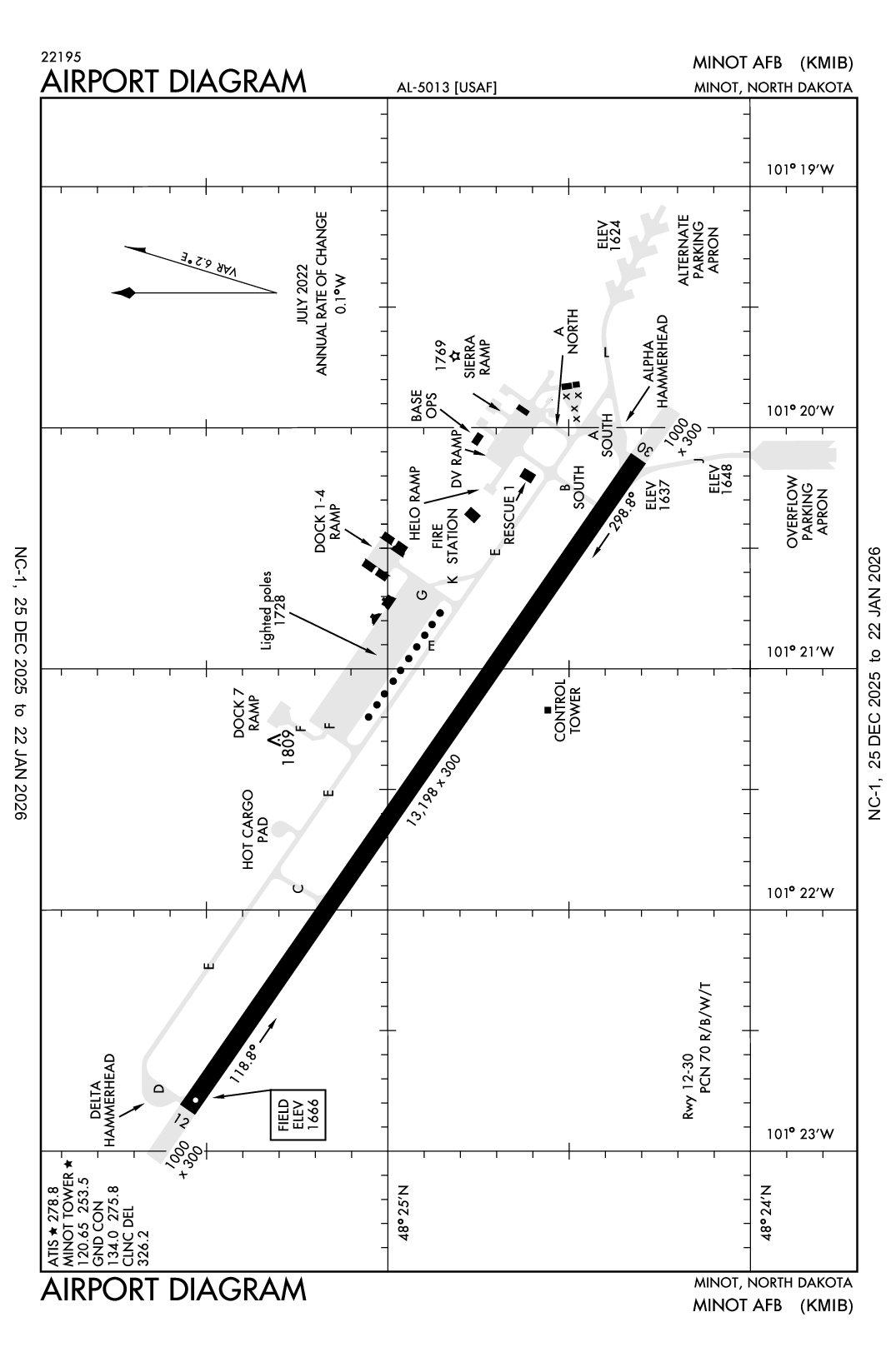

MINOT AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMIB
ICAO KMIBIATA MIBLocal MIB
MINOT AFB
PrivatePVT

10 miles N of MINOT, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 24' 57"N 101° 21' 29"W
Elevation
1666' MSL
Pattern Alt
2666' MSL
Mag Variation
6°E
Declination
7°E
Fuel
None Listed
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
6/11/26-7/9/26
KMIB VFR
5:55 PM CDT
Scattered 6,000'
10sm
74°F
51°F
29.96"Hg
160° 9kts
AO2A SLP151 T02330103 $
METAR KMIB 252255Z 16009KT 10SM SCT060 23/10 A2996 RMK AO2A SLP151 T02330103 $
+ Add Your Business

KMIB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS AN/FMQ-19 OWNED BY USAF.

Ground

MINOT GROUND 134.0
OPERATES 24 HRS FROM 1200Z++ MON THRU 0400Z++ FRI. SAT & SUN 1500-2300Z++.

Tower

MINOT TOWER 120.65
OPERATES 24 HRS FROM 1200Z++ MON THRU 0400Z++ FRI. SAT & SUN 1500-2300Z++.

Approach

MINOT APPROACH 118.15
MINOT APPROACH 119.6

Departure

MINOT DEPARTURE 119.6

Emergency

Emergency 121.5

Terminal Area Forecast

KMIB
Thu, 6/25 6:00 PM CDT
Thu, 6/25 6:00 PM CDT - Fri, 6/26 6:00 PM CDT
VFR
6:00 PM CDT - 2:00 AM CDT
Scattered 6,000'
6sm
29.91"Hg
160° 9kts
VFR
Becoming 2:00 AM CDT - 9:00 AM CDT
Broken 6,000'
6sm
29.91"Hg
100° 9kts
VFR
Becoming 9:00 AM CDT - 3:00 PM CDT
Light Showers and Rain
Broken 8,000'
5.59sm
29.91"Hg
120° 10kts
Gusts 20kts
VFR
Becoming 3:00 PM CDT - 6:00 PM CDT
Broken 8,000'
6sm
29.91"Hg
120° 15kts
Gusts 25kts
TAF AMD KMIB 252300Z 2523/2623 16009KT 9999 SCT060 QNH2991INS
   BECMG 2607/2608 10009KT 9999 BKN060 QNH2991INS
   BECMG 2614/2615 12010G20KT 9000 -SHRA BKN080 QNH2990INS
   BECMG 2620/2621 12015G25KT 9999 NSW BKN080 QNH2990INS TX23/2523Z TN08/2609Z
KMIB
EffectiveExpiresCategoryNOTAM
Military
6/29/26
1159Z
6/30/26
0530Z
ALTERNATE AIRFIELD HOURS 29 JUN FROM 0700L-0030L (1200Z-0530Z)
6/26/26
1159Z
6/26/26
2301Z
AerodromeAERODROME CLOSED WITHIN PUBLISHED HOURS 26 JUN 26 0700L-1800L (1200Z-2300Z)
6/25/26
2100Z
7/31/26
2359Z
TaxiwayTWY E CENTERLINE MARKINGS FADED LACKING RETRO-REFLECTIVITY
6/25/26
2100Z
6/26/26
0700Z
ALTERNATE AIRFIELD HOURS 25 JUN FROM 1600L - 0200L (2100Z - 0700Z)
6/25/26
2059Z
6/28/26
2059Z
M0782/26 NOTAMC M0492/26
6/25/26
2059Z
8/28/26
2359Z
MASS PARKING SPOT B-16 TOW IN/TOW OUT ONLY.
6/25/26
2058Z
6/28/26
2058Z
M0780/26 NOTAMC M0496/26
6/25/26
2057Z
6/28/26
2057Z
M0778/26 NOTAMC M0494/26
6/25/26
2057Z
8/28/26
2359Z
OBST RADIO TOWER LOCATED AT 4758N10035W OBSTRUCTION LIGHT UNLIT.
6/25/26
2055Z
8/28/26
2359Z
MASS PARKING SPOT B-14 TOW IN/TOW OUT ONLY.
6/25/26
2054Z
6/28/26
2054Z
M0776/26 NOTAMC M0519/26
6/25/26
2053Z
6/28/26
2053Z
M0774/26 NOTAMC M0488/26
6/25/26
2053Z
7/31/26
2359Z
HELO YIELD MARKINGS FADED LACKING RETRO-REFLECTIVITY.
6/25/26
2052Z
8/28/26
2359Z
BALL PARK LIGHT LOCATED 4825N10121W OBSTRUCTION LIGHT UNLIT
6/25/26
2051Z
6/28/26
2051Z
M0772/26 NOTAMC M0490/26
6/25/26
0633Z
6/28/26
0633Z
M0771/26 NOTAMC M0740/26
6/25/26
0504Z
6/28/26
0504Z
M0770/26 NOTAMC M0769/26
6/24/26
2059Z
7/24/26
2359Z
M0768/26 NOTAMN Q) ZMP/QFFCH/IV/NBO/A/000/999/4824N10121W005 A) KMIB B) 2606242059 C) 2607242359 E) AERODROME REDUCED AIRCRAFT FIRE FIGHTING CAPABILITIES DUE TO REDUCED MANPOWER AND FIREFIGHTING AGENT. NFPA CATEGORIES 3 RLS (YELLOW) & 8 CLS (RED). FOR ALL OTHER NFPA CATEGORIES OR FOR MORE INFORMATION PLEASE CONTACT AIRFIELD MANAGEMENT 701-723-2347
6/24/26
2058Z
6/27/26
2058Z
M0767/26 NOTAMC M0755/26
6/24/26
1822Z
6/27/26
1822Z
M0766/26 NOTAMC M0762/26
6/24/26
1430Z
6/27/26
1430Z
M0765/26 NOTAMC M0760/26
6/24/26
0640Z
6/27/26
0640Z
M0764/26 NOTAMC M0752/26
6/24/26
0501Z
6/27/26
0501Z
M0763/26 NOTAMC M0761/26
6/24/26
0006Z
6/27/26
0006Z
M0759/26 NOTAMC M0758/26
6/23/26
2113Z
6/26/26
2113Z
M0757/26 NOTAMC M0756/26
6/23/26
1703Z
6/26/26
1703Z
M0754/26 NOTAMC M0698/26
6/22/26
2351Z
6/25/26
2351Z
M0750/26 NOTAMC M0745/26
6/22/26
2301Z
6/25/26
2301Z
M0749/26 NOTAMC M0748/26
6/22/26
2123Z
6/25/26
2123Z
M0746/26 NOTAMC M0744/26
6/22/26
2116Z
6/25/26
2116Z
M0743/26 NOTAMC M0738/26
6/22/26
2116Z
6/25/26
2116Z
M0742/26 NOTAMC M0739/26
6/22/26
0500Z
7/22/26
0500Z
AerodromeAERODROME USE CAUTION: UAS OPERATIONS TAKING PLACE OVER ZONES A, B, C & D. FROM 22 JUNE 26 - 22 JULY 26 FROM 0001L-2359L. MAX HEIGHT 400FT AGL.
6/9/26
1314Z
7/31/26
2359Z
12 LOCALIZER OBSTRUCTION LIGHT UNLIT.
6/1/26
1243Z
7/31/26
2359Z
OBST RADIO TOWER LOCATED AT 4758N10213W OBSTRUCTION LIGHT UNLIT.
5/28/26
1714Z
7/31/26
0359Z
Apron!KMIB M0638/26 MIB APRON DOCKS 1-4 RAMP CL FADED AND LACKING RETRO REFLECTIVITY. 2605281714-2607310359
5/28/26
1713Z
7/31/26
0359Z
M0637/26 NOTAMN Q) ZMP/QMMXX/V/M/A/000/999/4824N10121W005 A) KMIB B) 2605281713 C) 2607310359 E) TWY G TWY CENTERLINE MARKINGS FADED AND LACKING RETRO REFLECTIVITY.
5/28/26
1712Z
7/31/26
0359Z
Taxiway!KMIB M0636/26 MIB TWY TOWWAY F CL MARKINGS FADED AND LACKING RETRO REFLECTIVITY. 2605281712-2607310359
5/28/26
1710Z
7/31/26
0359Z
Taxiway!KMIB M0635/26 MIB TWY D CL MARKINGS FADED AND LACKING RETRO REFLECTIVITY. 2605281710-2607310359
5/28/26
1709Z
7/31/26
0359Z
MASS PARKING APRON TAXILANE CENTERLINE MARKING FADED AND LACKING RETRO REFLECTIVITY.
5/28/26
1707Z
7/31/26
0359Z
M0633/26 NOTAMN Q) ZMP/QMMXX/V/M/A/000/999/4824N10121W005 A) KMIB B) 2605281707 C) 2607310359 E) TWY K TWY CENTERLINE MARKINGS FADED AND LACKING RETRO REFLECTIVITY.
5/28/26
1653Z
7/31/26
0359Z
M0632/26 NOTAMN Q) ZMP/QMMXX/V/M/A/000/999/4824N10121W005 A) KMIB B) 2605281653 C) 2607310359 E) TWY A SOUTH HOLDING POSITION MARKINGS FOR ILS MARKINGS SOUTH SIDE FADED AND LACKING RETRO REFLECTIVITY.
5/28/26
1650Z
7/31/26
0359Z
M0631/26 NOTAMN Q) ZMP/QMMXX/V/M/A/000/999/4824N10121W005 A) KMIB B) 2605281650 C) 2607310359 E) TWY A SOUTH TWY CENTERLINE MARKINGS SOUTH SIDE FADED AND LACKING RETRO REFLECTIVITY.
5/28/26
1649Z
7/31/26
0359Z
TaxiwayTWY B NORTH AND SOUTH CENTERLINE FADED AND LACKING RETRO REFLECTIVITY.
5/28/26
1646Z
7/31/26
0359Z
Runway!KMIB M0629/26 MIB RWY 12/30 CL MARKINGS OBSC DUE TO RUBBER BUILD UP 2605281646-2607310359
5/19/26
1311Z
6/27/26
0001Z
TaxiwayTWY L CLSD FROM TWY E TO THE APA, EFFECTIVE 26 MAY 1000Z TO 27 JUNE 0000Z (26 MAY 0500L TO 26 JUNE 1900L)
5/19/26
1117Z
6/27/26
0001Z
Apron!KMIB M0595/26 MIB APRON ALTERNATE PARKING APRON CLSD FROM 26 MAY 1000Z TO 27 JUNE 0000Z (26 MAY 0500L TO 26 JUNE 1900L) 2605191117-2606270001
5/15/26
0328Z
7/1/26
0459Z
BASH PHASE 1 IN EFFECT FROM 18 MAY 1200Z TO 30 JUNE 0459Z (18 MAY 0700L TO 30 JUNE 2359L)
5/6/26
1330Z
7/24/26
2200Z
USE CAUTION: SUAS OPERATIONS TAKING PLACE IN ZONE D LOCATED AT 4826N10121W. MAX HEIGHT 250FT/76.2M AGL. STARTING 06 MAY 26 - 24 JULY 26. TIMES OF OPERATION ARE MONDAY - FRIDAY FROM 0830L (1330Z) - 1700L (2200Z)
Yes
MON-FRI
SAT &SUN
OPR 1300-0500Z++ MON-THUR; 1300-2400Z++ FRI; CLSD SAT, SUN, AFGSC APPROVED DOWN DAYS, AND FEDERAL HOL EXC BY NOTAM.
OTHER TIMES BY NOTAM.
USAF
MINOT AFB
MINOT, ND 58701
BASE OPERATIONS
MINOT AFB
MINOT, ND 58701
Phone: 701-723-2644
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
MIB
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Cargo Handling

Runway 12/30

13198 ft. x 300 ft.
ASPH
CONC
GRVD
HIGH
70/R/B/W/T
--
--
--
--
  Runway 12 Runway 30
True Heading 125°305°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 48° 25' 34"N 48° 24' 19"N
Longitude 101° 22' 49"W 101° 20' 09"W
Elevation 1,666' 1,637'
Threshold Crossing Height 47 ft. AGL 49 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10JASU: 9(MD-3A) 2(M32A-60A) (MA-1A)
A110-12FLUID: SP PRESAIR DE-ICE-EXP POSSIBLE DELAY WKEND. LOX LHOX LHNIT
A110-13OIL: O-133-148 JOAP - RQR 2 HR PN WKEND.
A110-14TRAN ALERT: OPR 1330-2330Z++ WKD; CLSD SAT AND SUN. FLEET SVC UNAVBL.
A110-17CAUTION: BIRD HAZ.
A110-18TFC PAT: RECTANGULAR 2900', MULTI-ENG JET RGT TFC RWY 30; OVERHEAD 3400', RGT BREAK RWY 12.
A110-20CSTMS/AG/IMG: CSTMS AVBL FOR ACFT ARR FR FOREIGN AREAS, INCL RQR IN RMK SEC OF FLT PLAN AND RECONFIRM NOT LATER THAN 30 MIN PRIOR TO ARR ON PTD. INCL A PAX BREAKDOWN BY TOTAL NR OF US MIL AND US CIV ON BOARD, WHEN APPLICABLE.
A110-25RSTD: PPR CTC AFLD MGNT PRIOR TO ARR DSN 453-2347, C701-723-2347. PPR MAY BE ISSUED UP TO 15 DAYS PRIOR TO, BUT NO LATER THAN 72 HR PRIOR TO SKED ARR. PPR ALL ACFT INCL DV, HAZ CARGO AND AIREVAC REGARDLESS OF AFFILIATION FOR NOTIFICATION AND COORD PURPOSES. ALL RON TRAN CREWS MUST CTC COMD POST WITH BILLETING ARNG.ALL VIP ACFT CTC COMD POST NO LATER THAN 60 NM OUT.
A110-26RSTD: AVOID OVFT BLW 4200' OF AFLD WHEN CLSD, EXCLD PUBL INST APCH OF DEP PRO.
A110-28RSTD: ACFT WITH TT TYPE LDG GEAR WITH MAX ACFT WT 477,000 LBS OR MORE MUST CTC AFLD MGT PRIOR TO ARR OR DEP.
A110-31CAUTION: BASH PHASE II EFF 1 APR TO 15 JUN AND 1 SEP TO 30 NOV. CK CURRENT NOTAMS FOR ANY DEVIATIONS TO THE BASH PHASE WINDOWS.
A110-37MISC: WX OPR H24. DSN 453-6385, C701-723-6385. AN/FMQ-19 ASOS IN USE, AUGMENTED BY HUMAN OBSN WHEN NEC DUR AFLD HR. WX OBSN VIS RSTD NE-SE DUE TO BLDG.
A110-39CAUTION: UNCTL HELO OPS OUTSIDE OF PUBL OPERATING HRS.
A110-40FUEL: A++
A110-42MISC: RSC/RCR AND ACTIVE RWY NOT RPT WHEN AFLD CLSD.
A110-43TRAN-ALERT: FLEET SVC UNAVBL.
A110-44DUE TO C5/B747 ACFT PRK LCTN AIRCREWS CAN EXP DELAYS FOR FUELING AND PAX LOADING.
A110-45RWY 12/30 100' WIDE CONC KEEL SFC IN CNTR WITH 100' WIDE ASPHALT EITHER SIDE.
A110-46RSTD: ALL AIRCREWS REQ PPR OUTSIDE OF PUBL AFLD HR CTC COMD POST.
A17-H1OPR 1300-0500Z++ MON-THUR; 1300-2400Z++ FRI; CLSD SAT, SUN, AFGSC APPROVED DOWN DAYS, AND FEDERAL HOL EXC BY NOTAM.
A17-H2OTHER TIMES BY NOTAM.
A33-12/30_SURFACTUAL SURFACE TYPE IS "PEM" (PART ASPH/CONC/MACADAM).
MINOT AFB (ICAO: KMIB, IATA: MIB) is a private airport located in MINOT, ND, US.
