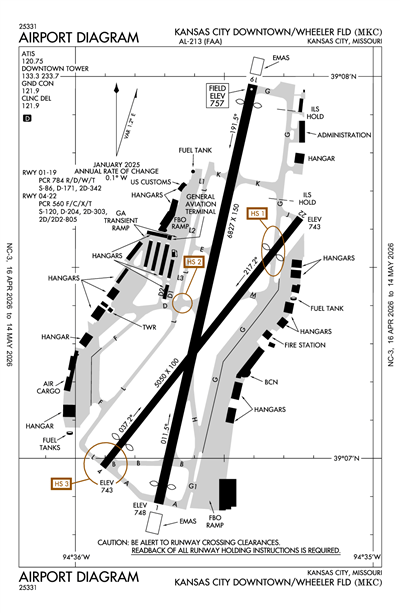

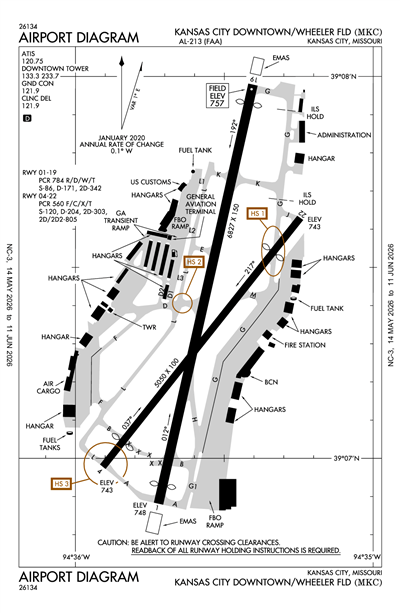

KANSAS CITY DOWNTOWN/WHEELER FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMKC
ICAO KMKCIATA MKCLocal MKC
KANSAS CITY DOWNTOWN/WHEELER FLD
PublicPUB

0 miles NW of KANSAS CITY, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 07' 23"N 94° 35' 34"W
Elevation
757' MSL
Pattern Alt
1757' MSL
Mag Variation
1°E
Declination
1°E
Fuel
JET A, 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
7/9/26-8/6/26
KMKC VFR
10:54 AM CDT
Clear
10sm
94°F
75°F
29.93"Hg
220° 6kts
AO2 SLP124 T03440239
METAR KMKC 261554Z 22006KT 10SM CLR 34/24 A2993 RMK AO2 SLP124 T03440239
+ Add Your Business

KMKC FBOs

Promote Listing
Kansas City Self-Serve
UNICOM: 122.95
Phone: (816) 558-7600
Other: (816) 289-2718
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 7/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.99
Full Serve
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
UNICOM: 129.575
Phone: (816) 842-8484
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 7/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.41 9.56 7.43
Fuel Notes
Prices include tax
Promote Listing
Atlantic Aviation
UNICOM: 129.1
Phone: (816) 949-8900
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 7/7
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.02
Fuel Notes
Prices include tax

KMKC Aircraft Service & Maintenance

Promote Listing
Duncan Aviation - Kansas City
Phone: (816) 421-1836
Fax: (816) 421-1877
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.75
(816) 329-2850
ASOS 120.75
(816) 329-2843

Common

UNICOM 122.95

Clearance

DOWNTOWN CLEARANCE DELIVERY 121.9

Ground

DOWNTOWN GROUND 121.9

Tower

DOWNTOWN TOWER 133.3

Arrival

BRAYMER STAR 120.95
JHAWK STAR 120.95
TYGER STAR 120.95

Approach

KANSAS CITY APPROACH 118.4

Departure

KANSAS CITY DEPARTURE 118.4

Terminal Area Forecast

KMKC
Sun, 7/26 6:20 AM CDT
Sun, 7/26 7:00 AM CDT - Mon, 7/27 7:00 AM CDT
VFR
7:00 AM CDT - 7:00 AM CDT
Scattered 10,000'
6sm
210° 7kts
TAF KMKC 261120Z 2612/2712 21007KT P6SM SCT100
KMKC
EffectiveExpiresCategoryNOTAM
Domestic
7/29/26
2245Z
7/30/26
0230Z
!MKC 07/074 MKC AIRSPACE PYROTECHNIC DEMONSTRATION WI AN AREA DEFINED AS .25NM RADIUS OF 390709N0943359W (1.24NM ESE MKC) SFC-500FT AGL 2607292245-2607300230
7/26/26
1439Z
7/31/26
2200Z
!MKC 07/083 MKC TWY L3 CLSD 2607261439-2607312200
7/26/26
1438Z
7/31/26
2200Z
!MKC 07/082 MKC TWY D1 CLSD 2607261438-2607312200
7/25/26
1700Z
8/1/26
0459Z
!MKC 07/081 MKC AIRSPACE UAS WI AN AREA DEFINED AS 0.6NM RADIUS OF 390942.70N0943907.40W (3.6NM NW MKC) SFC-200FT AGL DLY 1700-0459 2607251700-2608010459
7/24/26
1635Z
7/28/26
2200Z
Runway!MKC 07/078 MKC RWY 04 VASI U/S 2607241635-2607282200
7/24/26
1634Z
7/28/26
2200Z
Runway!MKC 07/077 MKC RWY 22 RWY END ID LGT U/S 2607241634-2607282200
7/24/26
1633Z
7/28/26
2200Z
Runway!MKC 07/076 MKC RWY 22 VASI U/S 2607241633-2607282200
7/24/26
1631Z
7/28/26
2200Z
!MKC 07/075 MKC NAV ILS RWY 04 U/S 2607241631-2607282200
7/23/26
0315Z
7/28/26
2200Z
Runway!MKC 07/067 MKC RWY 01 HLDG PSN SIGN AT RWY 04/22 LGT U/S 2607230315-2607282200
7/23/26
0315Z
7/28/26
2200Z
Runway!MKC 07/066 MKC RWY 19 HLDG PSN SIGN AT RWY 04/22 LGT U/S 2607230315-2607282200
7/23/26
0314Z
7/28/26
2200Z
Runway!MKC 07/065 MKC RWY 22 HLDG PSN SIGN AT RWY 01/19 LGT U/S 2607230314-2607282200
7/22/26
1421Z
7/28/26
2200Z
!MKC 07/064 MKC TWY M TWY DIRECTION SIGN FOR RWY 04/22 LGT U/S 2607221421-2607282200
7/22/26
1420Z
7/28/26
2200Z
!MKC 07/063 MKC TWY M HLDG PSN SIGN FOR RWY 04/22 LGT U/S 2607221420-2607282200
7/22/26
1419Z
7/28/26
2200Z
!MKC 07/062 MKC TWY L BTN TWY F AND APCH END RWY 04 CLSD 2607221419-2607282200
7/22/26
1417Z
7/28/26
2200Z
!MKC 07/061 MKC TWY J HLDG PSN SIGN FOR APCH END RWY 22 LGT U/S 2607221417-2607282200
7/22/26
1416Z
7/28/26
2200Z
!MKC 07/060 MKC TWY J CLSD 2607221416-2607282200
7/22/26
1415Z
7/28/26
2200Z
!MKC 07/059 MKC TWY G HLDG PSN SIGN FOR RWY 04/22 LGT U/S 2607221415-2607282200
7/22/26
1413Z
7/28/26
2200Z
!MKC 07/058 MKC TWY B BTN RWY 04/22 AND TWY L CLSD 2607221413-2607282200
7/22/26
1412Z
7/28/26
2200Z
!MKC 07/057 MKC TWY A BTN APCH END RWY 01 AND APCH END RWY 04 CLSD 2607221412-2607282200
7/22/26
1410Z
7/28/26
2200Z
Runway!MKC 07/056 MKC RWY 04/22 S 1000FT WIP 2607221410-2607282200
7/22/26
1409Z
7/28/26
2200Z
Runway!MKC 07/054 MKC RWY 04 HLDG PSN SIGN AT RWY 01/19 LGT U/S 2607221409-2607282200
7/22/26
1408Z
7/28/26
2200Z
Runway!MKC 07/055 MKC RWY 04/22 CLSD EXC TAX BTN RWY 01/19 AND TWY M 2607221408-2607282200
7/14/26
2236Z
9/12/26
0001Z
!MKC 07/025 MKC TWY B BTN RWY 04/22 AND TWY L CLSD TO AIR CARRIERS DURING NIGHT AND LOW VIS 2607142236-2609120001
7/5/26
0122Z
11/2/26
0122Z
!MKC 07/004 MKC OBST TOWER LGT (ASR 1064715) 390119.90N0943049.70W (7.1NM SSE MKC) 2044.3FT (1158.1FT AGL) U/S 2607050122-2611020122
7/4/26
1601Z
10/3/26
0400Z
!MKC 07/002 MKC OBST TOWER LGT (ASR 1002953) 390336.00N0944511.00W (8.4NM WSW MKC) 1023.6FT (259.8FT AGL) U/S 2607041601-2610030400
6/17/26
1430Z
9/15/26
1430Z
!MKC 06/063 MKC OBST TOWER LGT (ASR 1002200) 390634.20N0944703.30W (9.0NM W MKC) 1241.1FT (263.1FT AGL) U/S 2606171430-2609151430
6/17/26
0954Z
8/1/26
0953Z
!MKC 06/061 MKC OBST TOWER LGT (ASR 1003925) 390723.00N0942325.00W (9.4NM E MKC) 1553.8FT (562.0FT AGL) U/S 2606170954-2608010953
6/1/26
2347Z
9/12/26
0001Z
!MKC 06/004 MKC TWY B EDGE LGT BTN RWY 04/22 AND TWY L U/S 2606012347-2609120001
5/31/26
2134Z
9/12/26
0001Z
!MKC 05/046 MKC TWY B BTN RWY 01/19 AND RWY 04/22 CLSD 2605312134-2609120001
5/18/26
1108Z
9/15/26
1108Z
!MKC 05/021 MKC OBST TOWER LGT (ASR 1030961) 390057.80N0944124.20W (7.9NM SW MKC) 1373.0FT (350.1FT AGL) U/S 2605181108-2609151108
2/26/26
1148Z
8/31/26
2300Z
!MKC 02/091 MKC APRON HANGAR 6A RAMP N 360FT CLSD 2602261148-2608312300
2/26/26
1146Z
8/31/26
2300Z
!MKC 02/090 MKC OBST BLDG (ASN UNKNOWN) 390713N0943600W (0.38NM WSW MKC)
UNKNOWN (20FT AGL) NOT LGTD 2602261146-2608312300
FDC
7/27/26
1500Z
8/2/26
1900Z
!FDC 6/8752 MKC SID CHARLES B WHEELER DOWNTOWN, KANSAS CITY, MO.
RACER EIGHT DEPARTURE...
SPRINGFIELD TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SGF VORTAC OUT OF SERVICE. 2607271500-2608021900EST
7/27/26
1300Z
8/2/26
2100Z
!FDC 6/8664 MKC SID CHARLES B WHEELER DOWNTOWN, KANSAS CITY, MO.
RACER EIGHT DEPARTURE...
BUTLER TRANSITION, SPRINGFIELD TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BUM VORTAC OUT OF SERVICE. 2607271300-2608022100EST
7/7/26
1510Z
!FDC 6/3502 MKC SID KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
CHIEF NINE DEPARTURE...
LAKES FIVE DEPARTURE...
RACER EIGHT DEPARTURE...
ROYAL TWO DEPARTURE...
TIFTO EIGHT DEPARTURE...
WILDCAT SIX DEPARTURE...
TAKE-OFF MINIMUMS: RWY 01: 300-2 1/4 OR STANDARD WITH MINIMUM CLIMB OF 208 FT/NM TO 1100.
TAKE-OFF MINIMUMS: RWY 19: STANDARD WITH MINIMUM CLIMB OF 487 FT/NM TO 2500.
ALL OTHER DATA REMAINS AS PUBLISHED. 2607071510-2807071510EST
4/2/26
1700Z
!FDC 6/5930 MKC ODP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
ADD TAKEOFF OBSTACLE NOTES: RWY 22, TEMPORARY CRANES BEGINNING 2702FT FROM DER, 42FT RIGHT OF CENTERLINE, UP TO 94FT AGL/844FT MSL (2025-ACE-1073/1074-OE). TEMPORARY CRANE 3153FT FROM DER, 596FT LEFT OF CENTERLINE, 93FT AGL/845FT MSL (2026-ACE-1070-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2604021700-2612162100EST
3/19/26
0901Z
!FDC 6/9897 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
RNAV (GPS) Z RWY 19, AMDT 2A...
LNAV/VNAV DA# 1139/HAT 385 ALL CATS, VIS ALL CATS RVR 5000. CIRCLING CAT D MDA 1600/HAA 843. TEMPORARY CRANE 1495 MSL 1.1NM SE OF RWY 19 DER (2024-ACE-4628-OE), TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2603190901-2612311800EST
7/12/25
1800Z
!FDC 5/5225 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
ILS OR LOC RWY 4, AMDT 6B...
S-ILS 4 CATS A/B/C DA 1051/HAT 307, VISIBILITY CATS A/B/C RVR 4500. CIRCLING CAT D MDA 1600/HAA 843. TEMPORARY CRANES 844 MSL 2701FT AND 2739FT SW OF RWY 4 (2025-ACE-1073/1074-OE). TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
7/12/25
1800Z
!FDC 5/5224 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
RNAV (GPS) RWY 4, AMDT 3D...
LPV CATS A/B/C DA 1053/HAT 309, VISIBILITY CATS A/B/C RVR 4500. LNAV CAT A/B/C MDA 1400/HAT 656, VIS CAT C 1 1/2. CIRCLING CAT A MDA 1400/HAA 643. CIRCLING CAT D MDA 1600/HAA 843. VDP NA. TEMPORARY CRANES 844 MSL 2701FT AND 2739FT SW OF RWY 4 (2025-ACE-1073/1074-OE). TEMPORARY CRANE 1086 MSL 3558FT SE OF RWY 4 (2024-ACE-4452-OE). TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
7/12/25
1800Z
!FDC 5/5223 MKC IAP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
ILS OR LOC RWY 19, AMDT 24A...
RNAV (GPS) RWY 22, AMDT 2A...
RNAV (GPS) Y RWY 19, ORIG...
CIRCLING CAT D MDA 1600/HAA 843. TEMPORARY CRANE 1240 MSL 3.9NM S OF KMKC (2025-ACE-2006-OE).
2507121800-2612311800EST
5/9/25
1245Z
!FDC 5/8281 MKC ODP KANSAS CITY DOWNTOWN/WHEELER FLD, KANSAS CITY, MO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 5A...
TAKE-OFF MINIMUMS RWY 01 300-2 1/4 OR STANDARD WITH A MINIMUM CLIMB OF 208 FT PER NM TO 1100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2505091245-2705091244EST
Yes
ALL
CITY OF KANSAS CITY
414 E. 12TH ST
KANSAS CITY, MO 64106
Phone: 816-859-7601
ROD DEWINKLER
900 NW RICHARDS ROAD
KANSAS CITY, MO 64116
Phone: 816-859-7610
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
MKC
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 01/19

6827 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH

86,000lbs
171,000lbs
342,000lbs
--
  Runway 01 Runway 19
True Heading 13°193°
Traffic Pattern Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 39° 06' 53"N 39° 07' 59"N
Longitude 94° 35' 43"W 94° 35' 24"W
Elevation 748' 757'
Threshold Crossing Height 66 ft. AGL 46 ft. AGL
Visual Glide Path Angle 3.7° 3°
Visual Slope Indicator V4L P4L
Approach Lights RLLS MALSF
Centerline Lights
Runway End Identifier Lights Yes No

Runway 04/22

5050 ft. x 100 ft.
ASPH
Excellent
GRVD
HIGH

120,000lbs
204,000lbs
303,000lbs
805,000lbs
  Runway 04 Runway 22
True Heading 38°218°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 39° 06' 59"N 39° 07' 38"N
Longitude 94° 35' 55"W 94° 35' 15"W
Elevation 743' 743'
Threshold Crossing Height 50 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3.3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-10FLOCKS OF PIGEONS INVOF DEP EOR 04.
A110-12RWY 04/22 VFR E TFC PAT: DEPARTING RWY 04 RIGHT TFC ATTAIN TFC PAT ALT PRIOR TO TURNING CROSSWIND. LDG RWY 22 MNTN TFC PAT ALT UNTIL PASSING N OF MISSOURI RIVER.
A110-14ATCT HAS LIMITED VISIBILITY OF T-HANGAR APRONS N TWY D AND W TWY L .
A110-15FAA SAFETY VIDEO CAN BE ACCESSED AT HTTPS://WWW.FAA.GOV/AIRPORTS/RUNWAY_SAFETY/VIDEOS/MKC/
A110-16CTN: MULT OBSTRUCTIONS 0.5 MI-1.0 MI ESE FM RWY 19 DER UP TO 290 FT AGL/1100 FT MSL.
A110-17DUE TO OBSTNS, PRIOR TO ANY TURNS TO THE E, ACFT MUST BE AT OR ABV TFC PTN ALT
A110-6WILDLIFE ON & INVOF ARPT.
A26ARPT CLSD TO ACR OPNS WITH MORE THAN 30 PSGR SEATS EXCP 24 HR PPR CALL AMGR (816) 289-2718. AIR CARRIER OPS NOT AUTHORIZED IN EXCESS OF 15 MINUTES BFR OR AFT SKED ARR OR DEP TIMES W/O PRIOR COORDINATION WITH AMGR CONFIRMING ARFF AVBL PRIOR TO LNDG OR TKOF.
A39-01/19PCR VALUE: 784/R/D/W/T
A39-04/22PCR VALUE: 560/F/C/X/T
A43-22UNUSBL BYD 8 DEGS LEFT OF CRS.
A49-19RY19 MALSF AUGMENTED WITH RAIL.
A57-04APCH RATIO AT DSPLCD THR 47:1.
A57-22APCH RATIO AT DSPLCD THR 24:1.
A58-19ROAD & FENCE 0-200' FM THR.
A58-22ROAD & RR 0-200' FM THR.
A70-100LL100LL SELF SVC AVBL 24 HRS WITH CREDIT CARD ONLY ON WEST SIDE NEAR GA TERMINAL.
E60-01_EMASENGINEERED MATERIALS ARRESTING SYSYTEM (EMAS) 263 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 01.
E60-19_EMASENGINEERED MATERIALS ARRESTING SYSYTEM (EMAS) 287 FT IN LENGTH BY 170 FT IN WIDTH LCTD AT THE DER 19.
KANSAS CITY DOWNTOWN/WHEELER FLD (ICAO: KMKC, IATA: MKC) is a public airport located in KANSAS CITY, MO, US.
