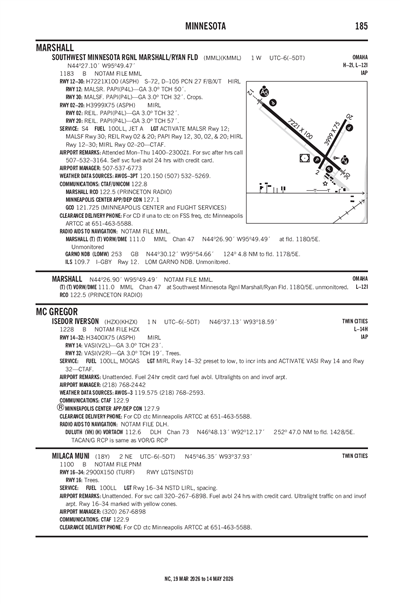

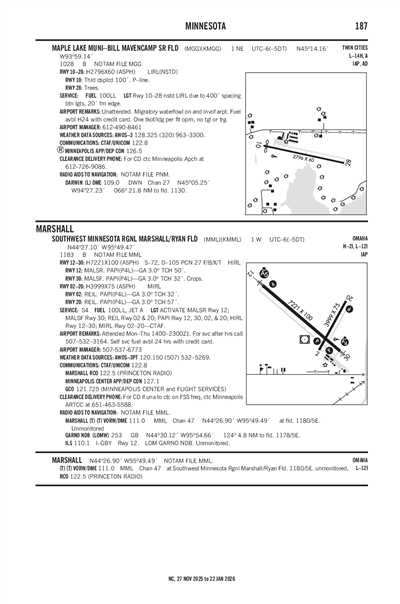

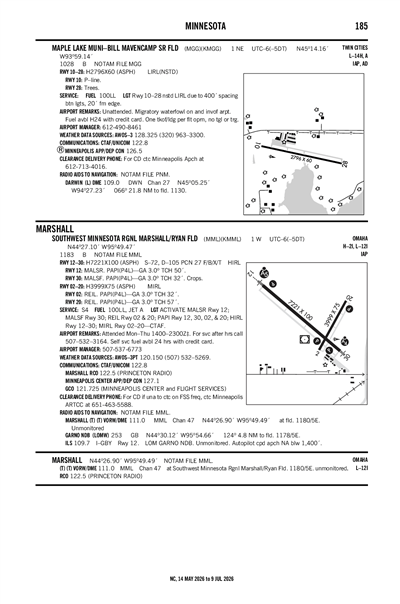

SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD - Airport Diagram

KMML

ICAO KMMLIATA MMLLocal MML

SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD

PublicPUB

1 miles W of MARSHALL, MN, US

View on Map

Status

Operational

Coordinates

44° 27' 06"N 95° 49' 28"W

Elevation

1183' MSL

Pattern Alt

2183' MSL

Mag Variation

2°E

Declination

5°E

Fuel

JET A, 100LL

FSS

PRINCETON (PNM)

Sectional

OMAHA

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

2/19/26-3/19/26

KMML MVFR

2:56 PM CST RAW

Broken 2,500'

Viz

10sm

Temp

13°F

Dew

3°F

Pres

30.66"Hg

Wind

350° 20kts

RMK

AO2 PK WND 35028/2035 SLP413 T11061161 56007 FZRANO

METAR KMML 222056Z AUTO 35020KT 10SM BKN025 M11/M16 A3066 RMK AO2 PK WND 35028/2035 SLP413 T11061161 56007 FZRANO

Add Your Business

KMML FBOs

Promote Listing

Midwest Aviation

UNICOM: 122.8

Phone: (507) 532-3164

0 Reviews (Read | Sign In To Write)

Avfuel

As of 2/17	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.27		5.18
Full Serve	6.27		5.38

Fuel Notes

Prices include tax

Your Information

Business

Weather and Advisory

AWOS-3PT	120.15
(507) 532-5269

Common

CTAF	122.8
ACTVT MALSR RWY 12; MALSF RWY 30; REIL RWY 02 & 20; PAPI RWY 12, 30, 02, & 20; HIRL RWY 12/30; MIRL RWY 02/20 - CTAF.
UNICOM	122.8

Center

MINNEAPOLIS CENTER	127.1
LOW, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.1/290.2 (REDWOOD FALLS RCAG).

Flight Service

Flight Service	122.5
(PNM)
Ground Communication Outlet	121.725
GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.

FAA A/FD Pages

FAA A/FD Page

Airport Minimums

Instrument Approach

Terminal Area Forecast

KRWF (33nm)

RAW

Reported

Sun, 2/22 12:26 PM CST

Valid

Sun, 2/22 12:00 PM CST - Mon, 2/23 12:00 PM CST

IFR

Temporary 12:00 PM CST - 4:00 PM CST

Light Snow

No Clouds

Viz

2sm

Wind

Calm

MVFR

12:00 PM CST - 12:00 AM CST

Broken 1,500'

Viz

6sm

Wind

320° 10kts

Gusts 23kts

VFR

12:00 AM CST - 9:00 AM CST

Broken 3,500'
Scattered 1,500'

Viz

6sm

Wind

330° 10kts

VFR

9:00 AM CST - 12:00 PM CST

Broken 10,000'
Scattered 2,500'

Viz

6sm

Wind

150° 6kts

TAF KRWF 221826Z 2218/2318 32010G23KT P6SM BKN015
   TEMPO 2218/2222 2SM -SN
   FM230600 33010KT P6SM SCT015 BKN035
   FM231500 15006KT P6SM SCT025 BKN100

KMML

Effective	Expires	NOTAM
Domestic
2/25/26 1400Z	2/25/26 2200Z	!MML 02/004 MML AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM RADIUS OF MML SFC-3500FT AGL ACFT CS FLC75 2602251400-2602252200
2/12/26 0549Z	2/27/26 0449Z	!MML 02/003 MML OBST TOWER LGT (ASR 1266234) 442018.10N0955646.40W (8.6NM SW MML) 1797.9FT (250.0FT AGL) U/S 2602120549-2602270449
2/2/26 2032Z	4/15/26 2000Z	!MML 02/001 MML NAV ILS RWY 12 U/S 2602022032-2604152000
1/28/26 0512Z	3/14/26 0511Z	!MML 01/007 MML OBST TOWER LGT (ASR 1009337) 441940.00N0954931.00W (7.4NM S MML) 1919.9FT (419.9FT AGL) U/S 2601280512-2603140511

ATC Tower

Attendance

MON-THU 0800-1700
FOR SVC AFT HRS CALL 507-532-3164.

Owner

CITY OF MARSHALL
344 W MAIN ST
MARSHALL, MN 56258
Phone: 507-537-6760

Manager

JASON ANDERSON
344 W MAIN ST
MARSHALL, MN 56258
Phone: 507-537-6773

FSS

PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF

NOTAM

MML

Light Schedule

Lights

ACTVT MALSR RWY 12; MALSF RWY 30; REIL RWY 02 & 20; PAPI RWY 12, 30, 02, & 20; HIRL RWY 12/30; MIRL RWY 02/20 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

Airframe Repair

Major

Pwrplant Repair

Major

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Freight
Crop Dusting
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 02/20

Dimensions

3999 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 02	Runway 20
True Heading	28°	208°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	FAIR	FAIR
Latitude	44° 26' 46"N	44° 27' 21"N
Longitude	95° 49' 21"W	95° 48' 55"W
Elevation	1,180'	1,172'
Threshold Crossing Height	32 ft. AGL	57 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

Runway 12/30

Dimensions

7221 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

HIGH

Pavement Class

27/F/B/X/T

Single Wheel

72,000lbs

Double Wheel

105,000lbs

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	130°	310°
Traffic Pattern	Left	Left
Markings	PIR	PIR
Markings Condition	GOOD	GOOD
Latitude	44° 27' 31"N	44° 26' 45"N
Longitude	95° 50' 17"W	95° 49' 01"W
Elevation	1,183'	1,178'
Threshold Crossing Height	50 ft. AGL	32 ft. AGL
Visual Glide Path Angle	3°	3°
Visual Slope Indicator	P4L	P4L
Approach Lights	MALSR	MALSF
Centerline Lights	No	No
Runway End Identifier Lights	No	No

A110-1	GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-2	FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A17-M3	FOR SVC AFT HRS CALL 507-532-3164.
A70-100LL	FUEL AVBL H24 SELF SVC VIA CREDIT CARD.
A81-APT	ACTVT MALSR RWY 12; MALSF RWY 30; REIL RWY 02 & 20; PAPI RWY 12, 30, 02, & 20; HIRL RWY 12/30; MIRL RWY 02/20 - CTAF.

SOUTHWEST MINNESOTA RGNL MARSHALL/RYAN FLD (ICAO: KMML, IATA: MML) is a public airport located in MARSHALL, MN, US.
