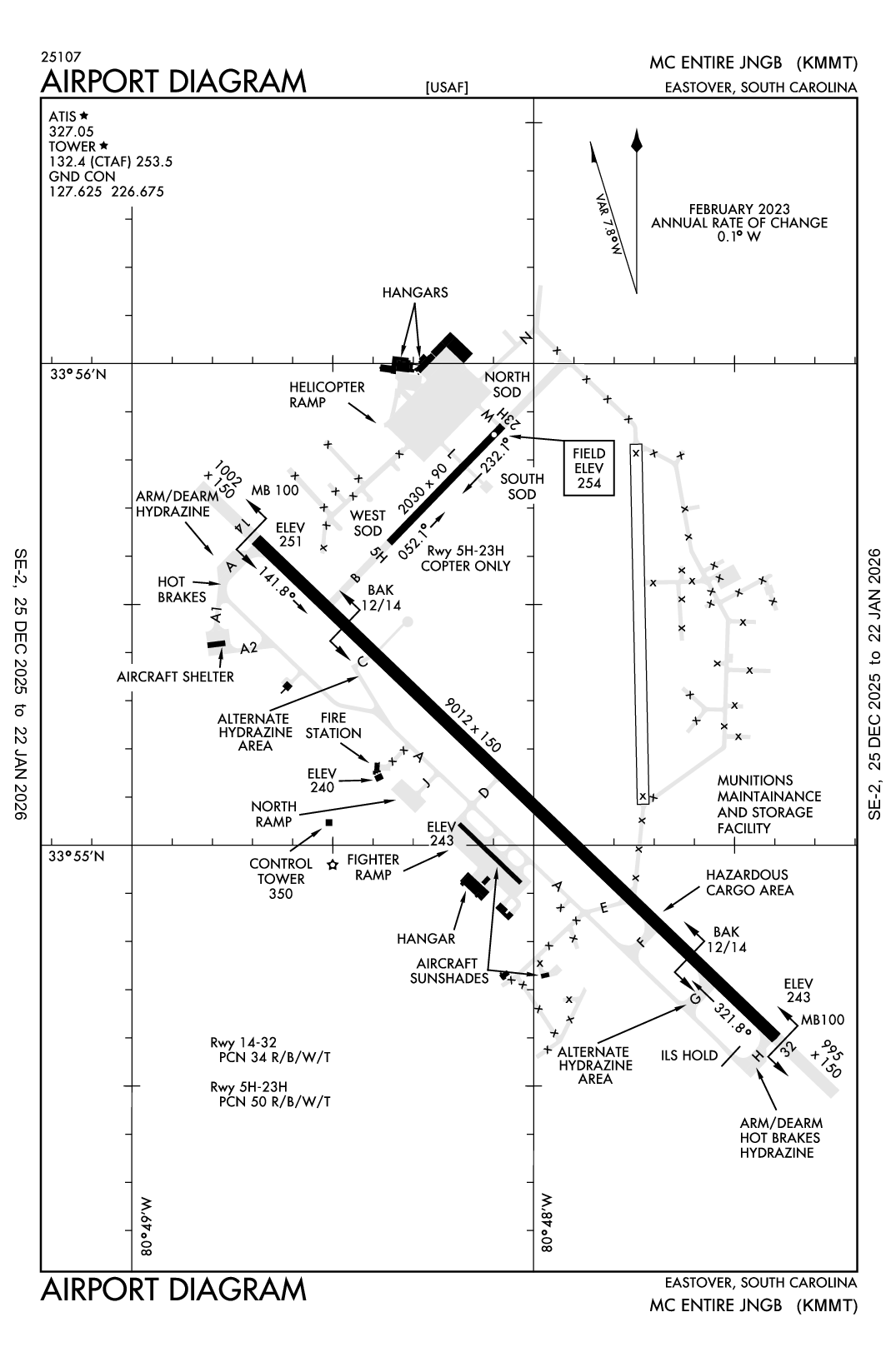

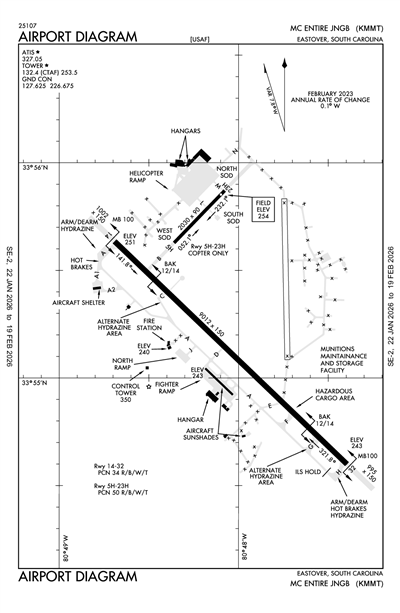

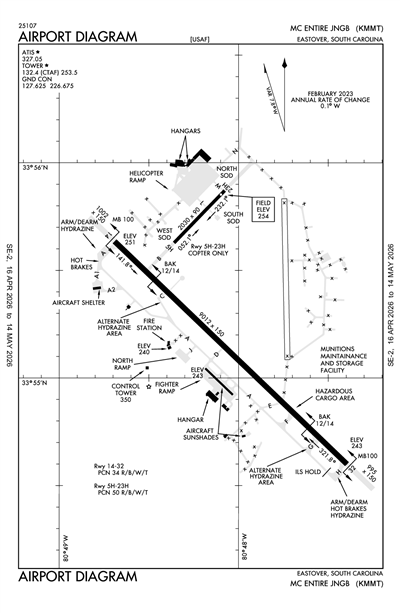

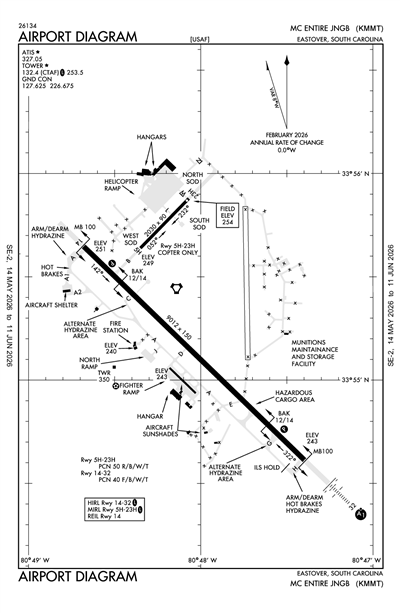

MC ENTIRE JNGB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMMT
ICAO KMMTIATA MMTLocal MMT
MC ENTIRE JNGB
PrivatePVT

10 miles E of EASTOVER, SC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 55' 15"N 80° 48' 04"W
Elevation
254' MSL
Pattern Alt
1254' MSL
Mag Variation
8°W
Declination
8°W
Fuel
JET A, 100
FSS
ANDERSON (AND)
Sectional
CHARLOTTE
ARTCC
JACKSONVILLE (ZJX)
Data Effective
3/19/26-4/16/26
KMMT VFR
9:55 PM EDT
Few 22,000'
10sm
75°F
61°F
30.14"Hg
160° 10kts
AO2 SLP207 T02390162 $
METAR KMMT 050155Z AUTO 16010KT 10SM FEW220 24/16 A3014 RMK AO2 SLP207 T02390162 $
+ Add Your Business

KMMT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 132.4
Pilot-To-Dispatcher (PTD) 142.3

Ground

MC ENTIRE GROUND 127.625
1300-0400Z++ MON-FRI EXC HOL, 1300-2100Z++ SAT-SUN

Tower

MC ENTIRE TOWER 132.4
1300-0400Z++ MON-FRI EXC HOL, 1300-2100Z++ SAT-SUN

Approach

Ground Controlled Approach 124.925
SHAW APPROACH 125.4

Departure

SHAW DEPARTURE 125.4

Center

SHAW CENTER 124.7
LOW, APCH/DEP SVC PRVDD BY JACKSONVILLE ARTCC (ZJX) ON FREQS 124.7/269.55 (COLUMBIA RCAG) WHEN SHAW APCH CTL CLSD.

Military

ANG OPS 32.65
ANG OPS 34.55
ANG OPS 40.15
ANG OPS 134.1
ARNG OPS 41.3

Terminal Area Forecast

KMMT
Sat, 4/4 1:45 PM EDT
Sat, 4/4 1:00 PM EDT - Sun, 4/5 5:00 PM EDT
VFR
1:00 PM EDT - 2:00 PM EDT
Broken 3,500'
Scattered 1,000'
6sm
30.21"Hg
140° 9kts
MVFR
Becoming 2:00 PM EDT - 9:00 PM EDT
Light Showers and Rain
Overcast 5,000'
Broken 3,000'
4.97sm
30.18"Hg
190° 7kts
VFR
Becoming 9:00 PM EDT - 5:00 PM EDT
Broken 4,000'
6sm
30.00"Hg
190° 6kts
MVFR
Temporary 3:00 AM EDT - 8:00 AM EDT
Mist
Broken 1,000'
4.97sm
Calm
TAF AMD KMMT 041745Z 0417/0521 14009KT 9999 SCT010 BKN035 QNH3020INS
   BECMG 0418/0419 19007KT 8000 -SHRA BKN030 OVC050 QNH3018INS
   BECMG 0501/0502 19006KT 9999 NSW BKN040 QNH2999INS
   TEMPO 0507/0512 8000 BR BKN010 TX27/0420Z TN18/0511Z
KMMT
EffectiveExpiresCategoryNOTAM
Military
4/7/26
1200Z
4/9/26
0300Z
TaxiwayTWY A BETWEEN TWY G AND H CLSD. AREA BARRICADED AND LIT
4/6/26
1200Z
4/7/26
0300Z
Aerodrome!KMMT M0255/26 MMT AD AIRPORT CLSD EXC BASE ASIGNED AIRCRAFT ONLY 2604061200-2604070300
4/3/26
0212Z
4/6/26
0212Z
M0253/26 NOTAMC M0141/26
4/3/26
0212Z
4/6/26
0212Z
M0252/26 NOTAMC M0212/26
4/3/26
0212Z
4/6/26
0212Z
M0251/26 NOTAMC M0201/26
4/1/26
1559Z
4/4/26
1559Z
M0244/26 NOTAMC M0243/26
4/1/26
1330Z
4/4/26
1330Z
M0240/26 NOTAMC M0238/26
3/14/26
0104Z
6/5/26
2359Z
!FDC 6/8026 MMT IAP MC ENTIRE JNGB, EASTOVER, SC. HI-ILS OR LOC/DME RWY 32, AMDT 4 ... HI-TACAN RWY 32, AMDT 4 ... FEEDER FROM FLO VORTAC TO PIKAN/IAF NA. EXCEPT FOR AIRCRAFT WITH SUITABLE RNAV SYSTEMS WITH GPS.
2/26/26
1509Z
4/30/26
2359Z
OBST LIGHT OUT ON ARMY AVIATION MAIN HANGAR.
2/26/26
1458Z
4/30/26
2359Z
Runway!KMMT M0170/26 MMT RWY 23 RTHL U/S 2602261458-2604302359
2/26/26
1457Z
4/30/26
2359Z
Runway!KMMT M0169/26 MMT RWY 05 RTHL U/S 2602261457-2604302359
2/26/26
0138Z
5/15/26
2359Z
TaxiwayTWY H HOLD SIGN NORTH SIDE NOT LGTD
2/20/26
0307Z
5/8/26
2359Z
TaxiwayTWY G LOCATION SIGN NOT LGTD AT TWY A
2/20/26
0304Z
4/30/26
2359Z
Taxiway!KMMT M0147/26 MMT TWY M APCH AREA HLDG PSN SIGN NOT LGTD AT RWY 05/23 2602200304-2604302359
2/20/26
0304Z
4/30/26
2359Z
Taxiway!KMMT M0146/26 MMT TWY L APCH AREA HLDG PSN SIGN NOT LGTD AT RWY 05/23 2602200304-2604302359
2/8/26
1555Z
4/24/26
2359Z
RunwayRWY 32 OVERRUN BARRIER UNSERVICABLE
Yes
MON-FRI 1300-0400Z++
SAT-SUN 1300-2100Z++
EXC HOL.
SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
U.S. AIR FORCE
MCENTIRE ANGB
COLUMBIA, SC 29044
Phone: 803-776-5121
CHIEF AIRFIELD MANAGEMENT
MCENTIRE ANGB
COLUMBIA, SC 29044
Phone: 803-647-8231
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
MMT
--
RWY 14/32 70 FT GATED THLD LGT. RWY LIGHTS OPER 1300-0400Z++ MON-FRI, 1300-2100Z++ SAT-SUN, EXC HOL. ACTVT PAPI RWYS 14 & 32; MIRL RWY 05/23, HIRL RWY 14/32 - 253.5. REIL RWY 14; ALSF-1 RWY 32 OPR DRG TWR HRS.
SS-0400Z+. RTG BCN OPR SS-0400Z++MON-FRI, EXC HOL.
N/A
N/A
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Minor
None
Low Pressure
None

Runway 05/23

2030 ft. x 90 ft.
ASPH
Good
NONE
MED
50/R/B/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 55' 38"N 33° 55' 53"N
Longitude 80° 48' 21"W 80° 48' 04"W
Elevation 249' 254'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

9012 ft. x 150 ft.

PEM
NONE
HIGH
34/R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 33° 55' 39"N 33° 54' 37"N
Longitude 80° 48' 41"W 80° 47' 24"W
Elevation 251' 243'
Threshold Crossing Height 40 ft. AGL 48 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4R
Approach Lights ALSF1
Centerline Lights No No
Runway End Identifier Lights Yes No

Runway 18/36

4500 ft. x 150 ft.

CONC
NONE


--
--
--
--
  Runway 18 Runway 36
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude N/A N/A
Longitude N/A N/A
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10RSTD: PPR 48 HR NTC RQR, CTC ANG OPS C803-647-8231, FAX DSN 583-8733, C803-647-8733.
A110-11CAUTION: SEE AP/1 FOR WX OBS LIMITATIONS. REMAIN BLW 1000 FT TIL DEP END OF RY OR UNLESS TWR CLEARS.
A110-13TFC PAT: OVERHEAD 1500 FT, COPTER/RECTANGULAR 1000 FT.
A110-15MISC: TRAN PRK EXTREMELY LTD.
A110-17MISC: TRAN ACFT EXP PROGRESSIVE TAXI INSTR.
A110-18ARNG: PPR FOR ARMY, AR, AND ARNG R/W ACFT ONLY, C803-299-1814/5. OPR 1300-0400Z++ MON-FRI EXC HOL. FUEL NOT AVBL FOR TRAN ACFT.
A110-2BEARING STRENGTH RWY 14-32: ST175; SBTT549; TST746; DDT706
A110-20MISC: WX OBSN VIS IS LTD FROM 5/8 MILE S TO 1/10 MILE WNW.
A110-21AIRCRAFT SUNSHADES 742 FT W OF RUNWAY 14-32.
A110-22PMSV METRO: CTC SHAW AFB FOR METRO. MCENTIRE FCSTR AVBL 1200-0100Z++ MON-FRI CLSD SAT-SUN AND HOL. OPR HR VARY WITH LCL FLYING SKED, DSN 583-8247, C803-647-8247. DURING NON-OPERATIONAL HOURS CONTACT 26 OWS BARKSDALE AFB DSN 331-2651, C318-529-2651. AFLD WX MNT BY AN/FMQ-19 AMS, AUGMENTED/BACKED UP BY HUMAN OBSN DURING OPERATING HOURS AND FOR RESOURCE PROTECTION.
A110-23RY 05/23 IS HELICOPTER ONLY.
A110-24AFLD WX MAINT BY AN/FMQ-19 ASOS, AUGMENTED BY HUMAN OBSN WHEN RQR DUR OPR HR.
A110-25MISC: FLEET SVC NOT AVBL WITHOUT PRIOR COORD.
A110-26MISC: WIND INFO FOR RWY 23 PROVIDED BY DEP END SENSOR.
A110-27CAUTION: NSTD COPTER OPS ON CLSD RWY 18/36.
A110-28NML DLY ACFT AND RESCUE FIRE FIGHTING (ARFF) CAPABILITY IS 2500 GAL WATER AND 322 GAL FOAM; FIRE DISPATCH DSN 583-8287.
A110-29FOR CD CTC SHAW APCH AT 803-895-4884, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.
A110-30MISC: RWY 14-32 ASPHALT EXC FOR CONC ON FIRST 2000 FT OF RWY 32 AND FIRST 1700 FT OF RWY 14. 200 FT CONC EITHER SIDE OF RWY 14/32 BARRIER CABLES.
A110-4A-GEAR: BAK-12A CABLE RAISED BY BAK-14 DEVICE O/R TWR. DEPARTURE END CABLE WILL BE RAISED FOR ALL TAIL HOOK EQUIPPED ACFT. RWY 14/32 N AND S A-G CABLES WILL BE IN RAISED POSN WHEN AFLD CLSD.
A110-5JASU: 1(A/M32A-86)9(AM32A-60A)
A110-6FUEL: JET A. (DOD COST ACCOUNTING CODE NR RQR FOR OTHER MIL SVC FOR REFUELING.)
A110-7FLUID: SP LPOX
A110-8OIL: O-133-148-156 SOAP
A110-9TRAN ALERT: SVC AVBL WITH PRIOR COORD. TRAN PRK EXTREMELY LTD.
A17-H1EXC HOL.
A17-M2SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A31-18/36RWY 18/36 CLSD INDEFLY.
A70-100FUEL NOT AVBL TO TRANSIENT ACFT. SINGLE POINT REFUELING. JP4 AVBL.
A81-APTRWY 14/32 70 FT GATED THLD LGT. RWY LIGHTS OPER 1300-0400Z++ MON-FRI, 1300-2100Z++ SAT-SUN, EXC HOL. ACTVT PAPI RWYS 14 & 32; MIRL RWY 05/23, HIRL RWY 14/32 - 253.5. REIL RWY 14; ALSF-1 RWY 32 OPR DRG TWR HRS.
A81-BCNSS-0400Z+. RTG BCN OPR SS-0400Z++MON-FRI, EXC HOL.
E60-14_BAK-12BAK-14 BAK-12 A(B) (1500 FT). HOOK MB100 (B) (37 FT OVRN).
E60-32_BAK-12BAK-14 BAK-12A(B) (1501 FT).
MC ENTIRE JNGB (ICAO: KMMT, IATA: MMT) is a private airport located in EASTOVER, SC, US.
