iFlightPlanner



...

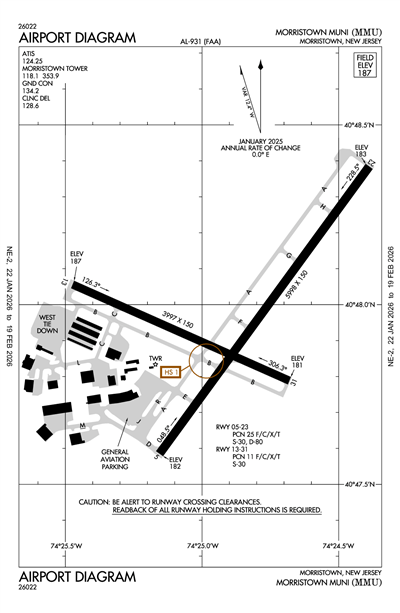

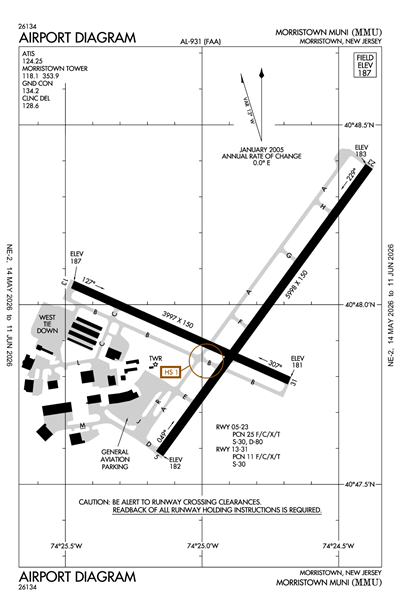

MORRISTOWN MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMMU
ICAO KMMUIATA MMULocal MMU
MORRISTOWN MUNI
PublicPUB

3 miles E of MORRISTOWN, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 47' 58"N 74° 24' 54"W
Elevation
187' MSL
Pattern Alt
1187' MSL
Mag Variation
12°W
Declination
13°W
Fuel
JET A, JET A (FSII), 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
10/29/26-11/26/26
KMMU VFR
6:46 AM EST
Overcast 5,500'
10sm
48°F
48°F
29.68"Hg
350° 3kts
METAR KMMU 121146Z 35003KT 10SM OVC055 09/09 A2968
+ Add Your Business

KMMU FBOs

Promote Listing
Atlantic Aviation
UNICOM: 131.575
Phone: (973) 401-1900
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/10
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.97 10.49
Fuel Notes
Prices include tax
Promote Listing
Signature Aviation
ASRI: 129.6
Phone: (973) 292-1300
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 11/11
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 9.47 9.83
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.25
AWOS-3 (973) 290-0135

Common

CTAF 118.1
WHEN TWR CLSD ALL ACFT AND VEHICLES MUST STATE INTNS ON CTAF BFR OPS ON ANY RWY.; DUSK-DAWN; ACTVT HIRL RWY 05/23, MIRL RW 13/31, REIL RWY 05 & 31, MALSR RWY 23 & PAPI RWY 31 - CTAF.; ARFF SVCS AVBL 24 HRS DAILY. FOR ARFF SVCS WHEN ATCT CLSD CTC ARFF STATION; CTAF OR 973-455-1953.

Clearance

Clearance Delivery 128.6
CALL 516-542-3690 WHEN TWR CLSD.

Ground

MORRISTOWN GROUND 134.2
0645-2230

Tower

MORRISTOWN TOWER 118.1
0645-2230

Arrival

JAIKE STAR 132.8
WILKES-BARRE STAR 127.6

Approach

NEWARK APPROACH 127.6

Departure

NEWARK DEPARTURE 119.2

Emergency

Emergency 121.5

Terminal Area Forecast

KEWR (13nm)
Thu, 11/12 6:21 AM EST
Thu, 11/12 7:00 AM EST - Fri, 11/13 1:00 PM EST
VFR
7:00 AM EST - 8:00 AM EST
Overcast 6,000'
6sm
030° 6kts
VFR
8:00 AM EST - 11:00 AM EST
Light Showers and Rain
Broken 4,000'
Scattered 2,500'
N/A
Calm
VFR
8:00 AM EST - 11:00 AM EST
Overcast 6,000'
6sm
060° 9kts
MVFR
11:00 AM EST - 2:00 PM EST
Light Showers and Rain
Overcast 4,000'
Broken 2,500'
6sm
080° 10kts
Gusts 17kts
MVFR
2:00 PM EST - 5:00 PM EST
Showers and Rain and Mist
Overcast 2,500'
4sm
060° 10kts
Gusts 17kts
MVFR
5:00 PM EST - 9:00 PM EST
Light Showers and Rain and Mist
Overcast 4,000'
Broken 2,000'
5sm
030° 11kts
MVFR
9:00 PM EST - 3:00 AM EST
Light Rain and Mist
Overcast 1,200'
4sm
020° 13kts
Gusts 19kts
MVFR
3:00 AM EST - 7:00 AM EST
Light Rain and Mist
Overcast 1,200'
3sm
360° 17kts
Gusts 25kts
IFR
7:00 AM EST - 1:00 PM EST
Rain and Mist
Overcast 1,200'
Broken 600'
2sm
350° 16kts
Gusts 23kts
TAF KEWR 121121Z 1212/1318 03006KT P6SM OVC060
   FM121300 06009KT P6SM OVC060
   PROB30 1213/1216 -SHRA SCT025 BKN040
   FM121600 08010G17KT P6SM -SHRA BKN025 OVC040
   FM121900 06010G17KT 4SM SHRA BR OVC025
   FM122200 03011KT 5SM -SHRA BR BKN020 OVC040
   FM130200 02013G19KT 4SM -RA BR OVC012
   FM130800 36017G25KT 3SM -RA BR OVC012
   FM131200 35016G23KT 2SM RA BR BKN006 OVC012
KMMU
EffectiveExpiresCategoryNOTAM
Domestic
11/12/26
0932Z
11/13/26
0932Z
Runway!MMU 11/029 MMU RWY 31 FICON 5/5/5 100 PCT WET OBS AT 2611120932. 2611120932-2611130932
11/12/26
0931Z
11/13/26
0931Z
Runway!MMU 11/028 MMU RWY 05 FICON 5/5/5 100 PCT WET OBS AT 2611120931. 2611120931-2611130931
10/5/26
1240Z
1/3/27
0400Z
!MMU 10/015 MMU OBST TOWER LGT (ASR 1267286) 404818.40N0742642.10W (1.4NM WNW MMU) 430.1FT (120.1FT AGL) U/S 2610051240-2701030400
8/2/26
1556Z
!MMU 08/005 MMU TWY L3 CLSD TO HEL AND ACFT WINGSPAN MORE THAN 50FT 2608021556-PERM
8/2/26
1556Z
!MMU 08/004 MMU TWY L2 CLSD TO HEL AND ACFT WINGSPAN MORE THAN 50FT 2608021556-PERM
8/2/26
1556Z
!MMU 08/003 MMU TWY L1 CLSD TO HEL AND ACFT WINGSPAN MORE THAN 50FT 2608021556-PERM
8/2/26
1225Z
!MMU 08/002 MMU APRON TXL K BTN ATLANTIC FIXED BASE OPR RAMP AND TWY L CLSD TO HEL OPS AND TO ACFT WINGSPAN MORE THAN 50FT 2608021225-PERM
FDC
11/12/26
1600Z
11/12/26
2100Z
!FDC 6/7176 MMU ODP MORRISTOWN MUNI, Morristown, NJ.
MORRISTOWN SEVEN DEPARTURE ...
DEPARTURE PROCEDURE TO DP FIX BAYYS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BDR VOR/DME OUT OF SERVICE. 2611121600-2611122100EST
11/12/26
1300Z
11/13/26
2200Z
!FDC 6/6243 MMU STAR MORRISTOWN, NEW JERSEY. JAIKE FOUR ARRIVAL...
SWNGR TRANSITION: NOT AUTHORIZED. ROUTE FROM SWNGR TO VAALI NOT AUTHORIZED.
REQUIRED REROUTES FILE VIA TEMPO BOOYA TRANSITION:
FROM ZJX AIRSPACE OVER WATER: SEELO GARIC ZORDO BBDOL BOOYA JAIKE4
FROM ZJX AIRSPACE INLAND: JROSS Q87 DADDS NOWAE BOOYA JAIKE4
FROM ZTL AIRSPACE: Q22 BEARI BBDOL BOOYA JAIKE4
DLY 1300-2200 2611121300-2611132200
10/13/26
1846Z
!FDC 6/9239 MMU SID MORRISTOWN MUNI, MORRISTOWN, NJ.
MORRISTOWN SEVEN DEPARTURE ...
DIXIE AND WHITE DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, COL VOR OUT OF SERVICE 2610131846-2705251846EST
9/24/26
1510Z
!FDC 6/5314 MMU SID MORRISTOWN MUNI, MORRISTOWN, NJ.
MORRISTOWN SEVEN DEPARTURE ...
COATE, ELIOT, NEWEL DEPARTURES: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE 2609241510-2705061510EST
4/14/26
1518Z
!FDC 6/2185 MMU ODP MORRISTOWN MUNI, MORRISTOWN, NJ.
MORRISTOWN SEVEN DEPARTURE ...
NOTE: RWY 23 PARKE DEPARTURE VIA BWZ R-250 NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
BWZ VOR/DME OUT OF SERVICE. 2604141518-2611241518EST
9/19/25
1234Z
!FDC 5/7447 MMU IAP MORRISTOWN MUNI, MORRISTOWN, NJ.
RNAV (GPS) Z RWY 23, AMDT 3...
LNAV MDA 740/HAT 556 ALL CATS, VIS CAT C/D 1 1/8. FOR INOP ALS, INCREASE LNAV/VNAV VISIBILITY ALL CATS TO 1 5/8 SM.
2509191234-2709191234EST
4/30/25
1930Z
!FDC 5/3959 MMU IAP MORRISTOWN MUNI, MORRISTOWN, NJ.
RNAV (GPS) Z RWY 23, AMDT 3...
LNAV/VNAV DA 834/HAT 650 ALL CATS. VISIBILITY ALL CATS 1 3/8. LNAV MDA 740/HAT 556 ALL CATS. VISIBILITY CAT C/D 1 1/8. VDP 1.57NM TO RW23. FOR INOPERATIVE ALS, INCREASE LNAV/VNAV ALL CATS VISIBILITY TO 2 AND LNAV CAT C/D VISIBILITY TO 1 3/4 SM..
2504301930-2704301930EST
Yes
0645-2230
TOWN OF MORRISTOWN
110 SOUTH STREET
MORRISTOWN, NJ 07960
Phone: 973-292-6626
SCOTT MCMAHON
DM AIRPORTS, LTD. 8 AIRPORT ROAD
MORRISTOWN, NJ 07960
Phone: 973-538-6400
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MMU
--
DUSK-DAWN; ACTVT HIRL RWY 05/23, MIRL RW 13/31, REIL RWY 05 & 31, MALSR RWY 23 & PAPI RWY 31 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
High & Low Pressure
High & Low Pressure
Charter Service
Pilot Instruction
Aircraft Rental

Runway 05/23

5998 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
25/F/C/X/T
30,000lbs
80,000lbs
--
--
  Runway 05 Runway 23
True Heading 36°216°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 47' 35"N 40° 48' 23"N
Longitude 74° 25' 09"W 74° 24' 23"W
Elevation 182' 183'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 13/31

3997 ft. x 150 ft.
ASPH
Good
GRVD
MED
11/F/C/X/T
30,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 114°294°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 48' 03"N 40° 47' 47"N
Longitude 74° 25' 28"W 74° 24' 41"W
Elevation 186' 181'
Threshold Crossing Height -- 39 ft. AGL
Visual Glide Path Angle -- 3.5°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1BIRDS & DEER ON & INVOF ARPT.
A110-10ARFF SVCS AVBL 24 HRS DAILY. FOR ARFF SVCS WHEN ATCT CLSD CTC ARFF STATION; CTAF OR 973-455-1953.
A110-11ALL ARRIVAL/DEPARTURE ACFT FOLLOW MANUFACTURERS RECOMMENDED PROCEDURES FOR QUIET OPNS & MINIMUM NOISE.
A110-12ROUTE 80 VISUAL APCH PREFERRED FOR RY 23.
A110-13HELICOPTER OPNS OVER RESIDENTIAL AREAS BLO 1000 FT MSL SHOULD BE AVOIDED.
A110-15STAGE I DEPARTURE FEE 2300-0645.
A110-16DURG SNOW REMOVAL OPNS 15 MINUTE PRIOR NOTICE REQUIRED ON 118.1 & NO PRACTICE LOW APCHS OR TOUCH & GO LDGS.
A110-17INBOUND TFC REQUEST FBO SVCS, INSTRUCTIONS & RAMP ADVISORIES 30 MINUTES PRIOR TO ARRIVAL. AFTER LDG CTC FBO AGAIN 129.6 FOR PREFERRED RAMP ENTRANCE TO DELTA OR JULIET TWYS.
A110-19VOLUNTARY NOISE ABATEMENT PROC INCLUDE AVOIDING TGL OPS ON RWY 13-31.
A110-2NOISE ABATEMENT PROC IN EFCT; CTC NOISE ABATEMENT OFFICE 973-538-3366 EXTN 122.
A110-20FOR CD WHEN ATCT IS CLSD CTC NEWARK APCH AT 800-645-3206.
A110-21NO TGL ON RWY 13/31 UNLESS THE CROSSWIND VLCTY FOR RWY 05/23 EXCEEDS 10 KTS.
A110-22TAXILANE K BTN ATLANTIC FBO RAMP AND TAXIWAY L, NO HEL OR ACFT WITH A WINGSPAN GTR THAN 79 FT.
A110-3US CUSTOMS AVBL MON-FRI 0800-1600; BTN 1601-0759 & WKENDS CALL 973-267-0302 FOR APPOINTMENT. MORRISTOWN CUSTOMS ASSOCIATION FEES APPLY; CTC AMGR 973-538-6400 FOR DETAILS.
A110-4NO TURBOJET LNDG ON RWY 13 & 31 UNLESS THE X-WIND VELOCITY FOR RWY 5/23 EXCEEDS 16 KNOTS.
A110-7ACFT CARRYING EXPLOSIVE CARGO PPR BEFORE LDG - CALL 973-538-6400.
A110-8FLIGHT NOTIFICATION SVC (ADCUS) AVBL.
A110-9U.S. CUSTOMS USER FEE ARPT.
A70-AO-128 AVOIL AVBL.
A81-APTDUSK-DAWN; ACTVT HIRL RWY 05/23, MIRL RW 13/31, REIL RWY 05 & 31, MALSR RWY 23 & PAPI RWY 31 - CTAF.
E100WHEN TWR CLSD ALL ACFT AND VEHICLES MUST STATE INTNS ON CTAF BFR OPS ON ANY RWY.
E147TPA 1013 LIGHT ACFT, 1513 HEAVY ACFT.
MORRISTOWN MUNI (ICAO: KMMU, IATA: MMU) is a public airport located in MORRISTOWN, NJ, US.
