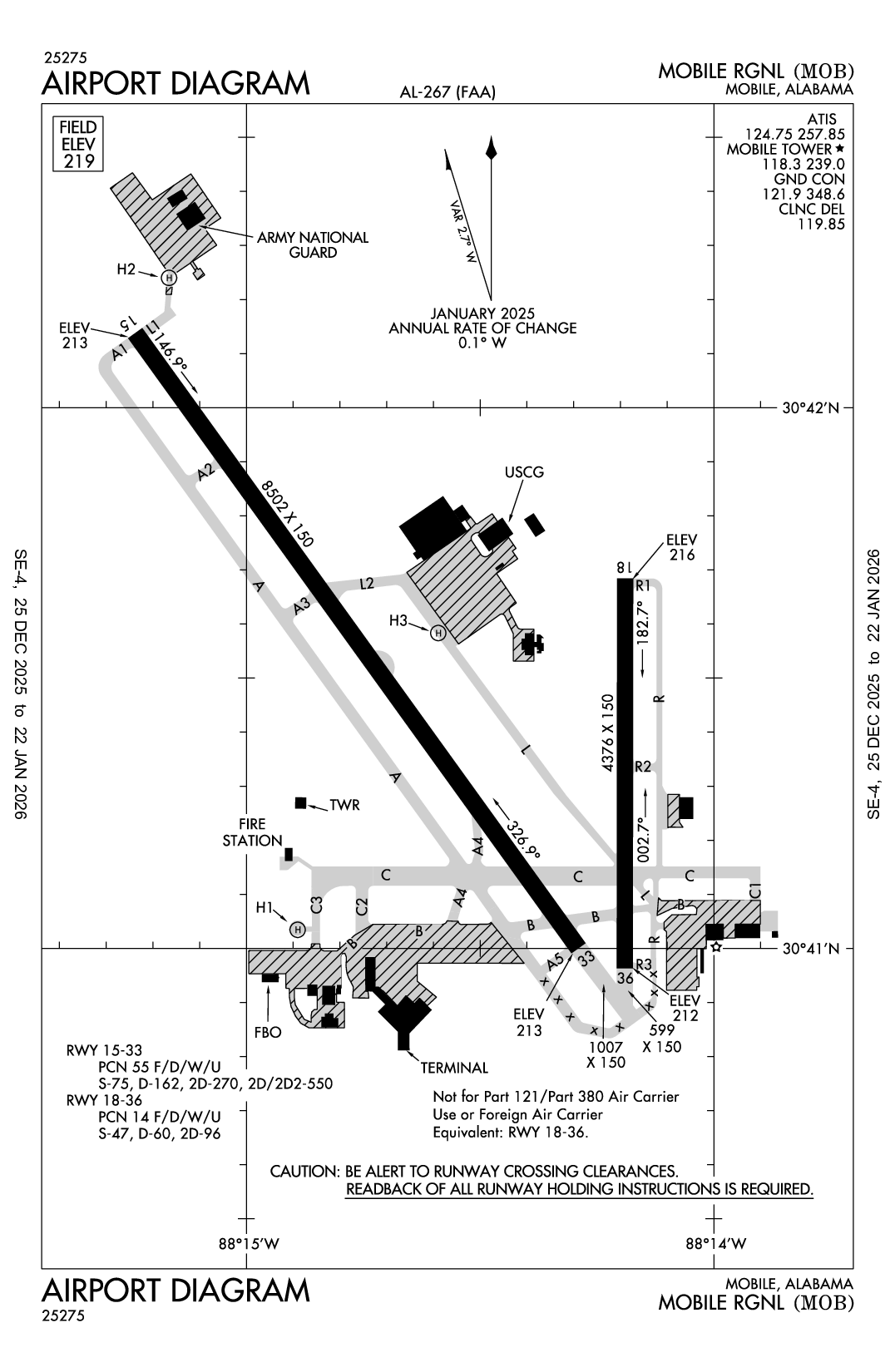

MOBILE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMOB
MOBILE RGNL
PublicPUB

11 miles W of MOBILE, AL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
30° 41' 29"N 88° 14' 34"W
219' MSL
1019' MSL
03W
JET A, JET A (FSII), 100LL
ANNISTON (ANB)
NEW ORLEANS
HOUSTON (ZHU)
4/17/25-5/15/25
KMOB VFR
5:56 AM CDT
Few 25,000'
Few 5,000'
10sm
64°F
63°F
30.12"Hg
Calm
AO2 SLP198 T01780172
KMOB 281056Z 00000KT 10SM FEW050 FEW250 18/17 A3012 RMK AO2 SLP198 T01780172
Add Your Business

KMOB FBOs

Promote Listing
Signature Aviation
UNICOM: 130.225
Phone: (251) 633-5000
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 4/23
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.43 7.24 7.31
Fuel Notes
Prices include tax

KMOB Aircraft Service & Maintenance

Promote Listing
Coastal Winds Avionics
Phone: (251) 410-8050
No Rating Available
0 Reviews (Read | Sign In To Write)

KMOB Other Businesses

Top Flight Detail
Phone: (251) 635-8830
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.3

ATIS

ATIS
 124.75

ASOS

ASOS
251-206-0328
 124.75

Approach/Departure

APCH/P DEP/P
140-319
 121.0
APCH/P DEP/P IC
320-139
 118.5

Clearance Delivery

CD/P
 119.85

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.3

Other

CLASS C
320-139
 118.5
CLASS C
140-319
 121.0

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMOB
Mon, 4/28 6:35 AM CDT
Mon, 4/28 7:00 AM CDT - Tue, 4/29 7:00 AM CDT
VFR
7:00 AM CDT - 10:00 AM CDT
Few 25,000'
Few 5,000'
6sm
Calm
VFR
10:00 AM CDT - 2:00 PM CDT
Sky Clear
6sm
150° 5kts
VFR
2:00 PM CDT - 9:00 PM CDT
Scattered 3,000'
6sm
150° 8kts
VFR
9:00 PM CDT - 7:00 AM CDT
Sky Clear
6sm
150° 3kts
KMOB 281135Z 2812/2912 00000KT P6SM FEW050 FEW250
   FM281500 15005KT P6SM SKC
   FM281900 15008KT P6SM SCT030
   FM290200 15003KT P6SM SKC
KMOB
Domestic
4/27/250638Z !MOB 04/024 MOB OBST TOWER LGT (ASR 1224205) 303623.70N0881554.30W (5.2NM SSW MOB) 485.9FT (339.9FT AGL) U/S 2504270638-2506110638
4/27/250323Z !MOB 04/023 MOB OBST TOWER LGT (ASR 1297896) 304814.30N0881858.10W (7.7NM NNW MOB) 452.8FT (251.0FT AGL) U/S 2504270323-2505262359
4/26/251313Z !MOB 04/022 MOB OBST TOWER LGT (ASR 1295668) 304036.10N0882255.90W (7.3NM W MOB) 347.8FT (213.9FT AGL) U/S 2504261313-2505260913EST
4/6/251632Z !MOB 04/003 MOB OBST TOWER LGT (ASR 1037341) 304335.00N0880906.00W (5.2NM ENE MOB) 592.8FT (422.9FT AGL) U/S 2504061632-2505211631
3/22/250252Z !MOB 03/016 MOB RWY 33 RAI LGT U/S 2503220252-2505072000EST
3/11/251352Z !MOB 03/006 MOB TWY C BTN TWY A AND TWY C3 CLSD TO ACFT WINGSPAN MORE THAN 78FT 2503111352-2506302300
3/8/250445Z !MOB 03/003 MOB OBST TOWER LGT (ASR 1039205) 305136.00N0882132.30W (11.6NM NNW MOB) 719.2FT (479.0FT AGL) U/S 2503080445-2506050500
2/12/250035Z !MOB 02/010 MOB OBST TOWER LGT (ASR 1268556) 304625.00N0883536.60W (18.8NM WNW MOB) 385.8FT (259.8FT AGL) U/S 2502120035-2505120500
1/28/251153Z !MOB 01/037 MOB TWY L1 LGT BTN APCH END RWY 15 AND ARMY NTL GUARD RAMP NOT STD 2501281153-2601312300
1/16/251503Z !MOB 01/015 MOB AD AP WDI PRI U/S 2501161503-2505312300
10/31/241550Z !MOB 10/057 MOB TWY C EDGE MARKINGS NOT STD 2410311550-2512312300
10/31/241547Z !MOB 10/056 MOB TWY C SFC PAINTED HLDG PSN SIGNS FOR RWY 18/36 EAST SIDE NOT STD 2410311547-2512312300
10/31/241546Z !MOB 10/055 MOB TWY C HLDG PSN MARKINGS FOR RWY 18/36 EAST SIDE NOT STD 2410311546-2512312300
10/31/241545Z !MOB 10/054 MOB TWY B SFC PAINTED HLDG PSN SIGNS FOR RWY 18/36 EAST SIDE NOT STD 2410311545-2512312300
10/31/241544Z !MOB 10/053 MOB TWY B HLDG PSN MARKINGS FOR RWY 18/36 EAST SIDE NOT STD 2410311544-2512312300
10/31/241517Z !MOB 10/052 MOB TWY R2 SFC PAINTED HLDG PSN SIGNS NOT STD 2410311517-2512312300
10/31/241516Z !MOB 10/051 MOB TWY R2 HLDG PSN MARKINGS NOT STD 2410311516-2512312300
10/31/241515Z !MOB 10/050 MOB TWY R1 SFC PAINTED HLDG PSN SIGNS NOT STD 2410311515-2512312300
10/31/241514Z !MOB 10/049 MOB TWY R1 HLDG PSN MARKINGS NOT STD 2410311514-2512312300
10/31/241513Z !MOB 10/048 MOB TWY R CL MARKINGS BTN TWY R1 AND TWY C NOT STD 2410311513-2512312300
10/31/241512Z !MOB 10/047 MOB TWY B SFC PAINTED HLDG PSN SIGNS BTN RWY 15/33 AND RWY 18/36 NOT STD 2410311512-2512312300
10/31/241510Z !MOB 10/046 MOB TWY A CL MARKINGS NOT STD 2410311510-2512312300
8/18/241812Z !MOB 08/061 MOB NAV ILS RWY 33 NOT MNT 2408181812-2506162000EST
8/18/241812Z !MOB 08/060 MOB NAV ILS RWY 15 NOT MNT 2408181812-2506162000EST
5/7/241539Z !MOB 05/006 MOB OBST CRANE (ASN 2023-ASO-29118-OE) 304237N0881537W (1.4NM NW MOB) 308FT (140FT AGL) FLAGGED AND LGTD 2405071539-2505092300
FDC
11/6/241348Z !FDC 4/9692 MOB IAP MOBILE RGNL, MOBILE, AL.
ILS OR LOC RWY 33, AMDT 7C...
MISSED APPROACH: CLIMB TO 700 THEN CLIMBING RIGHT TURN TO 2000 DIRECT BFM VORTAC AND HOLD.,
SJI VOR OUT OF SERVICE. 2411061348-2508091348EST
11/6/241348Z !FDC 4/9691 MOB IAP MOBILE RGNL, MOBILE, AL.
ILS OR LOC RWY 15, AMDT 32A...
ILS RWY 15 (SA CAT I AND II), AMDT 32A....
MISSED APPROACH: CLIMB TO 2000 ON HEADING 147 AND RIGHT TURN ON BFM VORTAC R-242 TO SAINT/BFM 9.20 DME AND HOLD (DME REQUIRED).
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
SJI VOR OUT OF SERVICE. 2411061348-2508091348EST
5/16/231232Z !FDC 3/6872 MOB IAP MOBILE RGNL, MOBILE, AL.
VOR OR TACAN-A, AMDT 2B...
VOR PORTION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
2305161232-2505161232EST
Yes
ALL
MOBILE AIRPORT AUTHORITY
P O BOX 88004
MOBILE, AL 36608-0004
Phone: 251-633-4510
ANDY WILSON
P O BOX 88004
MOBILE, AL 36608-0004
Phone: 251-633-4510
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
MOB
--
WHEN ATCT CLSD ACTVT MALSR RWYS 15 & 33 - CTAF. PAPI RWYS 15 & 33 OPR CONSLY. HIRL RWY 15/33 PRESET STEP 3 OR HYR, BASED ON WX CONDS.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 15/33

8502 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
55 /F/D/W/U
75,000lbs
162,000lbs
270,000lbs
550,000lbs
  Runway 15 Runway 33
True Heading 144°324°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 30° 42' 08"N 30° 40' 60"N
Longitude 88° 15' 14"W 88° 14' 17"W
Elevation 213' 213'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway 18/36

4376 ft. x 150 ft.
ASPH
Good
GRVD
MED
14 /F/D/W/U
47,000lbs
60,000lbs
96,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 30° 41' 41"N 30° 40' 58"N
Longitude 88° 14' 11"W 88° 14' 11"W
Elevation 216' 212'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

100 ft. x 100 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 91°271°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 41' 02"N N/A
Longitude 88° 14' 53"W N/A
Elevation 214' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

60 ft. x 40 ft.

ASPH
NONE


--
--
--
--
  Runway H2 Runway
True Heading 91°271°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 42' 14"N N/A
Longitude 88° 15' 10"W N/A
Elevation 208' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

60 ft. x 60 ft.

CONC
NONE


--
--
--
--
  Runway H3 Runway
True Heading 91°271°
Traffic Pattern
Markings
Markings Condition
Latitude 30° 41' 35"N N/A
Longitude 88° 14' 35"W N/A
Elevation 215' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-47RVR UNAVBL WHEN ATCT CLSD.
A110-48COAST GUARD; W APRON , E APRON.
A110-49CONDS NOT MNTD WHEN ATCT CLSD.
A110-50FOR CD IF UNA TO CTC ON FSS FREQ, CTC HOUSTON ARTCC AT 281-230-5622.
A110-51RWY 18/36 NOT AVBL FOR SKED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSKED ACR AT LEAST 31 PSGR SEATS.
MOBILE RGNL (ICAO: KMOB, IATA: MOB) is a public airport located in MOBILE, AL.
