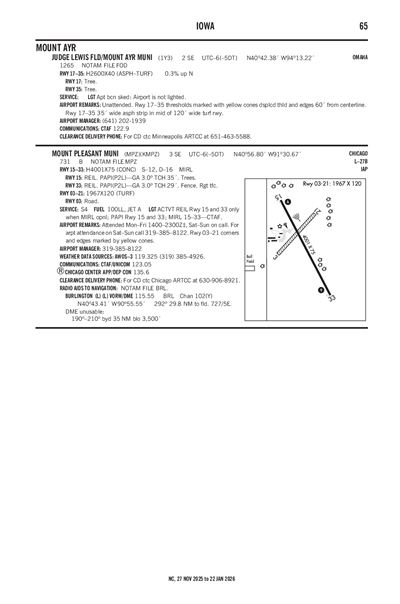

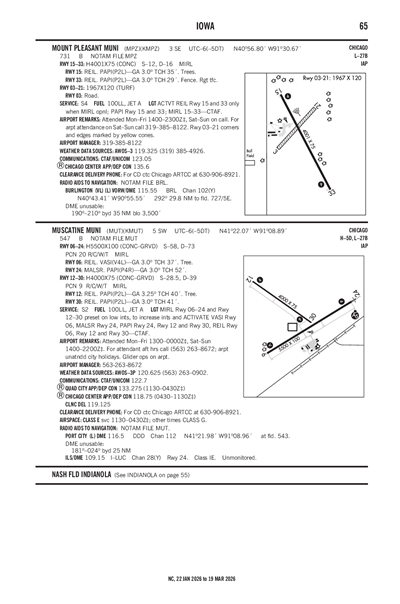

MOUNT PLEASANT MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KMPZ
ICAO KMPZIATA MPZLocal MPZ
MOUNT PLEASANT MUNI
PublicPUB

3 miles SE of MOUNT PLEASANT, IA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 56' 48"N 91° 30' 40"W
Elevation
731' MSL
Pattern Alt
1731' MSL
Mag Variation
1°W
Declination
0°
Fuel
JET A, 100LL
FSS
FORT DODGE (FOD)
Sectional
CHICAGO
ARTCC
CHICAGO (ZAU)
Data Effective
10/1/26-10/29/26
KMPZ IFR
9:35 PM CDT
Haze
Obscured 700'
1sm
52°F
43°F
30.28"Hg
Calm
AO2
METAR KMPZ 030235Z AUTO 00000KT 1SM HZ VV007 11/06 A3028 RMK AO2
+ Add Your Business

KMPZ FBOs

Promote Listing
Air Advantage
UNICOM: 123.05
Phone: (319) 385-8122
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 9/29
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.92
Full Serve 6.88
Fuel Notes
Prices include tax
Fuel Hours
Self-service pumps available 24 hours
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 119.325
(319) 385-4926

Common

CTAF 123.05
ACTVT REIL RWY 15 & 33 ONLY WHEN MIRL OPNL; PAPI RWY 15 & 33; MIRL 15/33 - CTAF.
UNICOM 123.05

Center

CHICAGO CENTER 135.6
LOW, APCH/DEP SVC PRVDD BY CHICAGO ARTCC ON FREQS 135.6/316.1 (BURLINGTON RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KBRL (20nm)
Fri, 10/2 6:20 PM CDT
Fri, 10/2 7:00 PM CDT - Sat, 10/3 7:00 PM CDT
VFR
7:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
020° 4kts
VFR
1:00 AM CDT - 10:00 AM CDT
Sky Clear
6sm
070° 4kts
VFR
10:00 AM CDT - 2:00 PM CDT
Sky Clear
6sm
130° 6kts
VFR
2:00 PM CDT - 7:00 PM CDT
Sky Clear
6sm
170° 7kts
TAF KBRL 022320Z 0300/0324 02004KT P6SM SKC
   FM030600 07004KT P6SM SKC
   FM031500 13006KT P6SM SKC
   FM031900 17007KT P6SM SKC
KMPZ
EffectiveExpiresCategoryNOTAM
Domestic
10/1/26
0159Z
11/15/26
0159Z
!MPZ 10/001 MPZ OBST TOWER LGT (ASN 2018-ACE-5049-OE) 410646N0912620W (10.5NM NNE MPZ) 1030FT (315FT AGL) U/S 2610010159-2611150159
9/14/26
1123Z
10/14/26
2300Z
!MPZ 09/005 MPZ OBST TOWER LGT (ASN 2002-ACE-95-OE) 405055N0913439W (6.6NM SSW MPZ) 1004FT (310FT AGL) U/S 2609141123-2610142300
9/6/26
0320Z
10/21/26
0319Z
!MPZ 09/003 MPZ OBST TOWER LGT (ASR 1018565) 410148.10N0911910.50W (10.0NM ENE MPZ) 1157.8FT (344.8FT AGL) U/S 2609060320-2610210319
8/20/26
1907Z
10/20/26
2359Z
!MPZ 08/006 MPZ OBST TOWER LGT (ASR 1233657) 405533.70N0912536.20W (4.0NM ESE MPZ) 1032.8FT (279.9FT AGL) U/S 2608201907-2610202359
6/9/26
1858Z
10/2/26
2200Z
!MPZ 06/002 MPZ OBST CRANE (ASN 2026-ACE-726-OE) 405815N0913446W (3.4NM WNW MPZ) 926FT (200FT AGL) NOT LGTD 2606091858-2610022200
4/8/26
1300Z
Runway!MPZ 04/003 MPZ RWY 33 PAPI U/S 2604081300-2610072111EST
No
MON-FRI 0800-1700
SAT-SUN ON-CALL
FOR ARPT ATTENDANCE ON SAT-SUN CALL 319-385-8122
CITY OF MT PLEASANT
220 WEST MONROE
MT PLEASANT, IA 52641
Phone: 319-385-1470
CLIFFORD BAKER
1720 SOUTH IRIS STREET
MT PLEASANT, IA 52641
Phone: 319-385-8122
FORT DODGE FSS (FOD)
Toll Free: 1-800-WX-BRIEF
MPZ
--
ACTVT REIL RWY 15 & 33 ONLY WHEN MIRL OPNL; PAPI RWY 15 & 33; MIRL 15/33 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 03/21

1967 ft. x 120 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 03 Runway 21
True Heading 42°222°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 40° 56' 44"N 40° 56' 58"N
Longitude 91° 30' 52"W 91° 30' 35"W
Elevation 721' 726'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

4001 ft. x 75 ft.
CONC
Excellent
NONE
MED

12,000lbs
16,000lbs
--
--
  Runway 15 Runway 33
True Heading 152°332°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 57' 04"N 40° 56' 29"N
Longitude 91° 30' 51"W 91° 30' 27"W
Elevation 725' 730'
Threshold Crossing Height 35 ft. AGL 29 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC CHICAGO ARTCC AT 630-906-8921.
A16OR 319-385-1487.
A17-D2FOR ARPT ATTENDANCE ON SAT-SUN CALL 319-385-8122
A42-03_MARK03/21 CORNERS & EDGES MKD BY YELLOW CONES.
A81-APTACTVT REIL RWY 15 & 33 ONLY WHEN MIRL OPNL; PAPI RWY 15 & 33; MIRL 15/33 - CTAF.
E111PRVDD VISUAL INDICATORS PER AC 150/5340-5 ARE USED & IF NIGHTTIME OPNS ARE CONDUCTED/PLANNED, FLOODLIGHTING OF SEGMENTED CIRCLE NECESSARY.
MOUNT PLEASANT MUNI (ICAO: KMPZ, IATA: MPZ) is a public airport located in MOUNT PLEASANT, IA, US.
